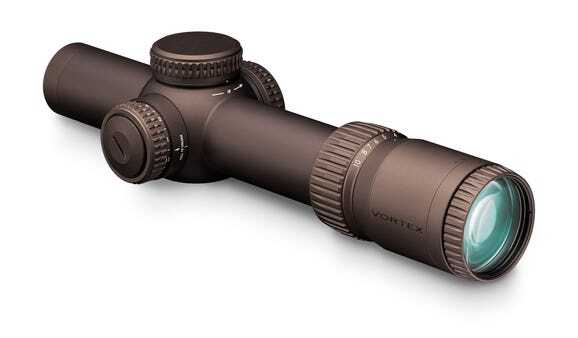

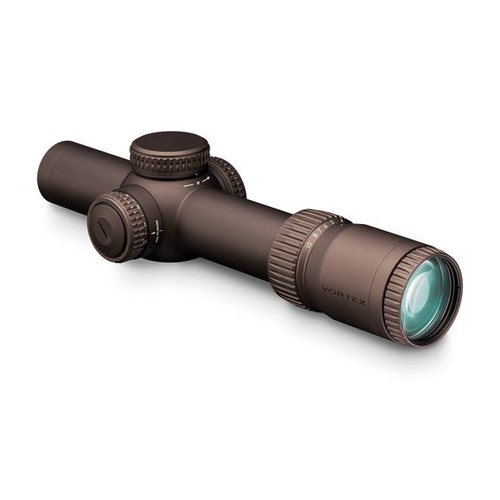

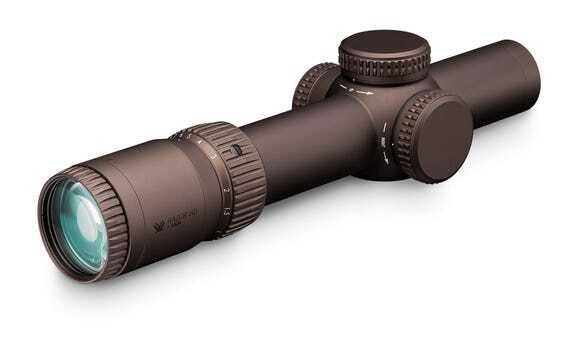

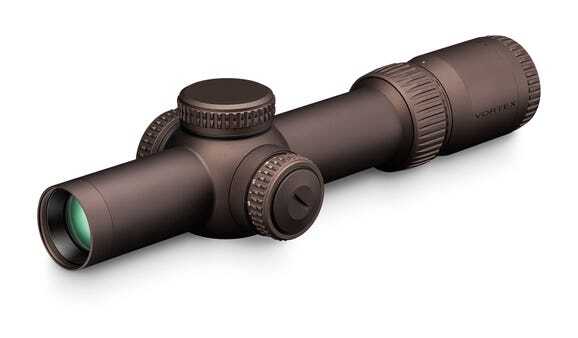

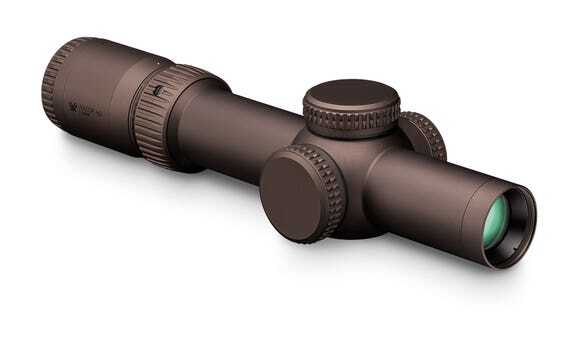

The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.

Included in the Box:

  • Sunshade
  • Lens cloth
  • CR2032 Battery
  • Throw lever
  • L-TEC Tool

OPTICAL
APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
HD Lens Elements
Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

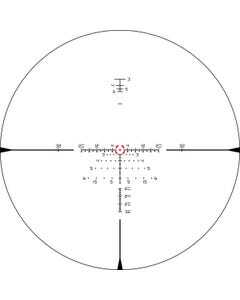

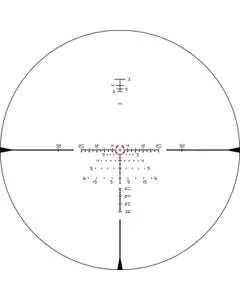

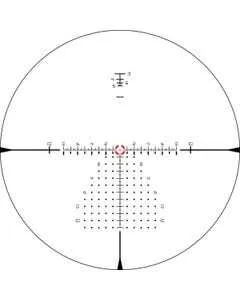

Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Center Dot
Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.

CONSTRUCTION
Tube Size
34 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof - IPX7
Designed to meet IPX7 waterproofing standards.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Hard Anodized Stealth Shadow Finish
Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.

INTERNAL MECHANISM DESIGN
Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
Erector Tube System
Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and al

CONVENIENCE
L-Tec™ Tool
Included with your scope for precise adjustments to the turret.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

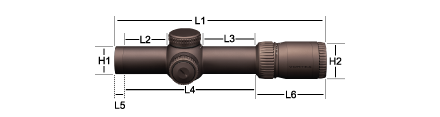

Razor HD Gen III 1-10x24 FFP Dimensions (in inches)



Lengths
L1 L2 L3 L4 L5 L6
10.1 2.0 2.5 6.7 0.4 3.4
Heights
H1 H2
1.3 1.8
SKU VORRZR1-10X24
Model # RZR1-10X24
Brand Vortex
Magnification 1-10x
Tube Size 34mm
Focal Plane FFP (First Focal Plane)
Objective Lens Diameter 24mm
Parallax Adjustment Fixed
Parallax Setting 137m
Turret Style Capped
Eye Relief 91mm
Field of View 116-11.7ft @ 91m
Illuminated Reticle Yes
Adjustment Graduation .1 MRADAdjustment Graduation .25 MOA
Travel Per Rotation 25 MOATravel Per Rotation 10 MRAD
Max Elevation Adjustment 30 MRADMax Elevation Adjustment 110 MOA
Max Windage Adjustment 120 MOAMax Windage Adjustment 30 MRAD
Elevation Turret Style Capped
Windage Turret Style Capped
Length 257mm
Weight 610 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
