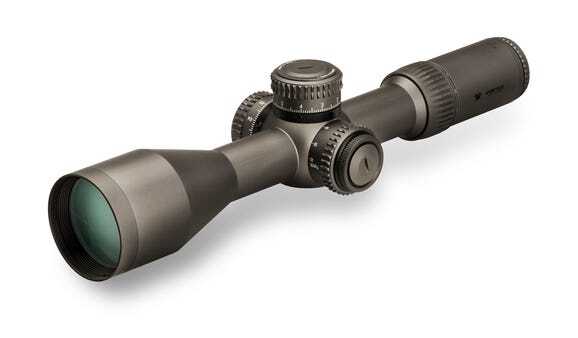

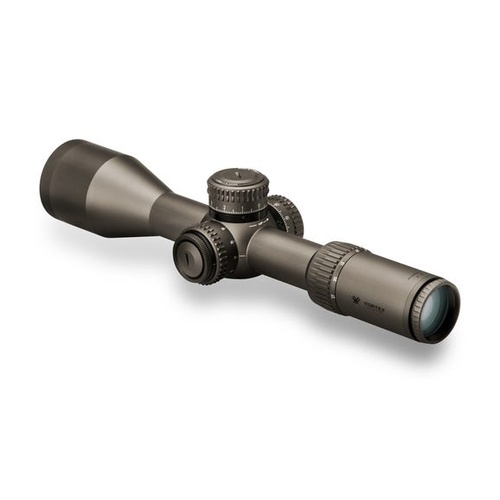

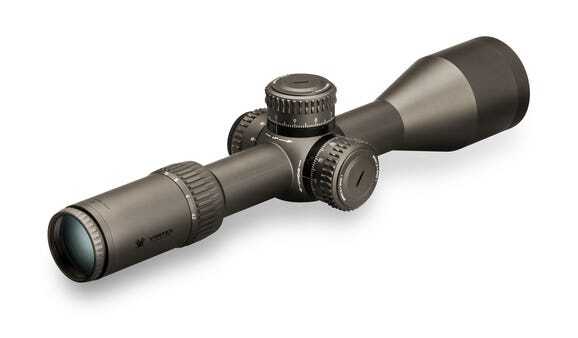

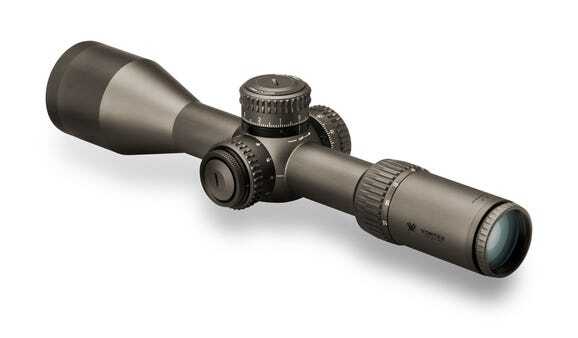

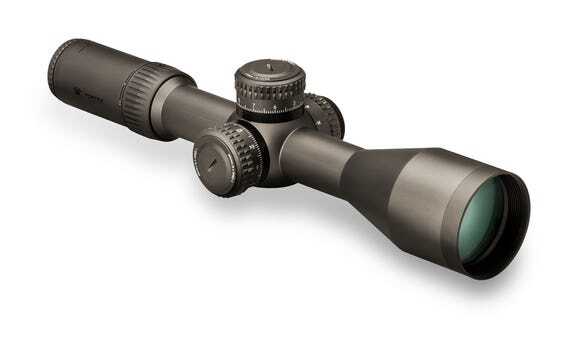

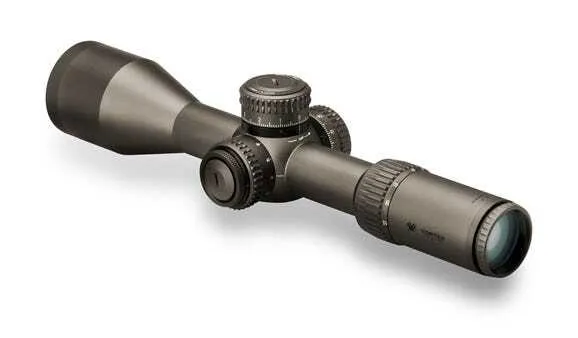

The new frontrunners in the race for the ultimate precision, long-range optics, the Gen II Razors, designed and engineered for dialing precision long-range shots in extreme environments, have serious precision shooters saying "finally". The Gen II Razors feature a 6x zoom range, a 34mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec turret system plus a host of additional high-performance features for state-of-the-art optics with deadly accuracy.

Included in the Box:

  • L-Tec Tool
  • 4-inch sunshade
  • 2mm hex wrench
  • CR2032 battery
  • Lens cloth

OPTICAL
APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
HD Lens Elements
Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Plasma Tech
Cutting edge coating application process provides unparalleled coating durability and performance

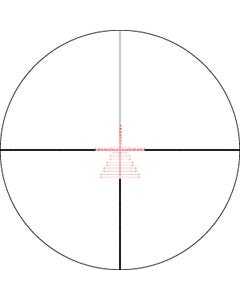

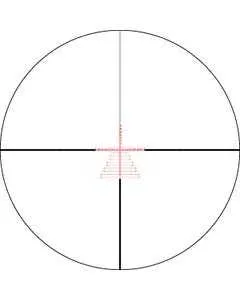

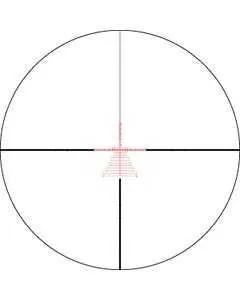

First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle
Provides precise aiming under low-light conditions

CONSTRUCTION
Tube Size
34 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Stealth Shadow Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
L-Tec™ Turrets
Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
External Rotation Indicator
Provides quick visual and tactile reference of elevation turret’s rotational position.
Locking Illumination
Locks illumination at preferred setting.
Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DETAIL
L-Tec™ Zero Stop
Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position.
Maximized Turret Zero Adjustment
Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes.
Micro Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
Turret Screws
Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
Erector Tube System
Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and al

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
L-Tec™ Tool
Included with your scope for precise adjustments to the turret.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Razor HD Gen II 4.5-27x56 FFP Dimensions (in inches)





Lengths
L1 L2 L3 L4 L5 L6
14.4 1.96 2.17 6.11 4.13 4.1
Heights
H1 H2
2.55 1.81
SKU VORRZR4.5-27X56
Model # RZR4.5-27X56
Brand Vortex
Magnification 4.5-27x
Tube Size 34mm
Focal Plane FFP (First Focal Plane)
Objective Lens Diameter 56mm
Parallax Adjustment Side Focus
Parallax Setting 29m to Infinity
Turret Style Exposed
Eye Relief 94mm
Field of View 25.3-4.4ft @ 91m
Illuminated Reticle Yes
Adjustment Graduation .1 MRADAdjustment Graduation .25 MOA
Travel Per Rotation 25 MOATravel Per Rotation 10 MRAD
Max Elevation Adjustment 33 MRADMax Elevation Adjustment 113 MOA
Max Windage Adjustment 48 MOAMax Windage Adjustment 14 MRAD
Elevation Turret Style Exposed Locking
Windage Turret Style Exposed
Length 366mm
Weight 1375 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
