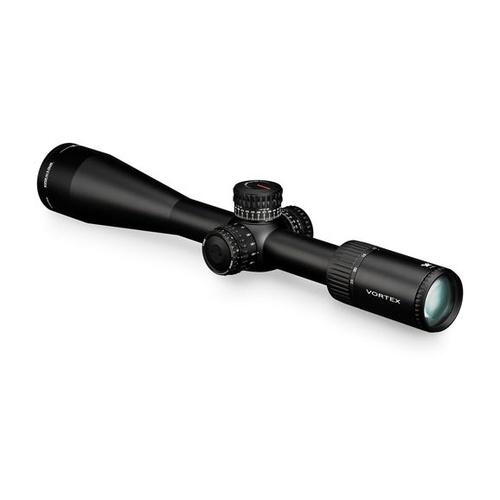

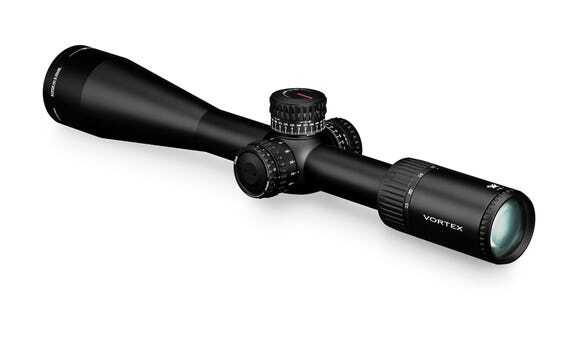

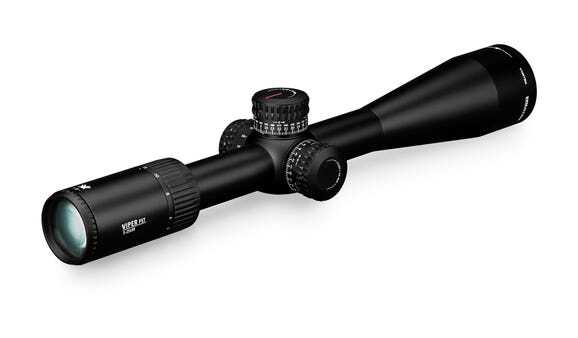

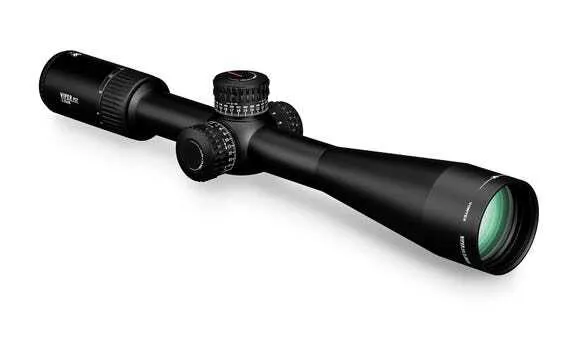

The Viper PST Gen II hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.

Included in the Box:

CR2032 battery Lens cloth 2 mm hex wrench 3" sunshade

OPTICAL
XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

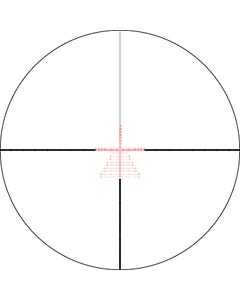

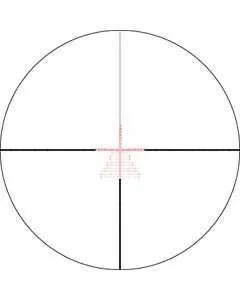

Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle
Provides precise aiming under low-light conditions

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Tactical-Style Turrets
Exposed turrets provide fast, accurate and easily read elevation and windage adjustments.

INTERNAL MECHANISM DESIGN
RZR™ Zero Stop
Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials - even when setting the zero-stop position.
Precision-Force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE
Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Built-In Accuracy Features
Matching (MRAD or MOA) turrets and reticles facilitate fast and accurate shooting at extended ranges. The patented fiber optic Radius Bar visually assists tracking turret rotations.

Viper PST Gen II 5-25x50 FFP Dimensions (in inches)





Lengths
L1 L2 L3 L4 L5 L6
15.79 2.37 2.58 6.59 5.6 3.59
Heights
H1 H2
2.3 1.8
SKU VORPST5-25X50
Model # PST5-25X50
Brand Vortex
Magnification 5-25x
Tube Size 30mm
Focal Plane FFP (First Focal Plane)
Objective Lens Diameter 50mm
Parallax Adjustment Side Focus
Parallax Setting 23m to Infinity
Turret Style Exposed
Eye Relief 86mm
Field of View 24.1-4.8ft @ 91m
Illuminated Reticle Yes
Adjustment Graduation .1 MRADAdjustment Graduation .25 MOA
Travel Per Rotation 25 MOATravel Per Rotation 10 MRAD
Max Elevation Adjustment 70 MOAMax Elevation Adjustment 20 MRAD
Max Windage Adjustment 30 MOAMax Windage Adjustment 10 MRAD
Elevation Turret Style Exposed
Windage Turret Style Exposed
Length 401mm
Weight 884 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
