Overview

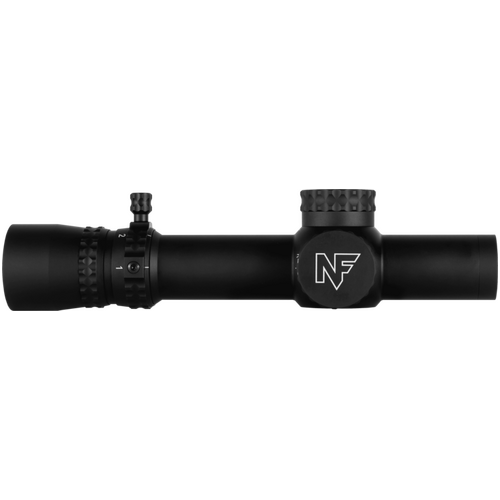

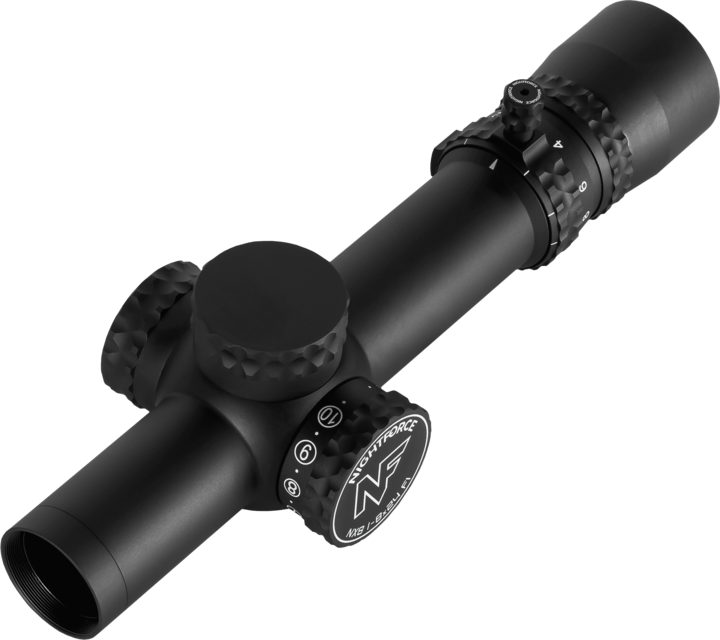

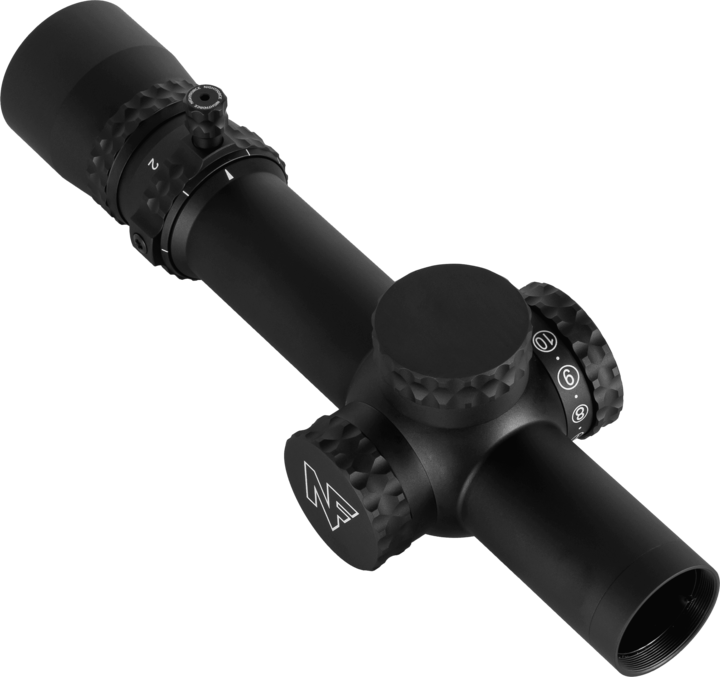

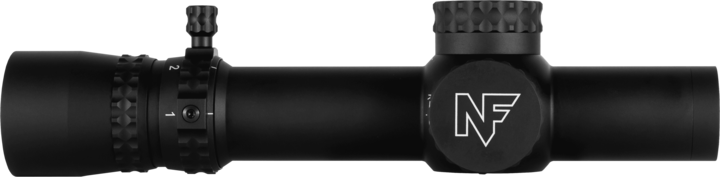

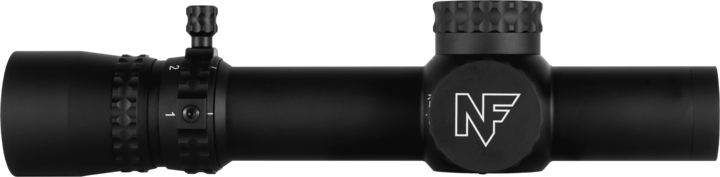

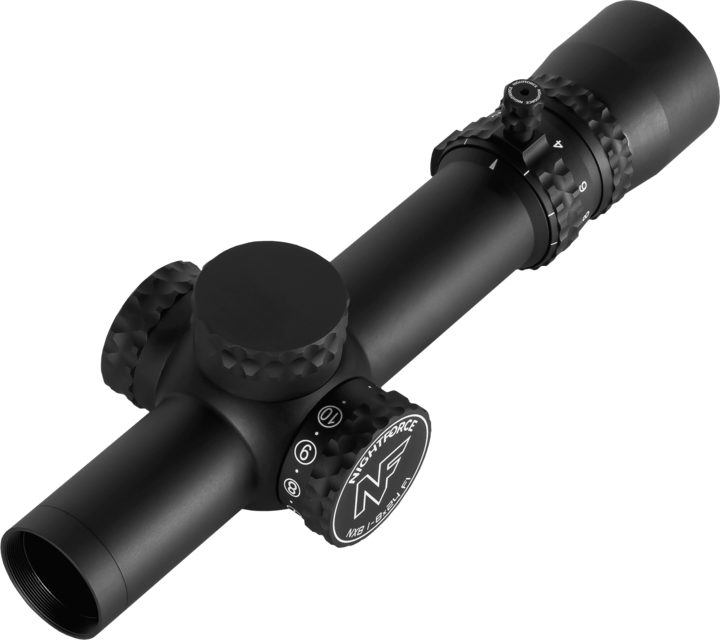

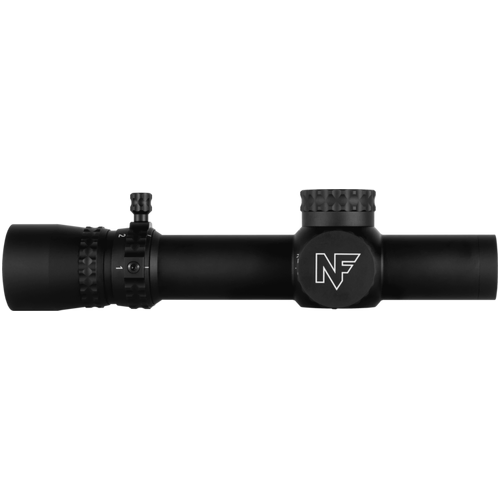

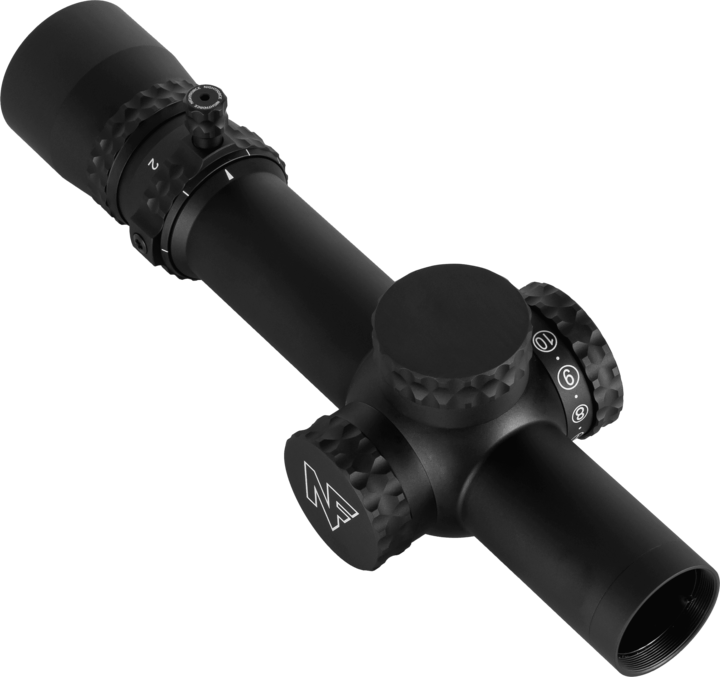

At only 8.75“ in length and 17 ounces, the  NX8™ 1-8X24 F1 is a powerful, compact, and lightweight riflescope. New for 2022, The NX8™ 1-8X24 F1 is now available with a capped elevation turret to ensure the elevation adjustment is not accidentally moved during transit or rough handling.

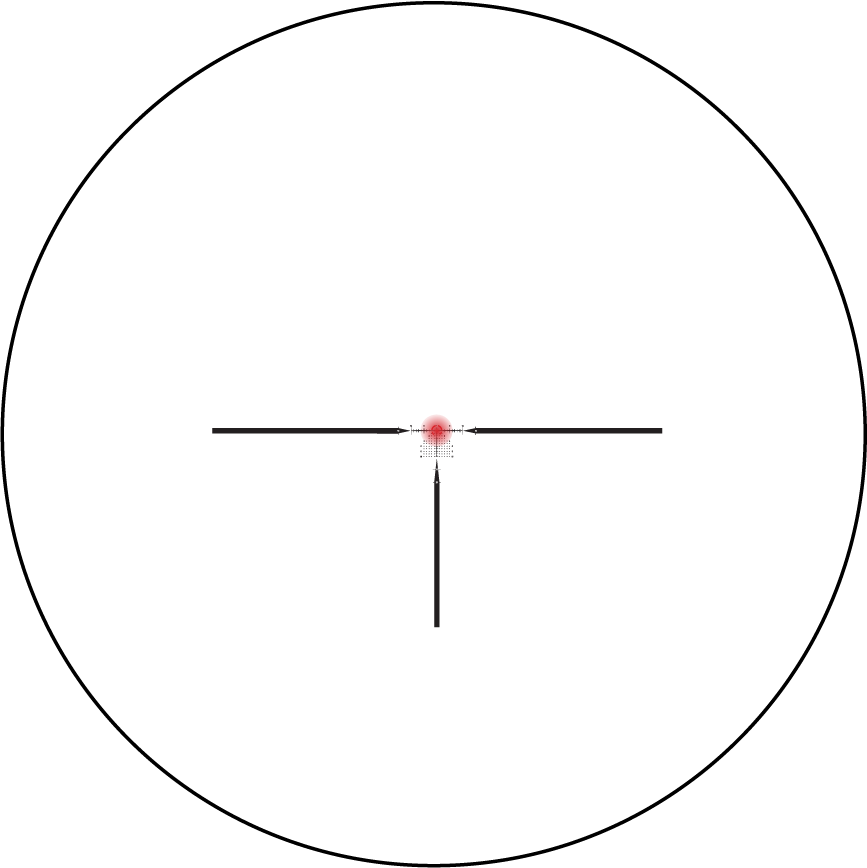

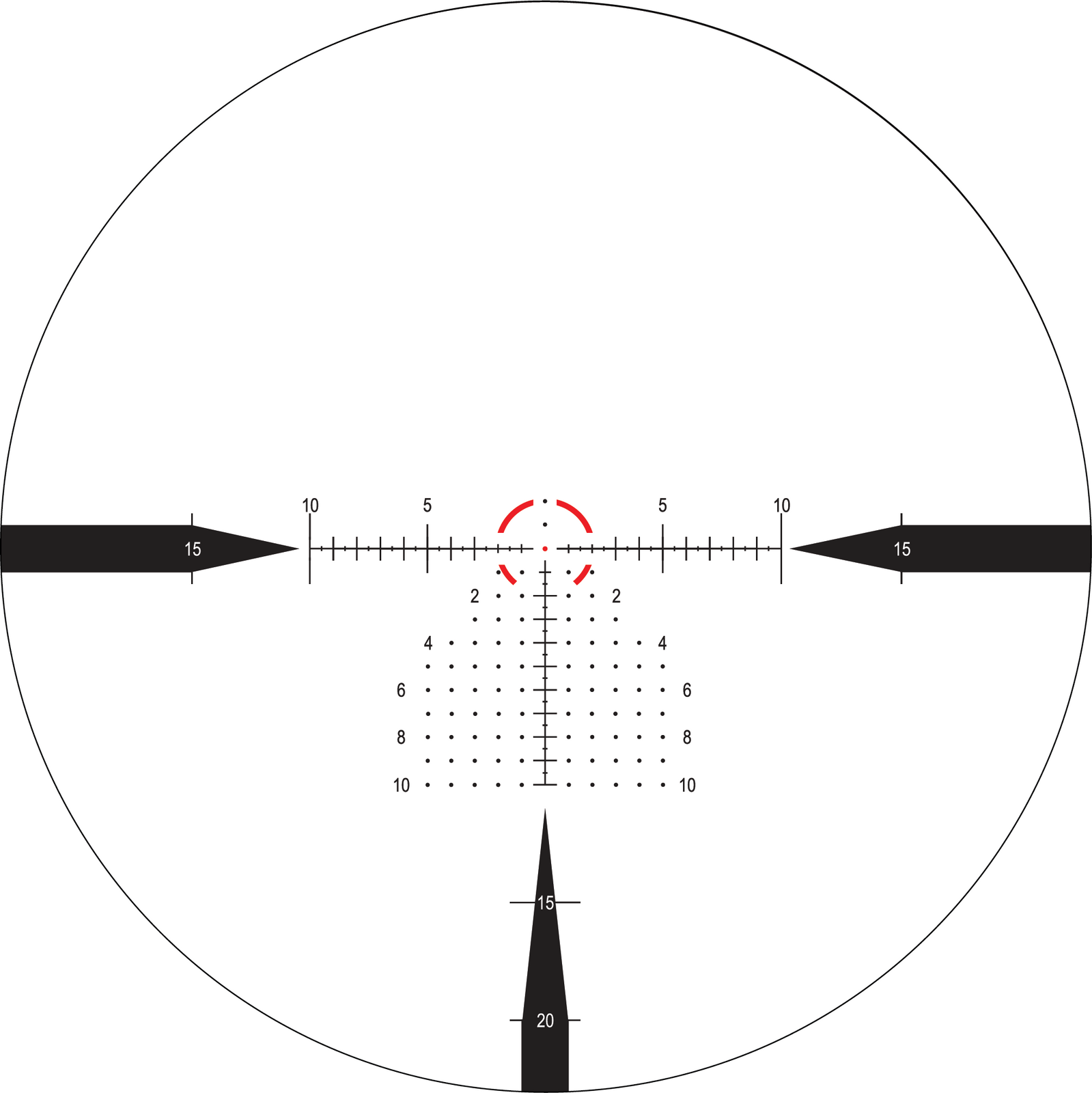

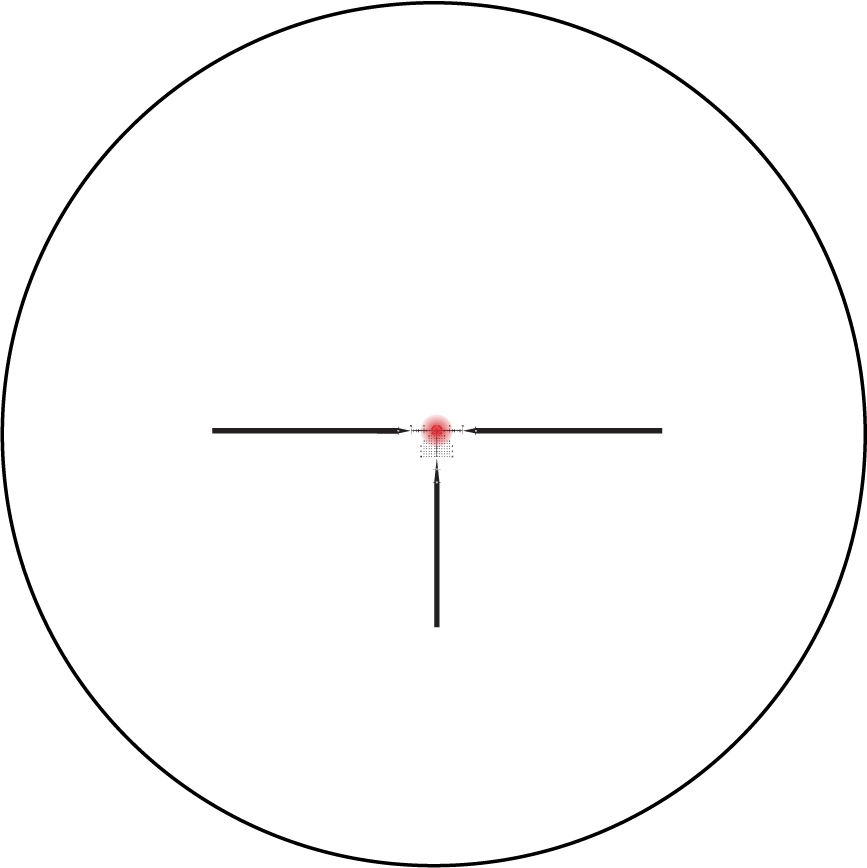

The NX8™ 1-8X24 F1 with capped elevation adjustment also includes our new FC-DMx reticle, previously only available in the ATACR 1-8×24 F1. The decreased center dot size (.2MRAD/.7MOA) allows for a more precise aiming point when at high magnification and the large (4 MRAD) segmented circle allows for a clear view of the target. Nightforce has maintained the daylight bright illumination that allows for use in any conditions at 1x or high magnification.

The NX8™ 1-8X24 F1 with a capped elevation adjustment and FC-DMx reticle is available in both Dark Earth and Black to give you color options when kitting out your favorite rifle.

Specifications

BrandNightforce Optics
Model #C654
Magnification RangeLow (-> 10x)
Exit Pupil7.9 - 3
Field of View (Degrees)20 - 2.5
Field of View (Linear)35.3 - 4.4m @ 100m
Weight (grams)490
Length (mm)222
Parallax Distance125m
Windage Travel30 MRAD
Elevation Travel30 MRAD
Windage Turret StyleCapped
Elevation Turret StyleCapped
Adjustment Graduation.2 MRAD
Eye Relief95
Tube Size30mm
Illuminated ReticleYes
BatteryCR2032
Objective Size19-24mm
Magnification1-8x
Turret StyleCapped Target
AdjustmentMRAD
Parallax AdjustmentFixed
Objective Lens Diameter24mm
ReticleFC-DMx (Illuminated)
Focal PlaneFFP (First Focal Plane)
