infiray-mate-mal25-thermal-clip-on

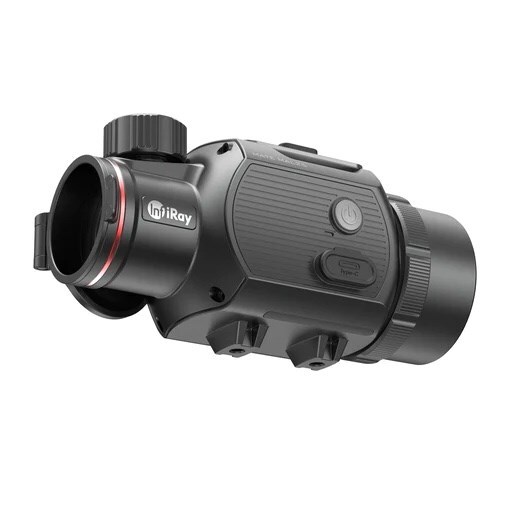

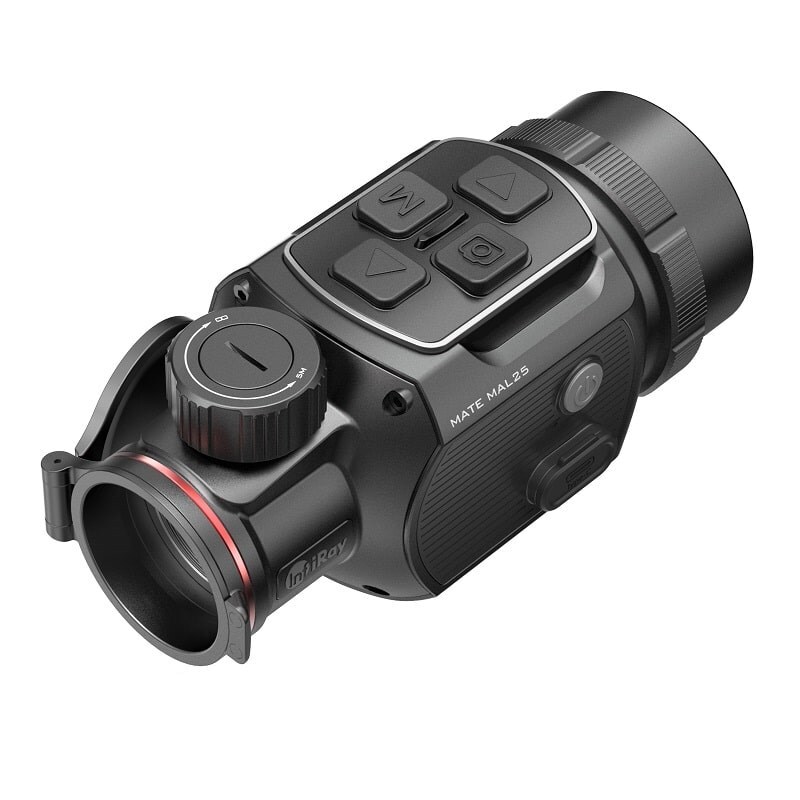

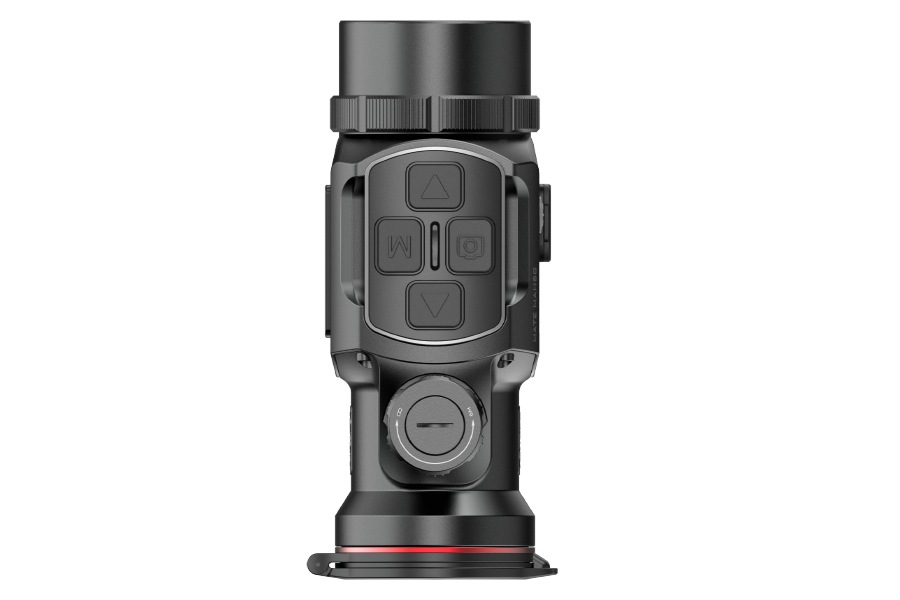

The InfiRay Mate MAL25 can be used both as an attachment and as an observation device. The thermal imaging camera has a compact and robust housing. With a length of 18,4 cm, the InfiRay MATE MAL 25 is pleasantly short. With its 25 mm lens, it is suitable for medium and long distances. The device offers ultra-precise adjustability in the X and Y axes. The thermal imaging sensor has a resolution of 384 x 288 pixels, a pitch of 12 µm and a sensitivity of 30 mK. The thermal image is shown on an OLED HD display resolution: 1,024 x 768 pixels. There are five color palettes to choose from. The image can be focused manually. In terms of image quality, the MATE devices allow up to 10x magnification of the rifle scope. The contrast sharpness and image quality stand out clearly from the previous model and are the highlight of this camera. With the camera it is possible to save up to four different settings for optics. The thermal imaging device has a WLAN module. You can transfer the thermal image to your mobile device using an app. In addition, the thermal imaging camera now has a photo and video recording function (with 32 GB of internal memory). In addition, the device now has a picture-in-picture function, diopter adjustment for people who wear glasses and a Type-C HDMI video output for wired image transmission. The Mate MAL 25 has an internal battery.

Mate Series

MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.

Lightweight & Compact Size

The weights are over 20% lighter than other similar products. It is also more compact than our previous clip-on.

Powerful Detector

MAL25 provides cost-effective choices with the 384x288 sensor without major compromises in image quality with ≤ 30mk NETD.

Distortion-free

A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.

Sense-based Algorithms

The algorithms improve image quality by setting suitable preset parameters based on different environments, forests, plains, and citys.

Removable Buttons

The buttons can be moved and installed in any position on your rifle. This allows hunters to control the device easily even when their focus is on the target. The remote control is supported by an ultra-low power consumption solution and can attach magnetically for automatic charging.

Power Bank in Box

Mate Series add a power bank as a complementary accessory. It can prolong the battery life for approximately another 7 hours.

LRF Extension

LRF can be equipped as an optional accessory. In addition to facilitating accuracy, the LRF extension can work as a power bank to prolong the 4-hour battery life for MATE.

MAL25 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.

Model	MAL25
Detector Parameters
Resolution, pixels	384 × 288
Pixel size, um	12
NETD, mk	≤ 30
Frame rate, Hz	50
Optics Parameters
Objective lens, mm	25
Field of view (H x V), degrees / m @ 100 m	10.6 × 7.9 / 18.4 × 13.8
Recommended magnification of the day scope, x	G1/G2/G3/G4:1 - 5
Recommended magnification of the day scope, x	G1/G2/G3/G4:1 - 5
E-zoom	Attachment mode: ×1
E-zoom	Monocular mode: ×1/×2/×4
Detection range, m	1298
(Target size: 1.7m×0.5m, P(n)=99%)	1298
Display Parameters
Type	OLED
Resolution, pixels	1024 × 768
Electrical Parameters
Battery	Built-in battery + Infiray battery Pack
Max. battery life, h	5 + 7.5
USB Interface	Type-C
Physic Parameters
Body Material	MagnesiumAlloy
IP Rating	IP67
Remote control	Support
Built-in memory, GB	32
Aim point, MOA	1.5
Weight, g	460
Dimension, mm	132 × 62 × 68
Adapter Ring	M52×0.75

SKU	INFMAL25
Model #	MAL25
Brand	InfiRay
Magnification	1x
Objective Lens Diameter	25mm
Field of View	18.4 × 13.8m @ 100m
Angular Field of View	10.6 × 7.9°
Sensor Size	384px
Pixel Pitch	12 μm
NETD	<30 mk
Maximum Detection Range	1298m
Display Size	1024x768
Battery	IBP-4
Length	132mm
Weight	460 grams
