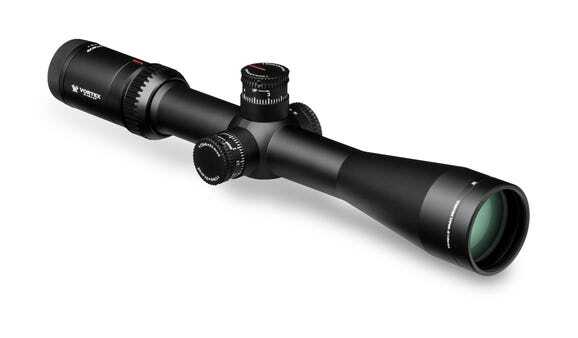

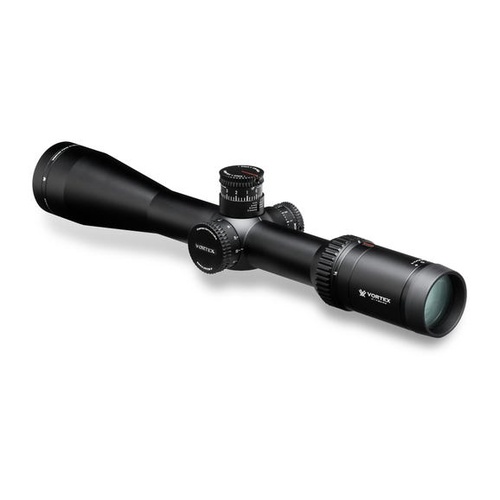

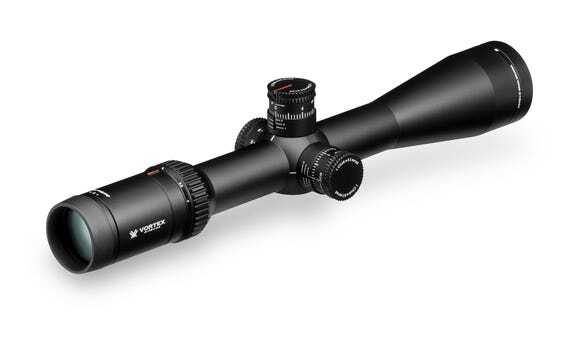

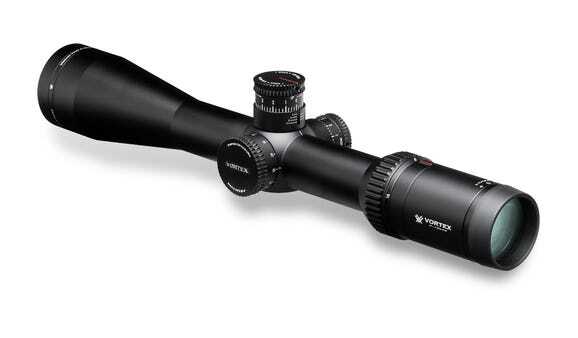

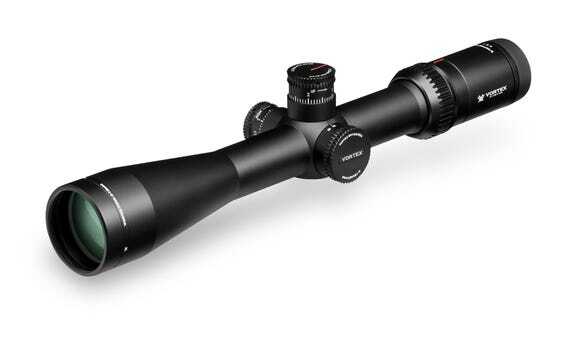

Tree stands to mountain tops, bolt guns to ARs, the Viper HST is ideal for a wide range of shooting applications. Blending many of the best features from Vortex's incredibly popular Viper PST and Viper HS riflescopes, the Viper HST riflescope is built on an ultra-strong 30mm, one-piece aluminum tube to deliver ample windage and elevation travel and optimal adjustment. An advanced optical system, highlighted with a 4x zoom range, provides magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Incredibly precise, repeatable and durable tactical turrets built specifically for dialing, along with its hashmark-based VMR-1 reticle, top off this highly versatile riflescope’s long-range performance features.

Included in the Box:

  • 4-inch sunshade
  • Protective lens caps
  • CRS shims
  • Lens cloth

OPTICAL
XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Exposed Tactical-Style Turrets
Provide fast, accurate and easily read elevation and windage adjustments.
Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN
CRS™ Zero Stop
Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.
Precision-Force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE
MAG-View Fiber Optic
Provides a highly visible reference point for the magnification setting.
Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.

Viper HST 4-16x44 Dimensions (in inches)





Lengths
L1 L2 L3 L4 L5 L6
13.33 2.1 2.17 5.61 4.11 3.6
Heights
H1 H2
2.03 1.65
SKU VORVHST4-16X44
Model # VHST4-16X44
Brand Vortex
Magnification 4-16x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 44mm
Parallax Adjustment Side Focus
Parallax Setting 46m to Infinity
Turret Style Exposed
Eye Relief 102mm
Field of View 27.4-7.4ft @ 91m
Adjustment Graduation .1 MRADAdjustment Graduation .25 MOA
Travel Per Rotation 12 MOATravel Per Rotation 5 MRAD
Max Elevation Adjustment 75 MOAMax Elevation Adjustment 21 MRAD
Max Windage Adjustment 75 MOAMax Windage Adjustment 21 MRAD
Elevation Turret Style Exposed
Windage Turret Style Exposed
Length 339mm
Weight 590 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
