Atlas 5-H Bipod

Atlas: We are Support

$769.00
Sold Out
1-3 months if out of stock

Qualifies for Free Freight

The 5-H Atlas Bipod is the culmination of everything that we have learned about making Bipods. Designed with and for the big bore shooter.


Model

The new and improved range of Atlas bipods now offer stronger leg support, longer non-rotating legs along with strengthened leg bosses. These improvements are combined with the standard features which include legs that move independently and can be deployed in a 45 degree position. Positional either forwards or backwards, in the traditional 90 degree position, and facing directly to the front or back, locking securely into 5 positions through a 180 degree arc. It provides the shooter with 30 total degrees left to right Pan as well as 30 total degrees of Cant; making it easy to align your cross hairs on the target regardless of the terrain.

Mounting Options:

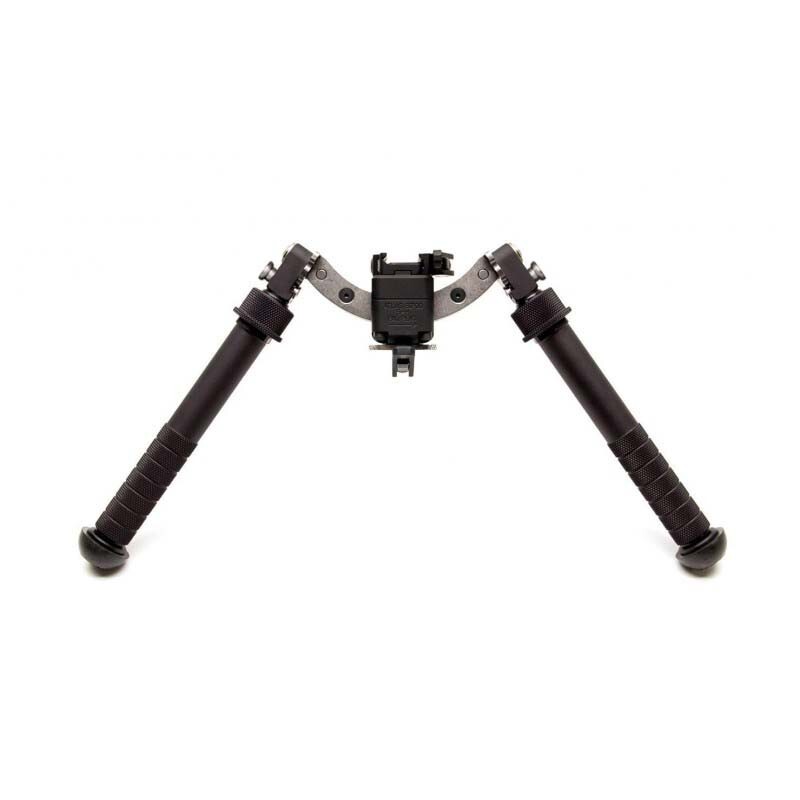

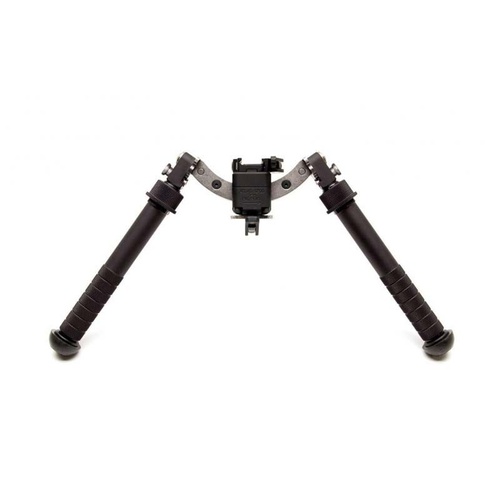

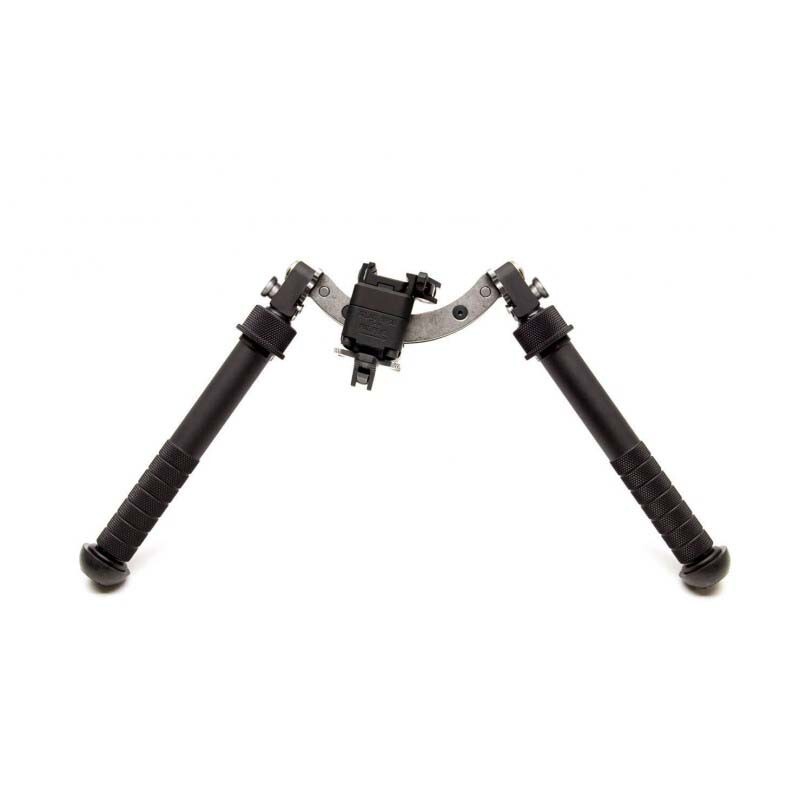

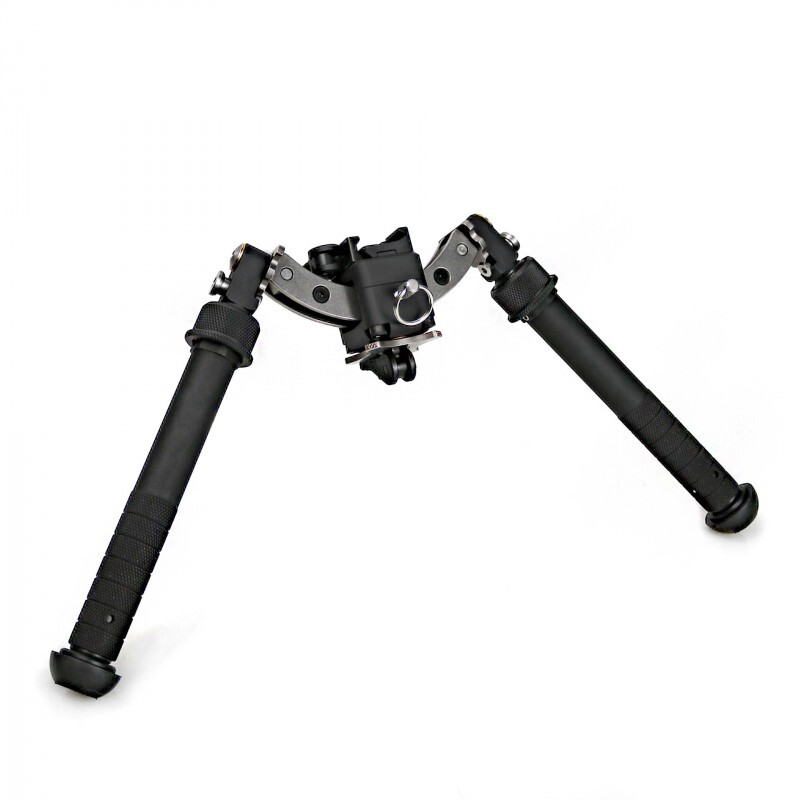

QR Picatinny (LW-17)
Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

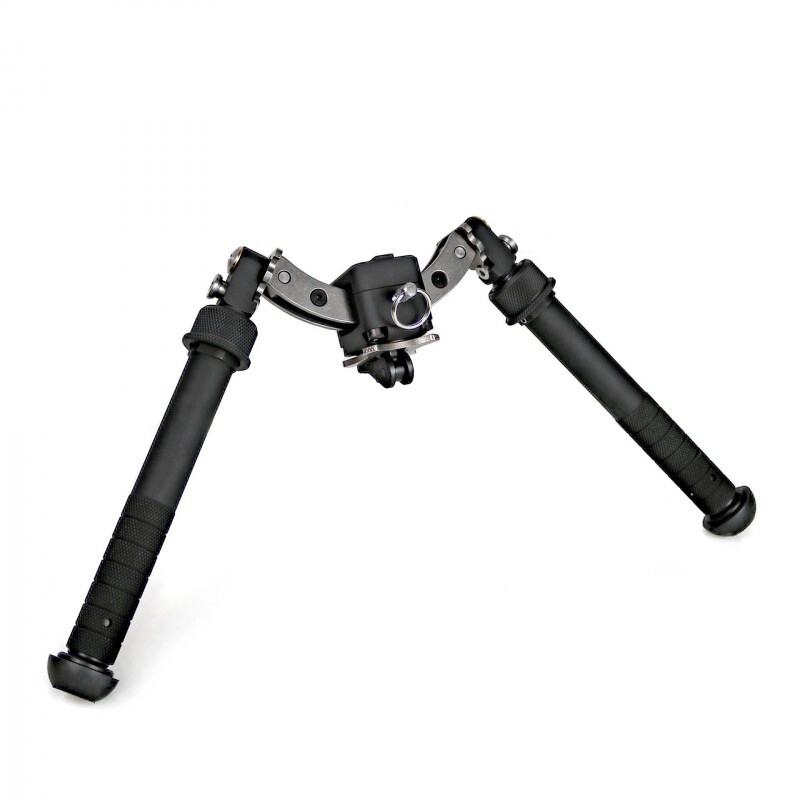

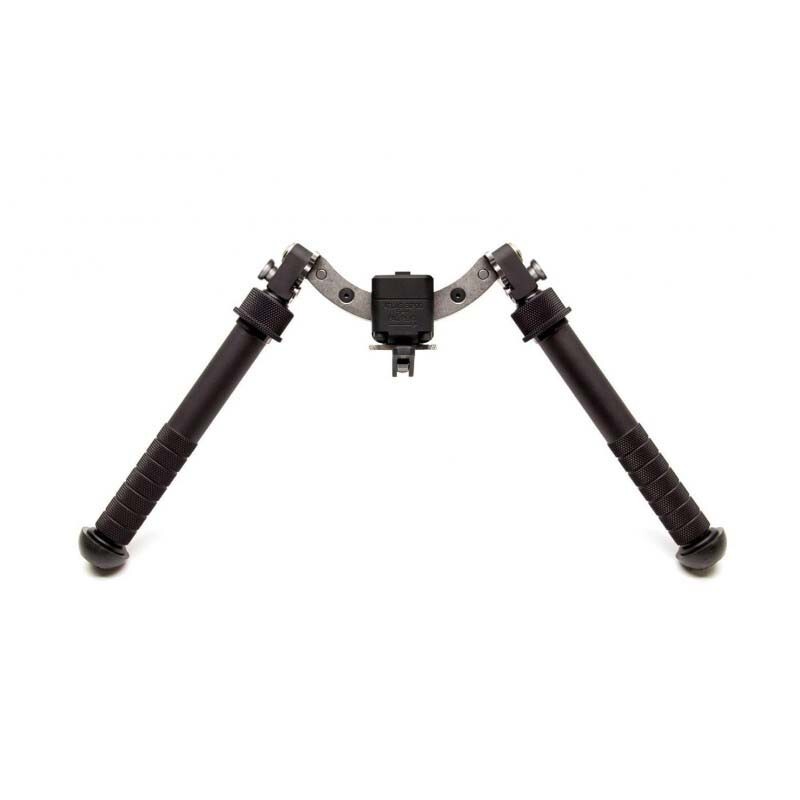

No Clamp
This model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount to include the ADM-170-S, ARMS 17S, TRAMP from Badger Ordnance, LT271 or any ARCA dovetail mount with the same hole pattern. The BT10-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.


  • Height Range: 5.5–10.5" (6.62” at 90°)
  • Pan: 30 degrees
  • Cant: 30 degrees
  • Pan and Cant can be locked out at top dead center
  • Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
  • Position Button 0.5" diameter
  • 5 leg positions: 0, 45, 90, 135 & 180 degrees
  • Non-Rotating Legs: outer leg does not rotate around inner leg
  • Weight: 25.74 ounces approx.
  • Footprint: 14.5–19.5"
SKU BAT5H
Brand B&T industries
Product Line Atlas Bipods
Length 140-267mm
Weight 730grams
Cant/Incline 30 degreesm3
Type Accessories
Sub Type Bipod
