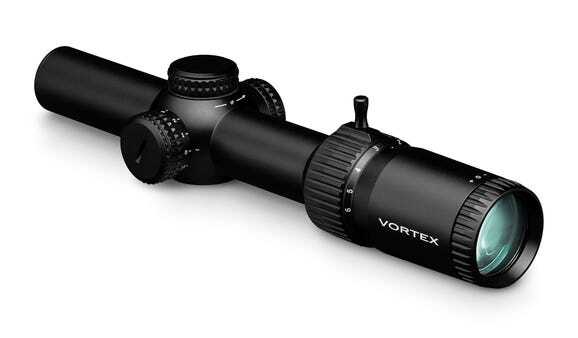

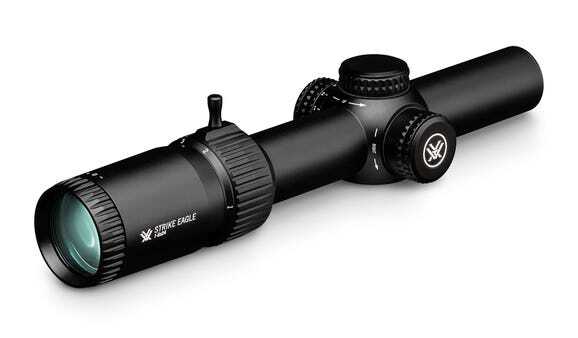

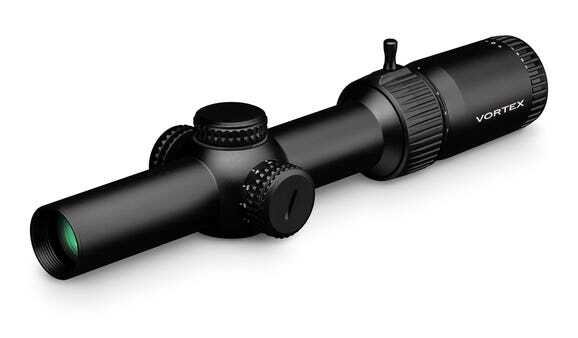

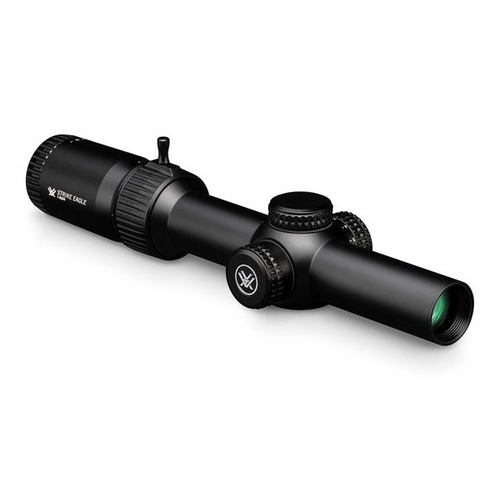

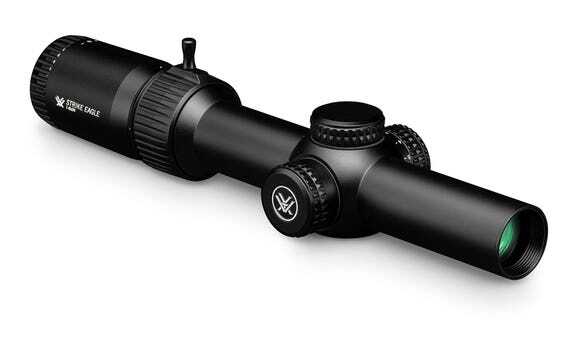

Vortex Strike Eagle 1-8x24

Optimize the versatility and quick-handling attributes of your AR with the redesigned Strike Eagle. A true 1x on the low end, Strike Eagle zooms to let shooters rapidly engage targets near and far, and an AR-BDC3 reticle aids in rapid shooting while providing holdover and ranging references from 0-600 yards. Plus, with a thread-in throw lever, you’ll be on target even faster, shot after shot.

Included in the Box:

Thread-in throw lever Flip caps Lens cloth CR2032 battery

OPTICAL
Illuminated Reticle
Provides precise aiming under low-light conditions
Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

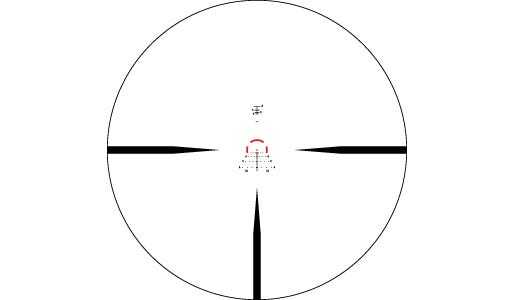

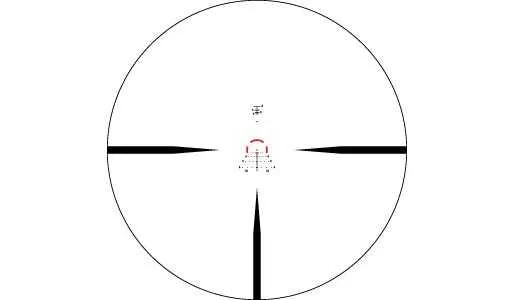

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof
Rugged construction withstands recoil and impact.
Waterproof - IPX7
Designed to meet IPX7 waterproofing standards.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Throw Lever
The included throw lever can be installed for quick and easy magnification adjustments.

Strike Eagle 1-8x24 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L6
10.0	2.8	1.8	6.4	3.5

Heights
H1	H2
1.2	1.7

SKU	VORSE-1824-2
Model #	SE-1824-2
Brand	Vortex
Magnification	1-8x
Tube Size	30mm
Focal Plane	SFP (Second Focal Plane)
Objective Lens Diameter	24mm
Parallax Adjustment	Fixed
Parallax Setting	91m
Turret Style	Capped
Eye Relief	89mm
Field of View	109 -14.4ft @ 91m
Illumination	Yes
Adjustment Graduation	1/2 MOA
Adjustment per Rotation	44 MOA
Elevation Turret Style	Capped
Windage Turret Style	Capped
Total Elevation Adjustment	140 MOA
Total Elevation Adjustment	140 MOA
Weight	499 grams
Length	254mm

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
