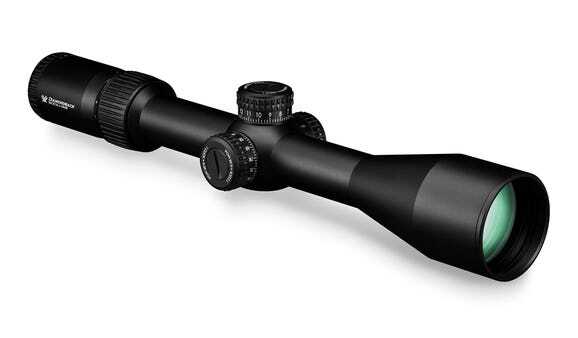

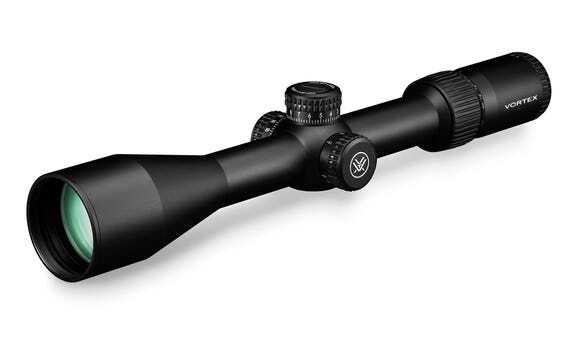

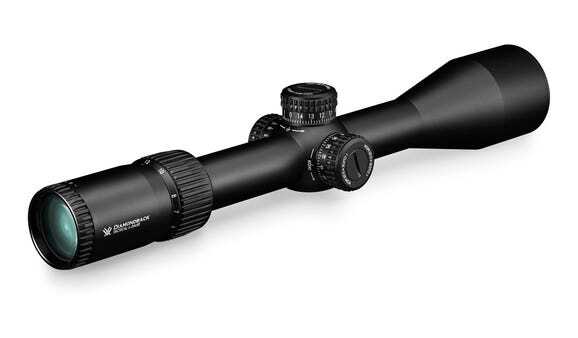

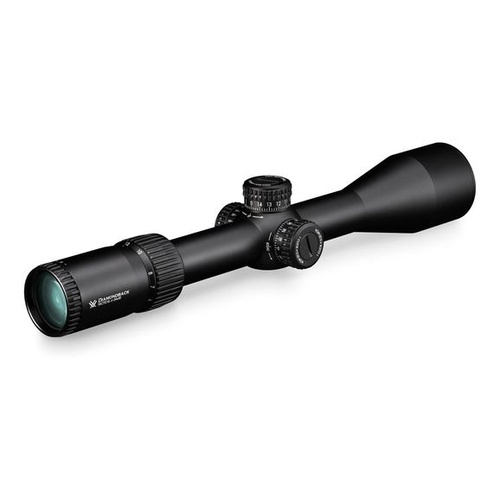

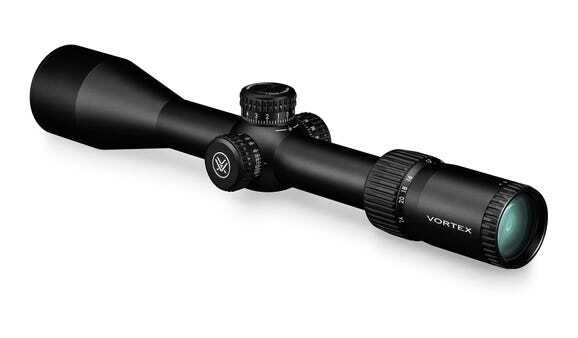

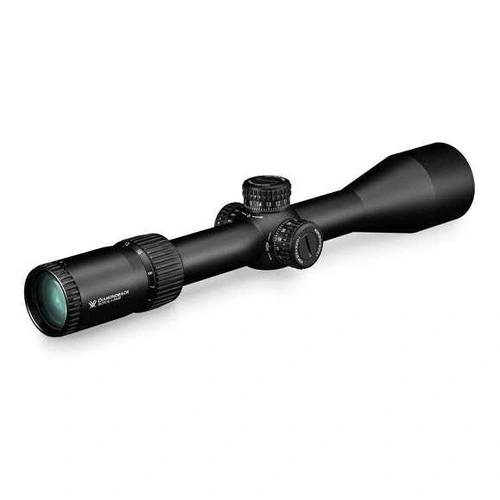

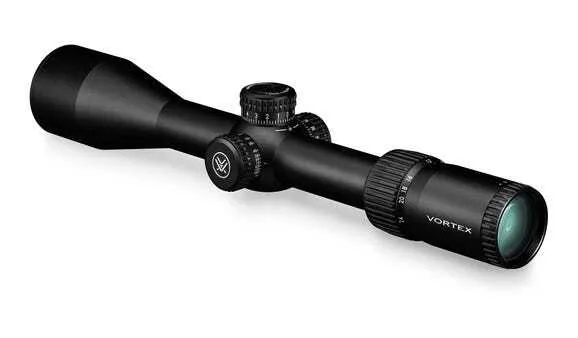

Vortex Diamondback Tactical 6-24x50 FFP

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.

Included in the Box:

Lens Covers
Lens Cloth
Sunshade

OPTICAL
XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

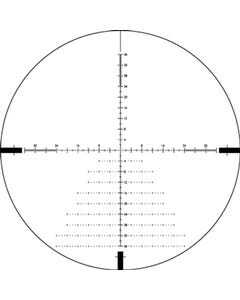

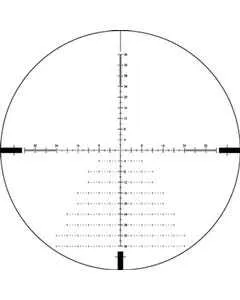

First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

INTERNAL MECHANISM DESIGN
Precision-Force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Magnification Rib
The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.

Diamondback Tactical 6-24x50 FFP Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
14.28	2.30	2.70	6.56	3.98	3.77

Heights
H1	H2
2.25	1.73

SKU	VORDBK6-24X50
Model #	DBK6-24X50
Brand	Vortex
Magnification	6-24x
Tube Size	30mm
Focal Plane	FFP (First Focal Plane)
Objective Lens Diameter	50mm
Parallax Adjustment	Side Focus
Parallax Setting	9m to Infinity
Turret Style	Exposed
Eye Relief	99mm
Field of View	18-4.5ft @ 91m
Adjustment Graduation	1/4 MOA \| .1 MRAD
Adjustment per Rotation	15 MOA/6 MRAD
Elevation Turret Style	Exposed
Windage Turret Style	Exposed
Total Elevation Adjustment	60 MOA \| 19 MRAD
Total Elevation Adjustment	60 MOA \| 19MRAD
Weight	697 grams
Length	363mm

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
