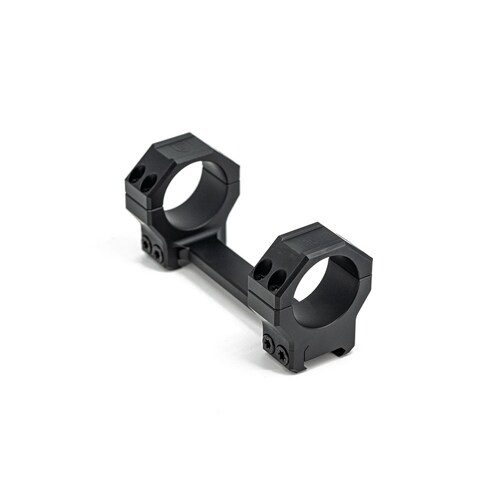

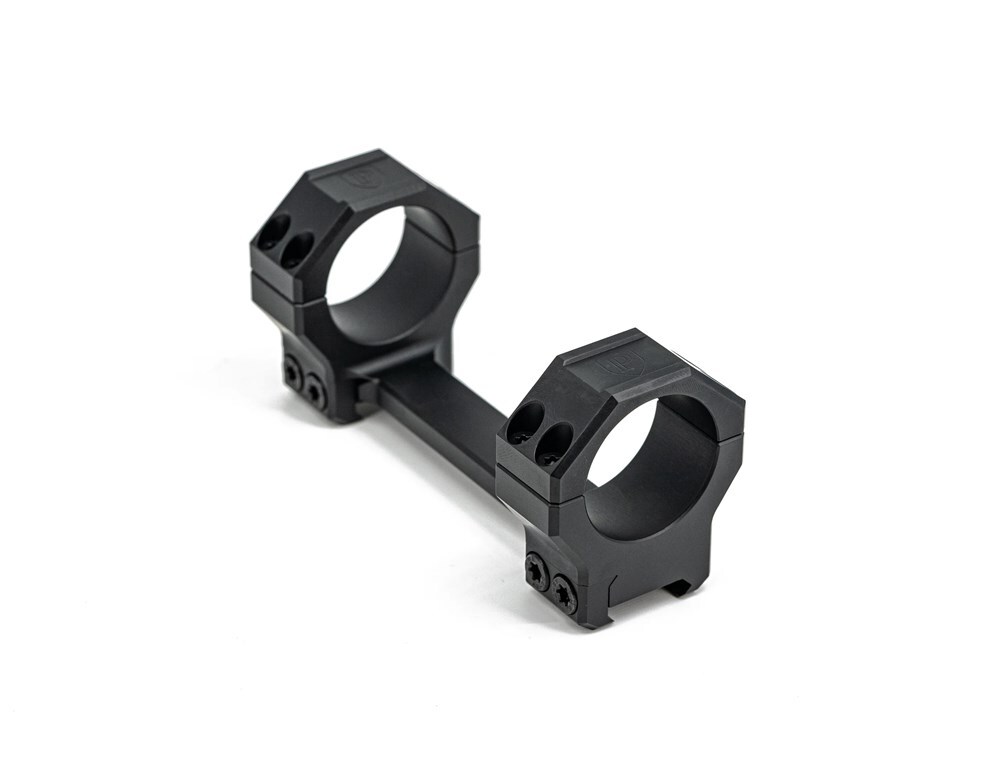

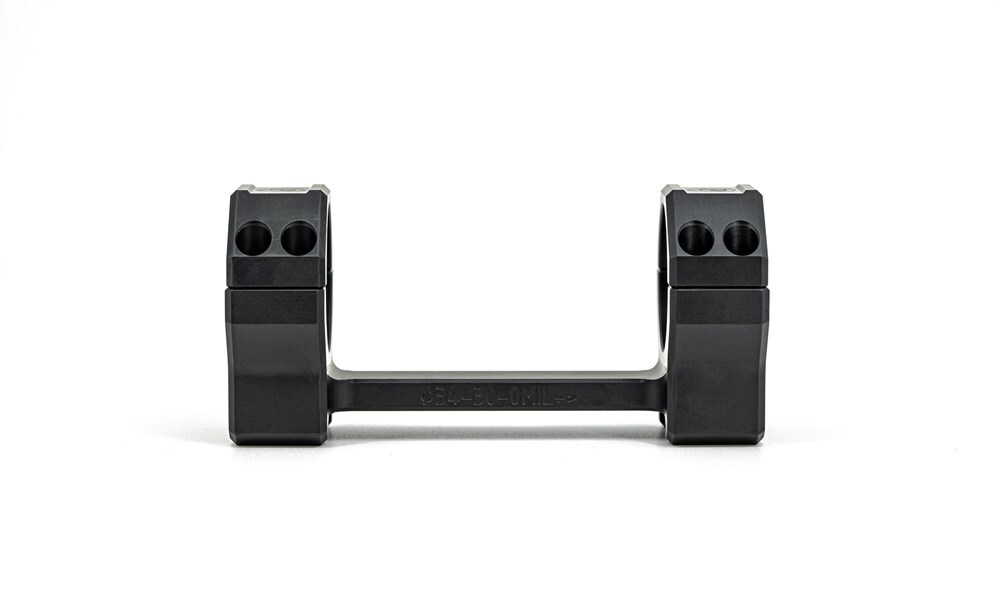

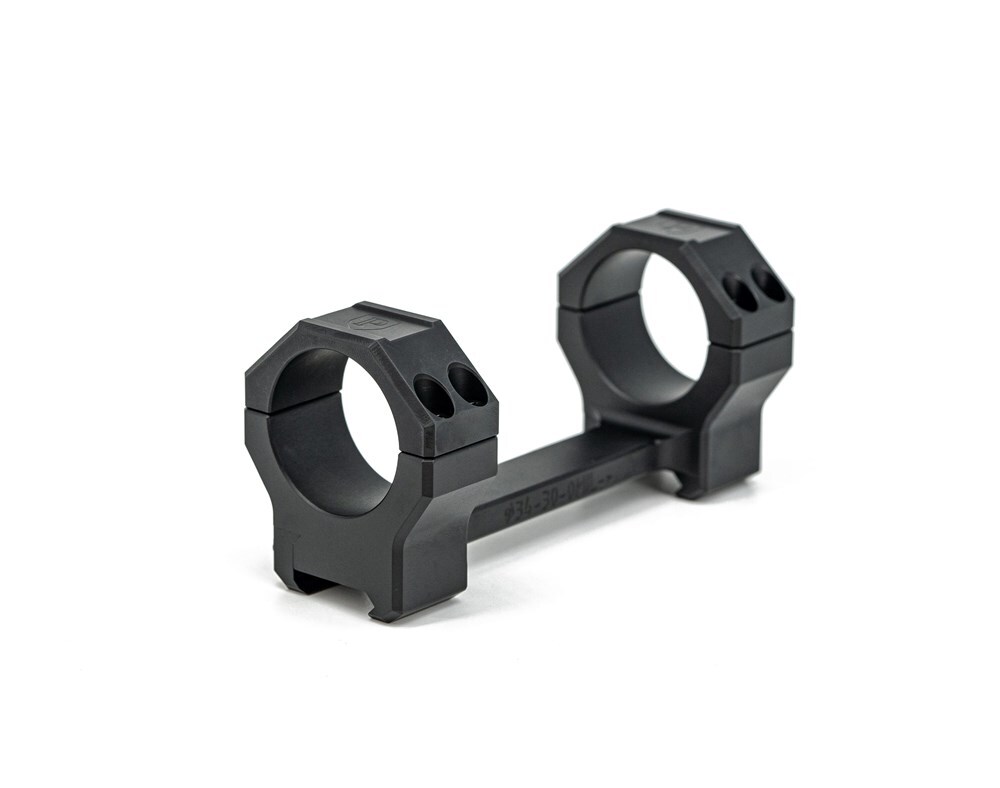

Engineered and made in Australia by Porter Machine Works. CNC machined from 6061-T6 Aluminium and anodised in Sydney.

Note: For example '30 - 34mm - 7MIL'
'30' Is the tube diameter (⌀) in mm
'34' Is the height from the top of the rail to center line of the scope tube
'7ML' Refers to the elevation cant designed into the rings. 7MIL (24Moa)

30mm tactical matte black unimounts are available in:

  • ⌀30 - 28mm - 0MIL [Does NOT fit Pulsar Digex/Thermion]
  • ⌀30 - 30mm - 0MIL
  • ⌀30 - 34mm - 0MIL
  • ⌀30 - 38mm - 0MIL
  • ⌀30 - 28mm - 7MIL
  • ⌀30 - 30mm - 7MIL
  • ⌀30 - 34mm - 7MIL
  • ⌀30 - 38mm - 7MIL

Our rings are designed to mount to MIL STD 1913 picatinny rail. Side clamp uses a T25 Torx set at 50 in-lb (5.7Nm) Top caps use a T20 Torx set between 17-25 in-lb (1.9 - 2.8Nm).

SKU POR30G2UNIMOUNT
Brand Porter Machine Works
Tube Size 30mm
