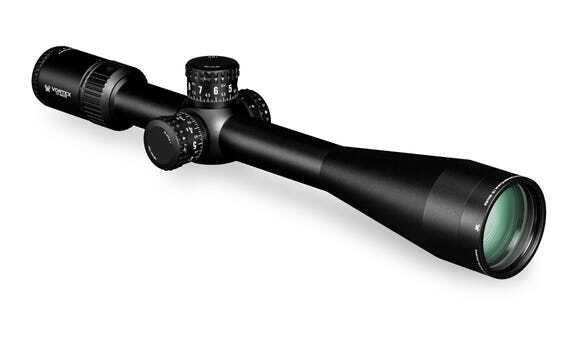

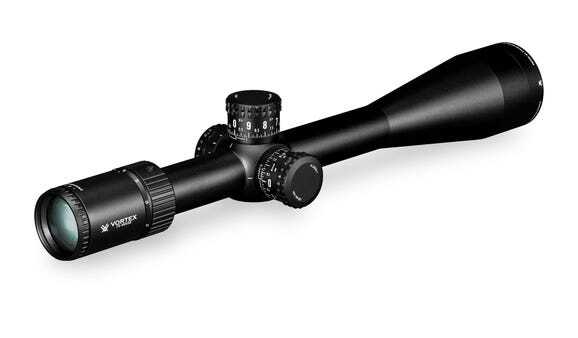

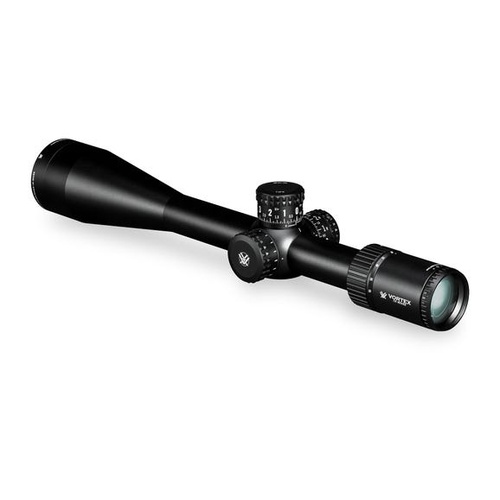

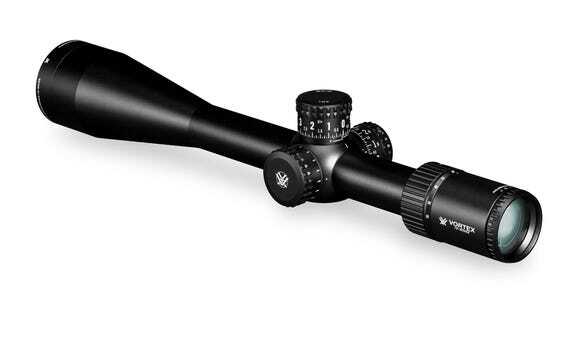

The Golden Eagle HD offers a unique set of features specifically designed for F Class and Bench Rest competition shooters. The 15-60x magnification range, ultra-precise 1/8 MOA adjustments and extremely fine, second focal plane reticle options help maximize precision on known-distance long-range targets. All these features and more are complimented by a top-tier optical system making for a super-sharp target picture down range and the ability to read mirage and other wind indicators accurately. Equally impressive, the Golden Eagle weighs in at a relatively light 29.5 ounces, helping shooters adhere to strict competition weight limits. When you’re going for gold in F Class or Bench Rest, go for the Golden Eagle to top your rifle.

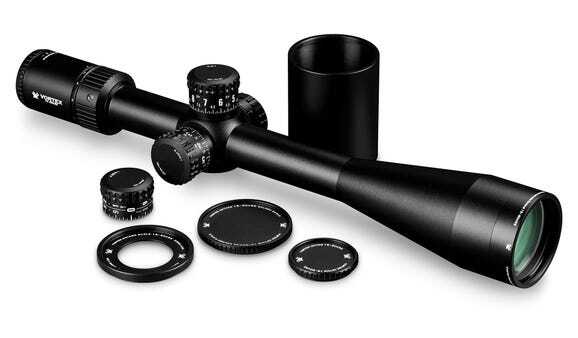

Included in the Box:

  • Lens cloth
  • 2mm xex wrench
  • 35mm ASR (Aperature Stop Ring)
  • Extra windage turret with alternative laser markings
  • Aluminum objective and eyepiece lens covers
  • 3" sunshade

OPTICAL
APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
HD Lens Elements
Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Plasma Tech
Cutting edge coating application process provides unparalleled coating durability and performance

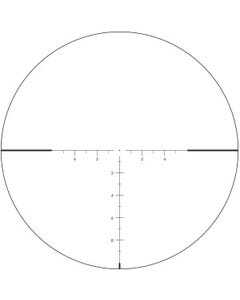

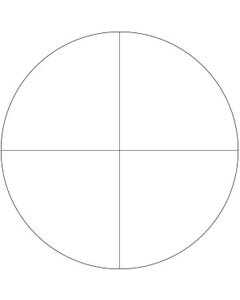

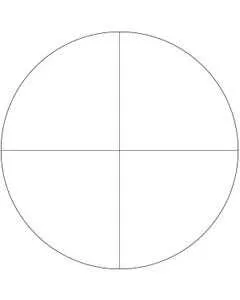

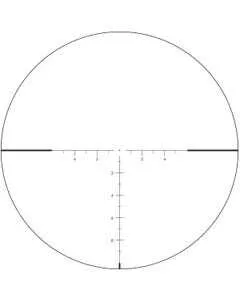

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN
Extra-Fine Resolution Turret
The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots.

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Optional 10 MOA Windage Turret
Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats.
ASR (Aperature Stop Ring)
Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators while keeping the target in focus.
Aluminum Lens Caps
Premium aluminum screw on eyepiece and objective lens covers included.

Golden Eagle HD 15-60x52 Dimensions (in inches)





Lengths
L1 L2 L3 L4 L5 L6
16.1 3.5 2.28 7.5 5.51 3.09
Heights
H1 H2
2.41 1.73
SKU VORTCS15-60X52
Model # TCS15-60X52
Brand Vortex
Magnification 15-60x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 52mm
Parallax Adjustment Side Focus
Parallax Setting 18m to Infinity
Turret Style Exposed
Eye Relief 99mm
Field of View 6.3-1.7ft @ 91m
Adjustment Graduation .125 MOA
Max Elevation Adjustment 55 MOA
Max Windage Adjustment 45 MOA
Length 409mm
Weight 842 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
