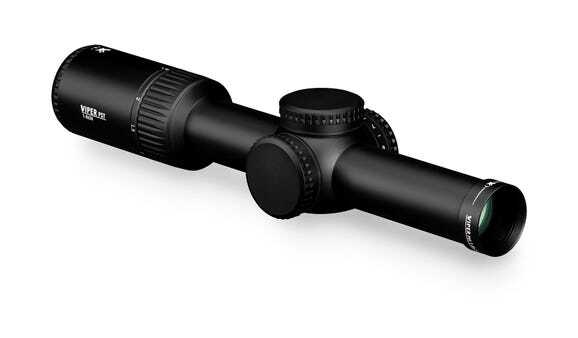

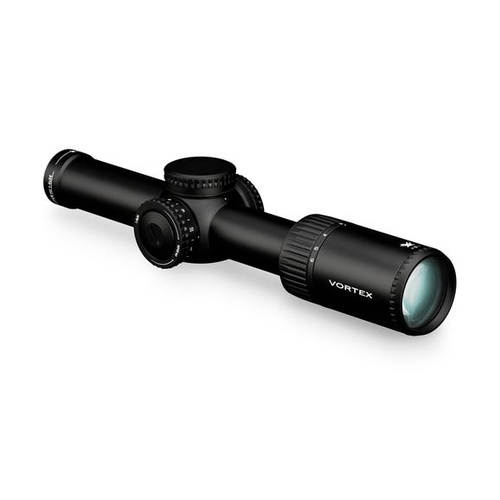

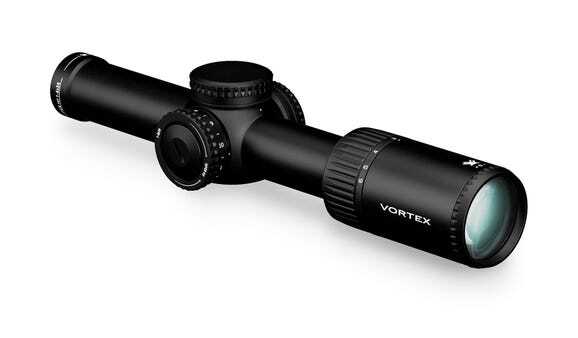

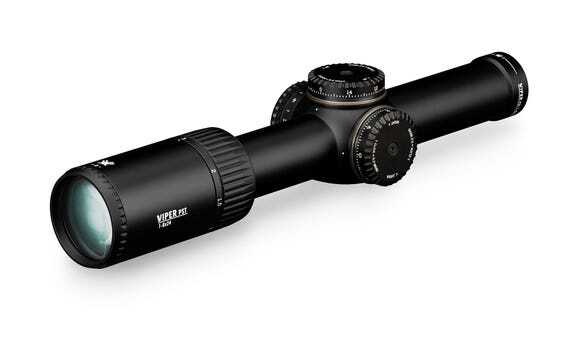

Vortex Viper PST Gen II 1-6x24

The Viper PST Gen II hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is located on the opposite side of the windage knob for easy access and streamlined performance. The reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.

Included in the Box:

CR2032 battery
Lens cloth

OPTICAL
XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

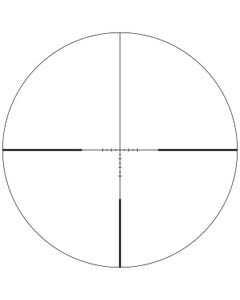

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Reticle
Provides precise aiming under low-light conditions

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

INTERNAL MECHANISM DESIGN
Precision-Force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Built-In Accuracy Features
Matching (MRAD or MOA) turrets and reticles facilitate fast and accurate shooting at extended ranges. The patented fiber optic Radius Bar visually assists tracking turret rotations.

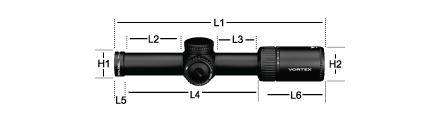

Viper PST Gen II 1-6x24 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
10.83	3.0	2.19	6.85	0.50	3.44

Heights
H1	H2
1.29	1.81

SKU	VORPST1-6X24
Model #	PST1-6X24
Brand	Vortex
Magnification	1-6x
Tube Size	30mm
Focal Plane	SFP (Second Focal Plane)
Objective Lens Diameter	24mm
Parallax Adjustment	Side Focus
Parallax Setting	91m
Turret Style	Capped
Eye Relief	97mm
Field of View	112.5-18.8ft @ 91m
Illumination	Yes
Adjustment Graduation	1/2MOA \| .2 MRAD
Adjustment per Rotation	50 MOA \| 20 MRAD
Elevation Turret Style	Capped
Windage Turret Style	Capped
Total Elevation Adjustment	160 MOA \| 46 MRAD
Total Elevation Adjustment	160 MOA \| 46 MRAD
Weight	644 grams
Length	275mm

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
