Uniquely sharp, detailed, high-contrast images.

With the Calonox thermal cameras, Leica continues its long, successful track record in digital image optimization, and extends its excellent reputation as a camera manufacturer. Leica’s own image processing (Leica Image Optimization - LIO™) improves the image with special algorithms, thus achieving particularly detailed color gradations, excellent contrast, and high detail resolution.

The outstanding recognition range of the Leica Calonox View is based on a high-end vanadium oxide (VOx) sensor with 640 x 512 pixels and 12 µm pixel size with excellent temperature resolution.



Included in the Box:

Calonox View, cordura case, charging cable, carry strap, quick start guide, lens cleaning cloth, certificate

Superior image quality with Leica Image Optimization (LIO™)

Outstanding image quality at a long range

Uniquely sharp, detailed, high-contrast images.

With the Calonox thermal cameras, Leica continues its long, successful track record in digital image optimization, and extends its excellent reputation as a camera manufacturer. Leica’s own image processing (Leica Image Optimization - LIO™) improves the image with special algorithms, thus achieving particularly detailed color gradations, excellent contrast, and high detail resolution.

The outstanding recognition range of the Leica Calonox View is based on a high-end vanadium oxide (VOx) sensor with 640 x 512 pixels and 12 µm pixel size with excellent temperature resolution.

Photo/video function with live view

Preserve special moments forever.

The Leica Calonox View has 16 GB internal memory for recording special observations as photos or videos. Using the Calonox View App, the stored images can be transferred to a smartphone via WLAN, or to a computer via cable. Live view observations are also possible via cell phone.

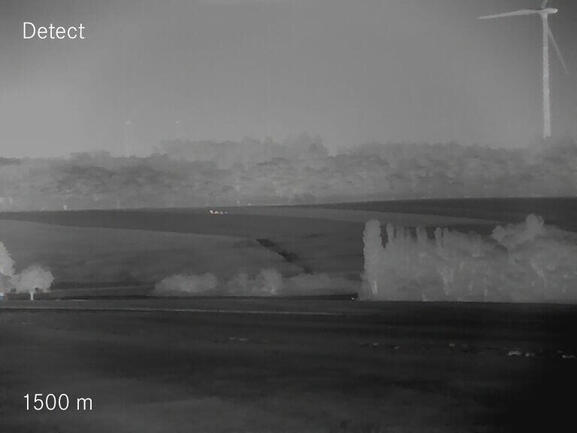

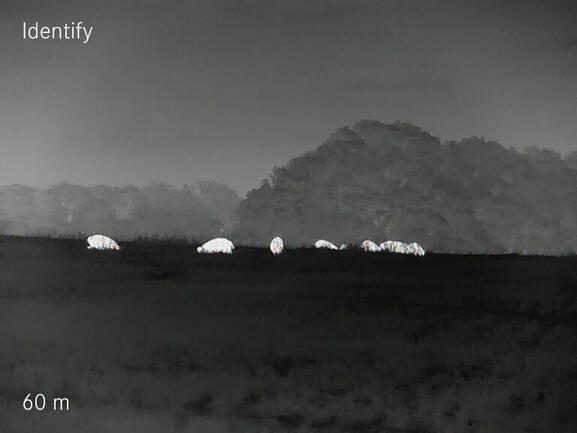

Impressive detail recognition at a long range

Detect, recognize, identify.

See more, identify game safely: With a defined target size of 1.7 x 0.5 m, the Leica Calonox View can detect targets up to a distance of 3,000 meters, recognize targets up to 1,000 m, and precisely identify them up to 500 m.


Powerful digital zoom

See more, catch more details.

Ideal for close-up observations, the 42-mm objective in combination with the 2.5x basic optical magnification provides a large field of view and the best overview. The digital zoom can be set to a magnification of up to 10x, so that no details remain hidden, even at great distances.

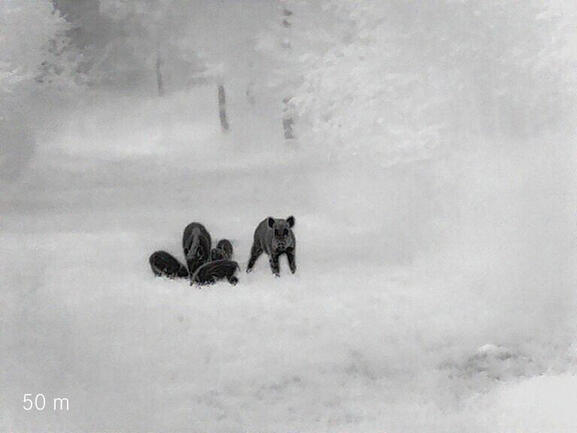

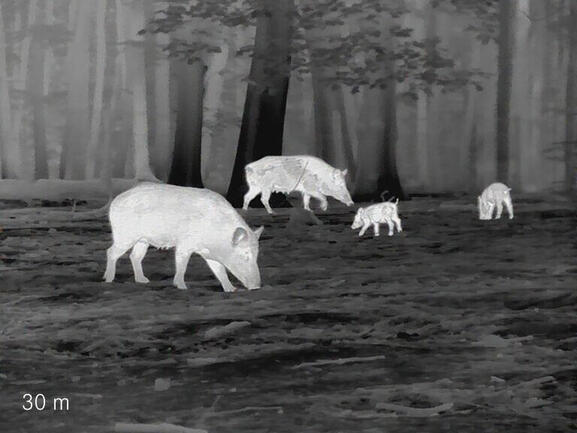

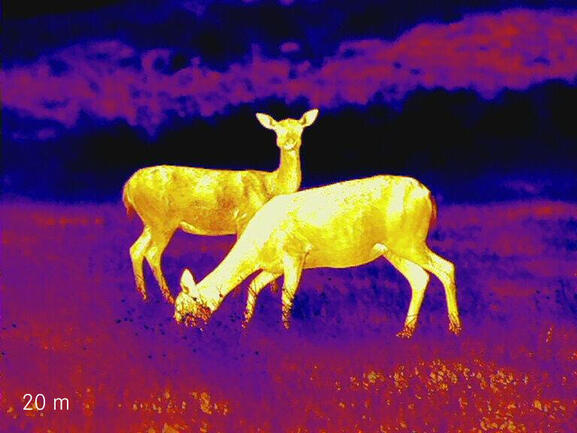

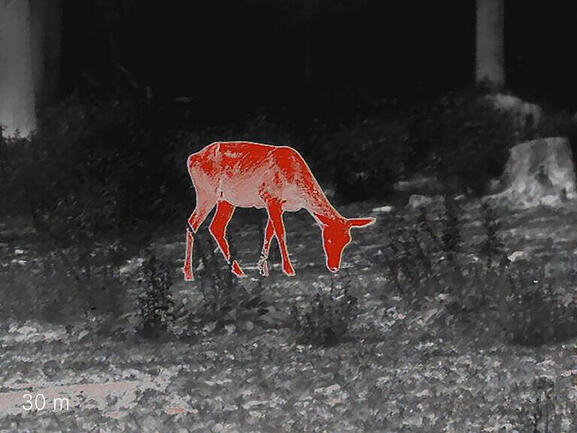

Four color modes for high-contrast detail recognition

Field-tested and true to detail.

The four color modes White Hot, Black Hot, Red Hot, and Rainbow provide practical display variations and greater, high-contrast detail recognition.

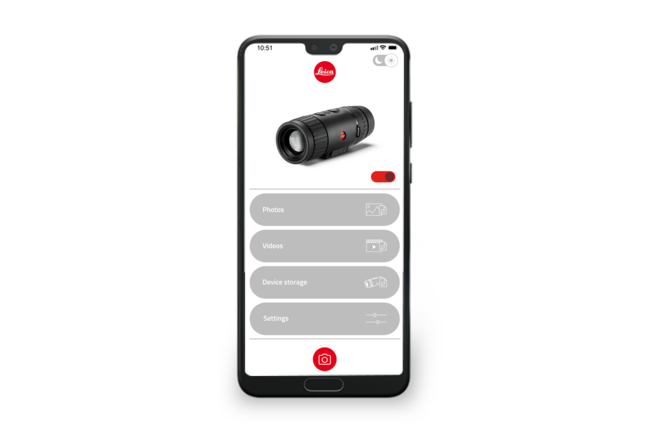

Calonox View App

Even more convenient control.

Quick and easy: With the Calonox View App, photos or videos stored on the camera can be transferred to the smartphone via WLAN. In addition, the live view function makes it possible to observe the scenery on your cell phone screen. With a simple click, you can switch the display from day mode to night mode.

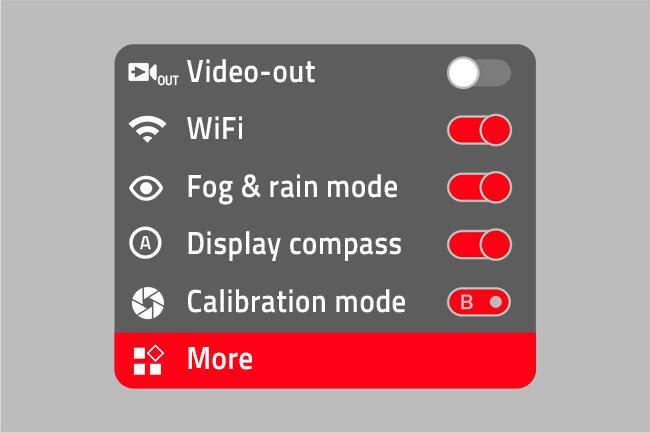

Three calibration modes for image optimization

Restore, refresh, enhance.

With the three integrated calibration modes Auto (A), Manual (M), and Background (B), you can restore, refresh, and enhance the image on the display. In modes A and M, shutter calibration is initiated automatically or, if you wish, manually at the touch of a button. Background calibration with a covered objective lens is particularly efficient and achieves the best results.

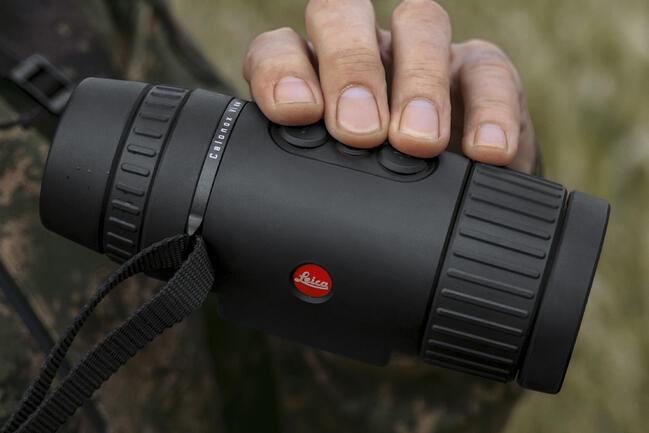

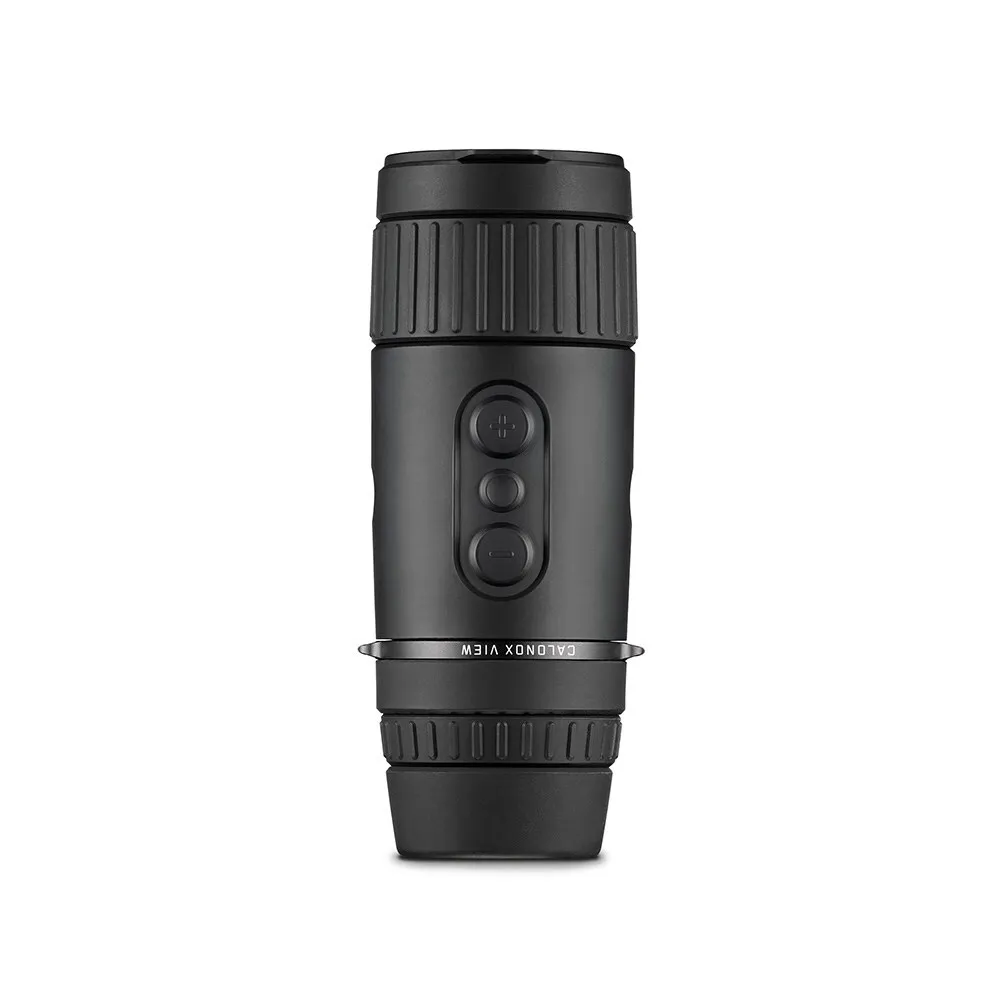

Elegant design & intuitive operation

Reduced to the essentials.

The shapely product design in the well-known Leica style is geared towards the user’s hunting needs. Its cylindrical shape and easy operability integrate perfectly into the hunter’s equipment. The user-friendly, intuitive three-button menu offers streamlined navigation, which enables easy and quick handling even when wearing gloves.

HD display & rechargeable battery

State-of-the-art technology.

The powerful HD display with 1280 x 960 pixels enables comfortable observation and reliable identification when stalking or when shooting from blinds. The permanently installed rechargeable battery with approx. 5 hours of power is particularly well protected against cold and moisture. And charging is possible during operation, e.g. by using a powerbank.



  • Powerful 640x512 px VOx Sensor with12 µm pixel size and LIO™) for impressive imaging performance
  • High-resolution HD display (1280 x 960 px)
  • 2.5-10x magnification range for detailed game identification
  • 3000 m detection range:
    Range/Resolution (calculated for image subject 1.7 m x 0.5 m)
    Detection range / Resolution 3000 m/2 pixels
    Recognition range / Resolution 1000 m/6 pixels
    Identification range / Resolution 500 m/12 pixels
  • Photo/video function (plus live view)
  • Internal rechargeable battery with up to 5 hours operating time

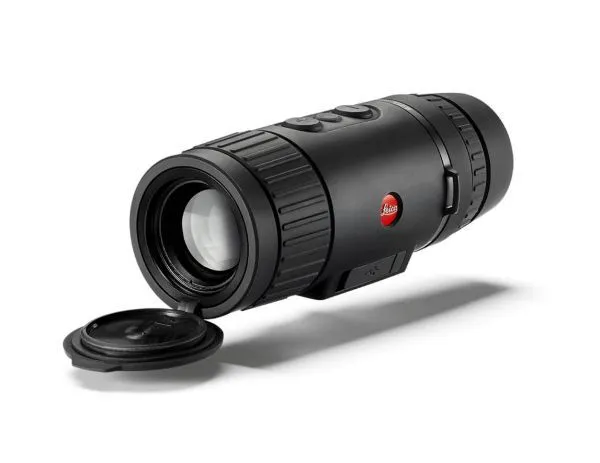

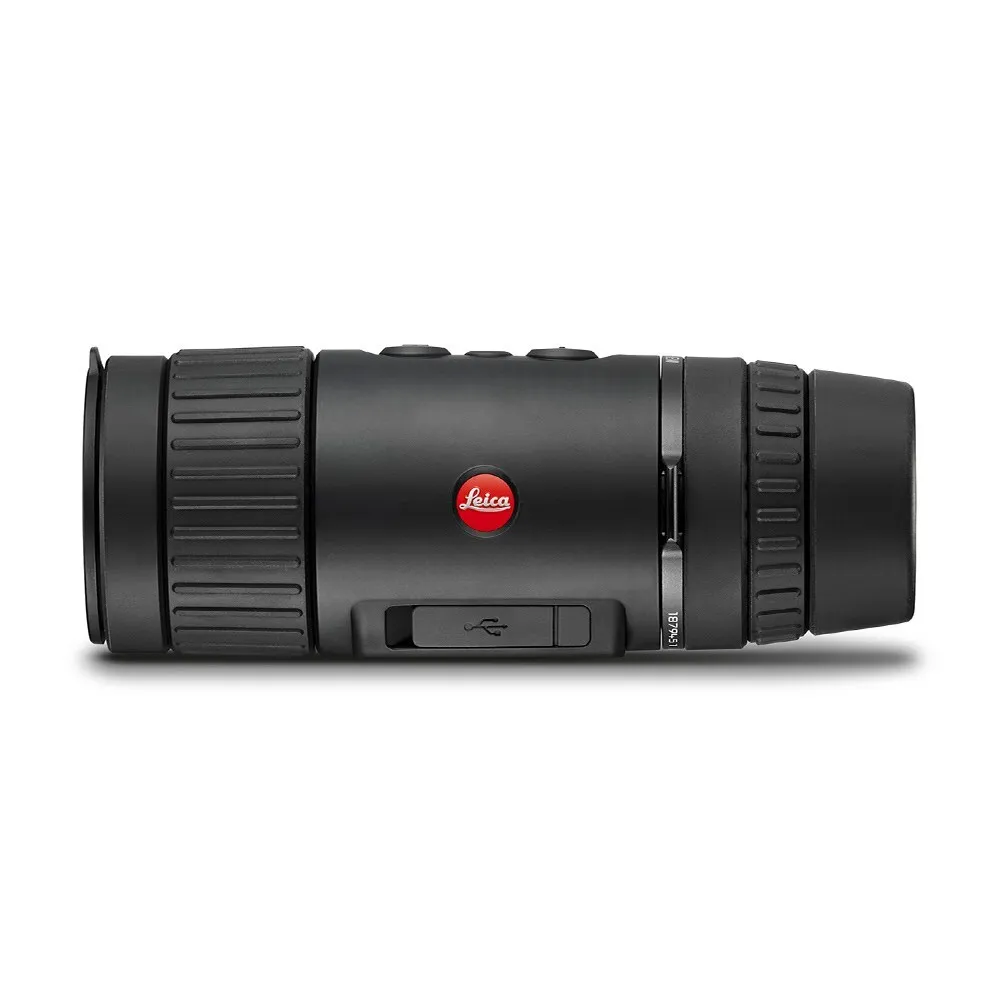

SKU LEI50502
Model # 50502
Brand Leica
Objective Lens Diameter 42mm
Field of View 18.3x14.6m @ 100m
Angular Field of View 10.5x8.4°
Sensor Size 640px
Pixel Pitch 12 μm
Maximum Detection Range 3000m
Display Size 1280x960
Length 170mm
Weight 685 grams
