Overview

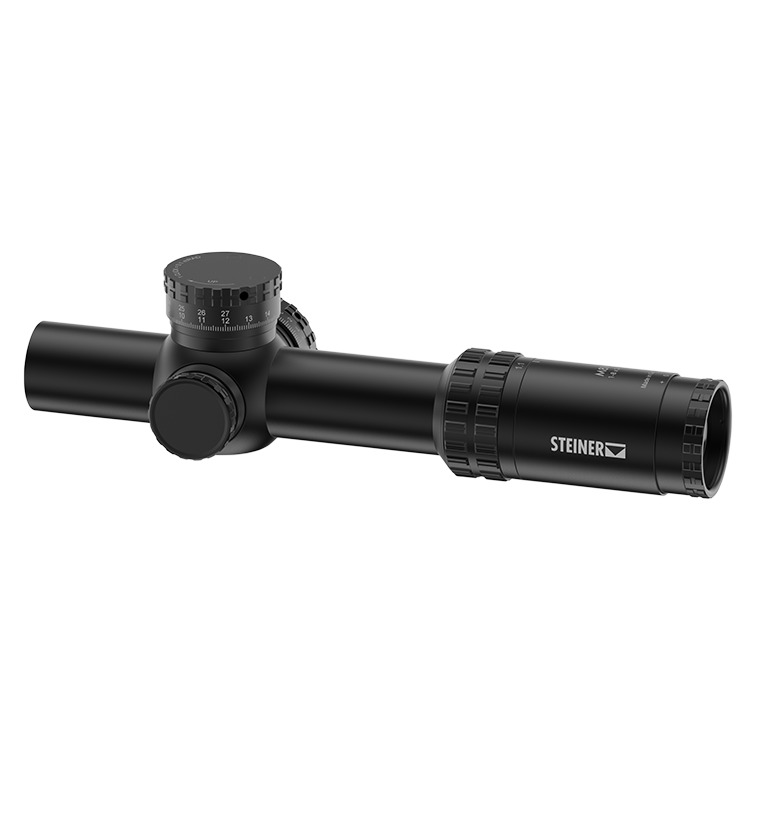

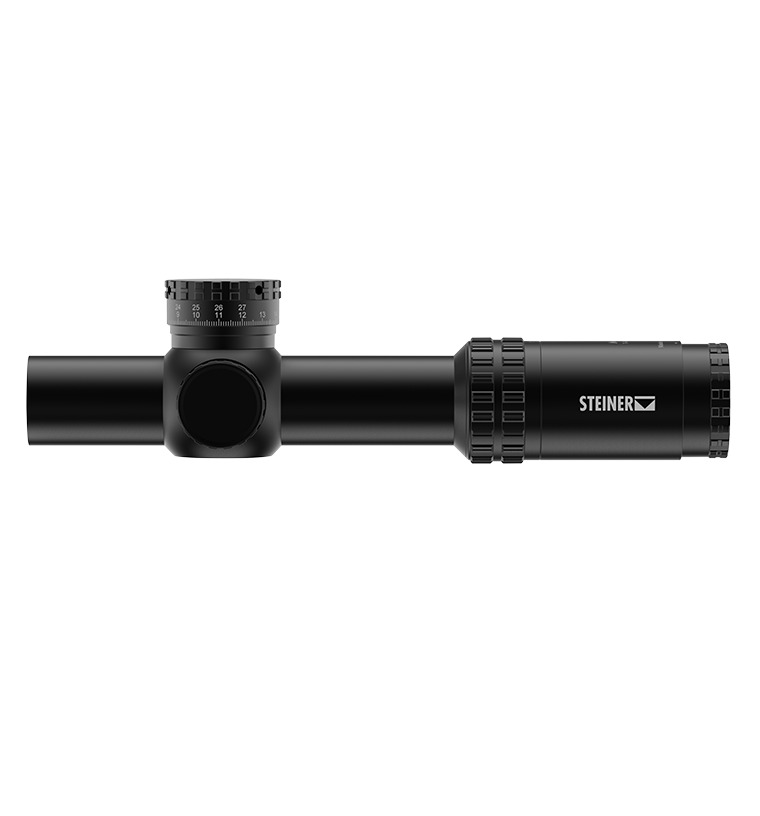

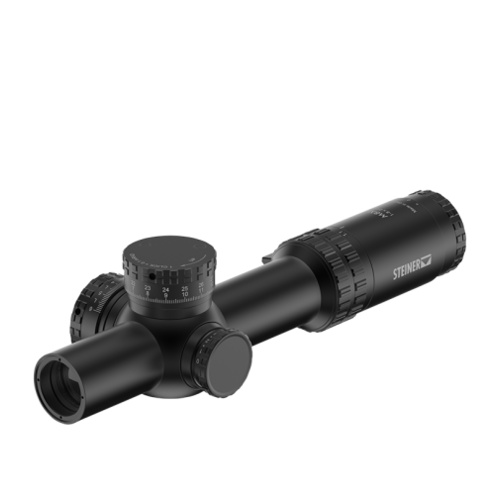

Based on the outstanding success of the M5Xi - used today by Special Forces around the globe - Steiner sets a new benchmark with the ultimate DMR (Designated Marksman Riflescope) M8Xi 1-8x24 with an 8x zoom and an outstanding field of view (4.8-34.2 m at 100 m).

The 8x zoom gives the operator more flexibility and a higher resolution from close quarter to mid-range scenarios while the large field of view and the outstanding optical quality c‍reate a perfect overview of the surroundings at all times.

  •     With a brilliant image and a light transmission of over 94%
  •     Precise and reliable mechanics - for easy and precise adjustment
  •     Extreme robustness and high shot resistance

The new M8Xi 1-8x24 has been designed to resist the toughest conditions, and is covered by the Heritage warranty.



Features

  • Short overall length: of the scope creates more rail space for clip-on devices (e.g. thermal imaging or night vision devices) for superior operational capabilities in any combat situation.
  • Low profile turrets: provide outstanding situational awareness and additional mounting options for add-ons and accessories.
  • Precise Windage/Elevation Adjustment: Is easy and immediate for repeated accuracy, with tactile click-by-click feedback you can hear and feel and second rotation indicator.
  • Illuminated reticle: With a brilliant image and a light transmission of over 94%.
  • high-performance optics: With a repeatable and exact working mechanics.
  • Extreme ruggedness & bullet resistance: Through resistant materials and reliable construction. A rugged 34mm tubular body provides reliability and more room for height and side adjustment for greater widths.

Specifications

BrandSteiner
Model #8723000226
Magnification RangeLow (-> 10x)
Exit Pupil9.2 - 3.1
Field of View (Degrees)18.2 - 2.6
Field of View (Linear)34.2 - 4.8m @ 100m
Weight (grams)750
Length (mm)271
Parallax Distance100m
Windage Travel26 MRAD
Elevation Travel26 MRAD
Windage Turret StyleExposed
Elevation Turret StyleExposed
Adjustment Graduation.1 MRAD
Eye Relief90
Tube Size34mm
Illuminated ReticleYes
BatteryCR2032
Objective Size19-24mm
Magnification1-8x
Turret StyleExposed
AdjustmentMRAD
Parallax AdjustmentFixed
Objective Lens Diameter24mm

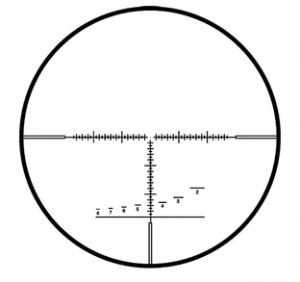

ReticleDMR8i
Focal PlaneSFP (Second Focal Plane)

Warranty

"

Steiner Warranty

With every Steiner optical product comes a lifelong relationship, with you and yours. We build trusted optics for lifeÕs defining moments. Pursuit of these moments demands quick detection, location and identification of your objective through your most important sense, vision. Be it in pursuit of wild life, a marine bearing, law enforcement suspect or military combatant, our commitment to quality and the Steiner Warranty is our promise that Nothing Escapes You.

The world wide 10 to 30 year Steiner Warranty means we stand behind our products. Over half a century of experience building rugged and reliable, mil-spec product and supplying them to professionals, amateurs and also armed forces all around the world allows us to have this kind of confidence. We at Steiner are totally committed to the very highest standards of quality, dependability, and most of all customer satisfaction. Our Warranty assures you of that commitment.

However, should one become defective within the warranty period, for any reason other than theft or deliberate misuse, we will service it at no charge Ð no questions asked. We kindly ask for your understanding that wear parts such as rubber armouring, carrying straps, eyecups or lens covers are not included in the scope of warranty.

"
