Overview

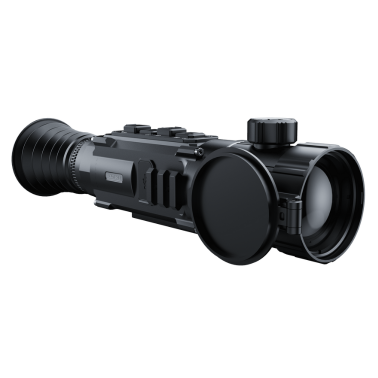

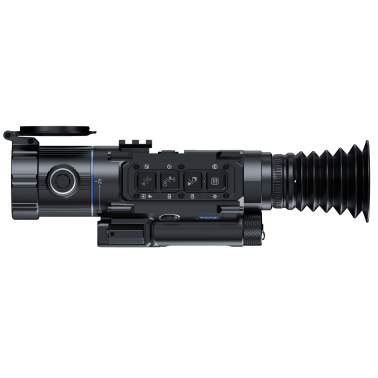

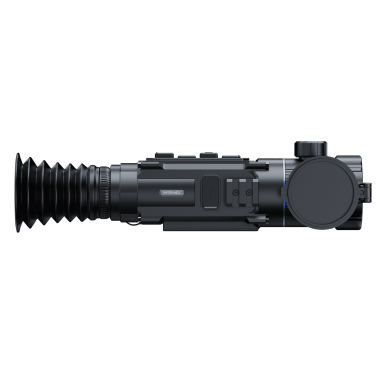

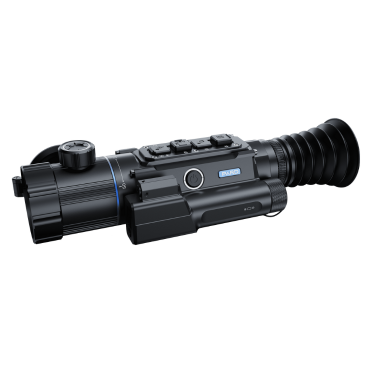

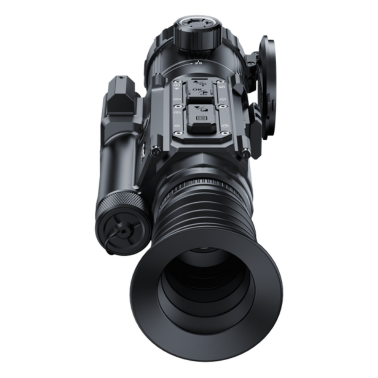

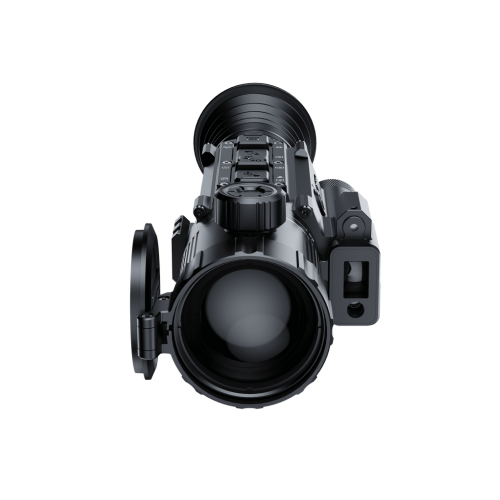

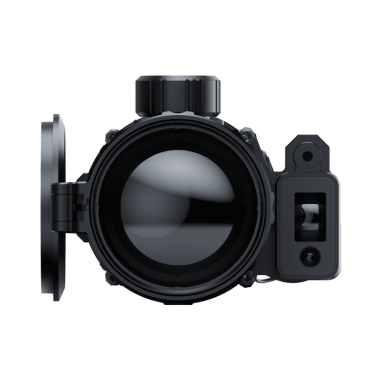

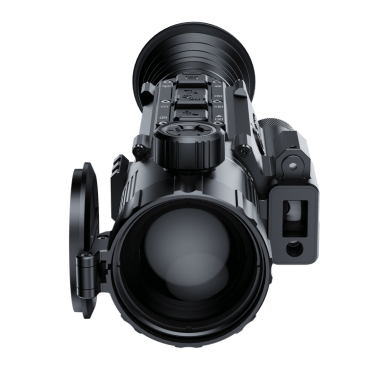

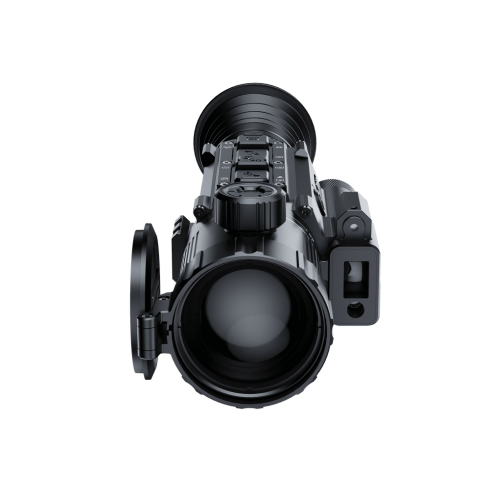

Introducing the Ocelot 640 Zoom Thermal Imaging Scope, the ultimate solution for precision in hunting, wildlife observation, and outdoor surveillance. Combining advanced thermal imaging with robust features, this scope offers unmatched clarity and performance in various conditions.

Ideal for hunters, researchers, and security professionals, the Ocelot 640 Zoom enhances your ability to detect and identify targets from great distances. The Ocelot 640 Zoom features an uncooled vanadium oxide (VOx) thermal sensor with a resolution of 640 x 512 pixels and a 12µm pixel size, providing a detection distance of up to 2600 metres. The scope is equipped with two objective lens options (25mm and 50mm) for flexible optical magnification from 1.3x to 2.5x, and digital zoom up to 8x. The high-resolution IPS display (800 x 800 pixels) includes six reticle styles and four reticle colours, along with various scene modes (city, rain, forest) and image modes (WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY) for enhanced visibility.

Advanced features include a ballistic calculator, gyroscope, hot track, picture-in-picture (PIP) mode, loop recording, and an LRF detection range up to 1000 metres. Connectivity options such as USB Type-C, HDMI output, and WiFi support for the PardVision2 app ensure seamless data transfer. The Lithium Ion 21700 battery provides up to six hours of operation, with external Type-C power support. Built to endure harsh environments, the Ocelot 640 Zoom is IP67 rated and operates in temperatures from -30°C to +55°C. Compact and lightweight, it measures 182 x 68 x 79 mm and weighs 709g, making it easy to handle in the field.

Specifications

BrandPard
Model #OC6Z-2550/LRF
Thermal Resolution640px
Thermal Pixel Pitch12 μm
NETD≤20mK
Objective Size50-55mm
Battery21700
Eye Relief100
Display Resolution800x800
Display TypeIPS
Refresh Rate50Hz
Laser Range FinderYes
Length (mm)182
Weight (grams)709
Thermal Optical Base Magnification2.5x
Thermal Field of View (Degrees)14 / 7
Thermal Maximum Detection Range2600
Thermal Objective Lens50mm
