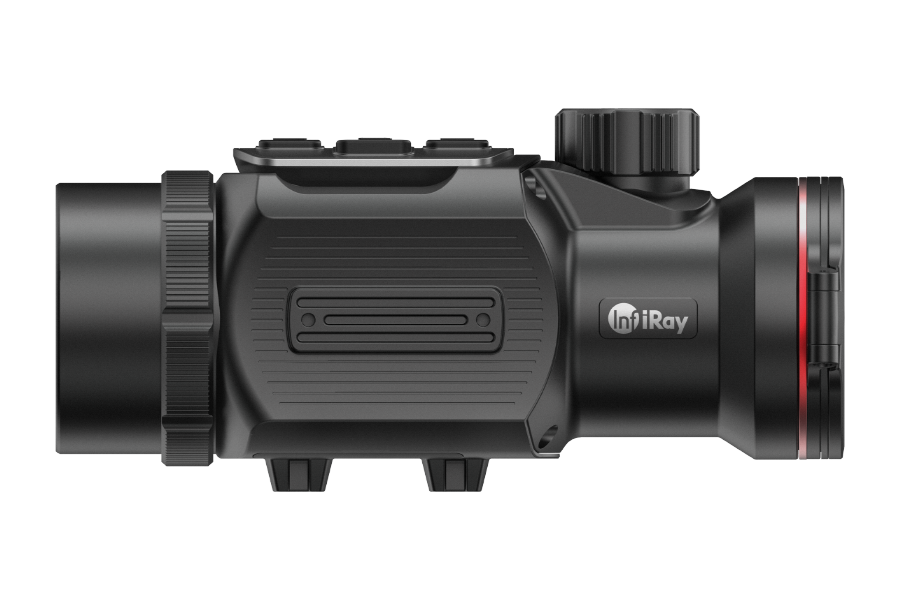

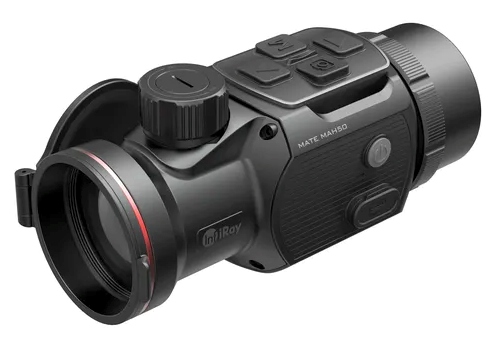

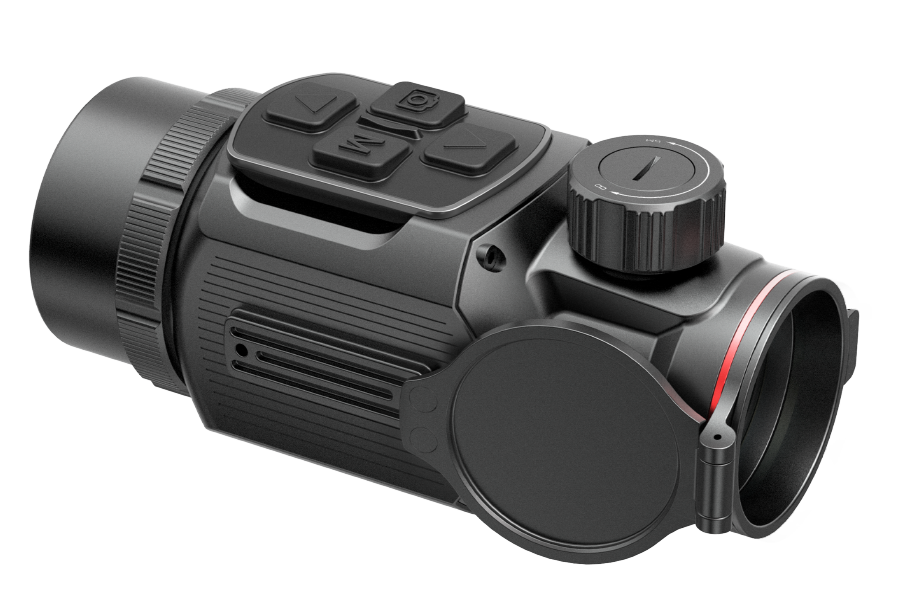

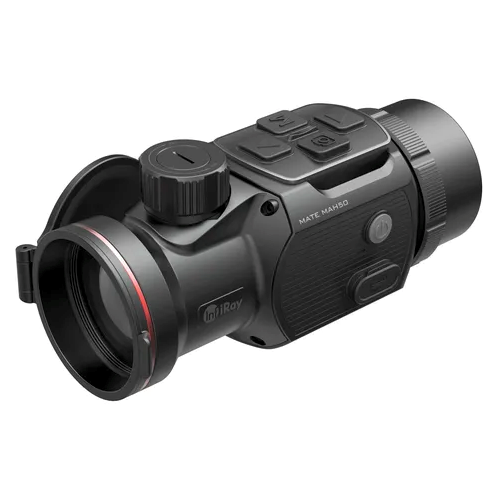

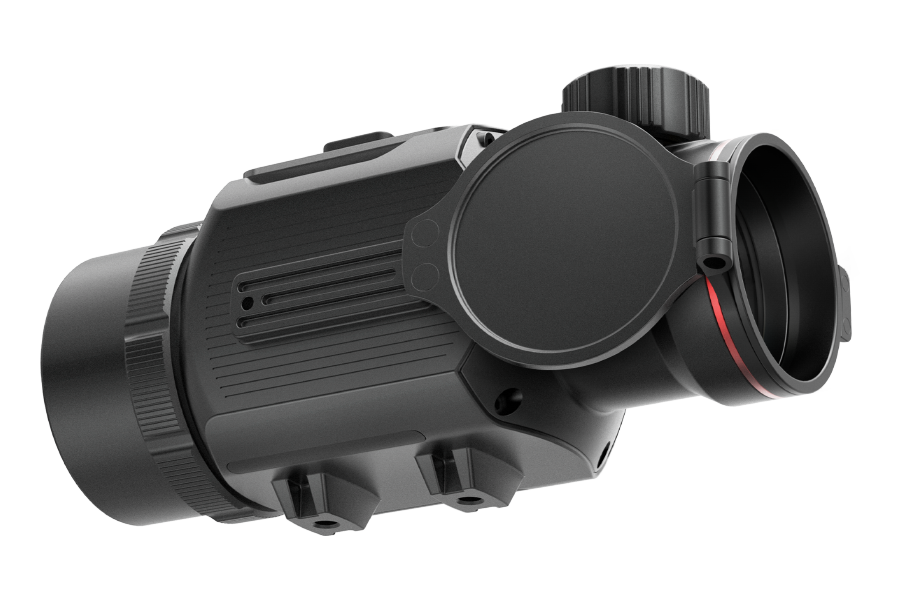

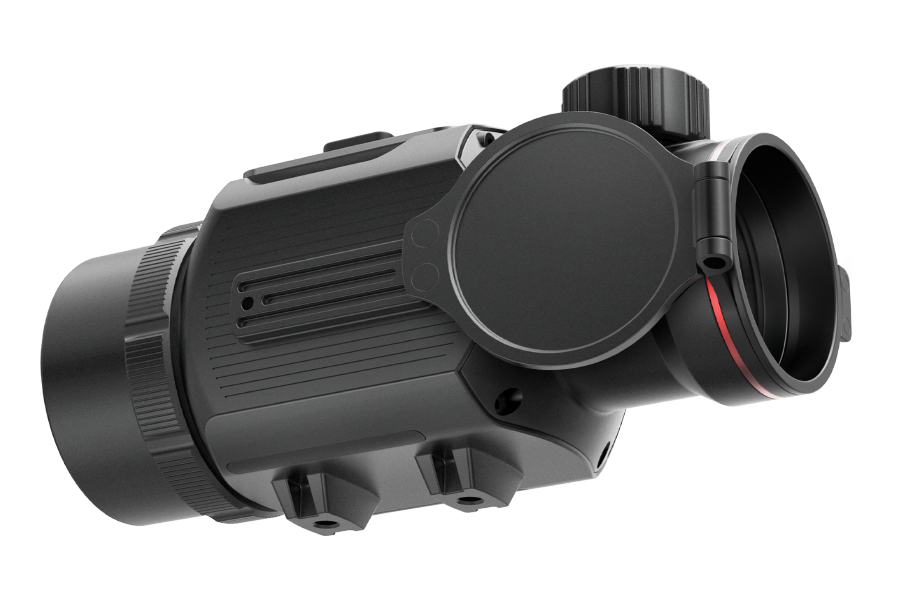

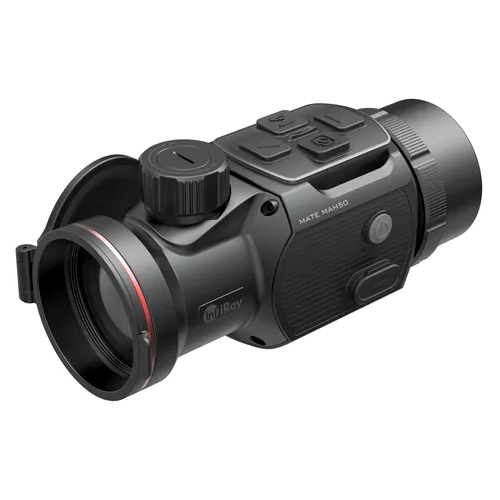

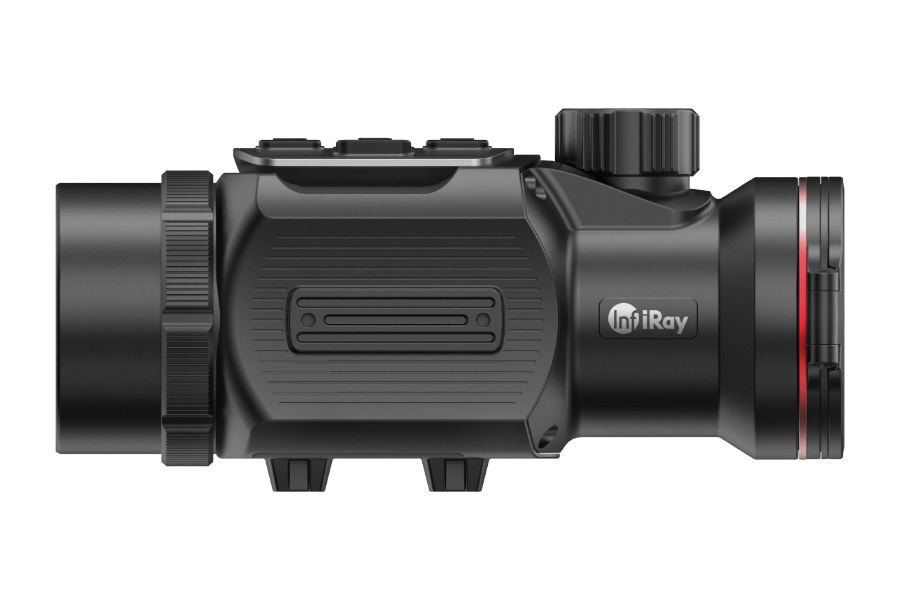

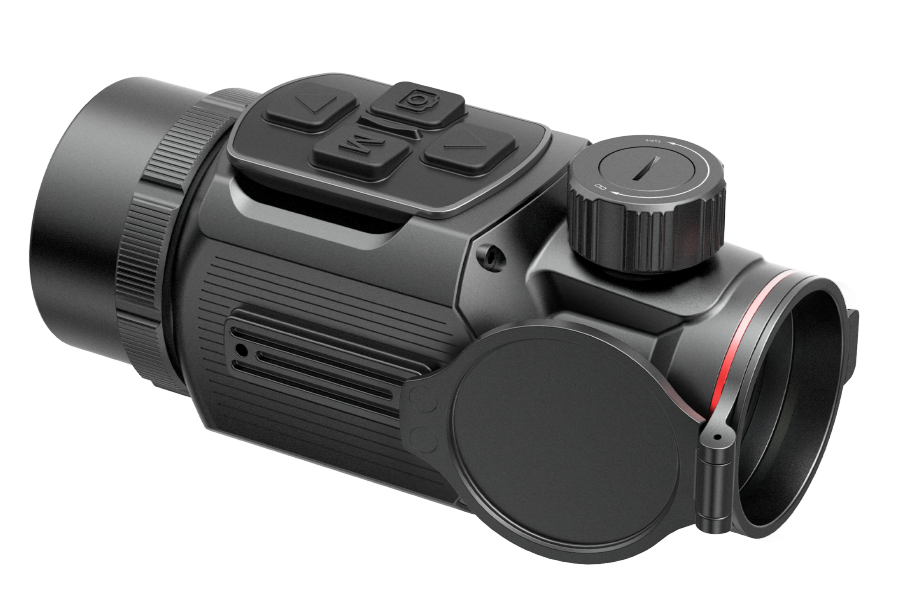

MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.
In the package, the complimentary universal adapter with four inserts is suitable for the outer diameter from 56mm to 65 mm.
If your day scope is out of this range, you need to buy it separately with the internal thread M52*0.75 and an insert of the required diameter depending on the outer diameter of your day scope’s objective lens.

Included in the Box:

Mate Series

MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.

Ultra-precision

MAH50/MAL38 can meet the high-precision requirement of "POI=1MOA" even by matching it with high-caliber rifles.

Lightweight & Compact Size

The weights are over 20% lighter than other similar products. It is also more compact than our previous clip-on.


Powerful Detector

MAH50 features a high-performance 640*512, 12μm detector with NETD less than 25mk. MAL38/ MAL25 provides cost-effective choices without major compromises in image quality.


Distortion-free

A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.


Sense-based Algorithms

The algorithms improve image quality by setting suitable preset parameters based on different environments, forests, plains, and citys.

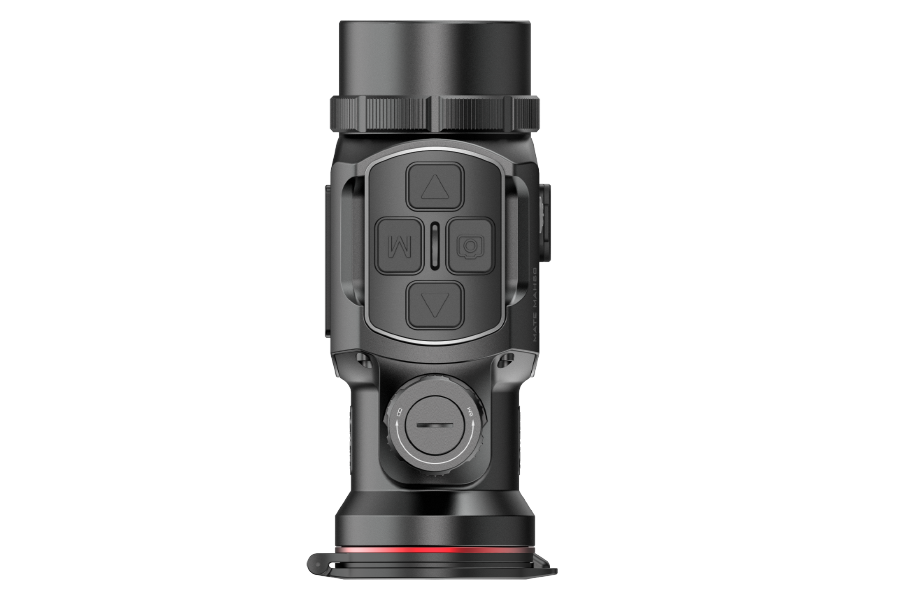

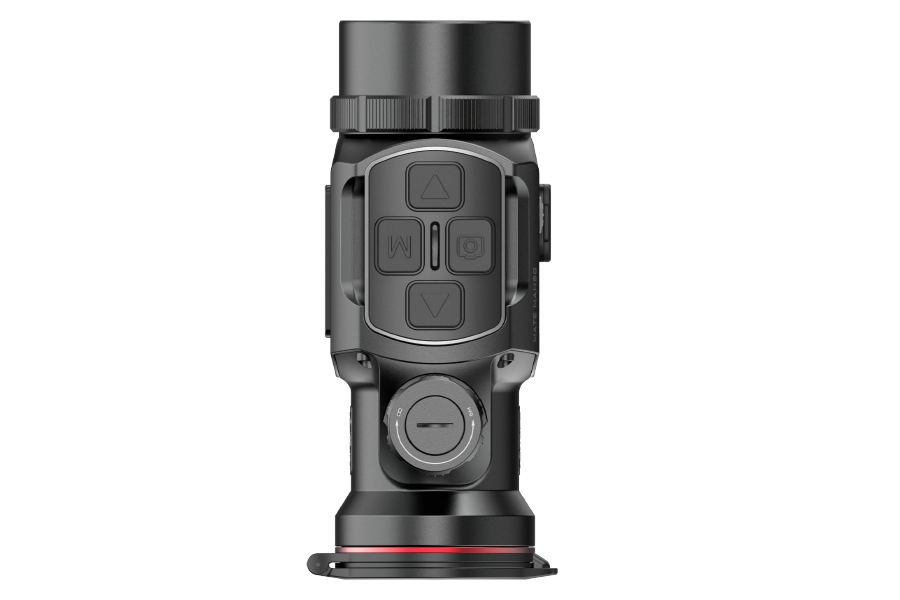

Removable Buttons

The buttons can be moved and installed in any position on your rifle. This allows hunters to control the device easily even when their focus is on the target. The remote control is supported by an ultra-low power consumption solution and can attach magnetically for automatic charging.


Power Bank in Box

Mate Series add a power bank as a complementary accessory. It can prolong the battery life for approximately another 7 hours.


LRF Extension

LRF can be equipped as an optional accessory. In addition to facilitating accuracy, the LRF extension can work as a power bank to prolong the 4-hour battery life for MATE.


Monocular Extension

MAH50 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.


Model MAH50
Detector Parameters
Resolution, pixels 640 × 512
Pixel size, um 12
NETD, mk ≤ 25
Frame rate, Hz 50
Optics Parameters
Objective lens, mm 50
Field of view (H x V), degrees / m @ 100 m 8.8 × 7.0 / 15.4 × 12.3
Recommended magnification of the day scope, x G1/G2: 1 - 5
G3/G4: 6 - 10
E-zoom Attachment mode: ×1
Monocular mode: ×1/×2/×4
Detection range, m 2597
(Target size: 1.7m×0.5m, P(n)=99%)
Display Parameters
Type OLED
Resolution, pixels 1024 × 768
Electrical Parameters
Battery Built-in battery + Infiray battery Pack
Max. battery life, h 4 + 7
USB Interface Type-C
Physic Parameters
Body Material Magnesium Alloy
IP Rating IP67
Remote control Support
Built-in memory, GB 32
Aim point, MOA 1
Weight, g 530
Dimension, mm 146 × 62 × 73
Adapter Ring M52×0.75



SKU INFMAH50
Model # MAH50
Brand InfiRay
Magnification 1x, 2x, 4x Digital
Objective Lens Diameter 50mm
Weight 530 grams
Length 145mm
