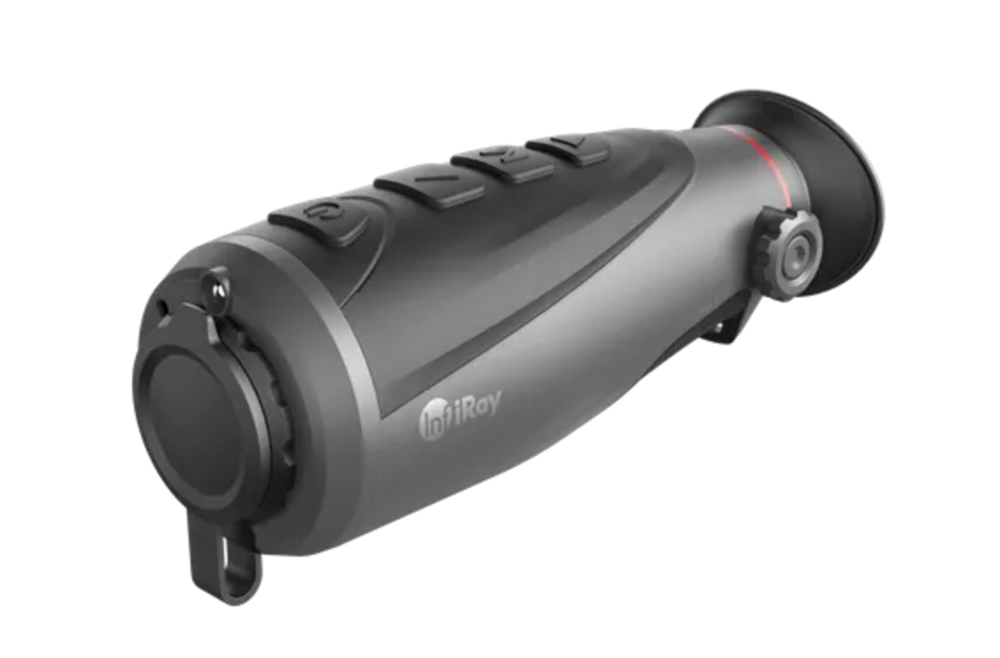

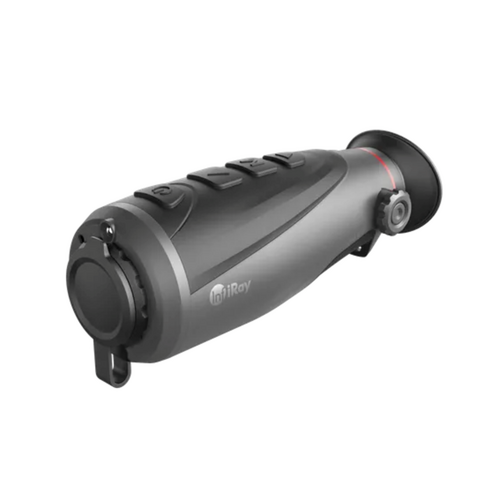

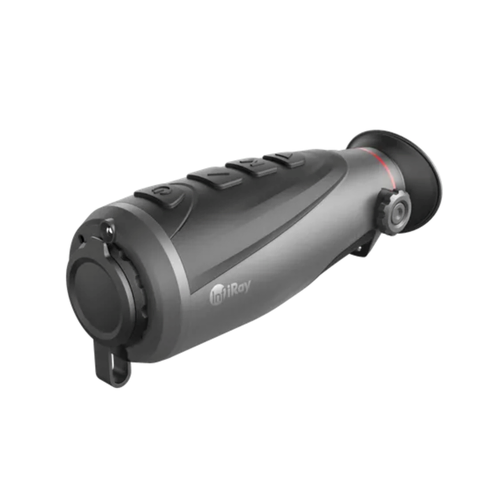

InfiRay Affo AP09 Thermal Monocular

Thermal Monocular

$799.95
1 In Stock

Stock Location:

Brisbane Warehouse: 1

Qualifies for Free Freight

The AFFO Series handheld thermal imaging monocular is an entry-level thermal monocular for users, featuring both a fashionable appearance and a more compact size.




The AFFO Series handheld thermal imaging monocular is an entry-level thermal monocular for users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo taking and video recording with its built-in high-speed 32GB storage capacity.


AFFO Series

High-performance Detector

The AFFO Series adopts a 12um uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.




New Appearance Design & Compact Size

The rounded curve-design body fits the human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with you along your adventure.






Long Battery Life

Low-power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours for the AP09 & AP13, 7.5 Hours for the AL13 and AL25 of operational battery life.




Additional Practical Functions

The AFFO Series features additional practical functions including stadia metric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of users in different countries and regions.

  • Stadiametric Rangefinding: Facilitate confirmation of prey distance and provide position reference for hunting.

  • PIP: The screen of the cursor position is magnified twice to highlight the target and assist in observing the target details.









More image modes to cope with different scenarios

Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot, and color palette. Wider detection and operating temperature range with hotspot tracking function.






Upgraded Protection

  • Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;

  • Upgraded waterproofing: External screen is used on rainy days for outdoor scenarios to prevent water from flowing into the interface.




SKU INFAP09
Model # AP09
Brand InfiRay
Magnification 1.3x Optical, 1x, 2x Digital
Objective Lens Diameter 9mm
Field of View (angle) 19.4 × 12.2°
Maximum Range 460
NETD <40mK
Pixel Pitch 12μm
Sensor Type 256 × 192
Length 160mm
Display Type 640 × 400
Type Night Optics
Sub Type Thermal Monoculars
