EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

This mount fits:
Smith & Wesson K Frame Revolvers
Smith & Wesson L Frame Revolvers
Smith & Wesson N Frame Revolvers
Smith & Wesson X Frame Revolvers

This mount is now updated to use 2 of the 3 holes on the top strap of the revolver. It does not use the front hole.

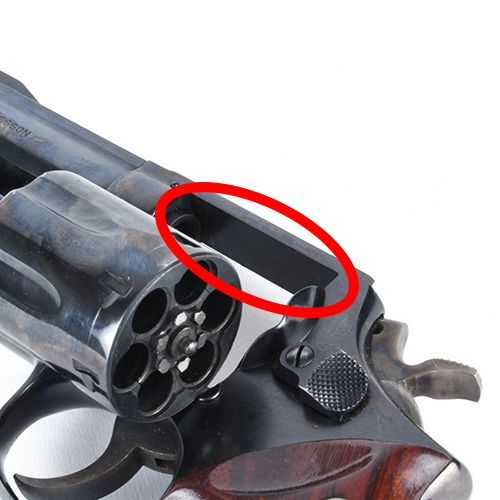

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.

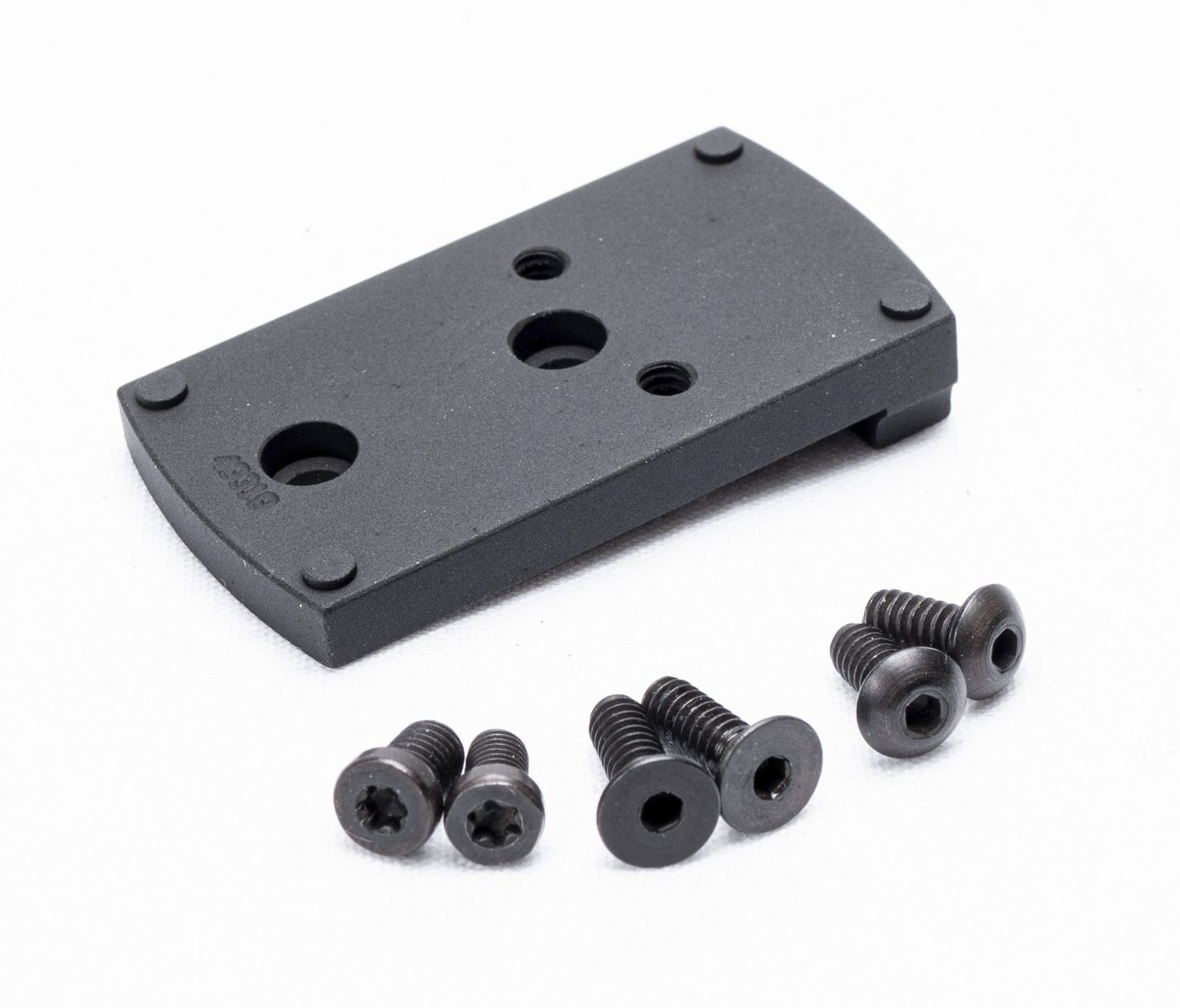

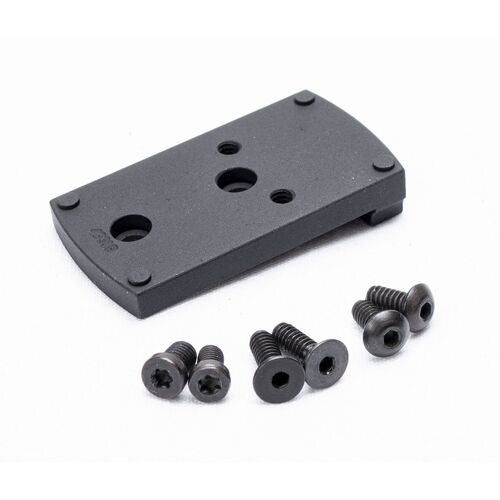

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-48 Torx Head Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.

SKU EGW49319
Model # 49319
Brand EGW
Red Dot Mount Footprint Docter
