EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

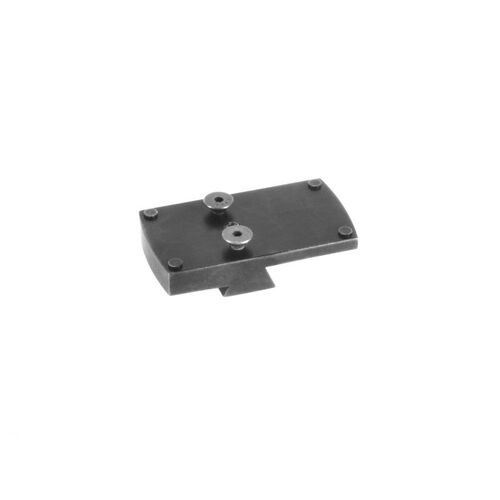

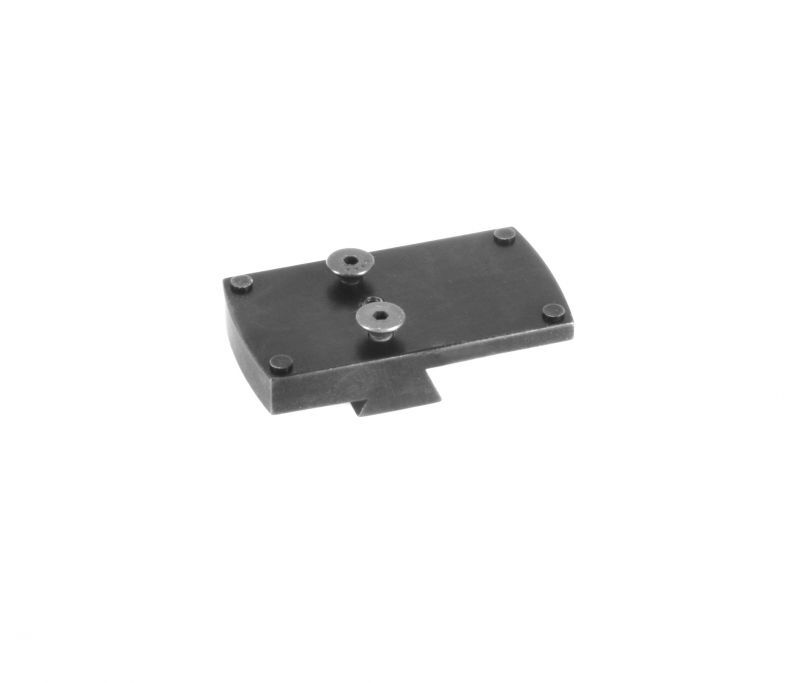

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

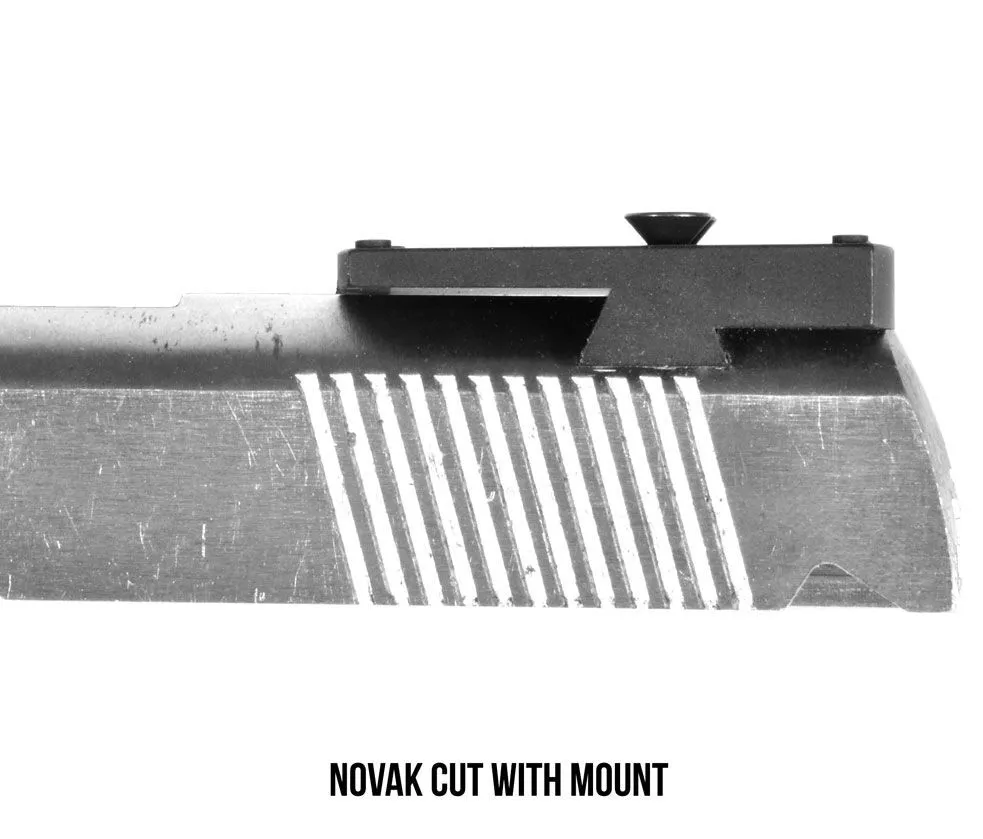

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

This mount fits (including but not limited to):
Firearms with a traditional Novak cut rear sight.
CZ 75 Bull Shadow
STI with fixed rear sights
STI Marauder
Christensen Arms 1911
Colt Delta Elite 10mm (2016 and newer)
Ruger SR 1911 (fixed rear sight)
Sig Sauer Nightmare
Citadel 1911s
Springfield Armory 1911 EMP - 9mm / .40
Springfield Armory 1911 EMP 4" Lightweight Champion - 9mm / .40
Springfield Armory 1911 EMP 4" Conceald Carry Contour Model - 9mm / .40
Springfield Armory 1911 Champion Operator Lightweight - .45
Springfield Armory 1911 Range Officer Compact - 9mm / .45
Springfield Armory 1911 Range Officer Champion - 9mm / .45
Springfield Armory 1911 Range Officer Elite Compact - 9mm / .45
Springfield Armory 1911 Range Officer Elite Champion - 9mm / .45
Springfield Armory 1911 Range Officer Elite Operator - 9mm / .45
Springfield Armory 1911 Loaded (Fixed Rear Sight) - .45
Springfield Armory 1911 TRP
Rock Island TCM Rock Standard MS HC Combo - 22TCM/9MMTCM
Rock Island TAC Ultra FS Combo - 22TCM/9MMTCM
Rock Island Rock Ultra FS Combo - 22TCM/9MMTCM
Rock Island TAC Ultra FS HC Combo - 22TCM/9MMTCM
Rock Island TAC Ultra MS HC Combo - 22TCM/9MMROCK
Rock Island Ultra CS-LTCM Rock Standard FS HC Combo - 22TCM/9MMROCK
Rock Island Ultra CCO
Rock Island TAC Ultra FS HC - 45 ACP
Rock Island TAC Standard FS - 45 ACP
Rock Island TAC Ultra FS HC - 9MM
Rock Island TAC Ultra FS - 45 ACP
Rock Island TAC Ultra CS - 45 ACP
Rock Island TAC Ultra CS - 9MM
Rock Island TAC Ultra FS - 10MM
Rock Island TAC Ultra MS - 10MM
Rock Island Rock Standard FS - 45ACP
Rock Island M1911-A1 FS Tac
Rock Island Rock Ultra CS - 45 ACP
Rock Island Rock Ultra CS-L
Rock Island Rock Standard MS - 45ACP
Rock Island Rock Ultra CCO
Rock Island Rock Standard FS - 9MM
Rock Island Rock Standard CS - 45 ACP
Rock Island Rock Ultra FS - 9MM
Rock Island Rock Ultra FS - 10MM
Rock Island Rock Standard FS 2-TONE - 45 ACP
Rock Island Rock Ultra MS - 10MM
Rock Island Rock Standard FS MATTE NICKEL - 45 ACP
Rock Island Rock Ultra FS - 40 S&W
Rock Island Rock Ultra FS - 45 ACP
Rock Island Rock Ultra FS HC - 10MM
Rock Island Rock Ultra MS - 45 ACP
ATI GSG 1911 .22
ATI GSG 1911 Target
ATI GSG 1911 HGA
ATI GSG 1911 CA Compliant
ATI GSG 1911 ADOP
Iver Johnson Hawk 45 Matte
Iver Johnson Hawk 45 Matt NS
Iver Johnson Hawk 9 Matte
Iver Johnson 9 Matte NS
Iver Johnson Hawk Polished
Iver Johnson Hawk Polished NS
Iver Johnson Thrasher Polished 45
Iver Johnson Thrasher Polished 45 NS
Iver Johnson Thrasher Polished 9
Iver Johnson Thrasher Polished 9 NS
Iver Johnson Thrasher Polished 40
Iver Johnson Thrasher Polished 40 NS
Iver Johnson Thrasher CHR45
Iver Johnson Thrasher CHR45 NS
Iver Johnson Thrasher CHR9
Iver Johnson Thrasher CHR9 NS
Iver Johnson Hawk Digital Navy NS
Iver Johnson Hawk O.D. Green
Iver Johnson Hawk O.D. Green NS
Iver Johnson Hawk Coyote Tan
Iver Johnson Hawk Coyote Tan NS
Iver Johnson Thrasher SS 45
Iver Johnson Thrasher SS 45 NS
Iver Johnson Thrasher SS 9
Wilson Combat Supergrade Commander Special
Wilson Combat Tactical Carry Compact
Wilson Combat Tactical Supergrade
Wilson Combat Tactical Supergrade Compact
Wilson Combat Tactical Supergrade Professional
Wilson Combat Tactical Carry
Wilson Combat Tactical Carry Professional
Wilson Combat Tactical Elite
Wilson Combat Vickers Elite
Wilson Combat Vickers Elite Commander
Wilson Combat X-Tac
Wilson Combat X-Tac Compact
Wilson Combat X-Tac Elite
Wilson Combat X-Tac Elite Carry Comp Pro
Wilson Combat X-Tac Elite Professional
Wilson Combat X-Tac Professional
Wilson Combat X-Tac Elite Compact
Wilson Combat X-Tac Elite Carry Comp
Wilson Combat Protector
Wilson Combat CQB
Wilson Combat CQB Elite
Wilson Combat CQB Tactical LE
Wilson Combat CQB Light-Rail Lightweight
Wilson Combat Ultralight Carry
Wilson Combat Ultralight Carry Commander
Wilson Combat Ultralight Carry Professional
Wilson Combat Ultralight Carry Compact
Wilson Combat Ultralight Carry Sentinel
Wilson Combat ULC Commander Compact
Wilson Combat Carry Comp
Wilson Combat Carry Comp Professional
Wilson Combat Hackathorn Special
Wilson Combat Hackathorn Special Commander
Wilson Combat Tactical Elite
Wilson Combat EDC X9
Wilson Combat EDC 9 Compact
Wilson Combat EDC 9 Professional
Wilson Combat Protect Professional
Wilson Combat Elite Professional
Wilson Combat Professional
Wilson Combat Professional Lightweight
Wilson Combat Professional LR-LW
Wilson Combat Bill Wilson Carry
Wilson Combat Protector Compact
Wilson Combat CQB Compact
Wilson Combat CQB LR-LW Compact
Wilson Combat CQB Commander
Wilson Combat CQB Commander Compact
Wilson Combat Sentinel Compact
Wilson Combat Stealth
Wilson Combat MS Sentinel
Wilson Combat Sentinel
Wilson Combat Sentinel Compact
Wilson Combat Sentinel Professional
Wilson Combat Super Sentinel
Wilson Combat Sentinel XL

Minor modification to the sight base may be necessary for some 1911s including Rock Islands, Citadels, and GSG 1911 .22s.

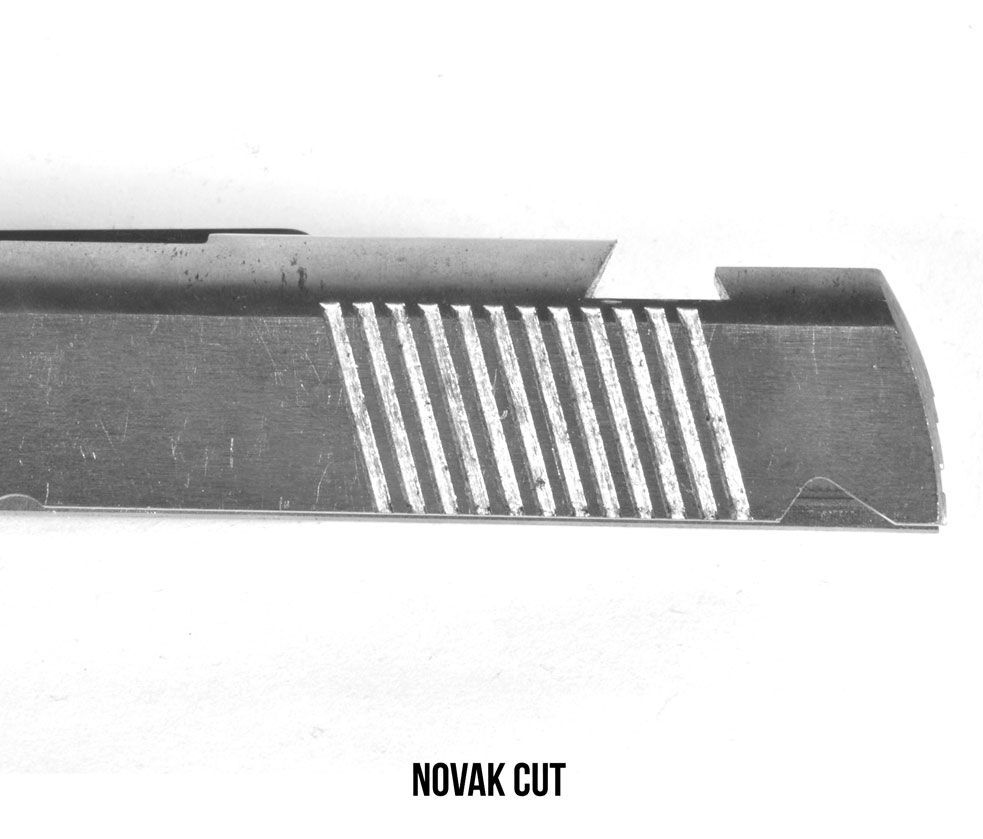

Please note, some manufacturers use licensed Novak rear sights. These are cut to the manufacturer's spec and are NOT GENUINE/traditional/true Novak rear sight cuts. One of the most common manufacturers to do this is Taurus. Ruger also uses smaller Novak rear sights on their fixed sight revolvers. Our mount will NOT fit these applications since they are not a traditional/true Novak cut. We do not offer any options for those applications.

Please See Our Common 1911 Dovetail Chart If You Are Not Sure Which Cut You Have.



Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.

SKU EGW49311
Model # 49311
Brand EGW
Red Dot Mount Footprint Docter
