EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

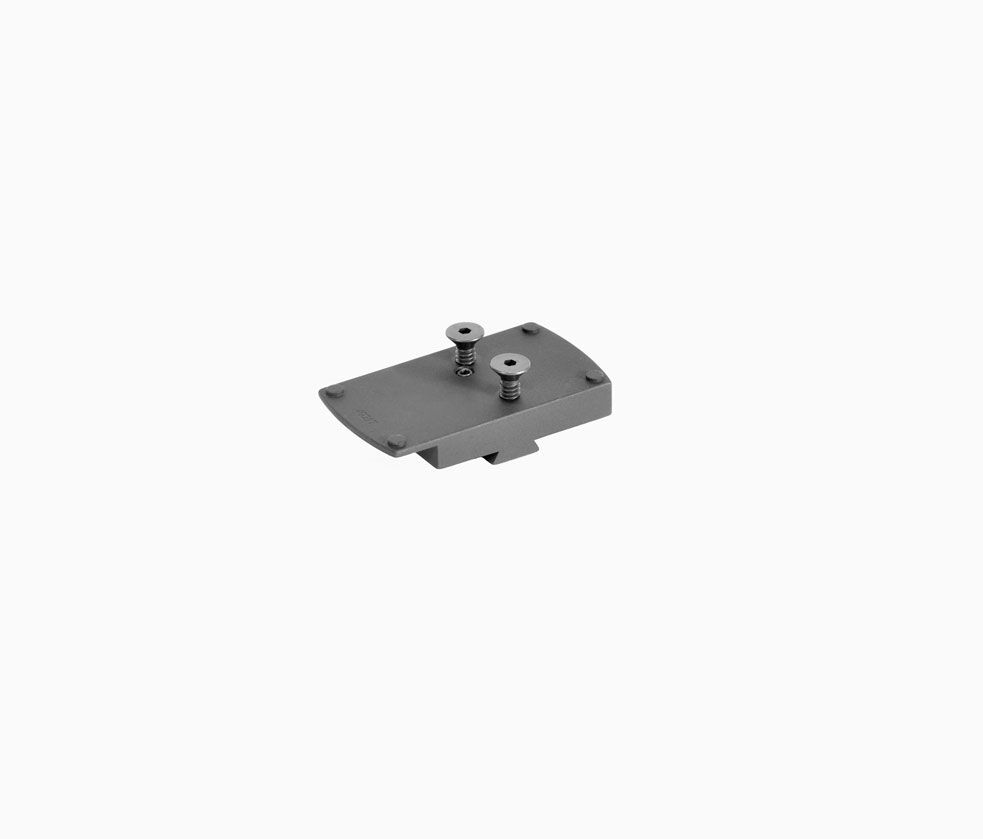

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

If you have a Para Elite LS Hunter or Remington R1 10mm Hunter you will need to select specific mount for the Para Elite / Remington.

This mount fits (including but not limited to):
Sig Sauer 1911 Stainless Super Target*
Sig Sauer 1911 Match Elite*
Sig Sauer 1911 Target Full Size*
Sig Sauer 1911 Max Full Size*
STI with adjustable rear sights
STI Trojan
STI DVC 3 Gun
STI DVC Limited
STI DVC Classic
Springfield Range Officer
Springfield Range Officer Elite Target
Springfield Loaded Target
Rock Island TCM Rock Target FS HC Combo 22TCM / 9MM
Rock Island Pro Match ULtra 5” - 45 ACP
Rock Island Pro Match Tac Ultra 6” - 45 ACP
Rock Island Pro Match Ultra HC - 40S&W
Rock Island Pro Match Ultra 6” - 10MM
Rock Island Pro Match ULtra 6” HC - 10MM
Iver Johnson Eagle XL-SS10
Iver Johnson Eagle SS-10
Iver Johnson Eagle O.D. Green
Iver Johnson Eagle Coyote Tan
Iver Johnson Eagle XL-10 Ported
Iver Johnson Eagle XL-10
Iver Johnson Eagle XL-45 Ported
Iver Johnson Eagle XL-45acp
Iver Johnson Eagle LR

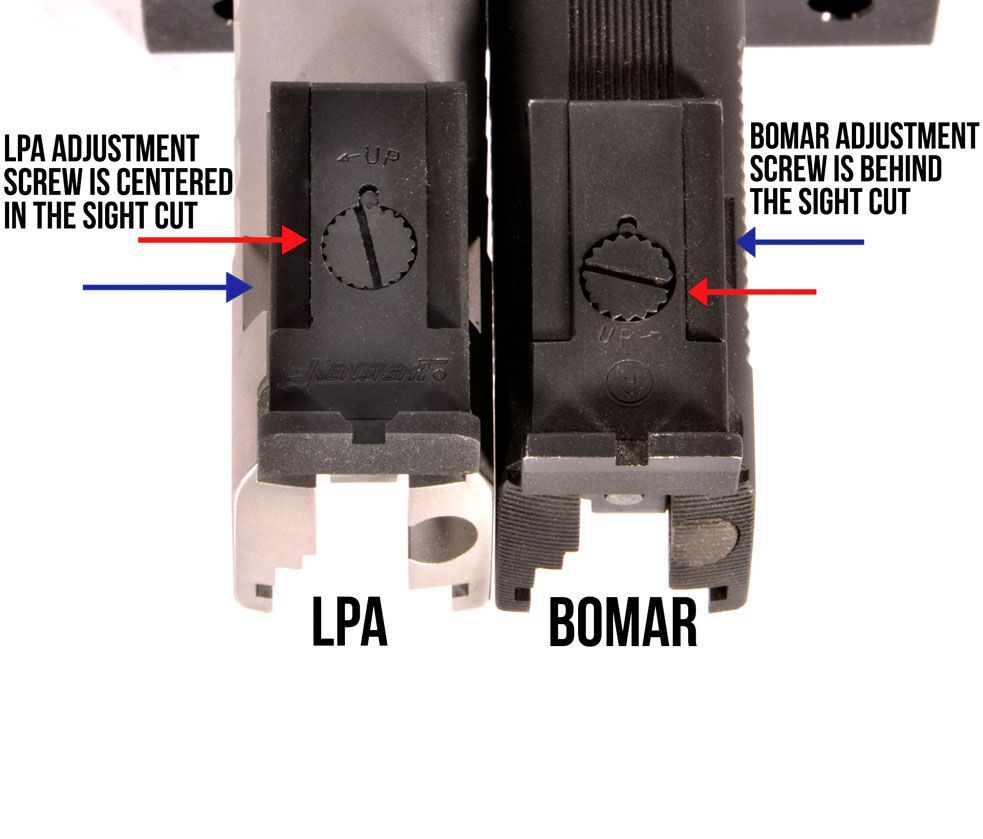

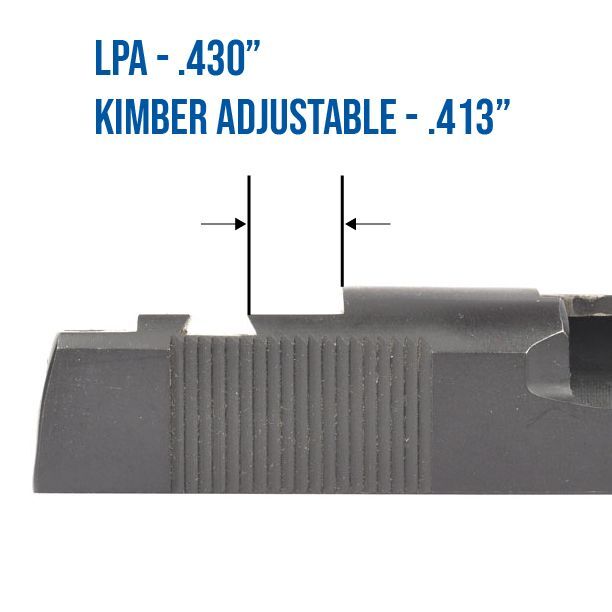

*We have found that some Sig Sauer 1911's with adjustable rear sights use a Kimber Adjustable style rear sight cut. Please measure the distance from the top of the front of the dovetail to the face of the sight cut in your slide. If this measures .43" you will need this (LPA) mount. If it measures .415" you will need the Kimber Adjustable

Please See Our Common 1911 Dovetail Chart If You Are Not Sure Which Cut You Have.

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.

SKU EGW49317
Model # 49317
Brand EGW
Red Dot Mount Footprint Docter
