EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

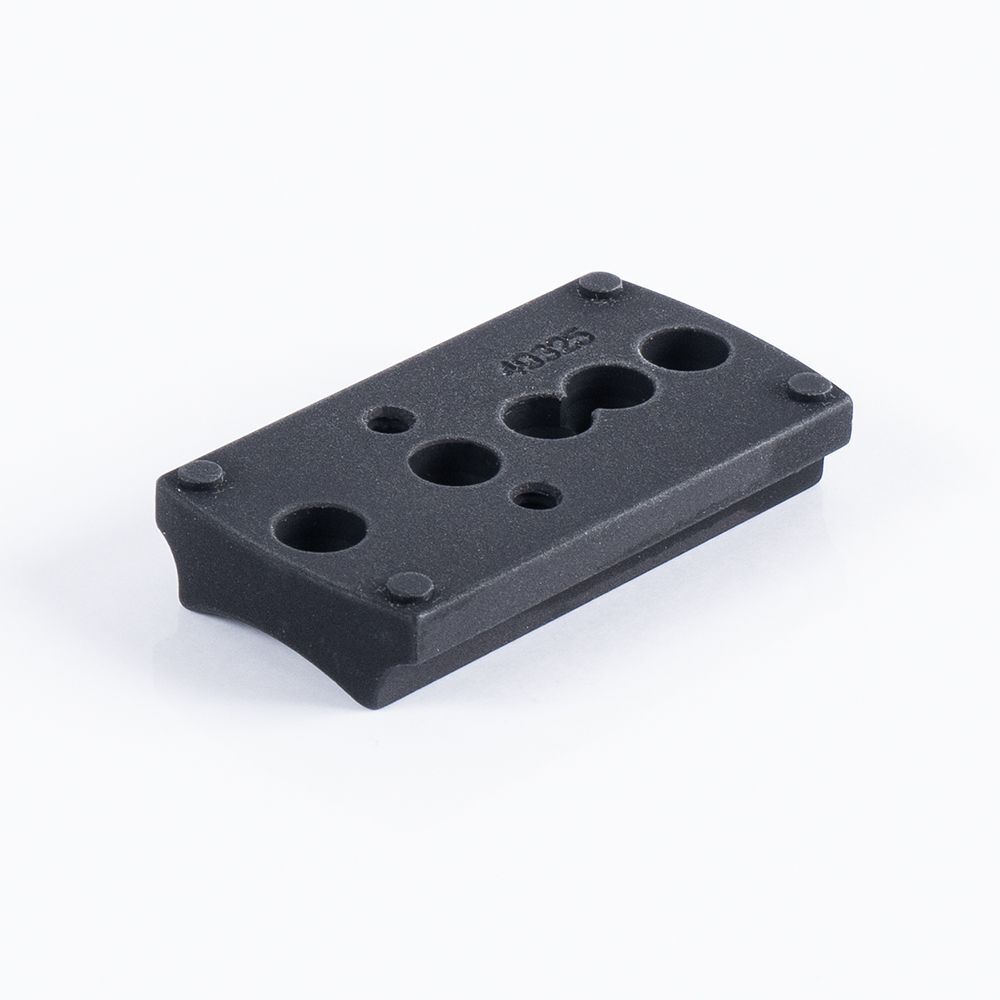

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

This mount has now been updated to accommodate even more platforms! See the listings below.

This mount has a bottom radius of .670". There should be a slight gap at the top of the radius between the receiver and the mount when mounted.
The four spreads on this mount measure:

The Winchester SX4 requires 8-36 x 3/8 screws which are not provided with this mount.

Common Applications:

Benelli Auto / Super Black Eagle / Vinchi, M2 (Will Work in the Front Set Only, 8-40 Screws)
Benelli Supernova (Will Work in the Front Set Only, 8-40 AND Longer Screws)
Browning A-Bolt 12 Gauge
Franchi Affinity
Mossberg 500, 590, 835, 930, 935 Pre '97
Mossberg 500, 590, 835, 930, 935 Late (after '97) (Requires 8-40 and Longer Screws)
Remington 870
Remington 1100
Remington 1187
Savage 210
Savage 212
Savage 220
Stoeger M3000 / Stoeger M3500 (Will Work in the Front Set Only, 8-40 Screws)
Winchester 1300
Winchester SXP

Remington 700, 722, 40x
Remington 783
Remington 710/770
Remington XP 100
Remington 4, 6, 7400, 7615 (Front Set Only, 8-40 Screws)
Savage Arms Centerfire Models
Winchester 70

This base is able to be used on applications that use a Weaver #19 base.

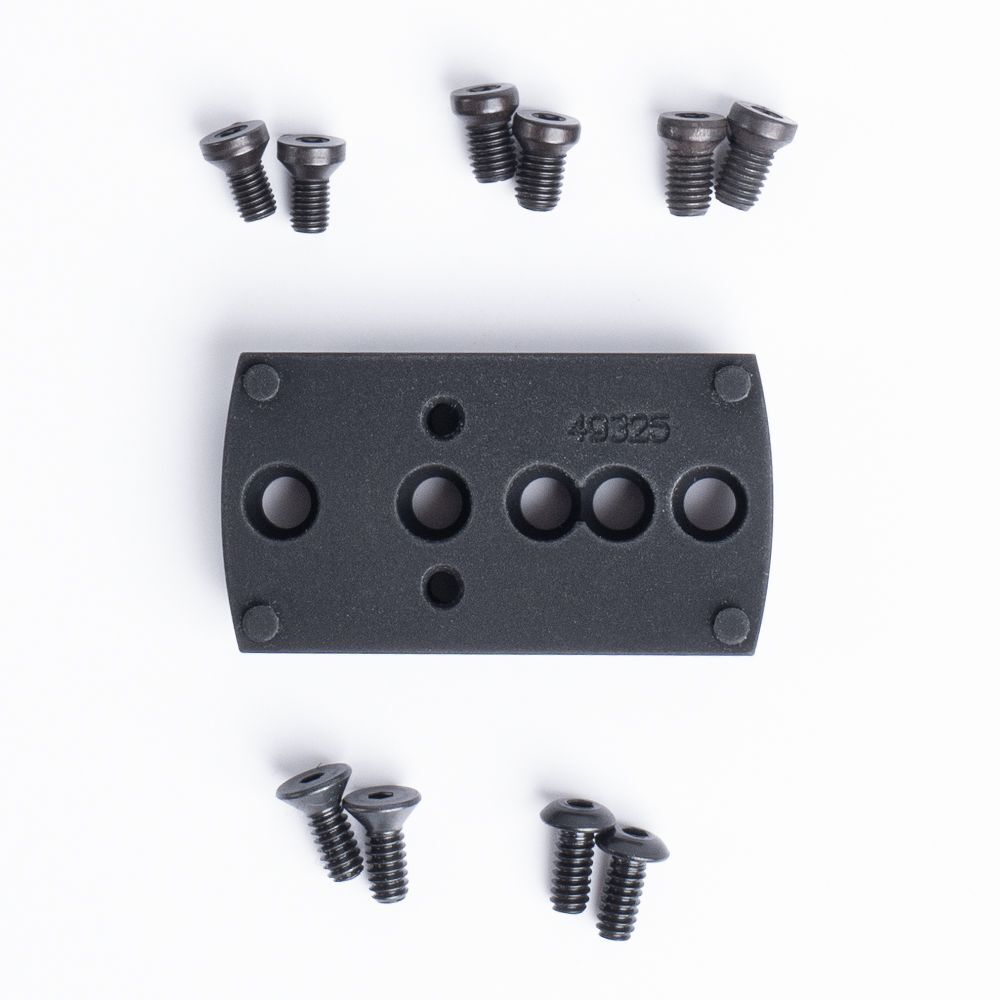

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(2) 6-48 x .313" Torx Head Screw
(2) 8-40 x .313" Torx Head Screw
(2) 8-40 x .330" Torx Head Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.

SKU EGW49325
Model # 49325
Brand EGW
Red Dot Mount Footprint Docter
