Overview

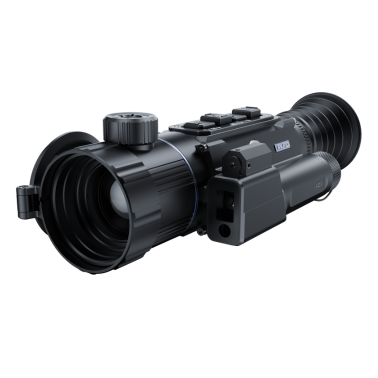

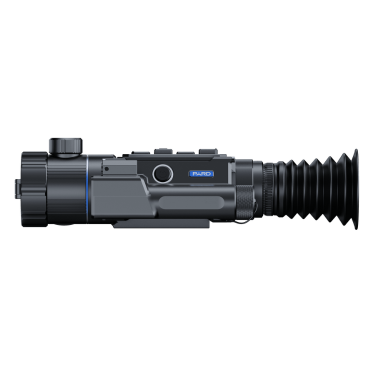

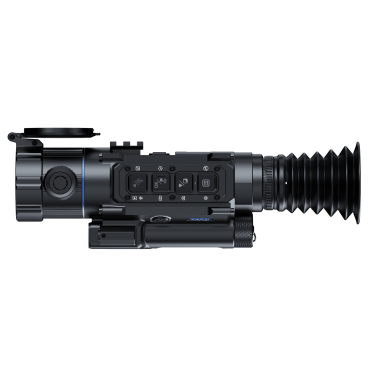

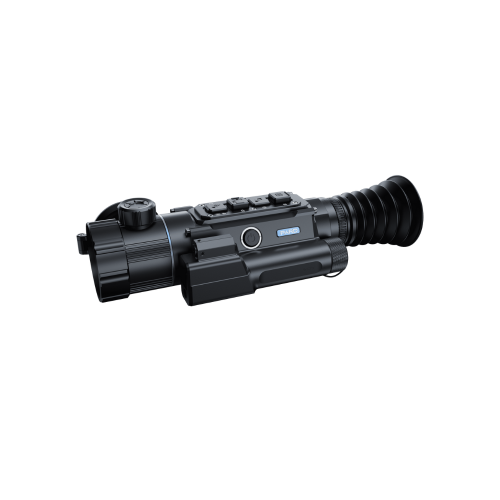

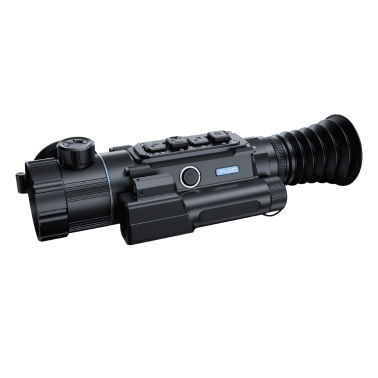

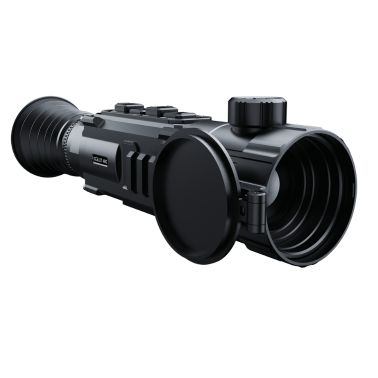

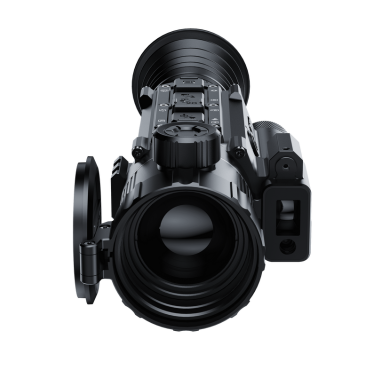

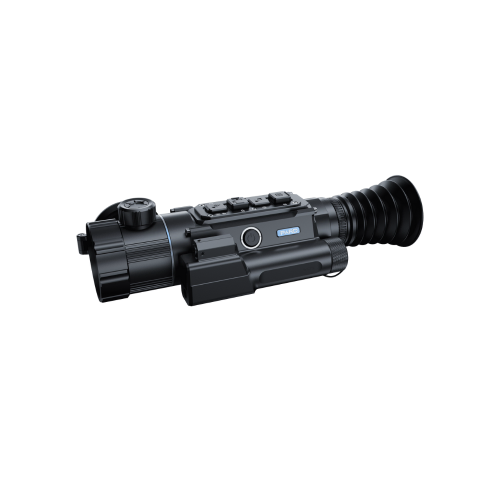

Introducing the Ocelot 480 Thermal Imaging Scope, ideal for hunting, wildlife observation, and surveillance. This advanced scope features an uncooled vanadium oxide (VOx) sensor with a resolution of 480 x 360 pixels and a 12µm pixel size, ensuring clear thermal imagery. With a detection distance of up to 1800 metres, identifying targets is easy.

The Ocelot 480 offers 2.3x optical magnification with a 35mm lens and 3.3x with a 50mm lens, plus digital zoom up to 8x. The high-resolution IPS display (800 x 800 pixels) includes six reticle styles, four reticle colours, and various scene and image modes.

Advanced features include a ballistic calculator, gyroscope, hot track, picture-in-picture mode, loop recording, and recoil-activated recording. The LRF detection range is up to 1000 metres for added precision.

Connectivity options are USB Type-C, HDMI output, and WiFi support for the PardVision2 app. The Lithium Ion 21700 battery provides up to five hours of operation, with external Type-C power support. Built to endure harsh conditions, the Ocelot 480 is IP67 rated, operational from -30°C to +55°C, and measures 182 x 68 x 79 mm, weighing 616.5g (35mm lens) or 647.5g (50mm lens).

Specifications

BrandPard
Model #OC4-35/LRF
Thermal Resolution480px
Thermal Pixel Pitch12 μm
NETD≤20mK
Thermal Objective Lens35mm
Thermal Maximum Detection Range1800
Thermal Field of View (Linear)12.4 x 12.4m @ 100m
Thermal Field of View (Degrees)7.1 x 7.1
Thermal Optical Base Magnification2.3x
Weight (grams)616
Length (mm)182
Laser Range FinderYes
Refresh Rate50Hz
Display TypeIPS
Display Resolution800x800
Eye Relief100
Battery21700
Objective Size35-39mm
