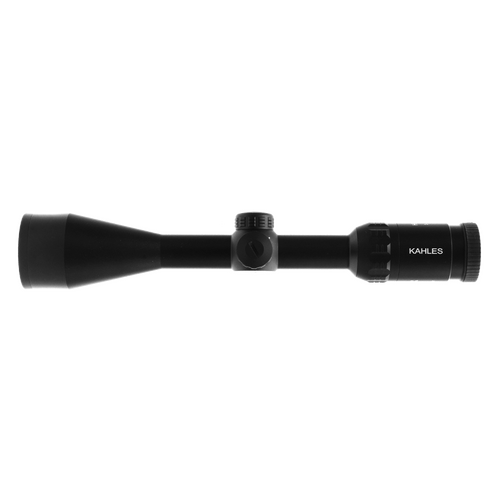

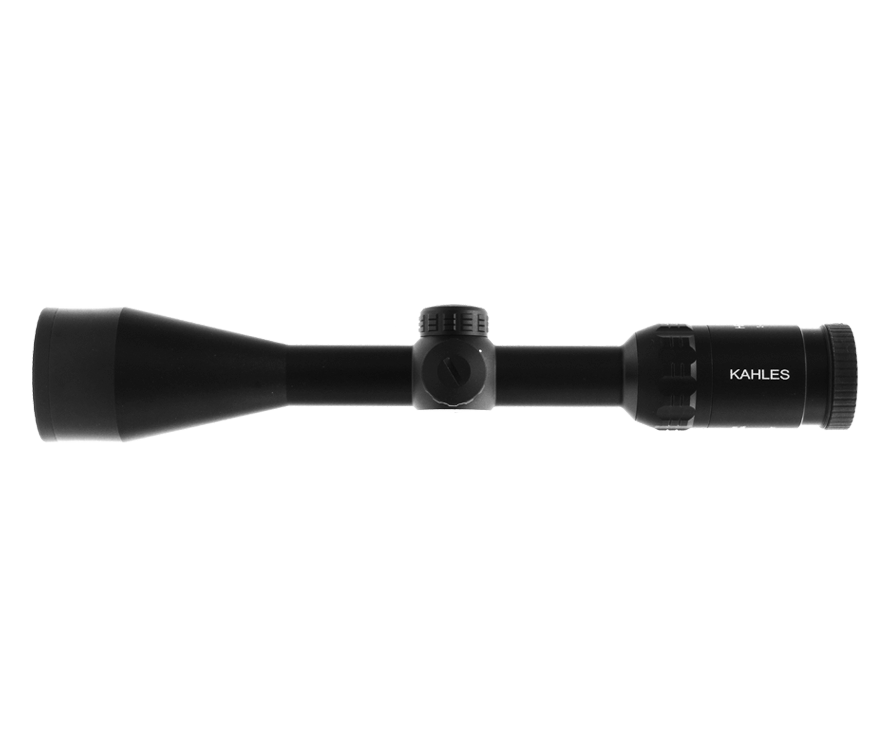

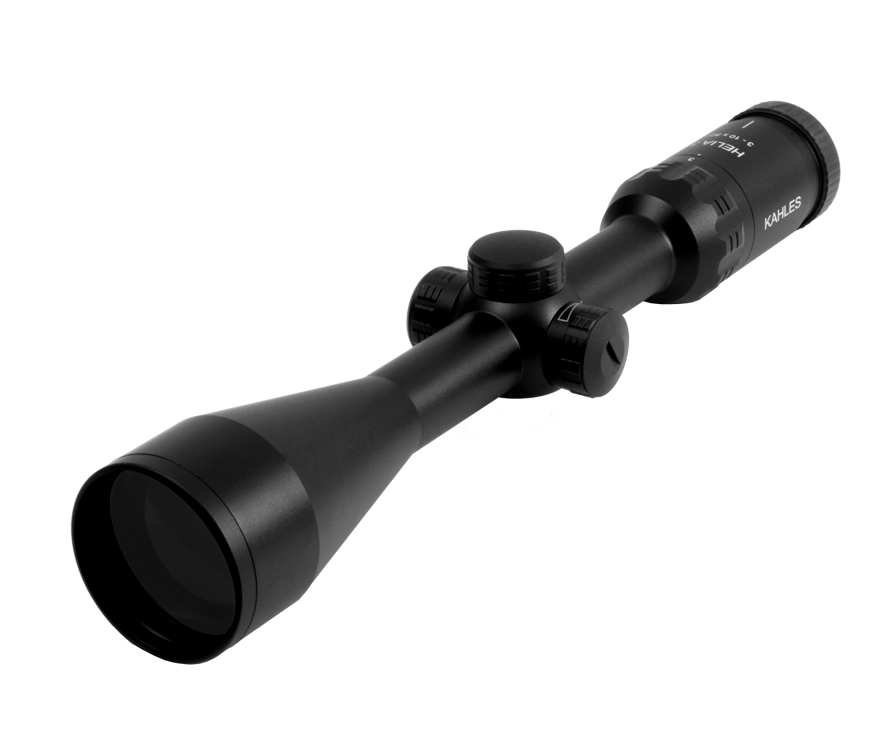

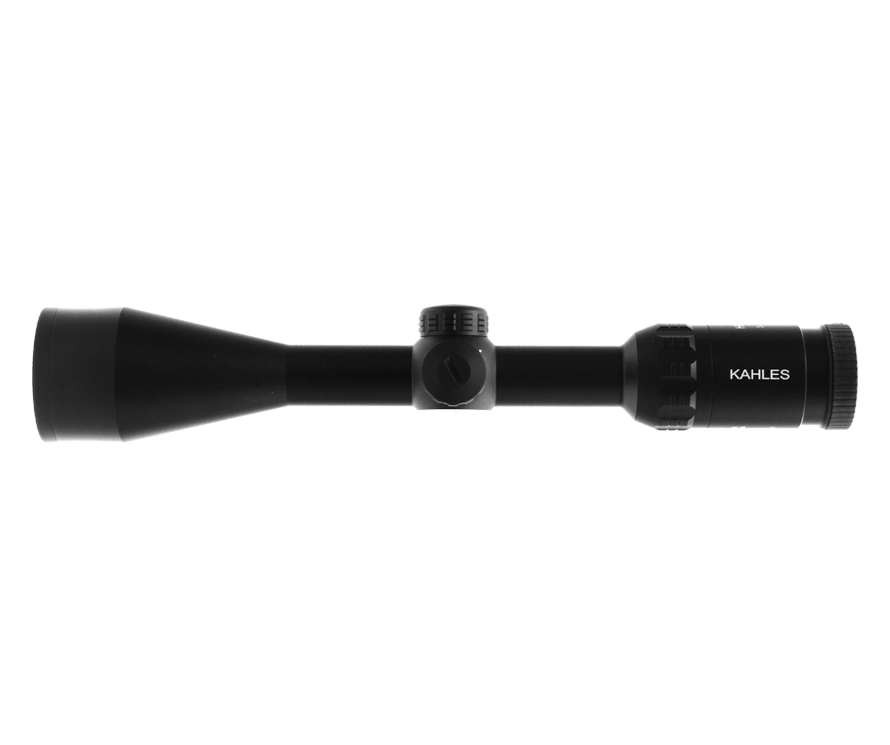

The HELIA 3 series combines classic elegance with high-quality technology and superb, premium optics. Existing attachments for 1-inch main tubes can still be used in most cases.

  • Classic all-rounder with high light transmission

  • Classic slim design with 1-inch main tube Ø (25.4 mm)

  • Aluminium main tube anodised in matt black with scratch-resistant surface

  • Day/night illuminated reticle with intelligent automatic switch-off

2nd focal plane

2nd focal plane

When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.

Main tube 25.4 mm

Main tube 25.4 mm

The main tube has a diameter of 1inch resp. 25.4 mm and gives the scope an elegant touch. In most cases the existing 1“ mounts can be kept.

Automaticlight

Automaticlight

The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.

SKU KAH10584
Model # 10584
Brand Kahles
Magnification 3-10x
Tube Size 1"/25.4mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 50mm
Parallax Adjustment Fixed
Parallax Setting 100m
Turret Style Capped
Eye Relief 90mm
Field of View 11.2 - 4.0 m/100 m
Illuminated Reticle Yes
Adjustment Graduation .1 MRAD
Max Elevation Adjustment 13 MRAD
Max Windage Adjustment 13 MRAD
Elevation Turret Style Capped
Windage Turret Style Capped
Length 325mm
Weight 508 grams
