The HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. Each model is a perfect tool for its specific hunting application.

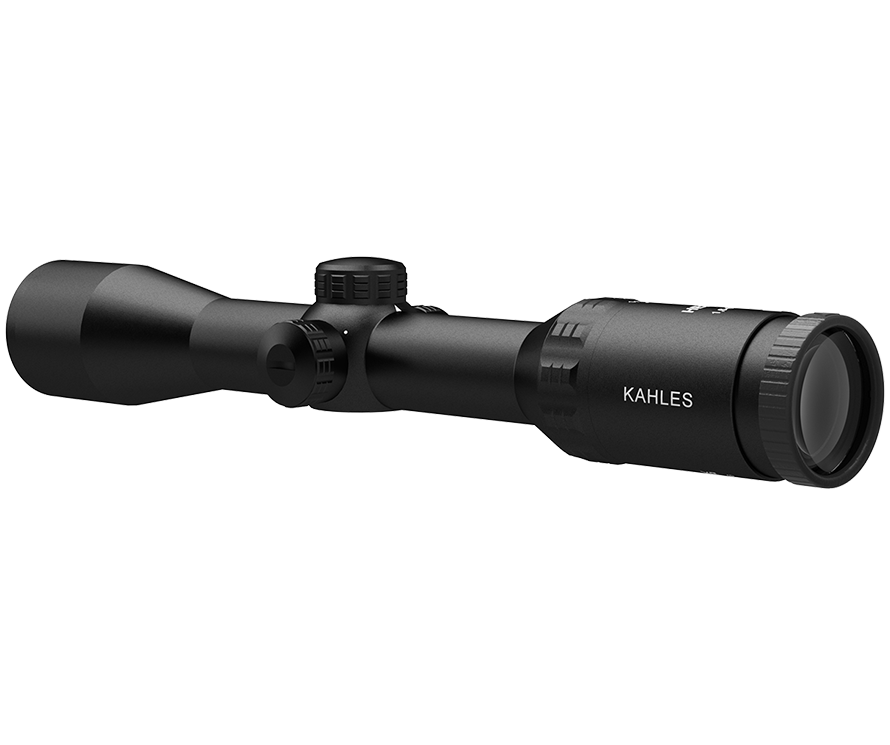

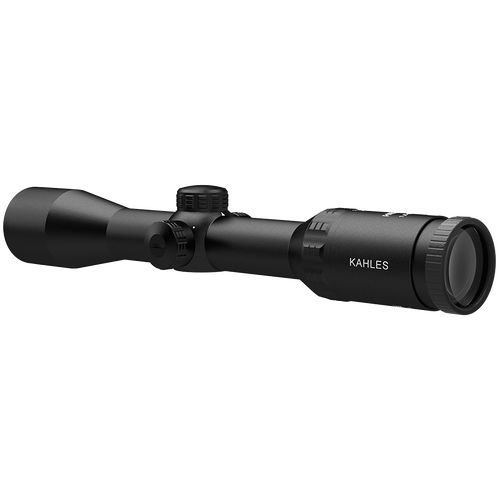

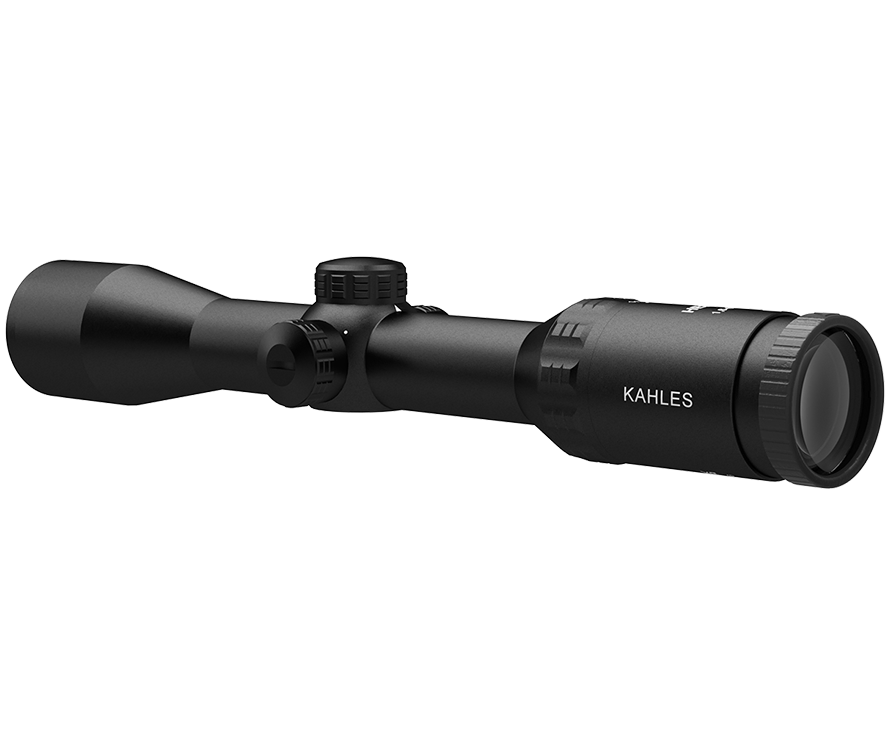

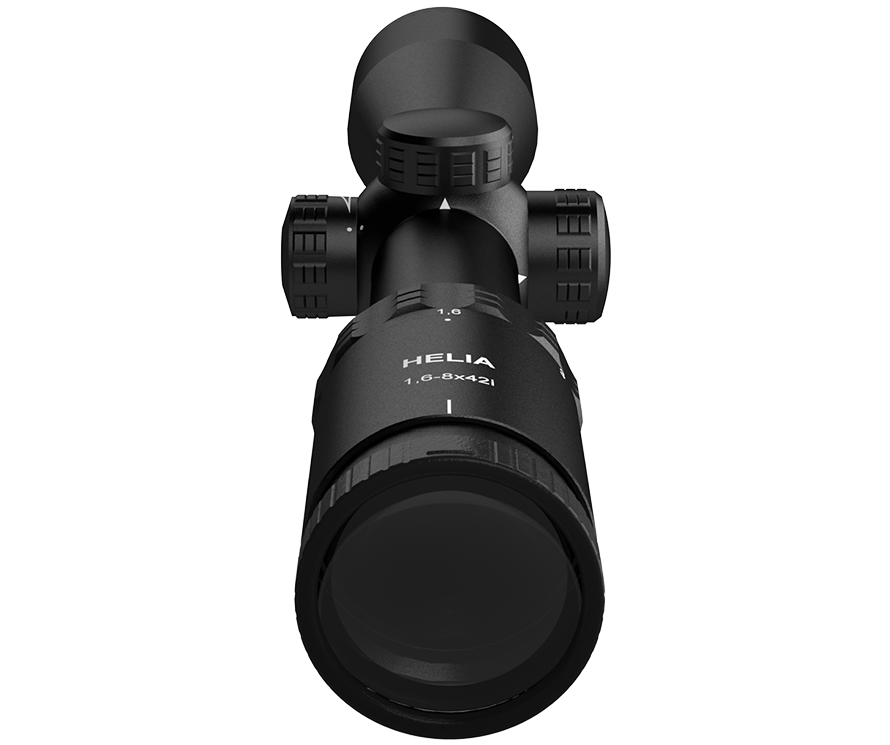

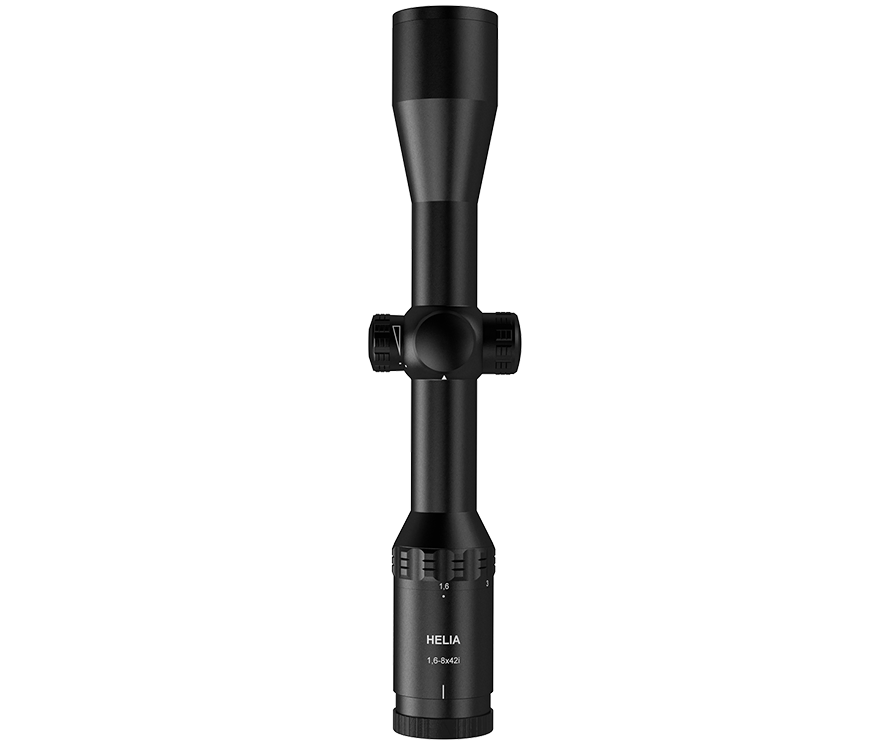

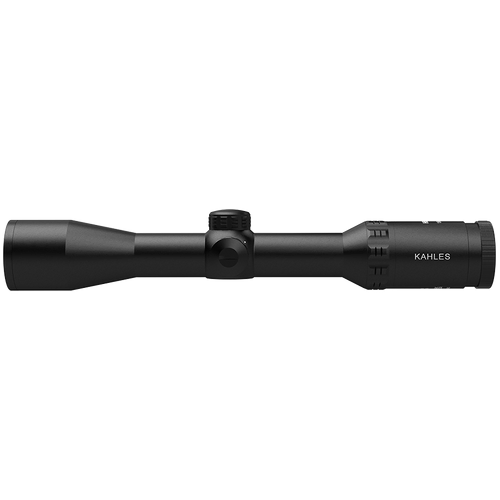

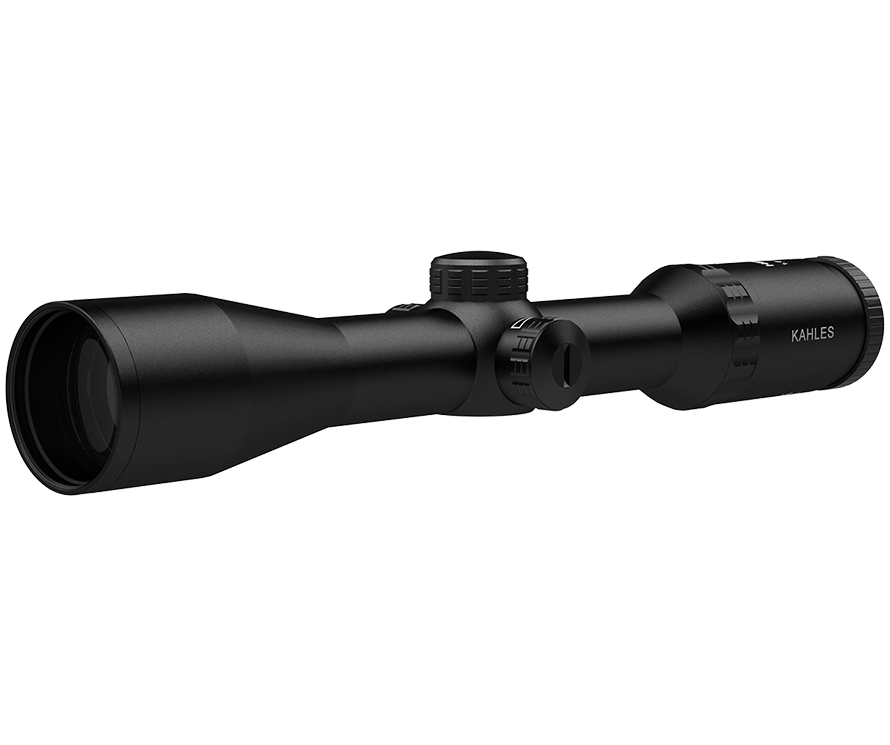

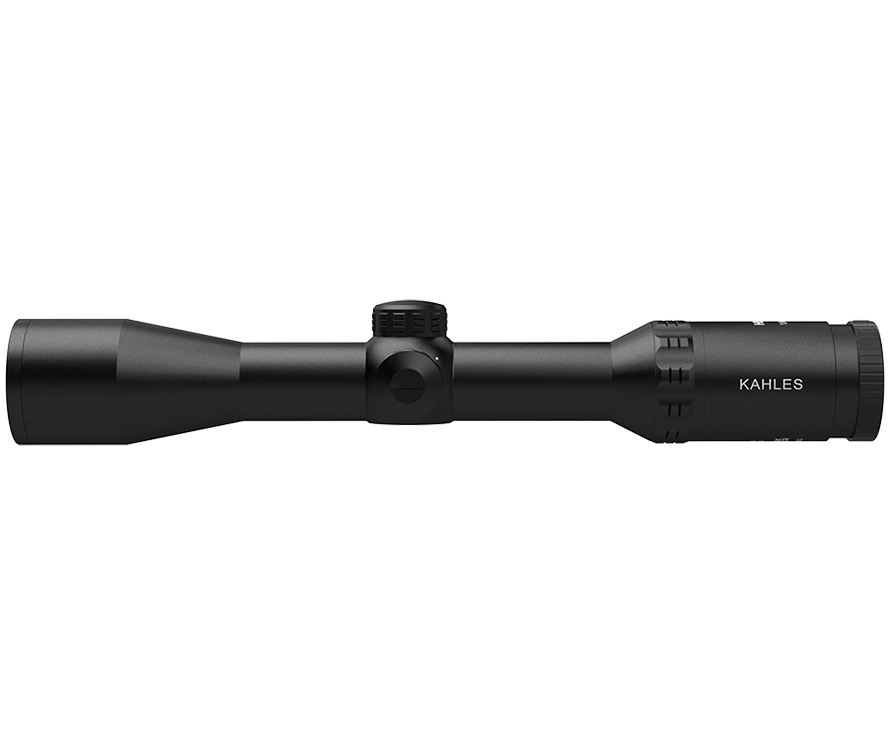

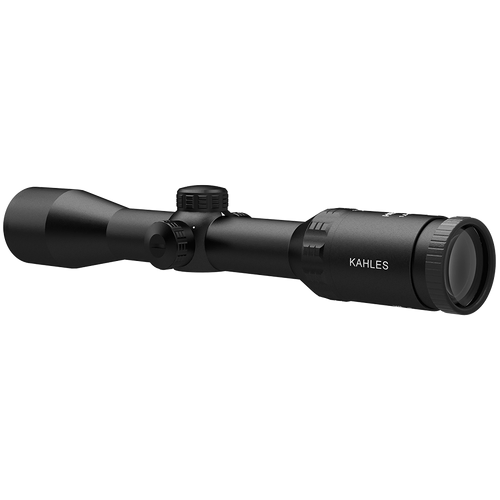

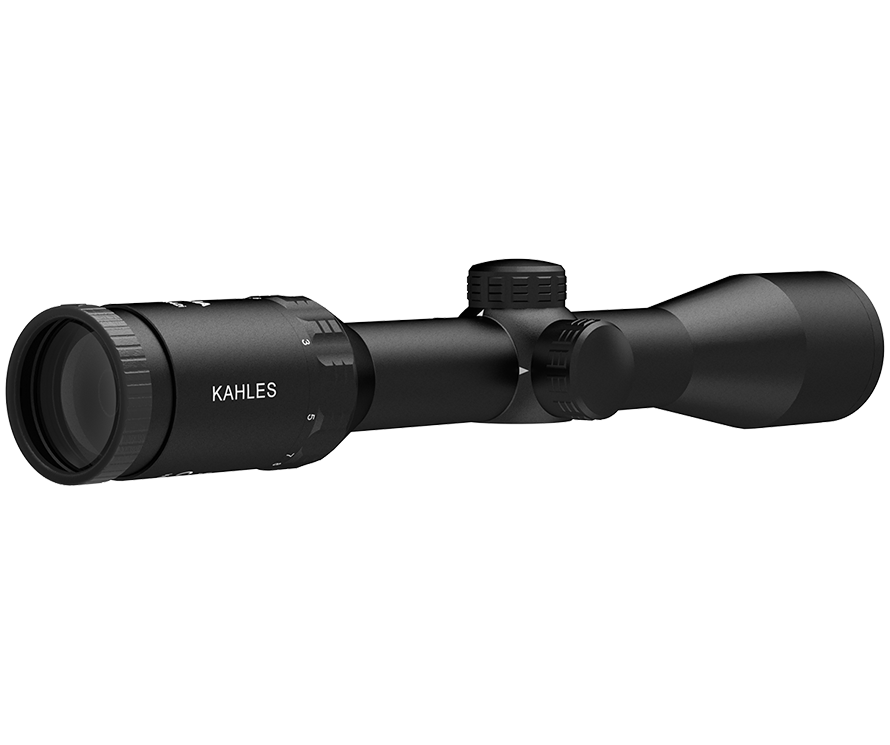

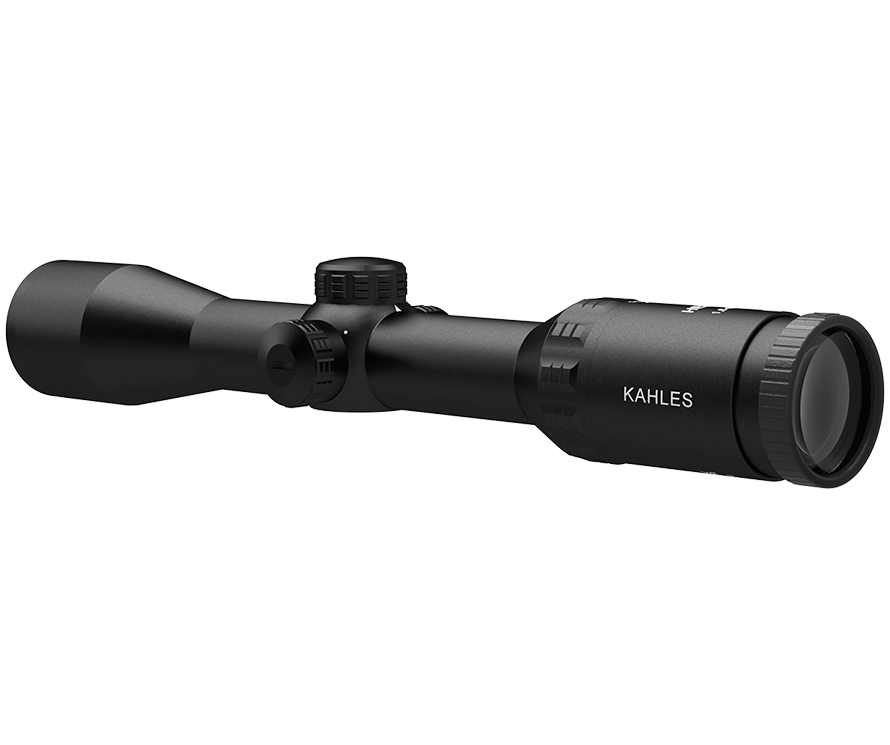

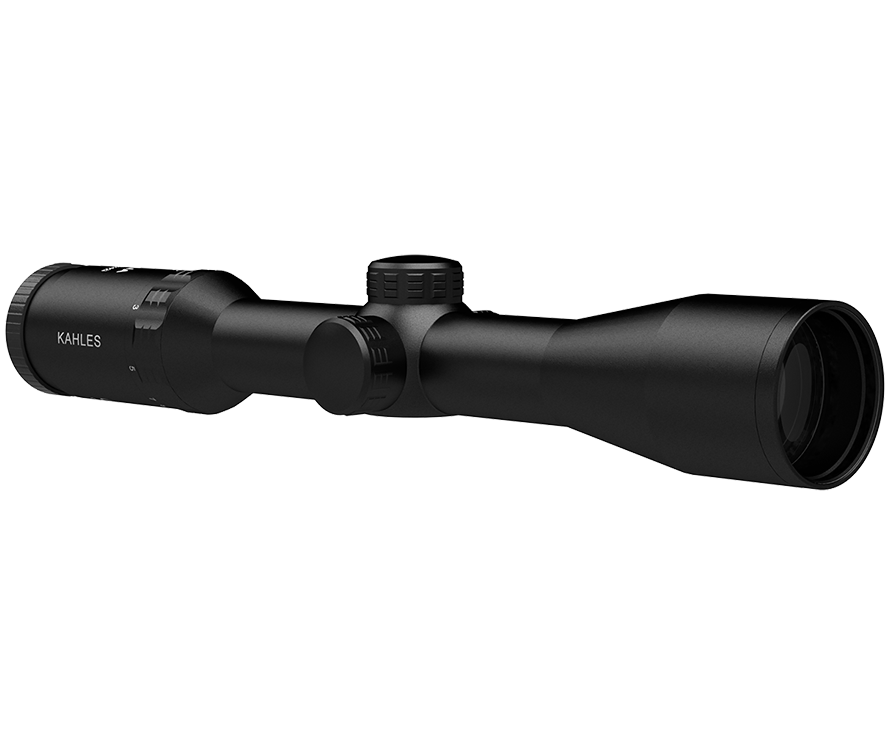

With a large field of view and an extra-bright illuminated reticle, the lightweight, compact HELIA 1.6-8x42i is a versatile tool, specially adapted for stalking and driven hunts. And with night vision devices (clip-ons), it can even be used in the dark.

  • Light and compact optics for stalking and driven hunts
  • Ideal for night hunting in combination with night vision devices (clip-ons)
  • Wide field of view (up to 25 m/100 m) with up to 8x magnification
  • Powerful optics system with exceptional edge sharpness
  • Extra-bright day/night illuminated reticle with intelligent automatic switch- off

2nd focal plane

2nd focal plane

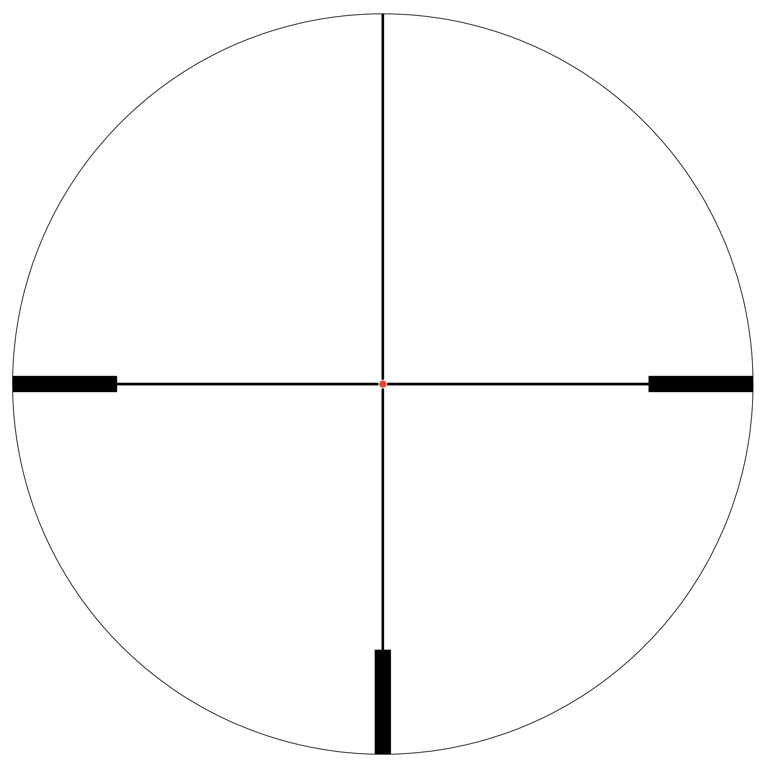

When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.

Main tube 30 mm

Main tube 30 mm

The main tube has a diameter of 30 mm which is the standard for hunting scopes.

Automaticlight

Automaticlight

The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.

SR-Rail (optional)

SR-Rail (optional)

The SR rail (Swarovski rail) provides since several years the most innovative riflescope mounting option. The mounting rail grips the upper part of the mount with it’s teeth and guarantees complete shooting stability. Through this technique, the scope can also quickly and easily be mounted to different rifles and has established itself as a standard mounting rail in the market.

SKU KAH16842I
Brand Kahles
Magnification 1.6-8x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 42mm
Parallax Adjustment Fixed
Parallax Setting 100m
Turret Style Capped
Exit Pupil 9.6 - 5.1mm
Eye Relief 95mm
Field of View 25.3 - 5.1 m/100 m
Adjustment Graduation .1 MRAD
Max Elevation Adjustment 15 MRAD
Max Windage Adjustment 15 MRAD
Elevation Turret Style Capped
Windage Turret Style Capped
Length 323mm
Weight 538 grams
