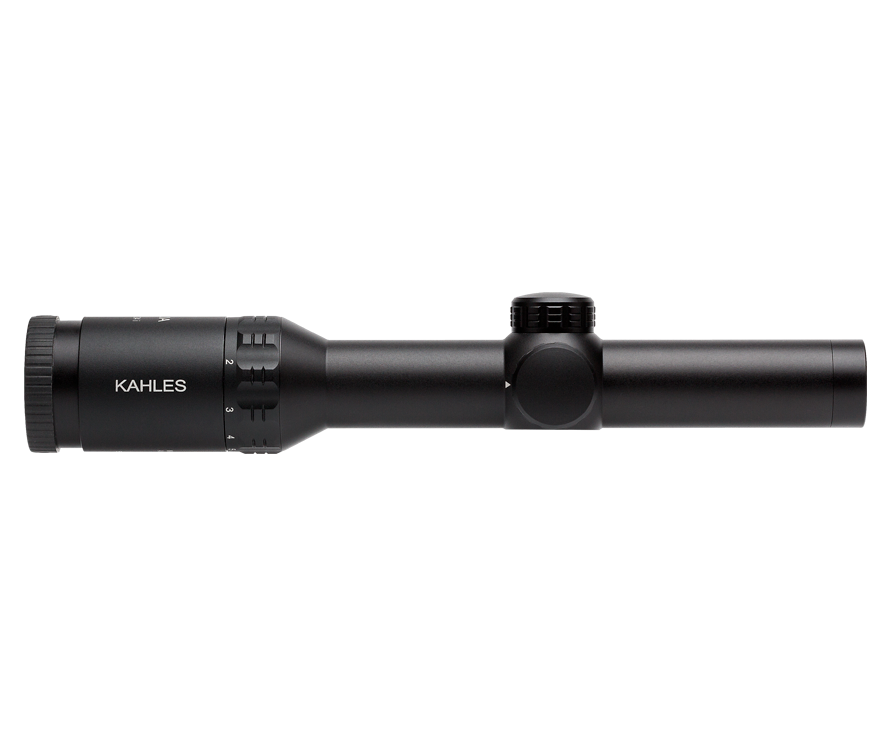

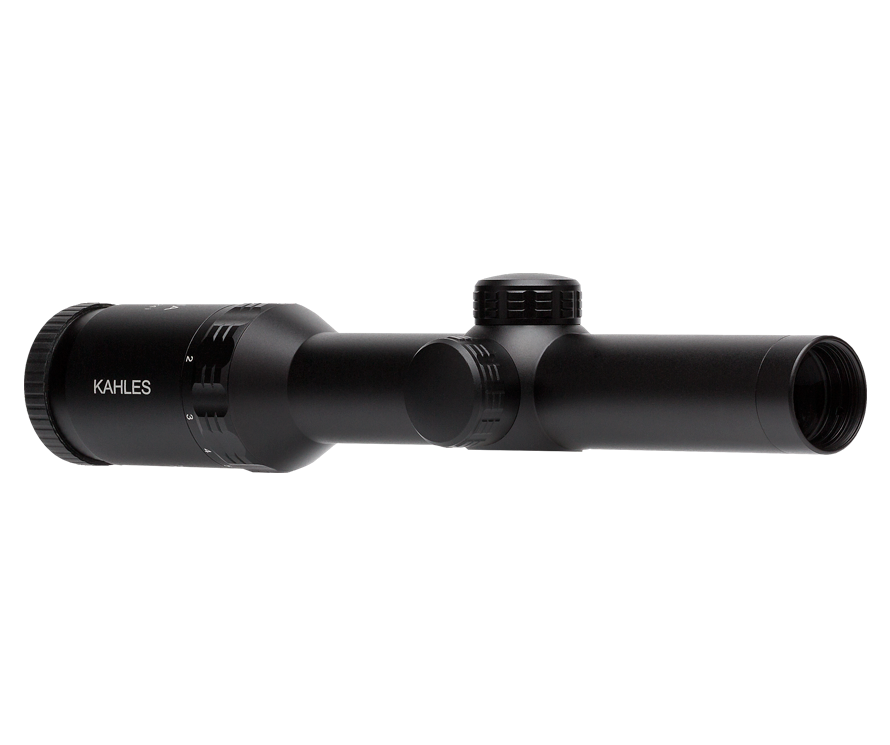

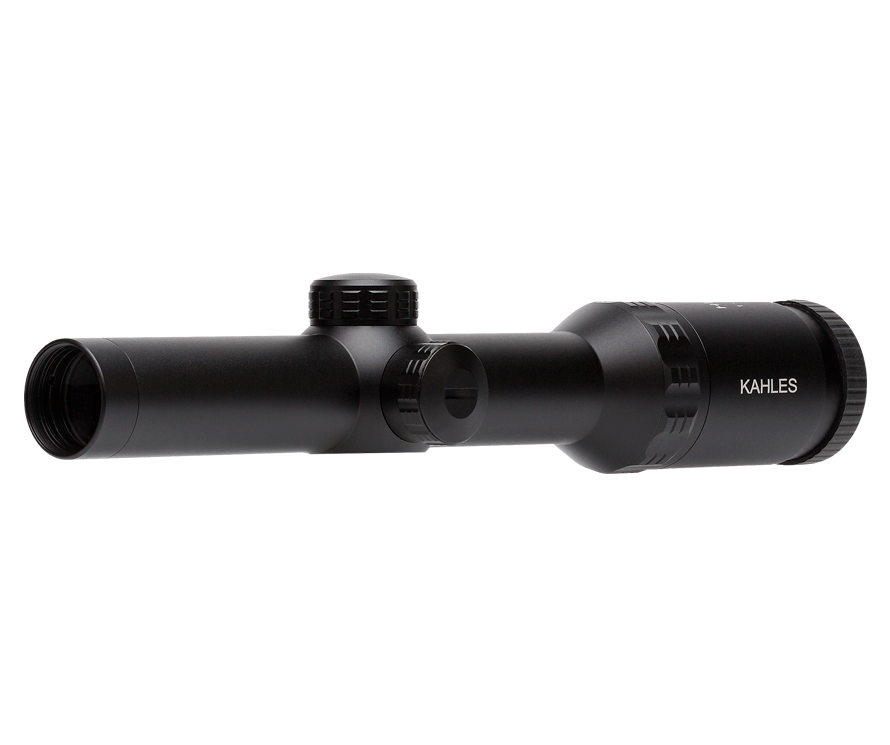

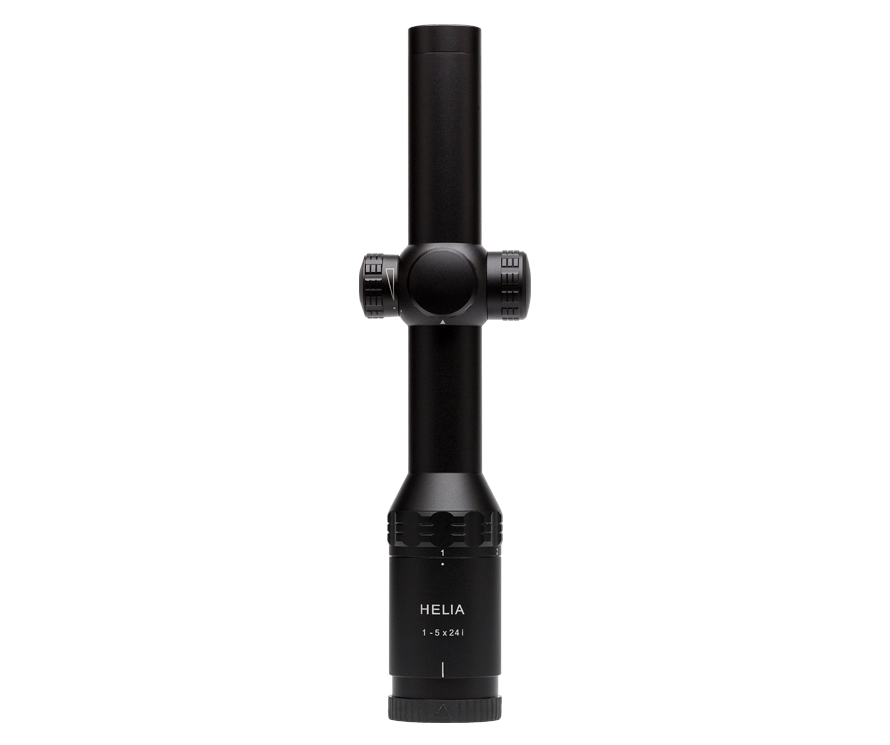

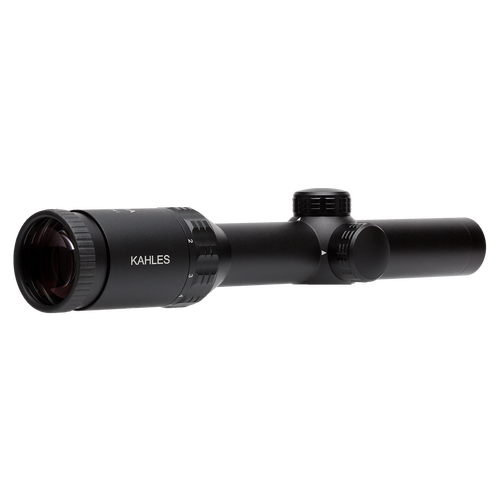

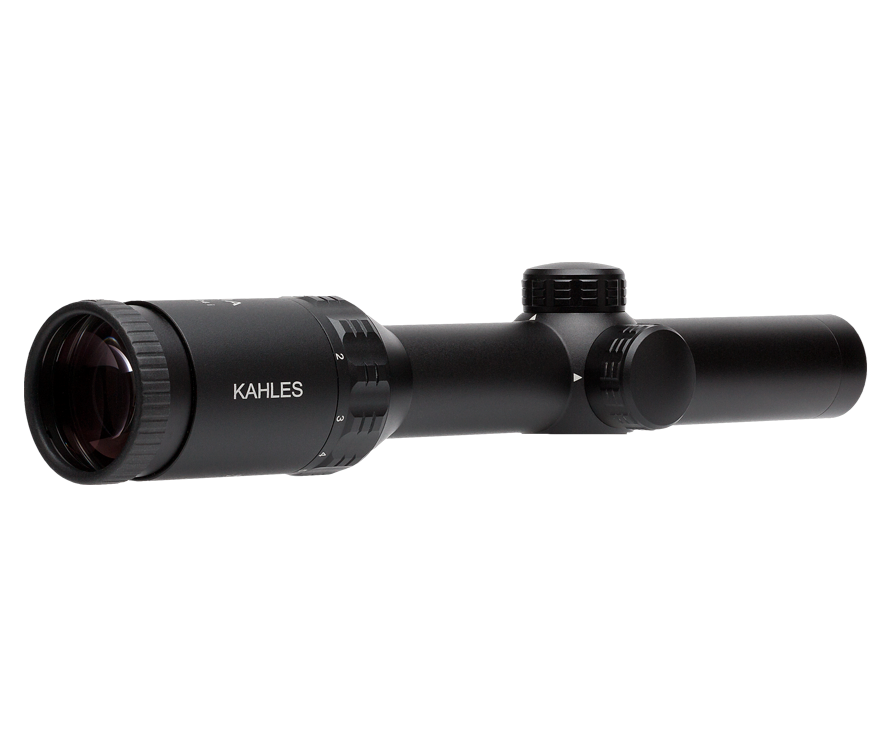

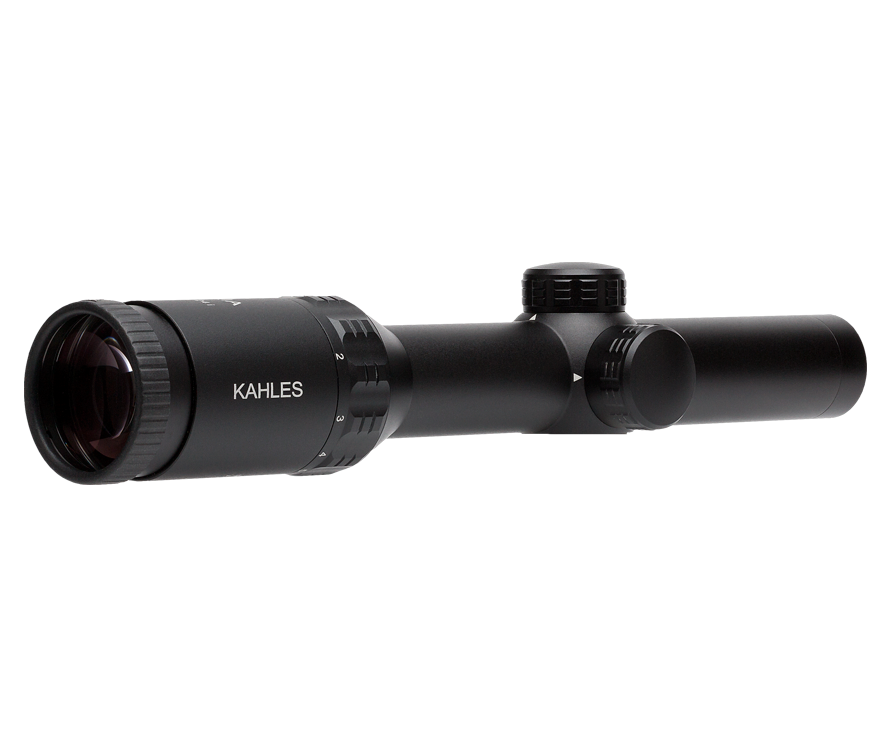

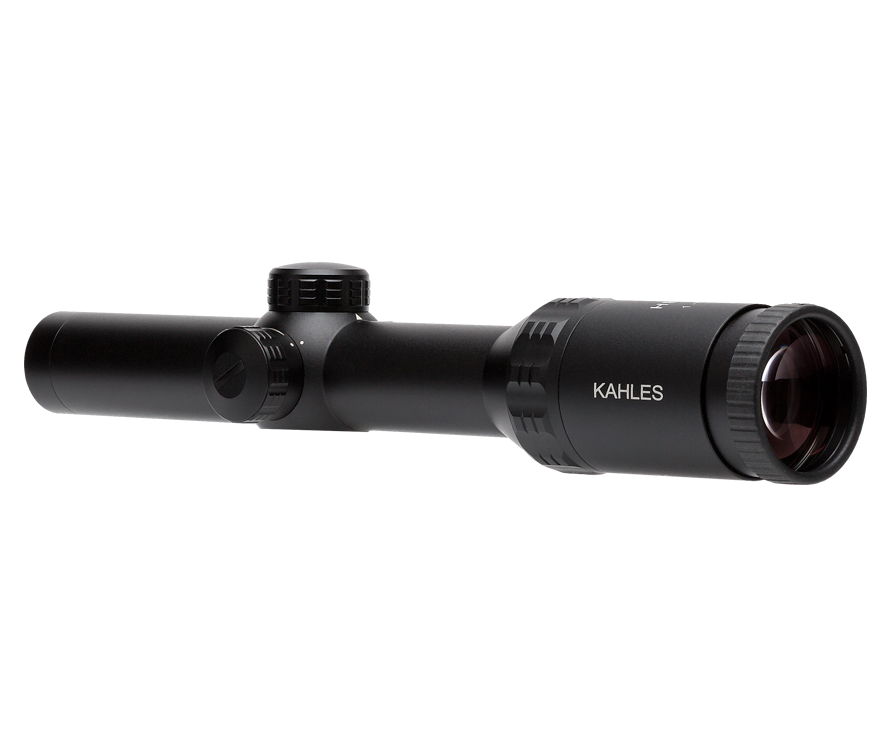

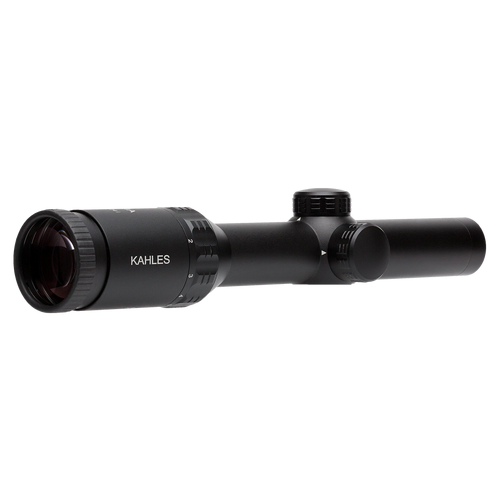

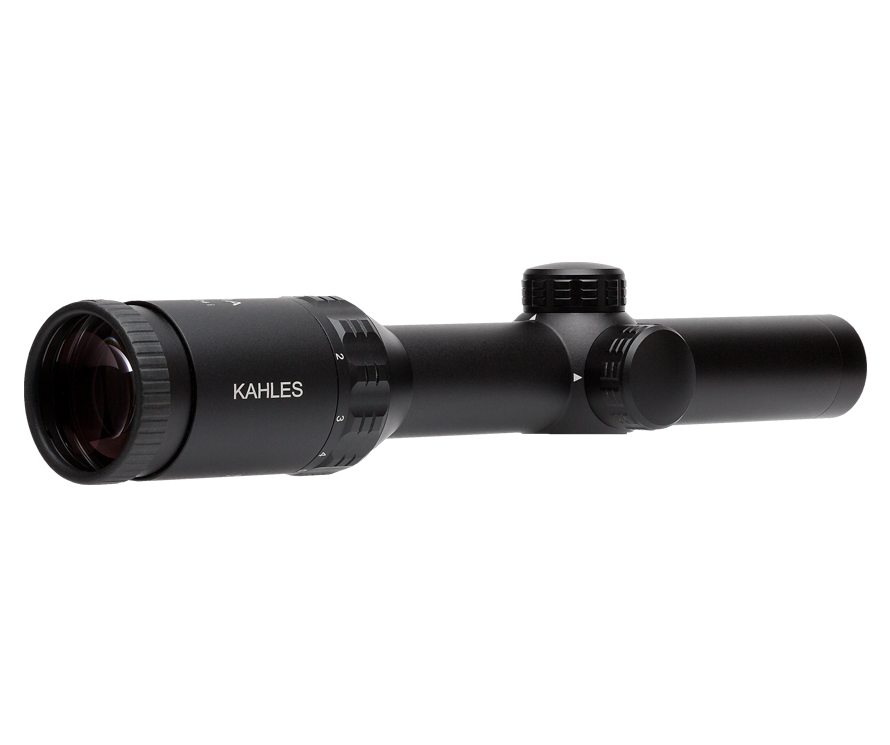

Kahles Helia 1-5x24i
30mm | SFP
The HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.
- Real compact driven hunt optics with an ultra-wide field of view reaching 42 m/100 m
- Powerful optics system with exceptional edge sharpness
- True 1 x magnification for irritation-free viewing with both eyes
- Extra-bright day/night illuminated reticle with intelligent automatic switch-off
2nd focal plane
When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.
Main tube 30 mm
The main tube has a diameter of 30 mm which is the standard for hunting scopes.
Automaticlight
The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.
SR-Rail (optional)
The SR rail (Swarovski rail) provides since several years the most innovative riflescope mounting option. The mounting rail grips the upper part of the mount with it’s teeth and guarantees complete shooting stability. Through this technique, the scope can also quickly and easily be mounted to different rifles and has established itself as a standard mounting rail in the market.
SKU | KAHH1524i |
Brand | Kahles |
Product Line | Helia |
Magnification | 1-5x |
Objective Lens Diameter | 24mm |
Tube Size | 30mm |
Focal Plane | SFP |

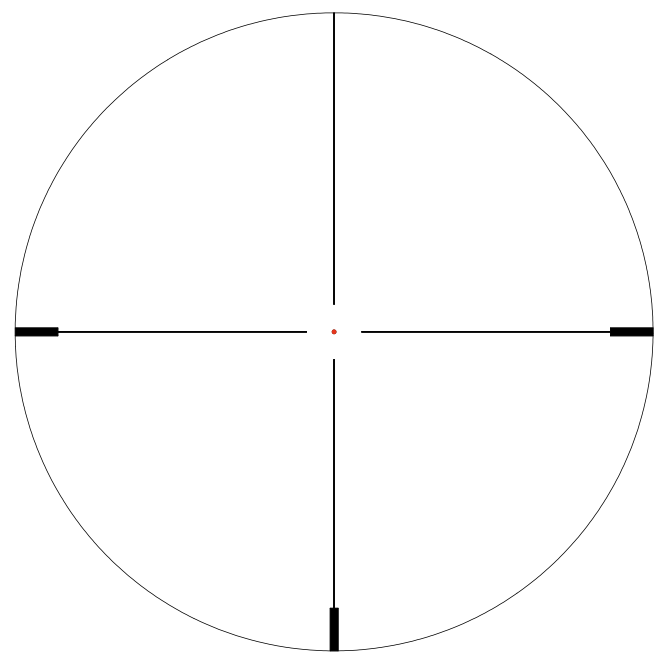

Reticle | 4-DH |
Eye Relief | 95mm |
Field of View | 42.4 - 8.1 m/100 m |
Adjustement Graduation | .1 MRAD |
Max Elevation Adjustment | 25 MRAD |
Max Windage Adjustment | 25 MRAD |
Parallax Setting | 100m |
Length | 278mm |
Weight | 475grams |
Type | Optics |
Sub Type | Scopes |
