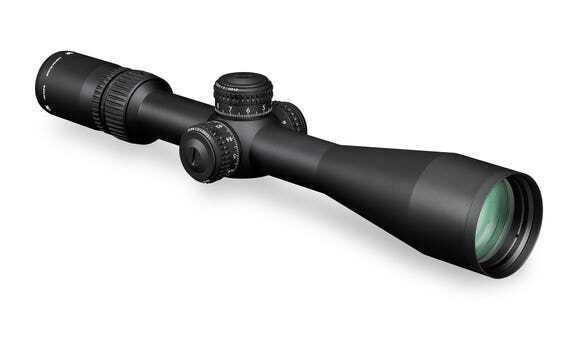

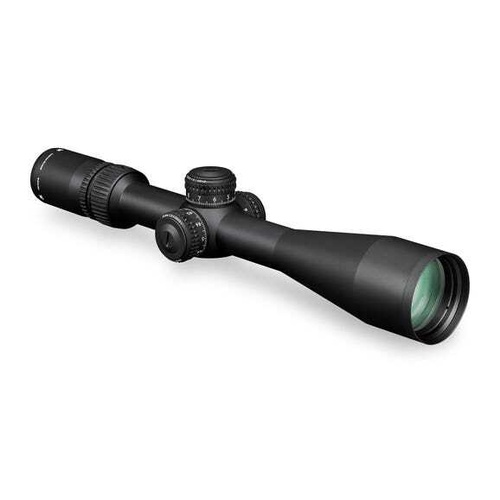

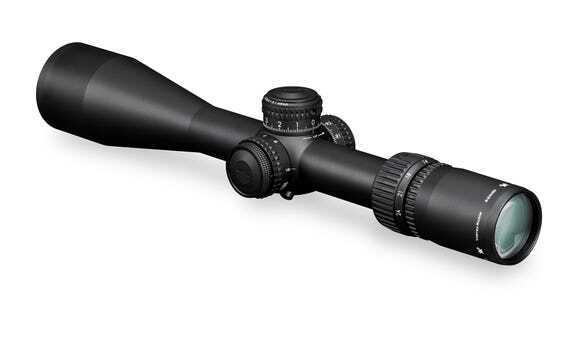

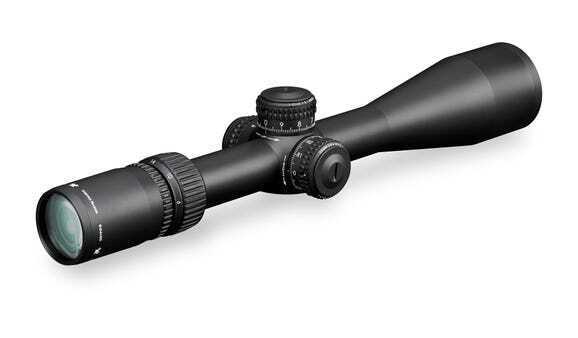

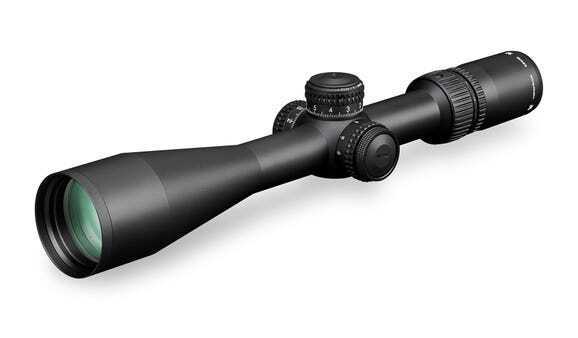

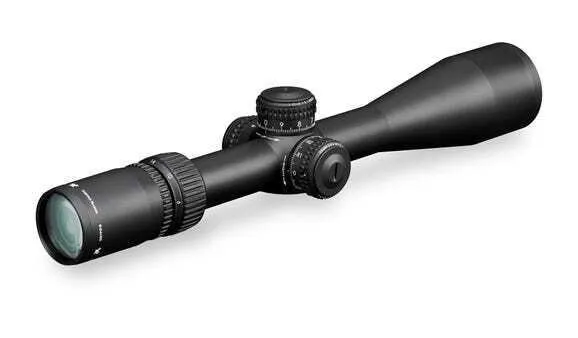

With the highest end optical system in the Vortex line, the Razor HD AMG is ready to handle any mission from long-range competition and the most critical tactical applications, to open-landscape hunts - all with ultimate precision.

Perhaps most notably, the Razor HD AMG is packed solid with long-range features like locking turrets, integrated L-Tec zero stop and an integrated locking illumination dial, powering the FFP reticle, all at an incredibly low weight of just 28.8 ounces. Rather than pursuing the common 34mm tube for a long-range capable scope, the Razor HD AMG has been specially designed with its 30mm tube to aid in weight reduction. The 30mm tube offers a sleeker profile atop any rifle without significant compromise in the way of internal adjustment and field of view.



Included in the Box
  • Defender Flip Cap E-10
  • Defender Flip Cap O-50
  • LTEC-Tool
  • CR2032 battery
  • Lens cloth
  • 3" sunshade

OPTICAL

ALO Alignment
Proprietary, precision-laser process, perfectly aligns every lens element to ensure the absolute best image possible.

APO System
Index-matched lenses correct color across the entire visual spectrum.

Optically Indexed
Lenses Optimize image sharpness and brightness from edge to edge.

HD Lens Elements
Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.

XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Plasma Tech
Cutting edge coating application process provides unparalleled coating durability and performance

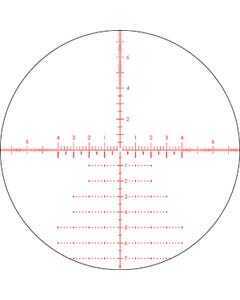

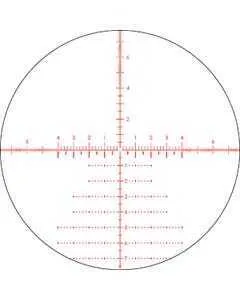

First Focal Plane
Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle
Provides precise aiming under low-light conditions



Construction

Tube Size
30 mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Alum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof
Rugged construction withstands recoil and impact.

Hard Anodized Black Finish
Highly durable Type III hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

L-Tec™ Turrets
Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.

Locking Illumination
Locks illumination at preferred setting.

Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.





L-Tec™ Zero Stop
Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position.US Patent 8,166,696 B2

Maximized Turret Zero Adjustment
Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes.

Micro Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.

Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability.

Turret Screws
Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System
Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs.





Locking Diopter Eyepiece
This feature allows the shooter to set and lock the eyepiece setting once for their eye and forget it.

L-Tec™ Tool
Included with your scope for precise adjustments to the turret.

Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Razor HD AMG 6-24x50 FFP Dimensions (in inches)

Lengths
L1 L2 L3 L4 L5 L6
14.96 2.15 2.28 6.0 5.04 3.93
Heights
H1 H2
2.32 1.74
SKU VORRZR-AMG
Model # RZR-AMG
Brand Vortex
Magnification 6-24x
Tube Size 30mm
Focal Plane FFP (First Focal Plane)
Objective Lens Diameter 50mm
Parallax Setting 22m to Infinity
Turret Style Exposed
Eye Relief 91mm
Field of View 6.21-1.55m @ 91m
Illuminated Reticle Yes
Adjustment Graduation .1 MRADAdjustment Graduation .25 MOA
Travel Per Rotation 25 MOATravel Per Rotation 10 MRAD
Max Elevation Adjustment 71 MOAMax Elevation Adjustment 27.5 MRAD
Max Windage Adjustment 34 MOAMax Windage Adjustment 10 MRAD
Elevation Turret Style Exposed Locking
Windage Turret Style Exposed
Length 380mm
Weight 817 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
