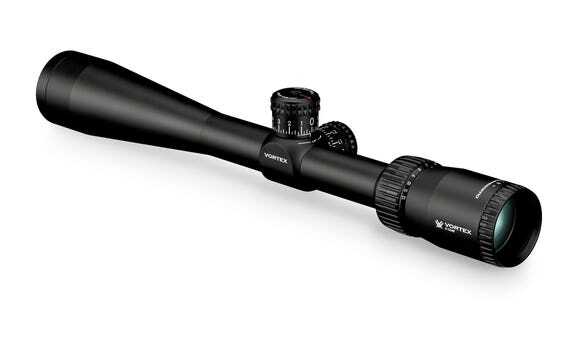

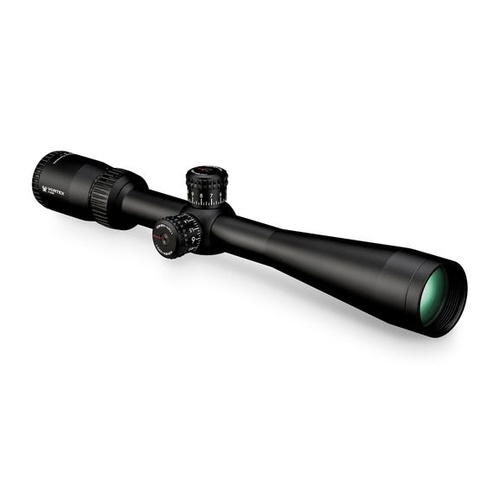

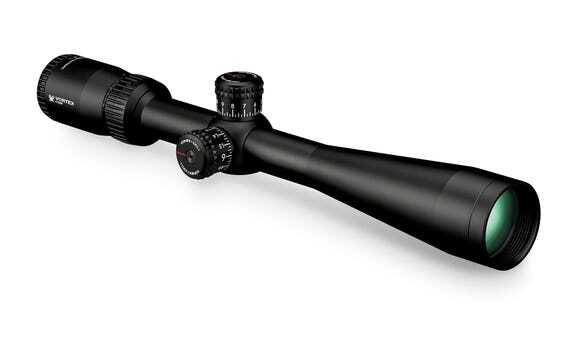

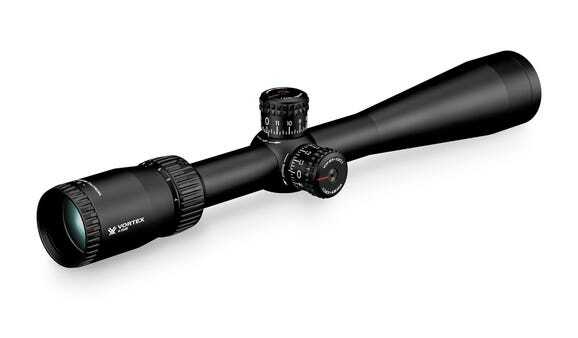

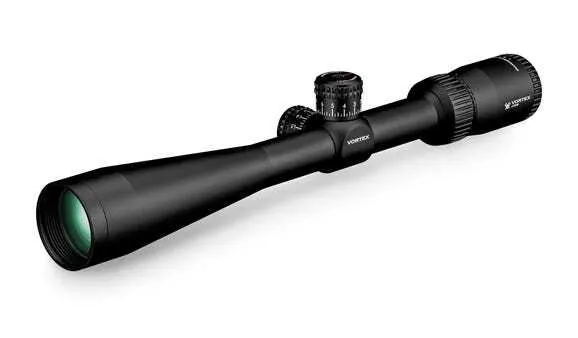

Vortex Diamondback Tactical 4-12x40

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise - we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.

Included in the Box:

Lens Covers Lens Cloth Tools

OPTICAL
XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

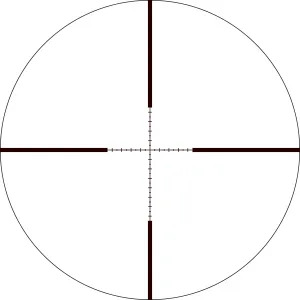

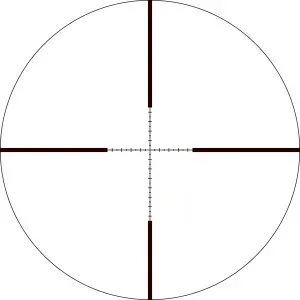

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION
Tube Size
1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
Exposed Tactical-Style Turrets
Provide fast, accurate and easily read elevation and windage adjustments.

CONVENIENCE
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
Magnification Rib
The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.

Diamondback Tactical 4-12x40 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
14.08	1.9	2.15	5.3	5.3	3.43

Heights
H1	H2
1.86	1.71

SKU	VORDBK-10025
Model #	DB10025
Brand	Vortex
Magnification	4-12x
Tube Size	1"/25.4mm
Focal Plane	SFP (Second Focal Plane)
Objective Lens Diameter	40mm
Parallax Setting	91m
Turret Style	Exposed
Eye Relief	99mm
Field of View	23.6-7.9ft @ 91m
Adjustment Graduation	1/4 MOA
Adjustment per Rotation	12 MOA
Elevation Turret Style	Exposed
Windage Turret Style	Exposed
Total Elevation Adjustment	70 MOA
Total Elevation Adjustment	70 MOA
Weight	550 grams
Length	358mm

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
