Overview



Lightweight Durability for the Avid Hunter

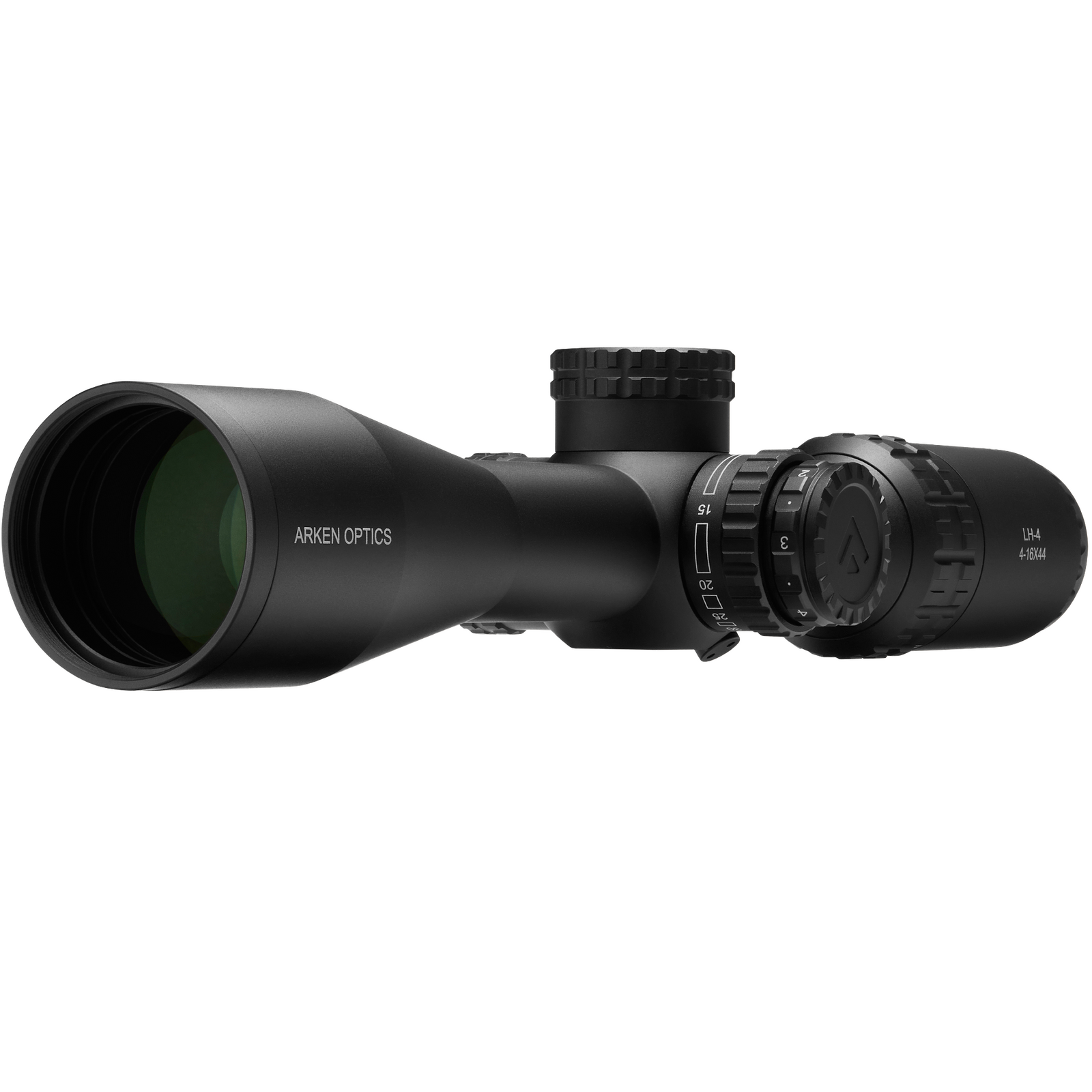

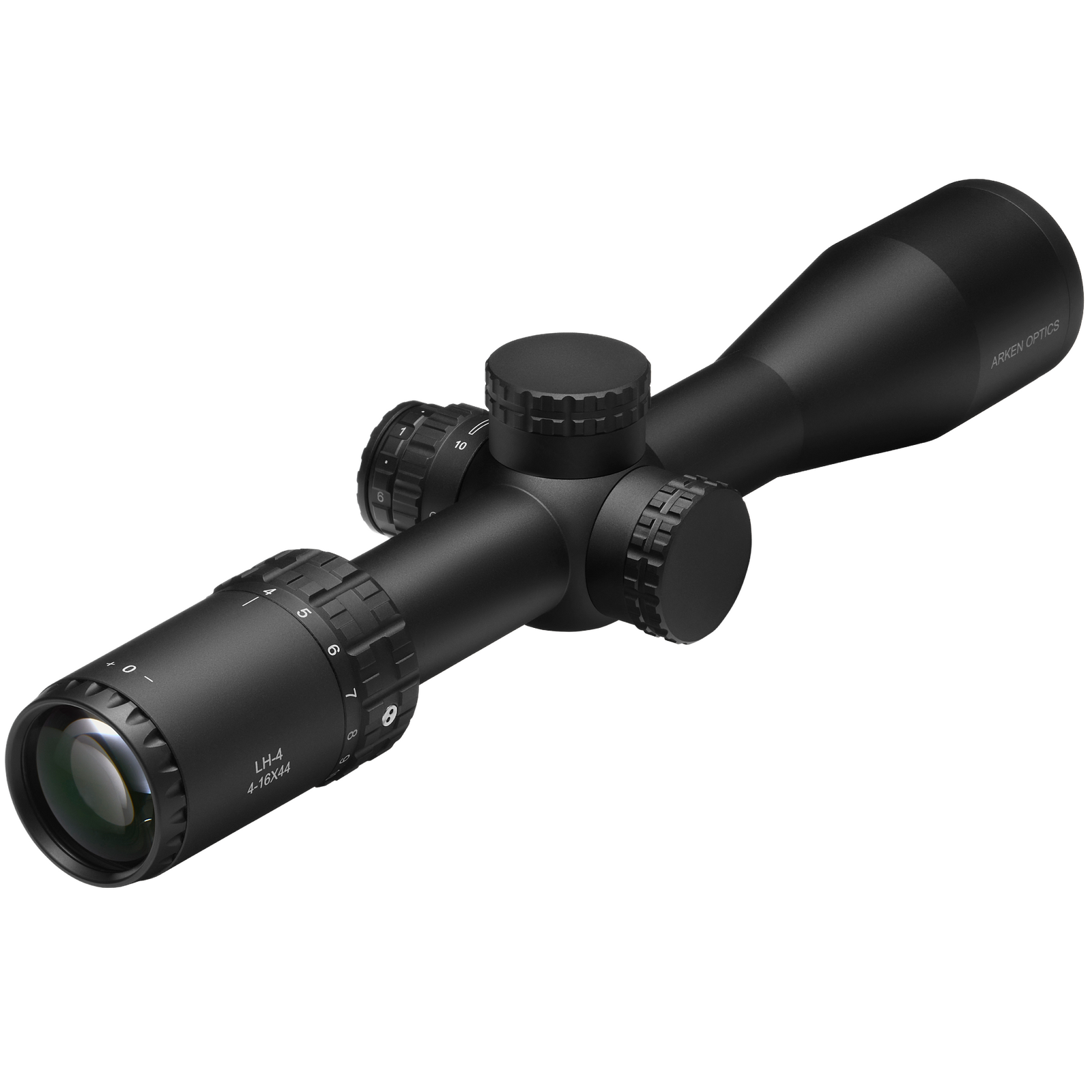

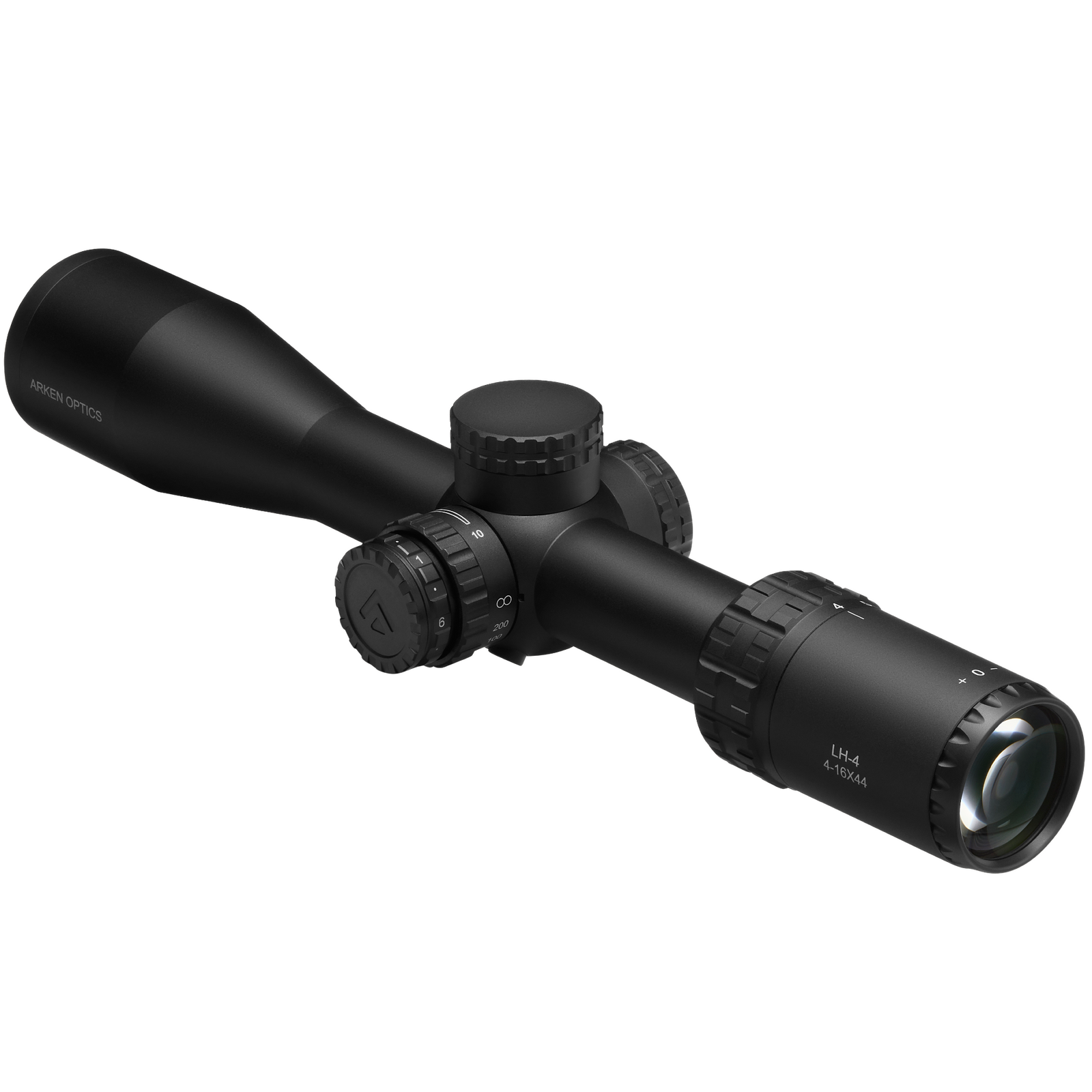

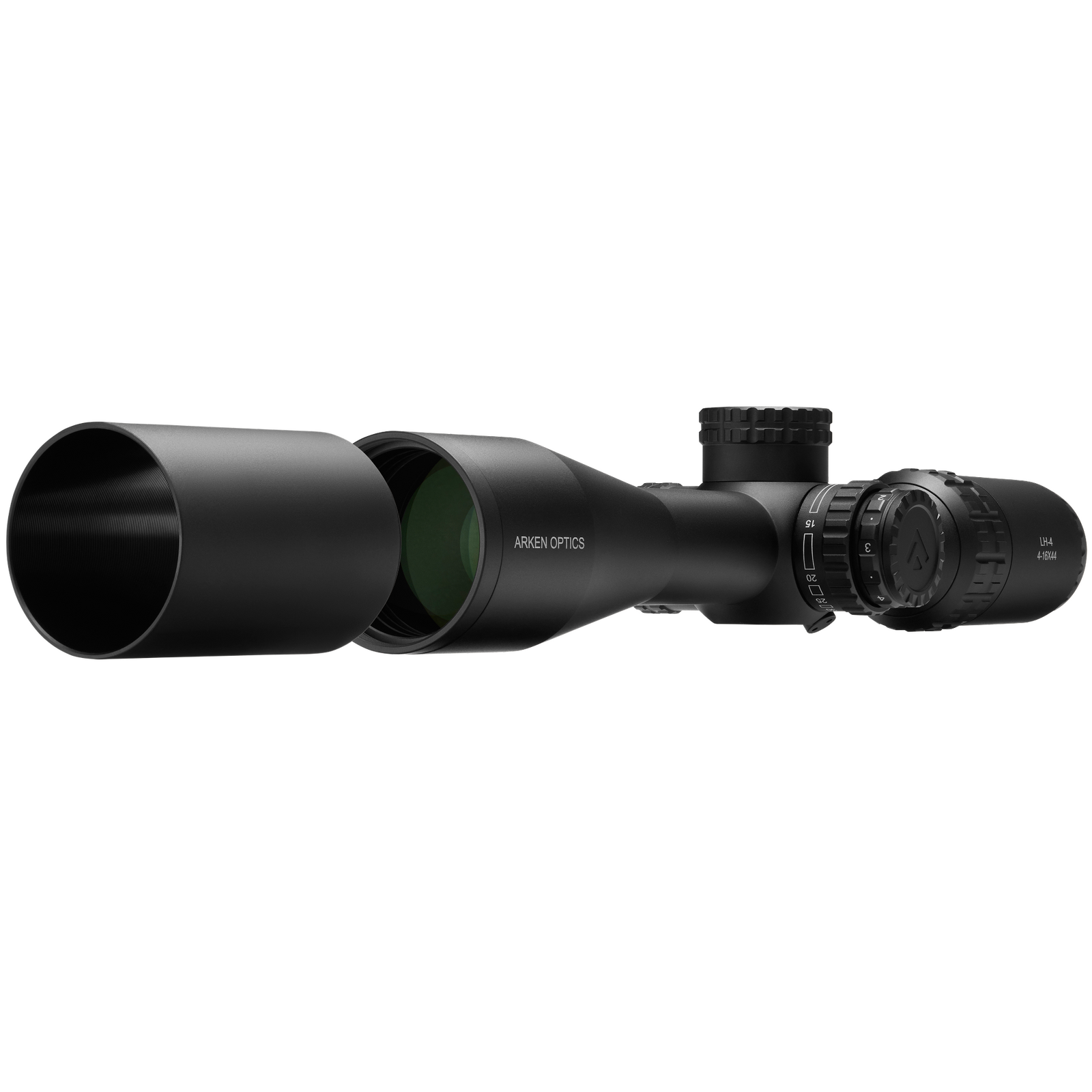

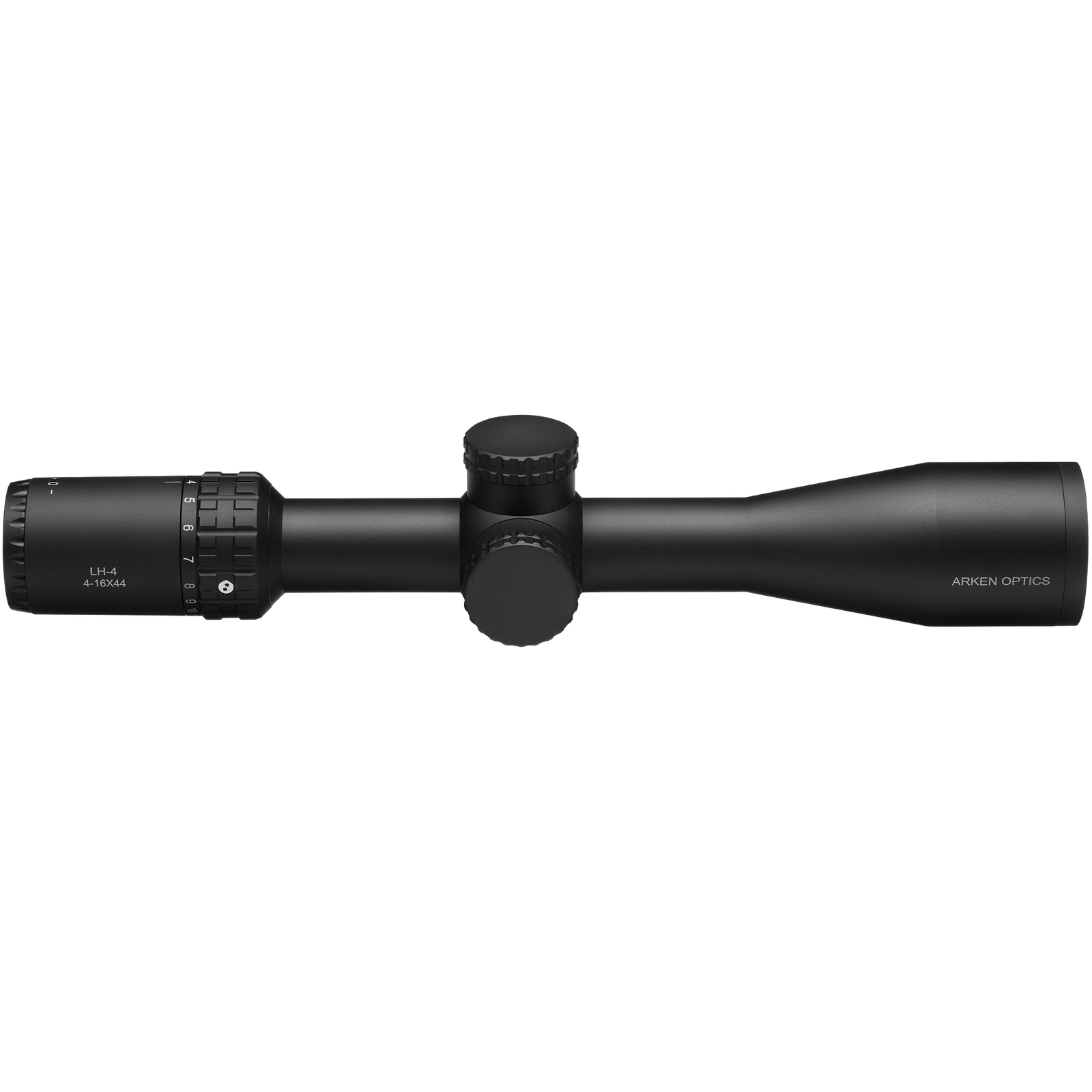

The LH-4 ensures consistent performance in diverse environmental conditions. It's design focuses on durability without adding unnecessary weight, making it a preferred choice for extended hunts.


Precision and Adaptability in the Field

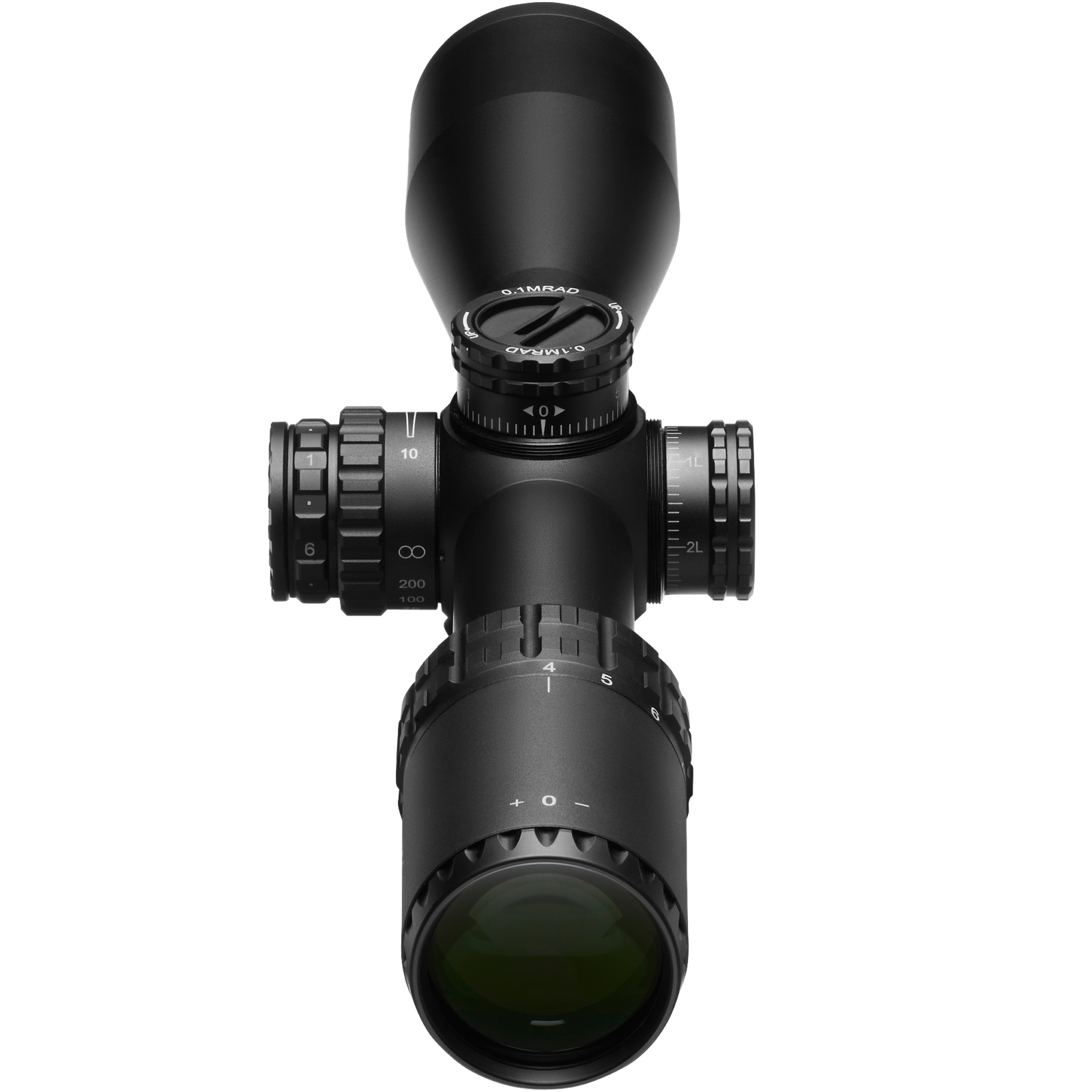

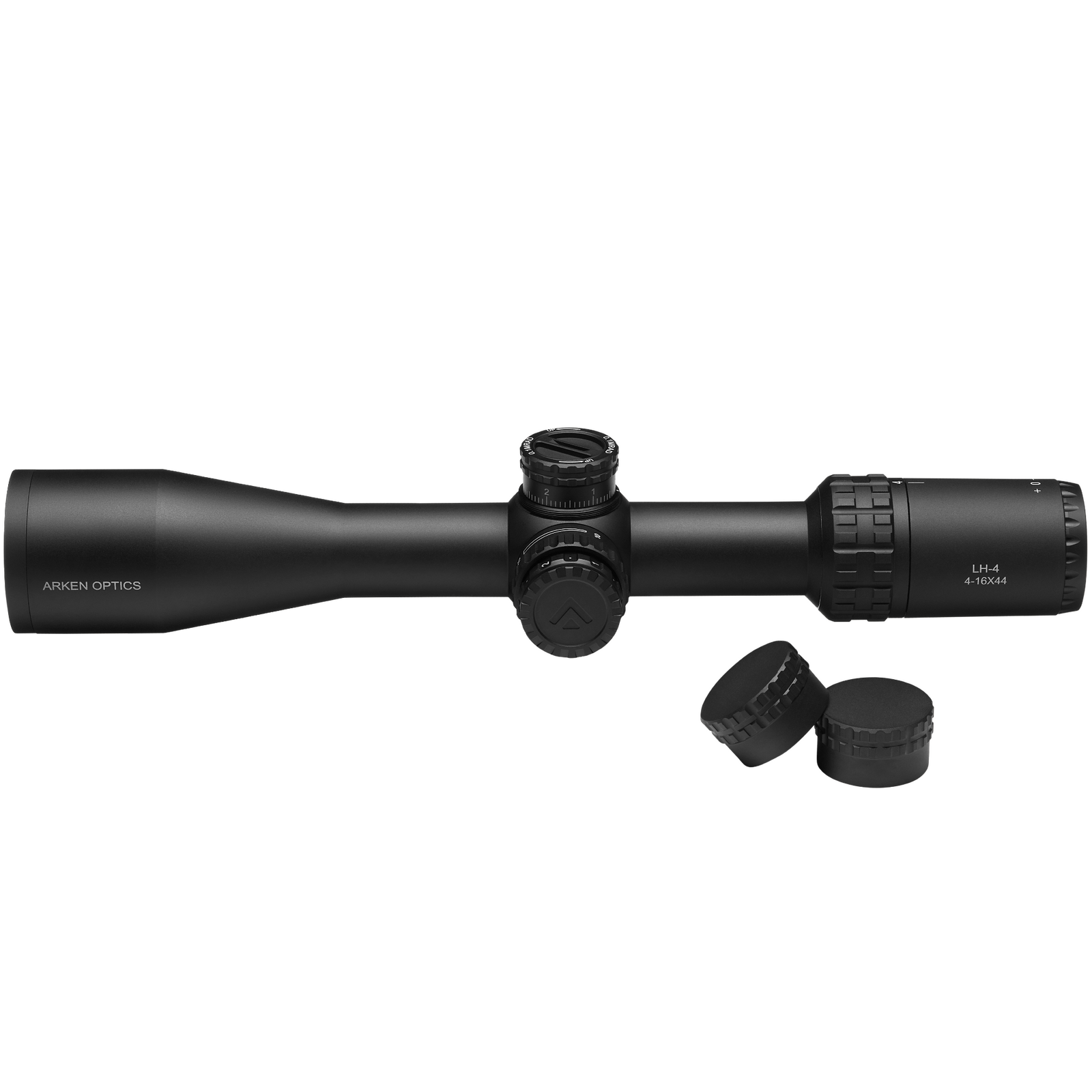

Featuring a first focal plane reticle with red illumination, the LH-4 offers superiorclarity and versatility. It's user-friendly, tool-less turret adjustments allow for precise shooting, adapting seamlessly to varying hunting scenarios. ARKEN OPTICS is excited for you to experience the difference with the LH-4 – where craftsmanship meets the rigorous demands of hunting.

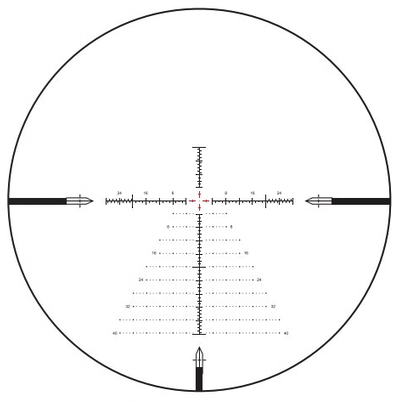

VPR RETICLE

The VPR reticle design was crafted by ARKEN OPTICS to elevate long-range shooting
accuracy. Featuring a grid of small points along both vertical and horizontal axes, it
provides a comprehensive hold-over system. This proves particularly advantageous for
shooters involved in rapid firing or requiring swift windage adjustments in multi-target
scenarios.
At the center of the reticle is a finely detailed 0.04 MIL (or 0.14 MOA) dot, ensuring
unparalleled precision for long-distance shots or when targeting smaller objects.
Furthermore, the center dot and the immediate 1 MIL (or 4 MOA) area surrounding it can
be illuminated in red, enhancing visibility and focus.

Specifications

BrandArken
Magnification RangeMedium (11x-18x)
Eye Relief91
Field of View (Degrees)5.7 - 1.4
Field of View (Linear)10 - 2.5m @ 100m
Weight (grams)693

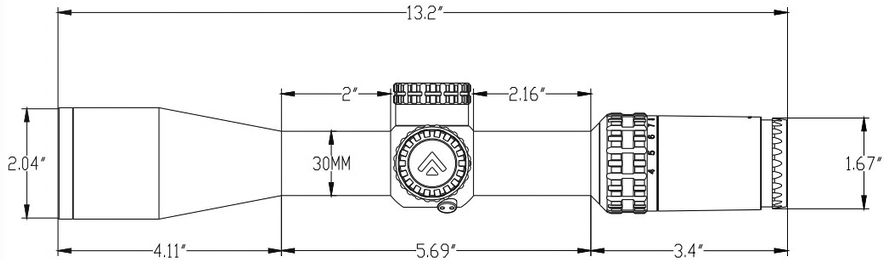

Length (mm)335
Travel Per Rotation15 MOA
Travel Per Rotation6 MRAD
Parallax Distance9.1m to infinity
Elevation Travel17 MRAD
Elevation Travel58 MOA
Windage Turret StyleCapped
Elevation Turret StyleCapped
Adjustment Graduation.25 MOA
Adjustment Graduation.1 MRAD
Tube Size30mm
Illuminated ReticleYes
BatteryCR2032
Objective Size40-49mm
Magnification4-16x
Turret StyleCapped
AdjustmentMOA
AdjustmentMRAD
Parallax AdjustmentSide Focus
Objective Lens Diameter44mm
Focal PlaneFFP (First Focal Plane)
