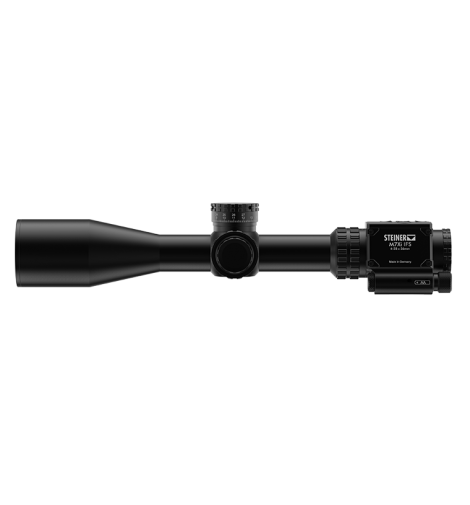

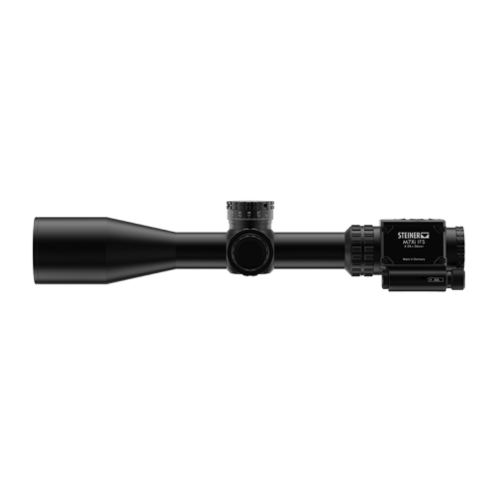

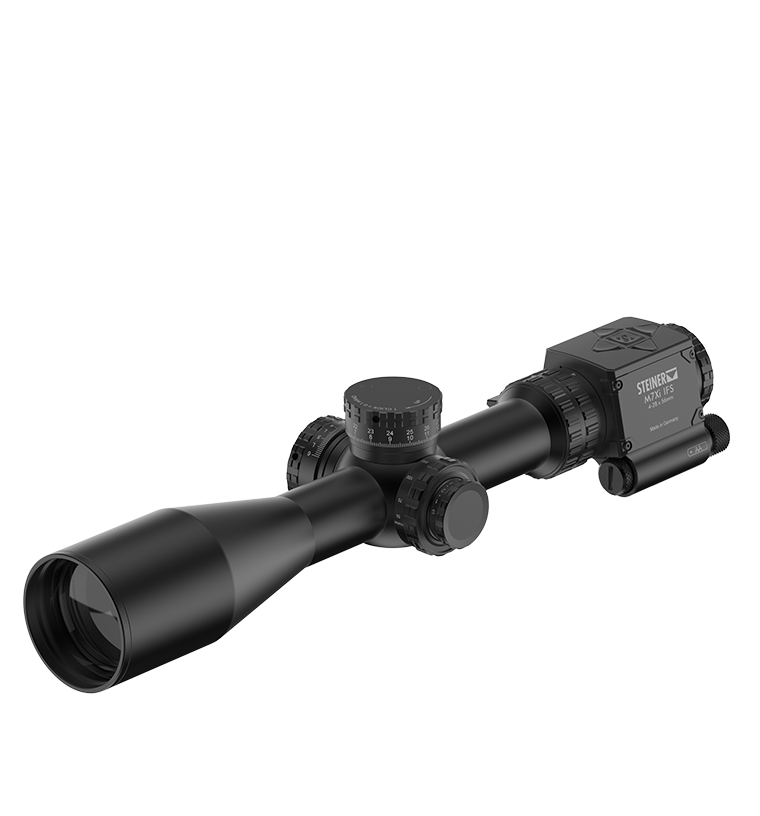

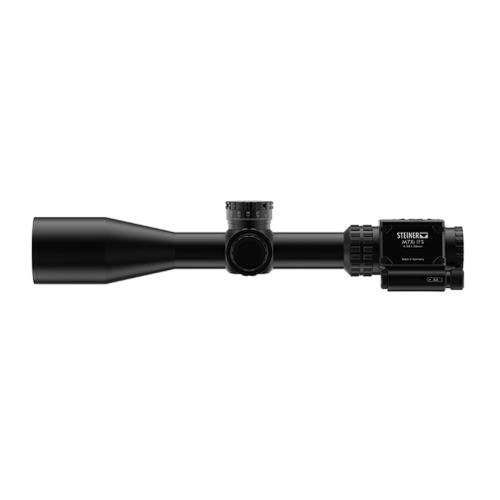

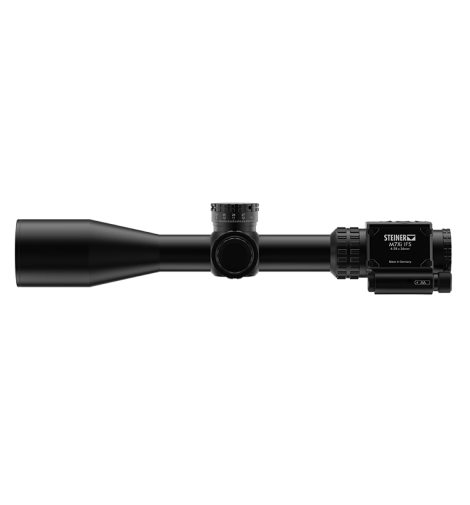

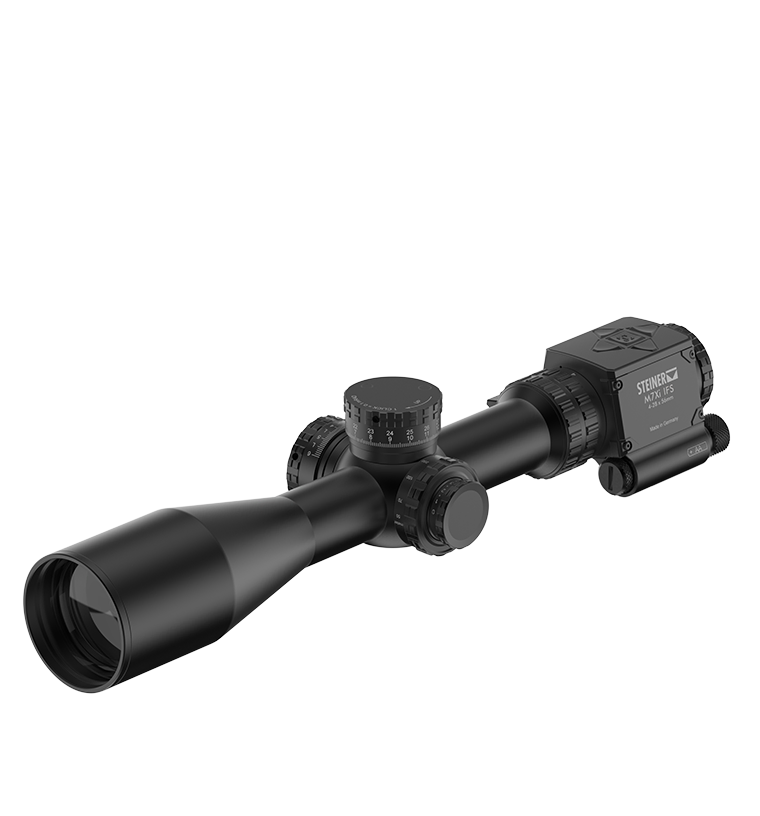

Steiner M7Xi 4-28x56 IFS

Intelligent Firing Solution with integrated customizable display provides all the important information in real time to the operator.

Steiner sets the new standard for sniper riflescopes by entering the digital world. Based on the outstanding success of the M5Xi - used today by Special Forces around the globe - Steiner sets a new benchmark with the ultimate long-range riflescope M7Xi IFS 4-28x56 with a 7x zoom and an impressive field of view (1.42-9 m at 100 m).

The Intelligent Firing Solution with integrated customizable display always provides all the important information in real time to the operator. The built in Ballistic Calculator and Sensor Suite determines the bullet point of impact in real time (temperature, air pressure, inclination, wind drift). Just turn the turrets until the distance and wind correction in the display matches the information provided by the spotter and you will be on target.

The display provides information about leveling and the current turret setting. Display and user interface can be customized to user needs. All information can be arranged or deactivated as needed via smartphone app (Bluetooth connection)

Steiner sets the new standard for sniper riflescopes by entering the digital world. Based on the outstanding success of the M5Xi - used today by Special Forces around the globe - Steiner sets a new b‍enchmark with the ultimate long-range riflescope M7Xi IFS 4-28x56 with a 7x zoom and an impressive field of view (1.42-9 m at 100 m).

IFS - Intelligent Firing Solution With individually customizable display in the field of view showing every required information in real time – once s‍et and you never lose sight of the target.
Ballistic Calculator and Sensor Suite Measures temperature, air pressure, inclination, wind drift and determine the bullet point of impact in real time based on spotter information.

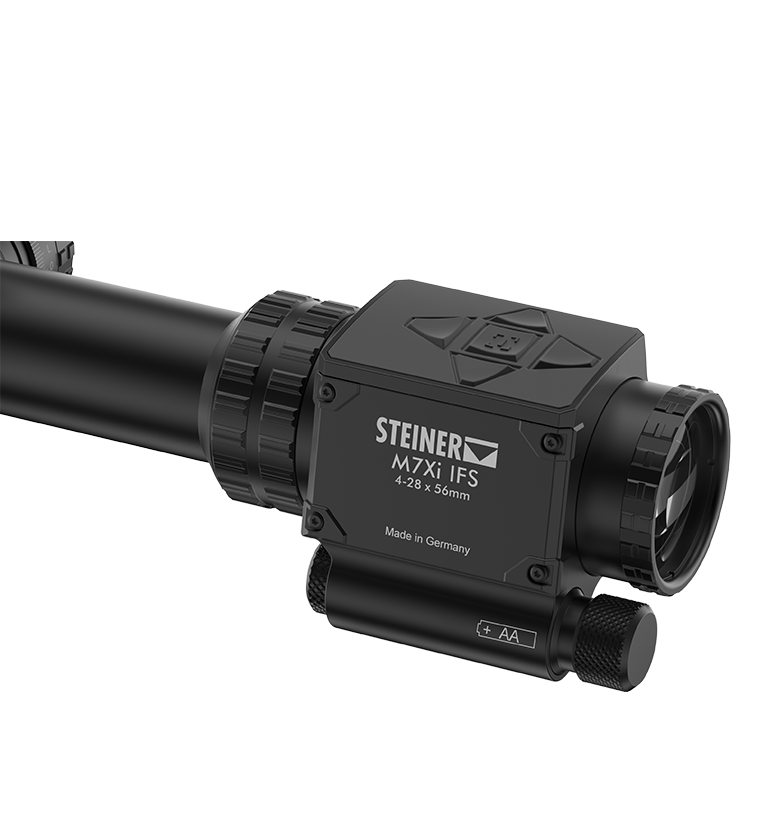

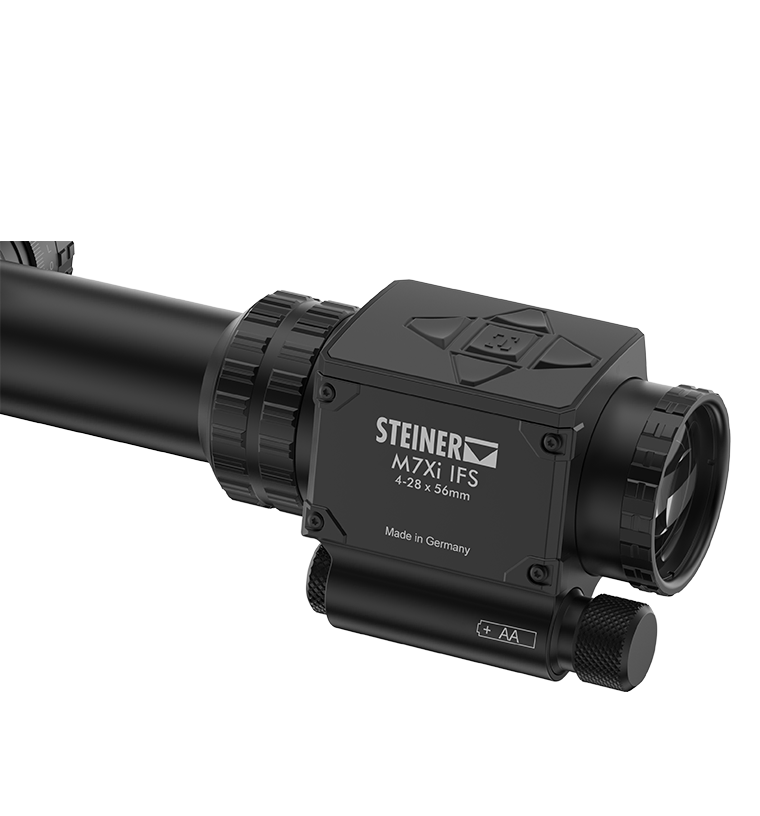

Built-in display Provides information about leveling, the current turret settings, target distance and bullet in use. Display and user interface can be customized to user needs. Every information can be moved freely or can be deactivated if needed via smartphone app (Bluetooth connection).
bluetooth connection options For presets on your smartphone. Any information can be freely placed with the Steiner IFS Smartphone App or deactivated if required. Ballistic data can easily be downloaded to the riflescope using the app.
Short overall length of the scope creates more rail space for clip-on devices (e.g. thermal imaging or night vision devices) for superior operational capabilities in any combat situation.
Precise Windage/Elevation Adjustment Is easy and immediate for repeated accuracy, with tactile click-by-click feedback you can hear and feel and second rotation indicator.
Low profile turrets provide outstanding situational awareness and additional mounting options for add-ons and accessories.
Extreme ruggedness & bullet resistance Through resistant materials and reliable construction. A rugged 34mm tubular body provides reliability and more room for height and side adjustment for greater widths.
Watertight & Shockproof The M7Xi IFS is up to 20 meters pressure waterproof with a functional range from -46°C to +64°C. It absorbs shocks up to 900G.

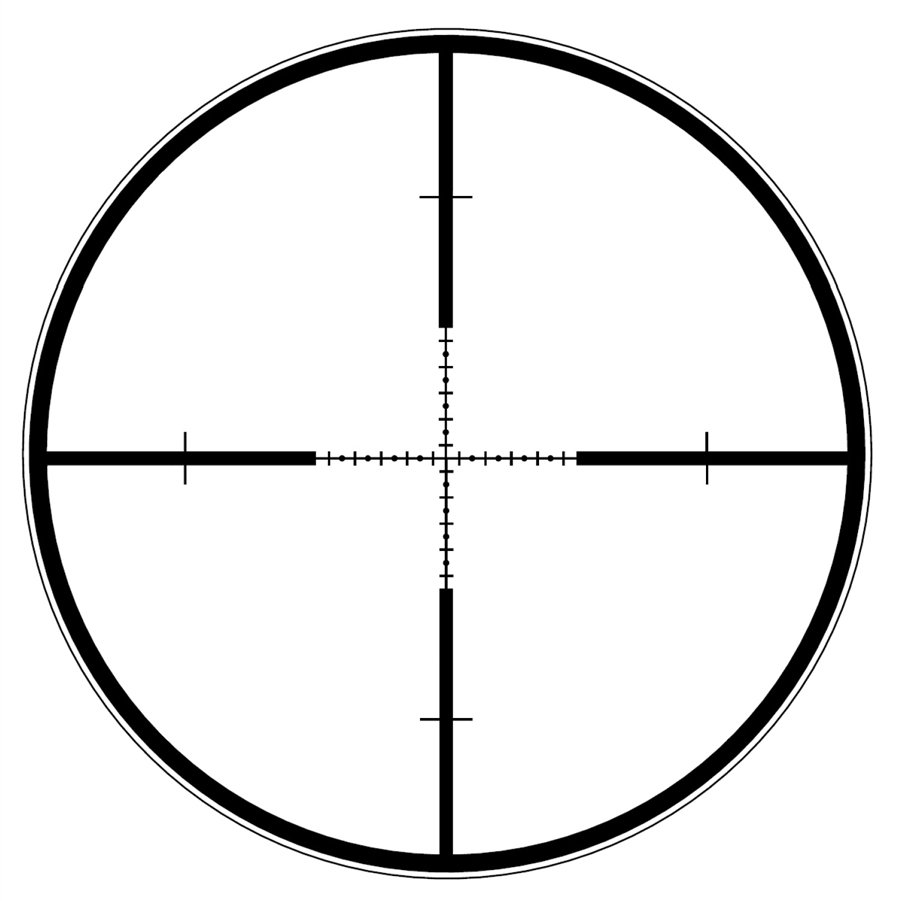

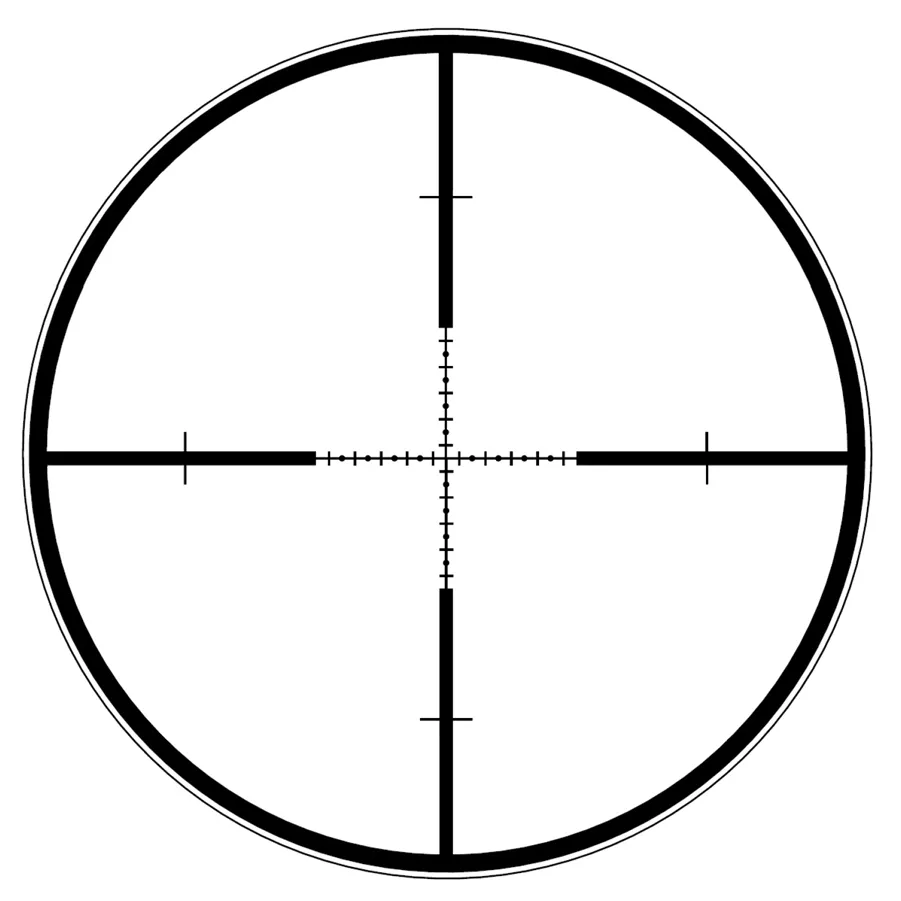

Options for the reticle The new M7Xi IFS is available with the following reticle : MSR2, G2B, TReMoR3

SKU	STEM742856IFS
Model #	8719003601
Brand	Steiner
Magnification	4-28x
Tube Size	34mm
Objective Lens Diameter	56mm
Parallax Adjustment	Side Focus
Parallax Setting	50m to Infinity
Turret Style	Exposed
Eye Relief	90mm
Field of View	9.0-1.42m @ 100m
Illumination	Yes
Adjustment Graduation	.1 MRAD
Elevation Turret Style	Exposed
Windage Turret Style	Exposed
Total Elevation Adjustment	26 MRAD
Total Elevation Adjustment	6 MRAD
Weight	1150 grams
Length	390mm

Steiner Warranty

With every Steiner optical product comes a lifelong relationship, with you and yours. We build trusted optics for lifeÕs defining moments. Pursuit of these moments demands quick detection, location and identification of your objective through your most important sense, vision. Be it in pursuit of wild life, a marine bearing, law enforcement suspect or military combatant, our commitment to quality and the Steiner Warranty is our promise that Nothing Escapes You.

The world wide 10 to 30 year Steiner Warranty means we stand behind our products. Over half a century of experience building rugged and reliable, mil-spec product and supplying them to professionals, amateurs and also armed forces all around the world allows us to have this kind of confidence. We at Steiner are totally committed to the very highest standards of quality, dependability, and most of all customer satisfaction. Our Warranty assures you of that commitment.

However, should one become defective within the warranty period, for any reason other than theft or deliberate misuse, we will service it at no charge Ð no questions asked. We kindly ask for your understanding that wear parts such as rubber armouring, carrying straps, eyecups or lens covers are not included in the scope of warranty.
