Digital and Thermal Vision Mode

The PRISM features an advanced 384x288@12um thermall sensor with a NETD of less than 25mK, delivering exceptionally clear and crisp images. Paired with a 4um large-pixel digital sensor and an illuminator of 940nm, it ensures vibrant, sharp details even in low-light environments.





Lightweight and Compact

PRISM, weighing under 420g (without battery), offers full performance in a compact design, with an ergonomic grip for comfortable, strain-free use and easy storage.

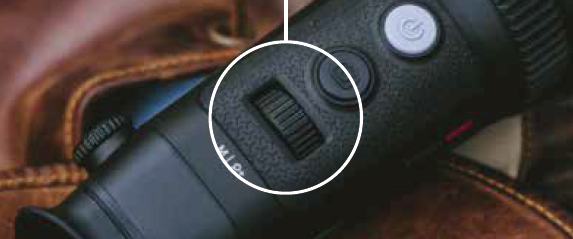

One-click Mode Switch

The PRISM effortlessly transitions between night vision and thermal modes, delivering an intuitive and seamless operational experi-ence.



Quick Target Identification

PRISM features 384 thermal sensor for sharp, high-quality images with clear contours.

With 2x magnification and a wider field of view, it's ideal for efficient large-area scan-ning. The one-touch infrared digital switch ensures smooth operation, while the infrared digital PIP (Picture-in-Picture) allows for simultaneous tracking and observation, enhancing precision and ease of use.



Rapid Search and Large-Area Coverage

With 2x magnification and a wide FOV, the PRISM enables rapid, large-area scanning, significantly improving search efficiency.

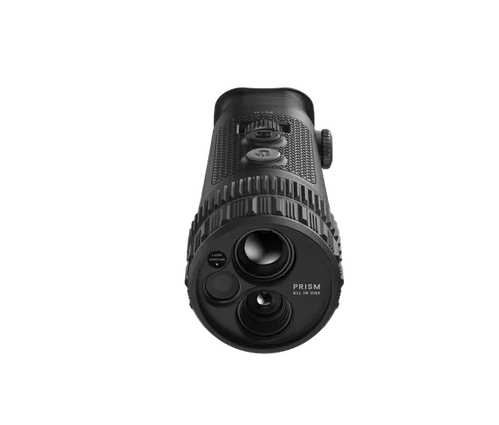

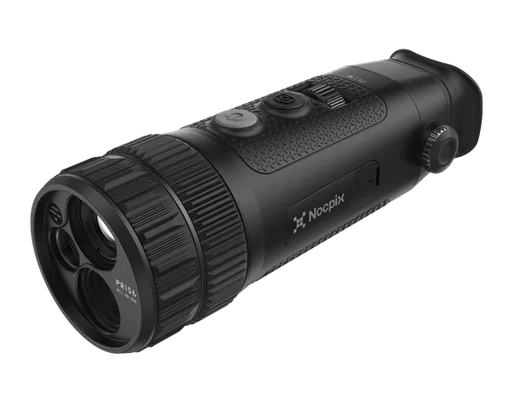

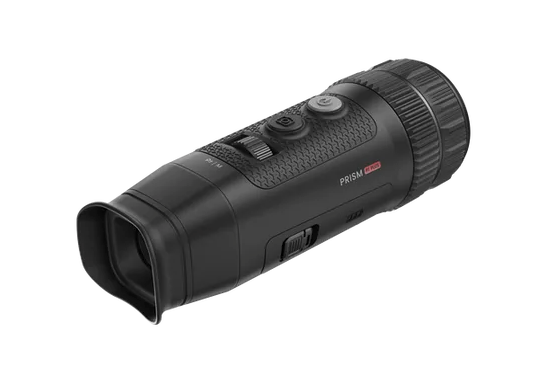

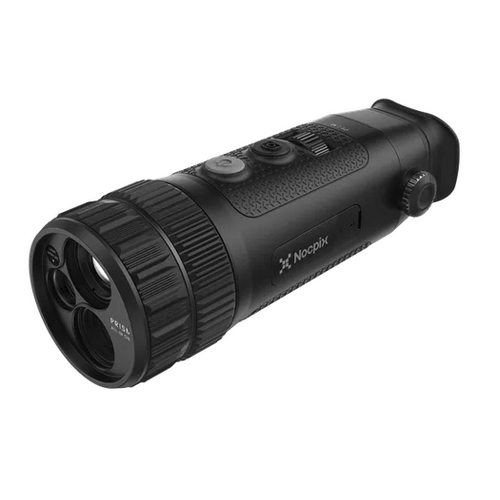

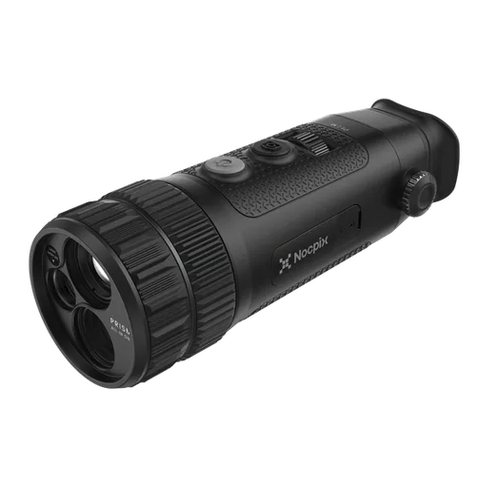

SKU NOCPP1PLUS
Model # PP1PLUS
Brand Nocpix
Magnification 2-8x
Objective Lens Diameter 19mm
Eye relief 20mm
Field of View 9.4×7.1/16×12m @100m
Angular Field of View 13.8×10.4/24×18°
Sensor Size 384px
Pixel Pitch 12 μm
NETD <25 mK
Maximum Detection Range 986m
Display Type AMOLED
Optical Magnification 2x
Battery 18650
Length 190mm
Weight 420 grams
