Pulsar Image Boost Technology

Experience unparalleled clarity and detail with the advanced Pulsar Image Boost Technology. See through the darkness like never before, gaining a crucial advantage in the field. The Telos LRF XQ35 is crafted to endure the harshest conditions, ensuring reliability in every hunting expedition.



Ergonomic, Nonslip Design

Enjoy a comfortable grip in any situation with the ergonomic, nonslip rubber-coated housing. Whether you're using your right or left hand, the design ensures a secure and ergonomic hold.



User Mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.



1024x768 AMOLED Display



3-12x Magnification

Its 3-12x magnification ensures you can observe your target in detail.

1,421 Yard Detection Range



Built-In 1000-Yard Laser Rangefinder



Fast aperture F/1.0 germanium lens

The characteristics of thermal imaging optics have a decisive influence on a thermal imagers ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Telos (F/1.0) thermal imager in combination with highly sensitive thermal sensor. The Telos gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.

Built-in video recorder with 64GB internal memory

The Telos has a built-in video recorder. The increased 64GB internal memory of the Telos can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.

Stream Vision 2. Wi-Fi integration with iOS and Android devices

Built-in Wi-Fi connects the Telos to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

Dual Wi-Fi waveband support 2.4 / 5 GHz

In Telos thermal monoculars, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal monocular with a smartphone.

High-contrast AMOLED display

The 1024x768 pixel resolution AMOLED display has improved colour rendering, is power saving, offers high contrast imagery and a quick-response, as well as providing clear & smooth images when observing on-the-move or in cold conditions.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 submersion waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Operation in extreme temperatures -25 to +40°C

Housing, power unit, optics and electronics of Telos are designed with regard to applications in wide range of temperatures. Telos ensures reliable and effective performance in freezing cold up to -25°C.

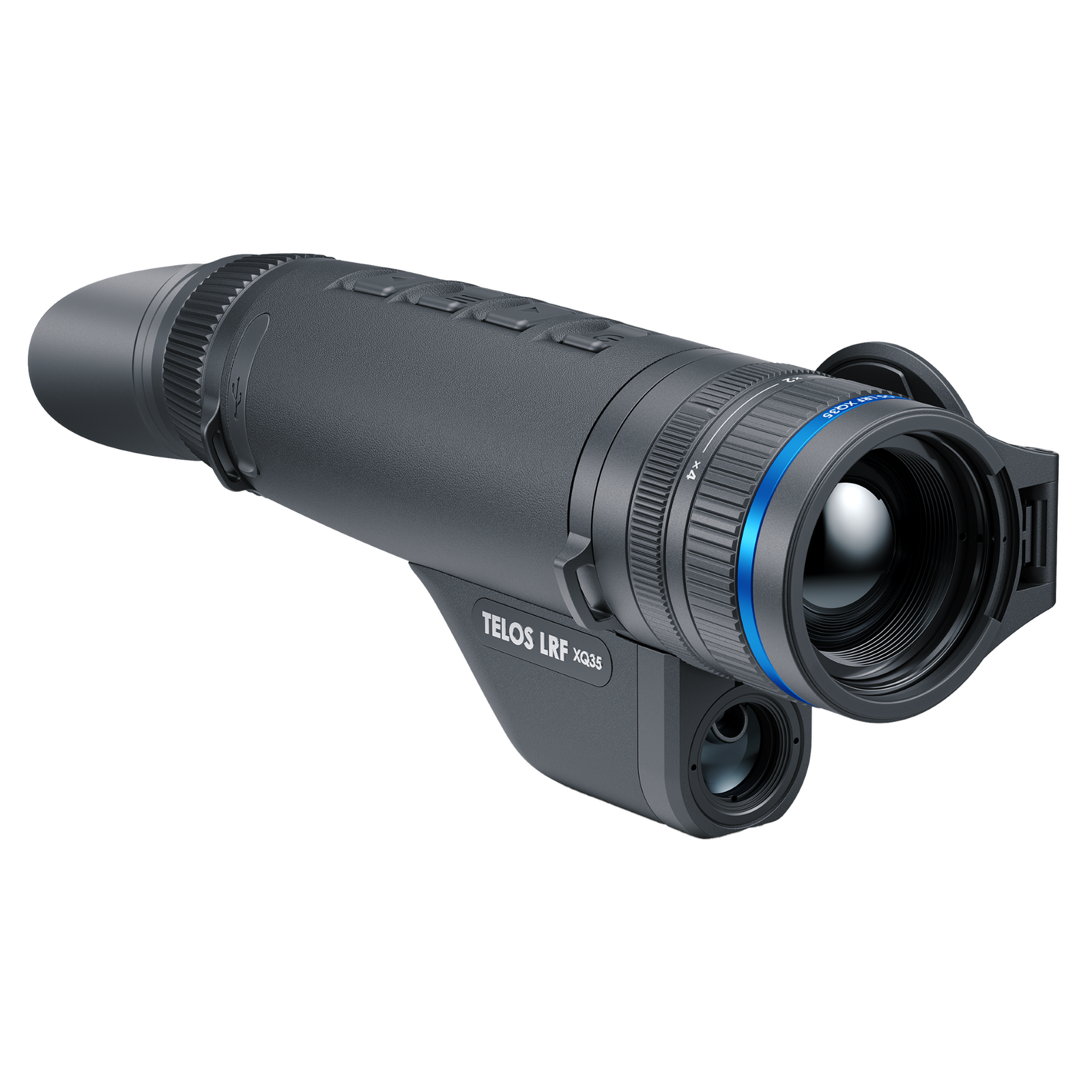

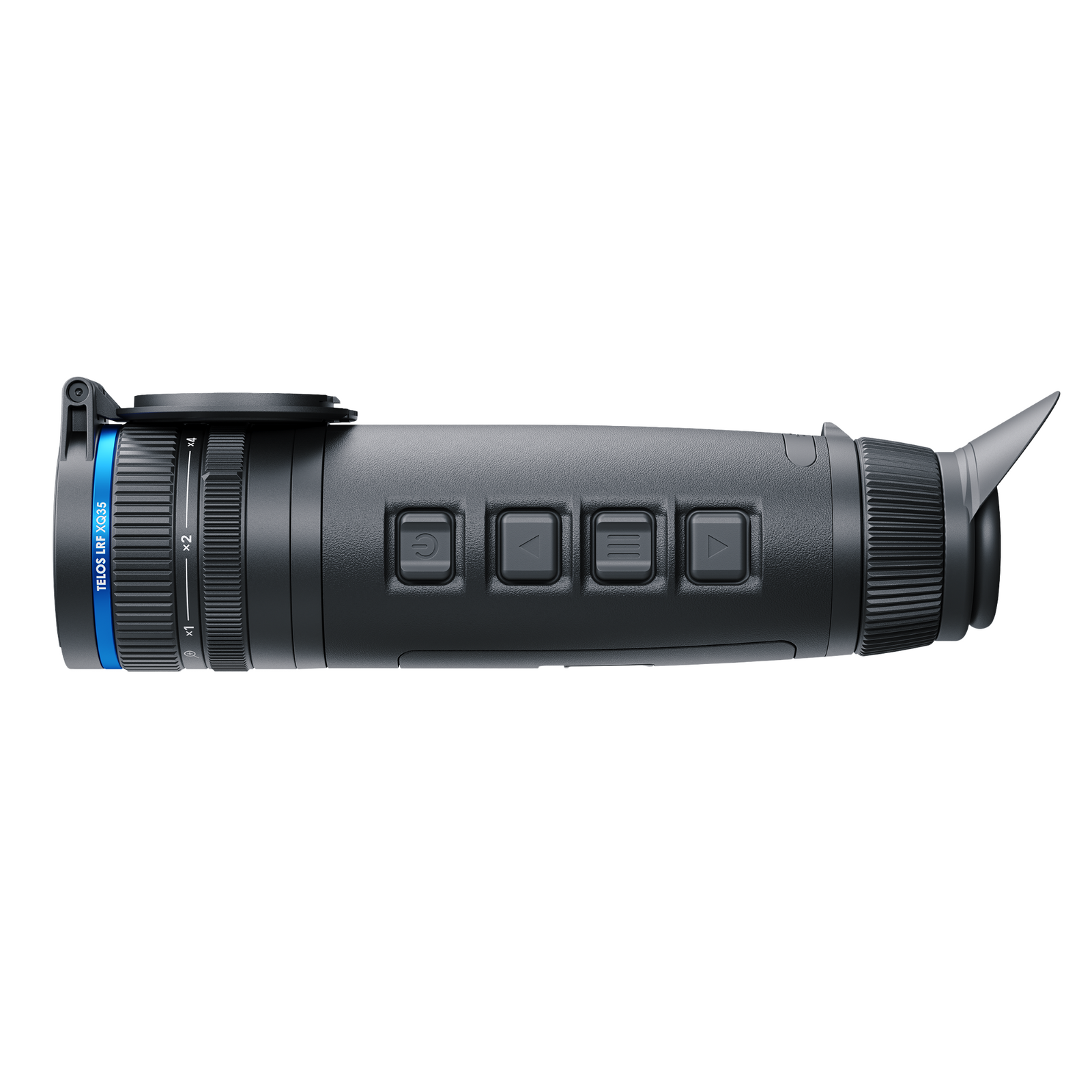

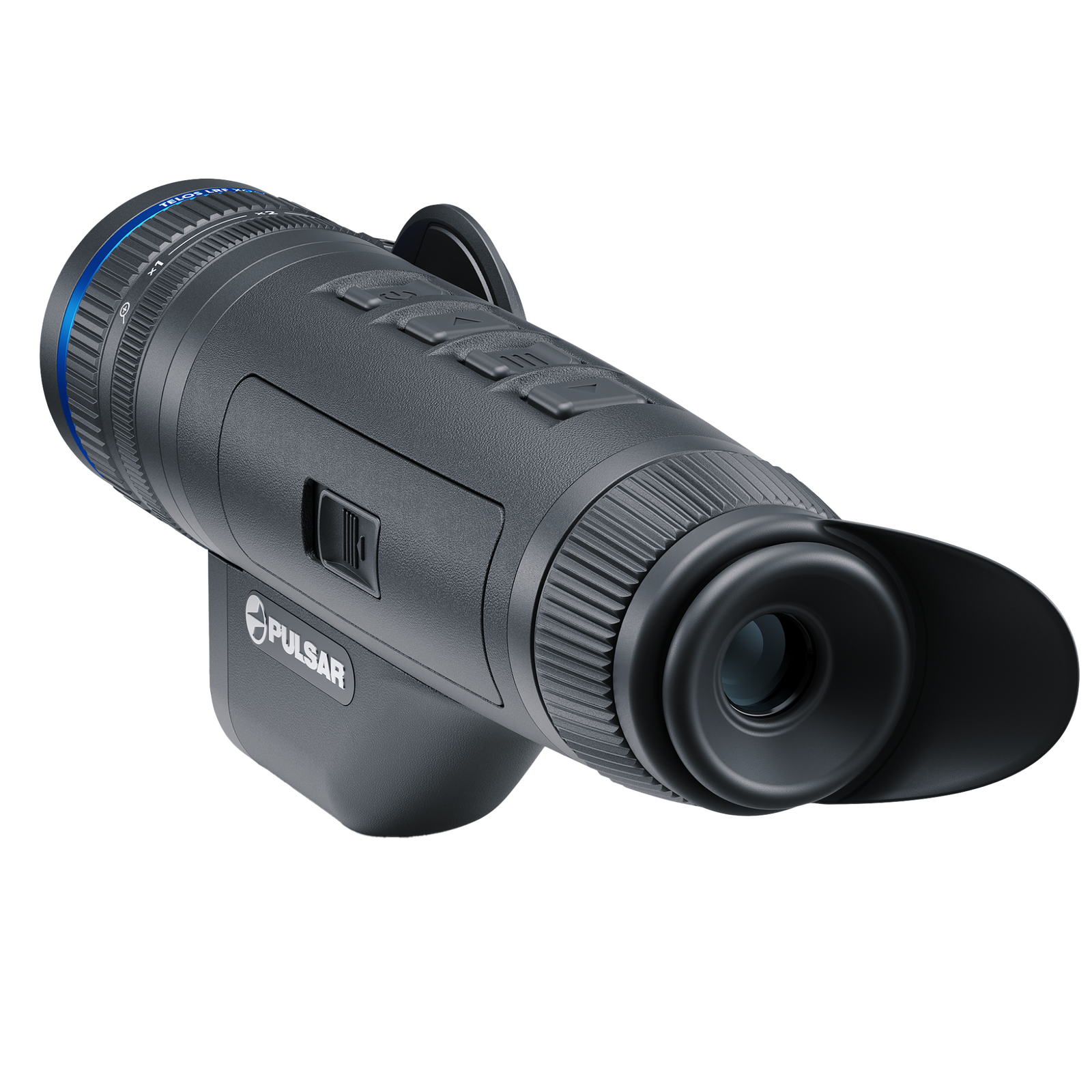

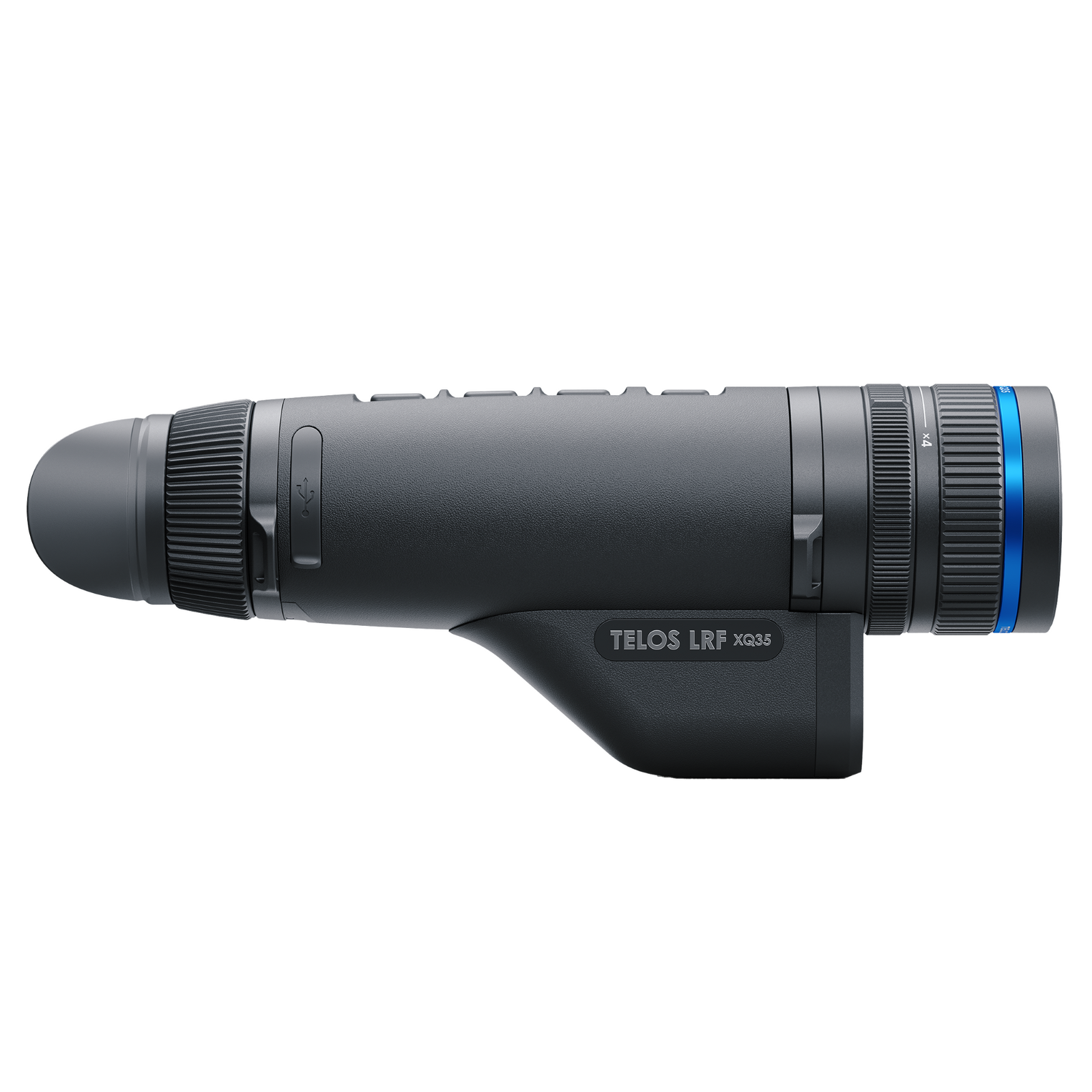

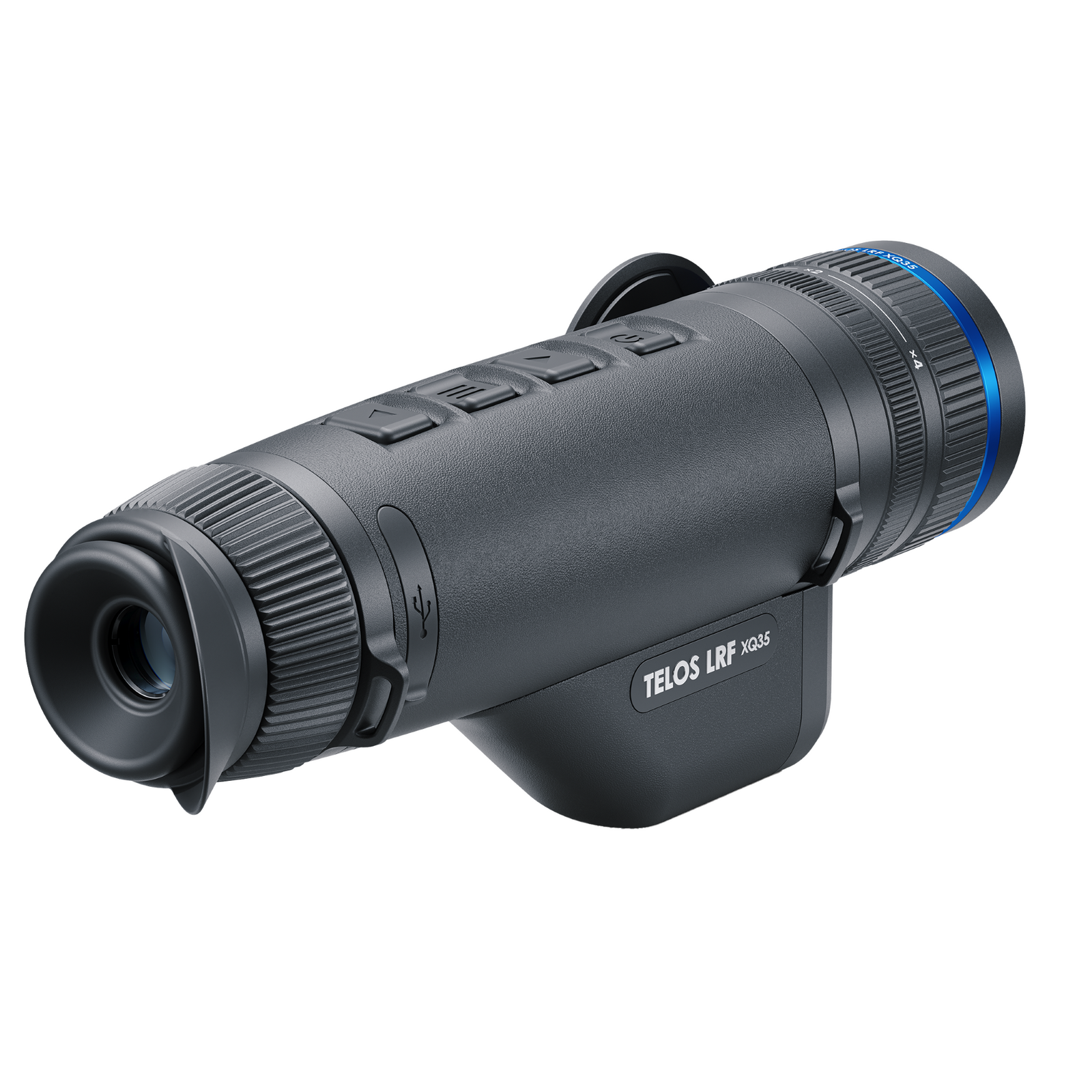

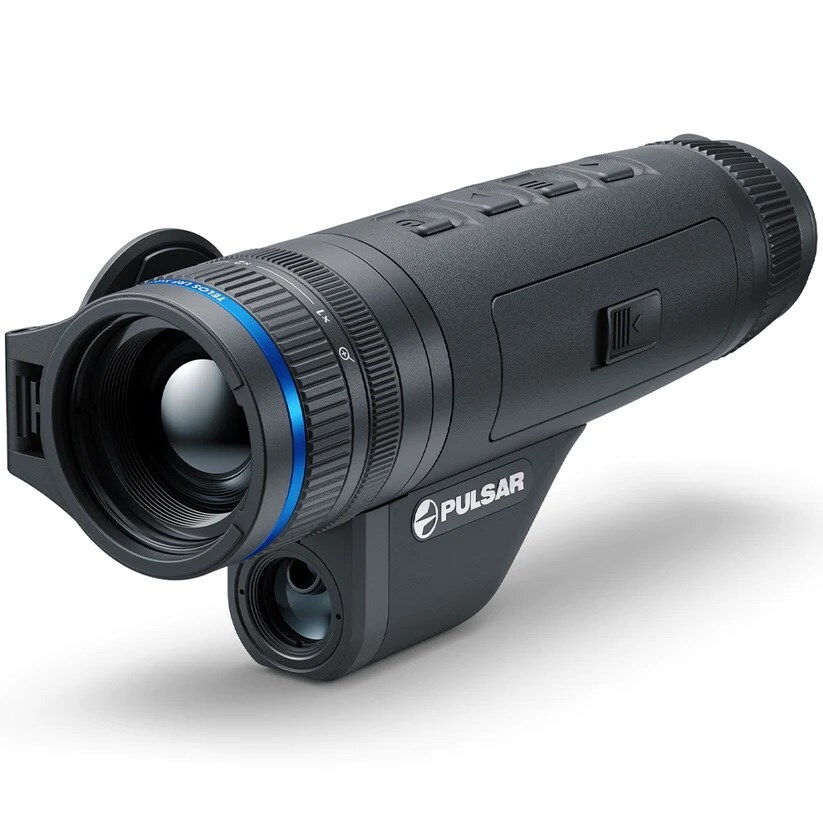

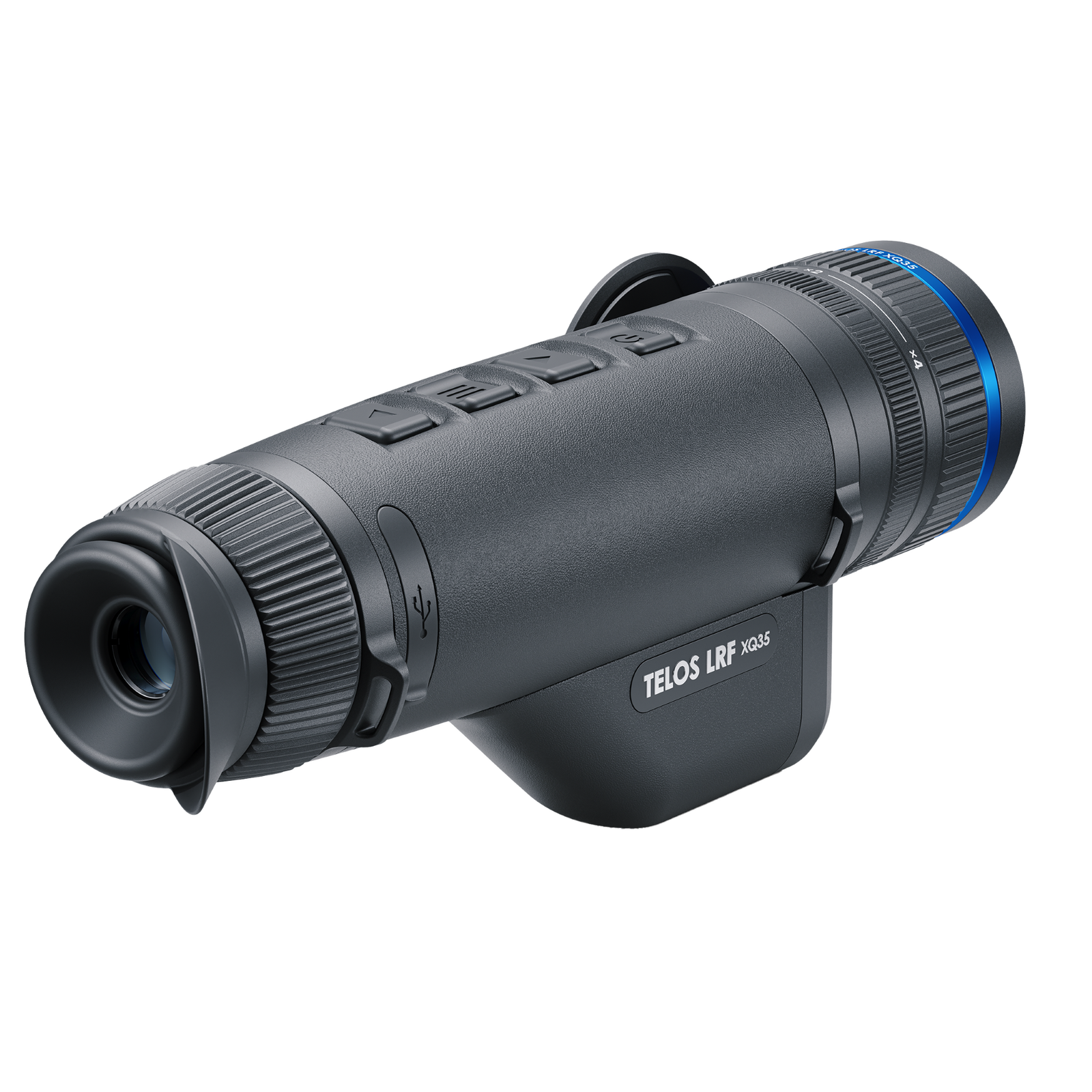

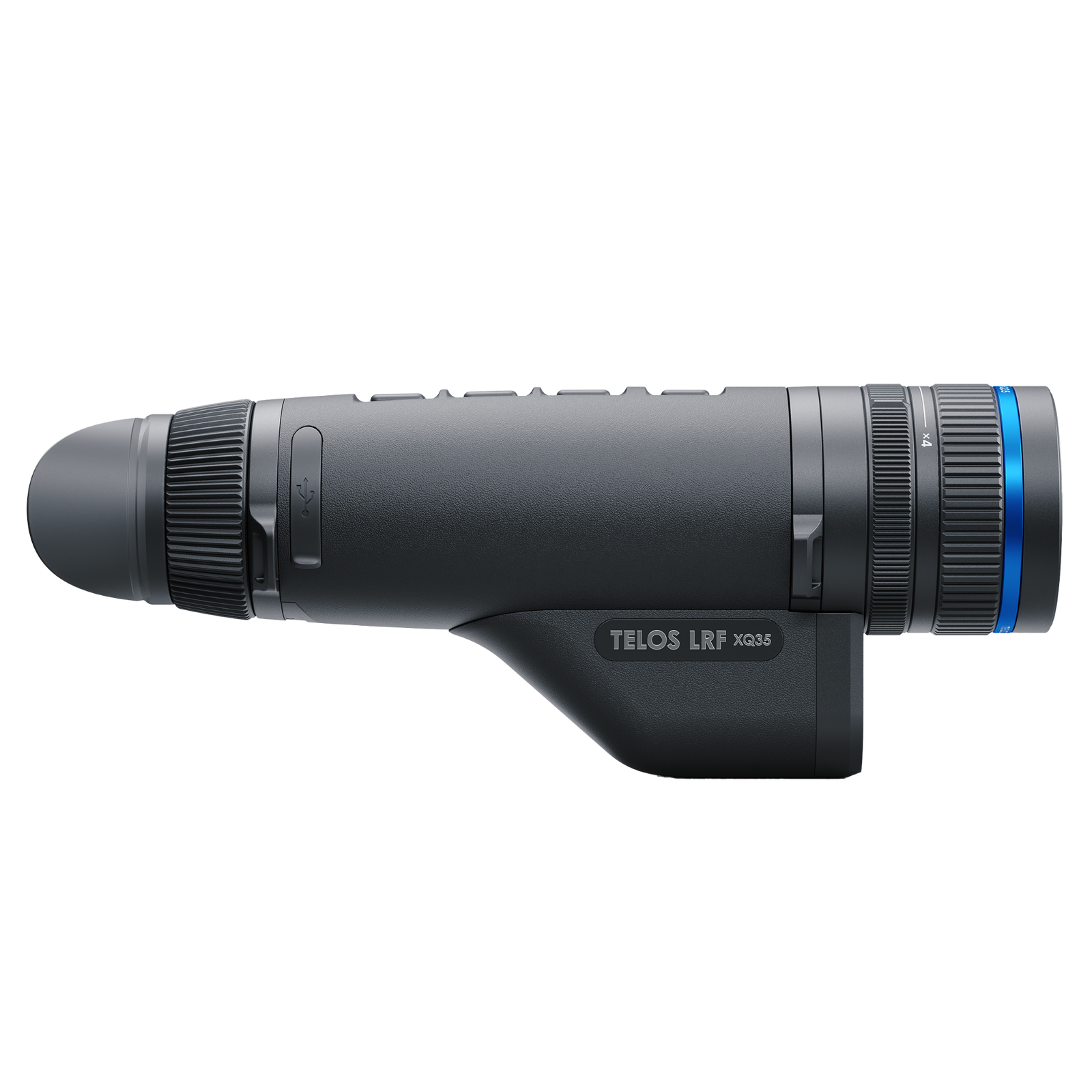

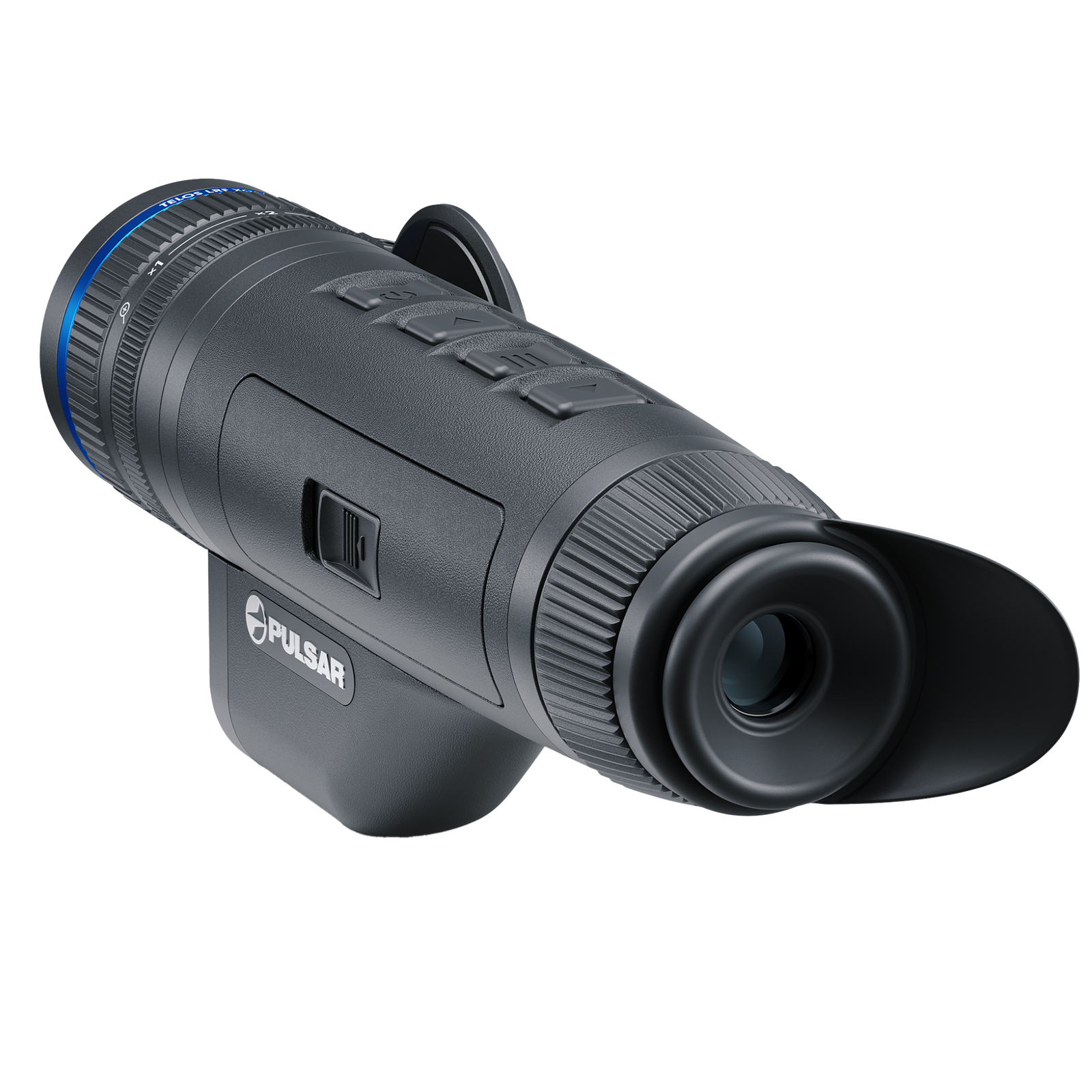

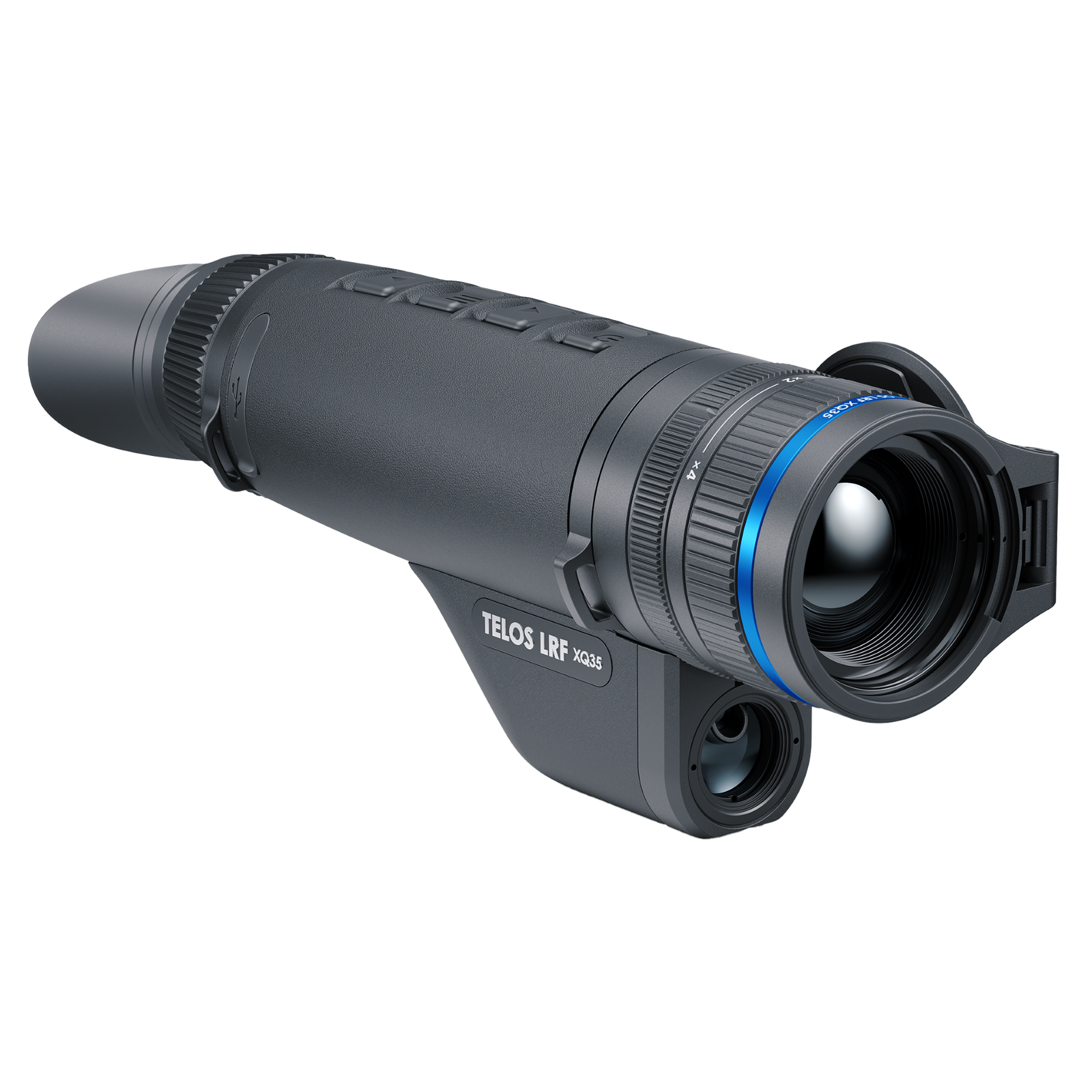

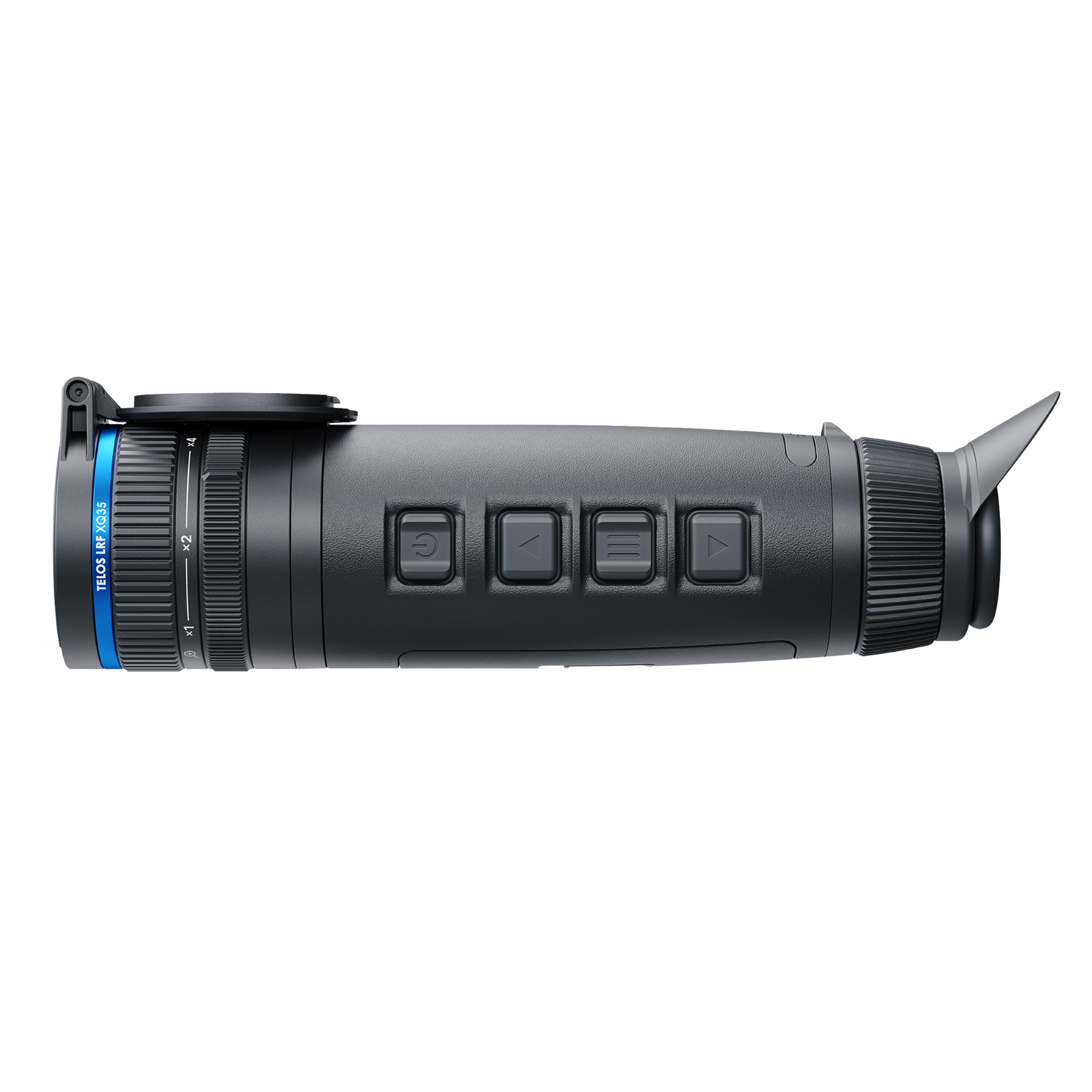

Telos LRF XQ35 Thermal Monocular



• Thermal imaging sensor, pix/µm384x288/17
• Sensor NETD, mK<25
• Display type and resolution, pix.AMOLED 1024x768
• Built-in photo and video recorderYes
• Built-in memory, GB64

More Specs

• Format and resolution video clip*.mp4/1024x768
• Format and resolution photo files*.JPG/1024x768
• Integrated Wi-Fi module2.4/5Ghz
• Bluetooth version4.2
• Magnification, x3-12x
• Objective lens, mm35mm/F1.0
• Field of view, °10.7
• Eye relief, mm14
• Diopter adjustment, dpli +4 / -5
• Detection range, m1300
• Slieam Vision 2 app supportYes
• Built-in laser rangefinderYes
• Laser wavelength, nm905
• Measurement range, m1000
• Accuracy of measurement, m+/- 1
• Battery typeBattery Pack LPS 7i
• Battery life, h8,5
• External power supply5V/9V USB type-C
• Operating temperature, °С- 25 … +40
• Level of protectionIPX7
• Dimensions (LxWxH), mm224x66x87
• Weight, kg 0.63
