Product Overview

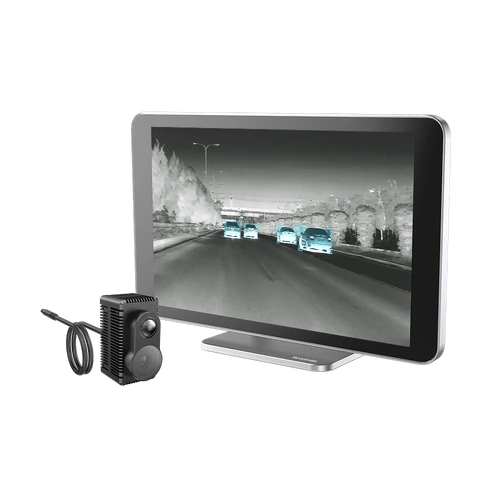

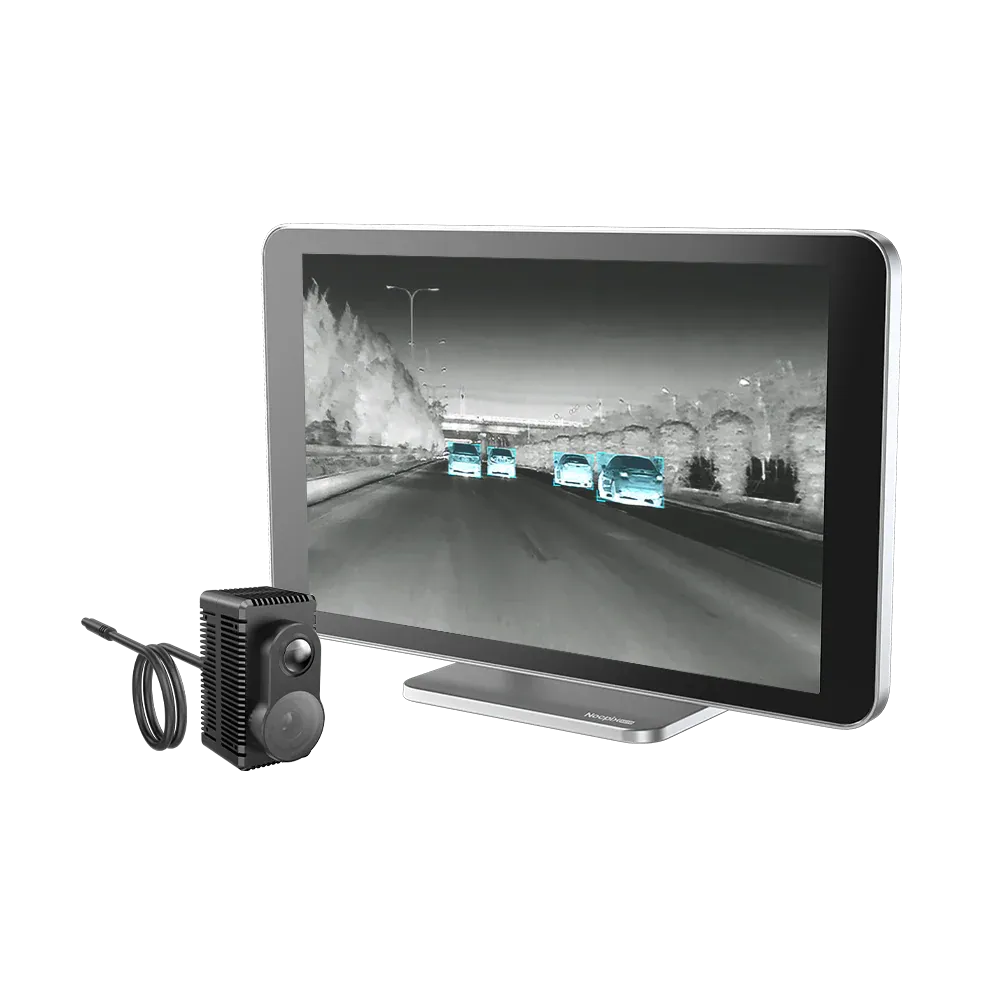

Nocpix Auto’s NS7 Thermal Vehicle Camera is built for drivers who want a serious edge when the light and weather turn against them. It pairs a 256×192 thermal sensor with a Full HD day camera and feeds both into a crisp 7-inch, 1280×800 display running at 60 Hz. The result is a smooth, detailed view of the road that cuts through darkness, fog, rain and glare so you can spot vehicles, pedestrians and wildlife well before your headlights pick them up. Backed by an ADAS safety suite, the NS7 doesn’t just show you what’s ahead – it actively helps you react. Forward Collision, Pedestrian and Lane Departure Warnings, plus animal detection and front vehicle start alerts, work around the clock to keep you switched on and out of trouble. Compact camera dimensions and 12 V cigarette-lighter power make it easy to fit to almost any vehicle, while the rugged IP67 housing and wide operating temperature range mean it’s ready for Aussie summers, frosty mornings and everything in between.

Key Features

• Dual thermal and visible light imaging combines heat signatures with Full HD visuals, giving drivers a clearer view of vehicles, pedestrians and animals in low-light and poor weather conditions.
• 256×192 thermal resolution with NETD ≤25 mK delivers high thermal sensitivity, helping you spot hazards such as wildlife or stranded vehicles well before they appear in standard headlights.
• Full HD 1920×1080 visible light camera provides sharp daytime imagery, so the system remains useful and informative around the clock.

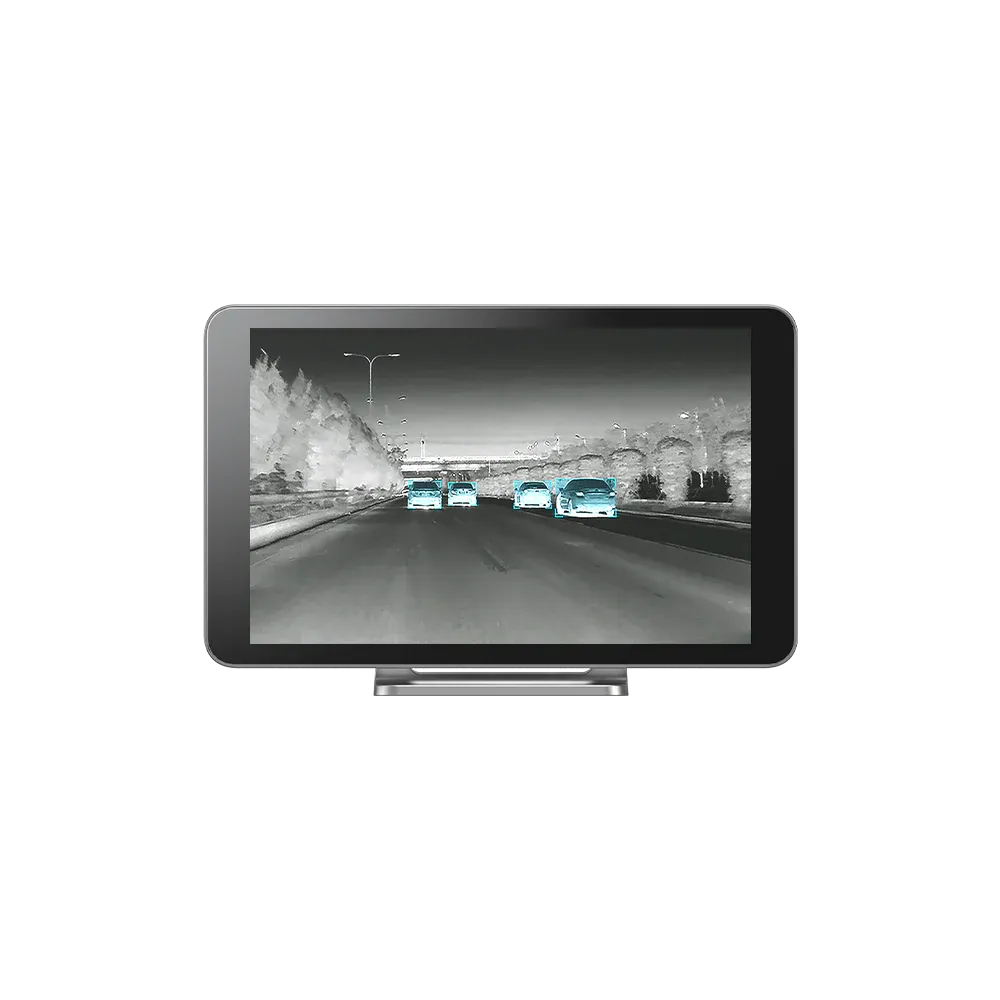

• Large 7-inch LCD display with 1280×800 resolution and 60 Hz refresh rate offers a smooth, detailed live view that is easy to read at a glance while driving.
• ADAS functions including Forward Collision Warning, Pedestrian Collision Warning and Lane Departure Warning actively alert the driver to common road risks, supporting safer, more focused driving.
• Wildlife Vehicle Collision and Wildlife Crossing warnings help detect animals near the roadway, giving extra reaction time on rural or poorly lit roads.
• Detection range up to 200 m for vehicles and 100 m for pedestrians extends your effective visibility far beyond headlight distance, especially valuable at highway speeds.
• Rugged IP67-rated camera housing and -4°F to +140°F operating temperature range ensure reliable performance in rain, dust, heat and winter conditions.

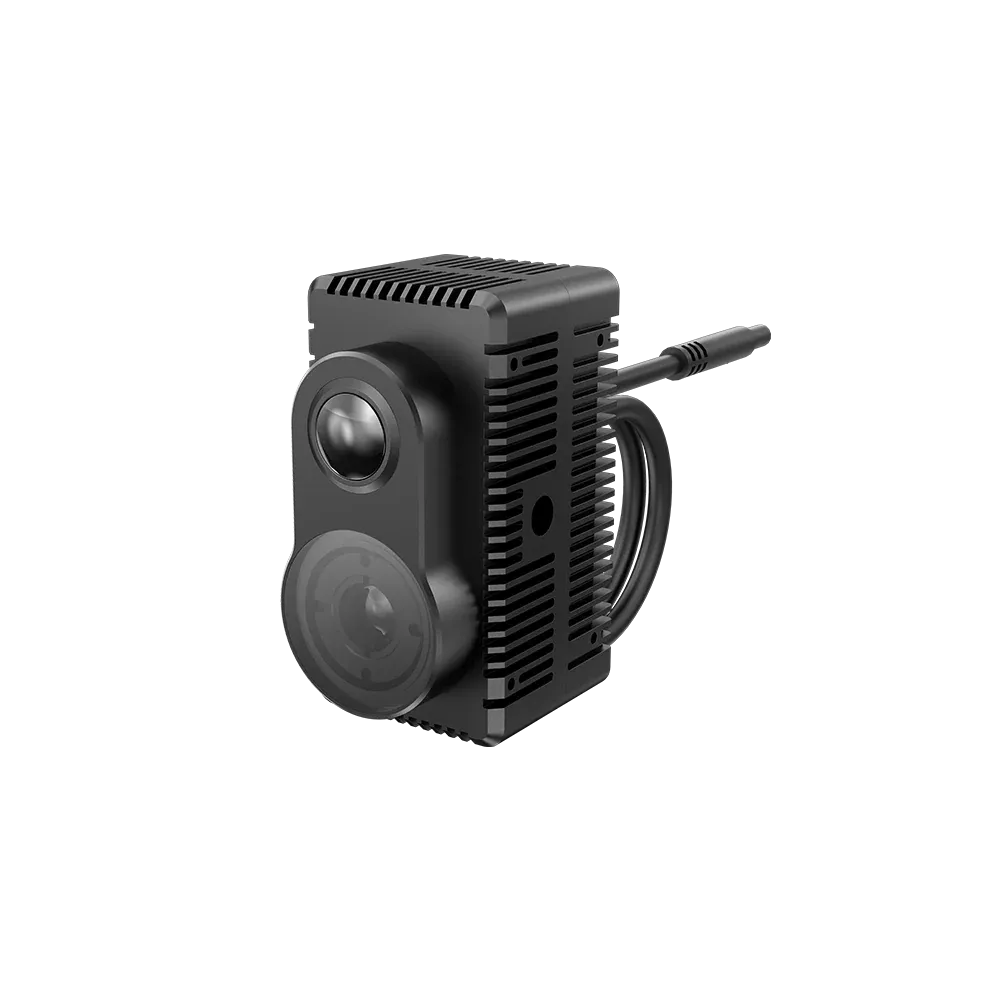

• Compact camera module (26 × 33.5 × 73 mm) is easy to position on the vehicle without obstructing the driver’s view.
• 12 V cigarette lighter power compatibility simplifies installation, allowing the system to be used in virtually any passenger vehicle.
