Leofoto LO-284C MR.O Series 4 Section Levelling Centre Column Carbon Fibre Tripod
| Stock Location | |
|---|---|
| NSW Warehouse | 1 |
Built-in hollow ball in spider for precise levelling without a separate head Crafted from Toray 100% 10-layer carbon fibre for superior strength and low weight 28/25/22/19mm tube diameters with 4-section legs Max height: 1540mm | Min height: 95mm | Fol...

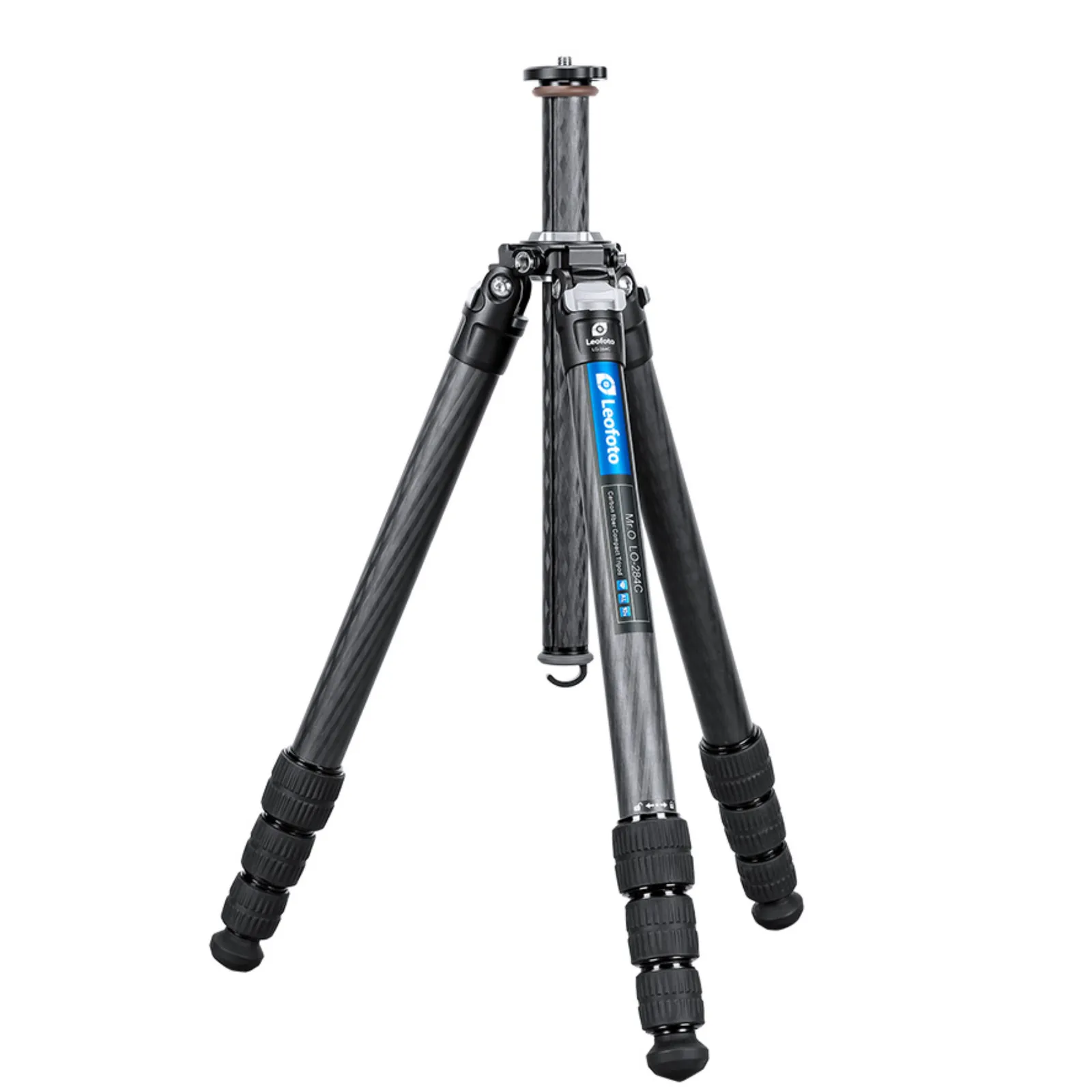

Leofoto LO-284C MR.O Series Tripod
Revolutionary Levelling Tripod with Built-In Hollow Ball and Carbon Fibre Precision
The Leofoto LO-284C MR.O Series Tripod is a professional-grade, outdoor-ready support system designed for creators who demand seamless levelling, superior strength, and dynamic adjustability in one elegant package. As part of Leofoto’s groundbreaking Mr.O Series, this 4-section carbon fibre tripod is engineered around an innovative built-in hollow ballwithin the tripod apex, allowing for flexible angle adjustment similar to a ball head—without the need for additional accessories.
Whether you’re shooting landscapes, time-lapses, macro, or telephoto footage, the LO-284C offers an intuitive and powerful platform that adapts quickly to uneven terrain, high or low shooting angles, and multi-device setups. Its refined, premium-grade materials and practical design features make it a standout choice for serious photographers and videographers.
Key Features
Built-in Levelling Hollow Ball
At the heart of the LO-284C lies a unique integrated hollow ball within the tripod spider. This mechanism enables independent levelling of the centre column, completely bypassing the limitations of a fixed up-and-down centre column. Enjoy fluid adjustments with stability comparable to a dedicated levelling head, ideal for precise framing on uneven ground.
Toray 100% 10-Layer Carbon Fibre Tubes
Constructed from Toray 10-layer carbon fibre, the LO-284C boasts incredible rigidity with minimal weight. Its cross-rhombus weave structure significantly enhances vibration dampening and load-bearing capability. The tube diameters (28/25/22/19mm) ensure each section is optimised for strength and longevity.
6061-T6 Aerospace Aluminium Hardware
The spider and joint hardware are CNC-machined from hard-anodised 6061-T6 aluminium alloy, offering maximum strength and corrosion resistance. This ensures rock-solid stability even when supporting heavy cinema rigs or super-telephoto lenses.
Versatile Mounting Options
Multiple 1/4” and 3/8” threads on the spider apex support magic arms, monitors, mobile clamps, or audio gear—transforming your tripod into a portable production hub.
Anti-Twist System
A triple-point anti-twist mechanism built into the top plate and centre column keeps your mounting base or ball head securely fixed, even under heavy torque or vibration.
Reversible & Interchangeable Centre Column
The center column is fully reversible for low-angle or inverted shooting. The package includes a short centre column adapter, enabling ultra-low shooting heights down to just 10cm—perfect for ground-level macro work.
All-Terrain Stability
Interchangeable rubber and stainless steel spiked feet adapt to any environment—from indoor studio floors to rocky riverbanks or icy landscapes. The 3/8″ stainless steel thread design allows easy swapping.
Semi-Automatic Leg Angle Stops
With angle locks at 23°, 55°, and 85°, the semi-automatic ratcheting design allows for smooth, secure leg adjustments that snap into place intuitively.
Fast Twist-Lock Mechanism
Each leg uses a ¼-turn twist lock system for quick deployment and packing. Reinforced aluminium cores and single-piece shims offer lasting durability and fast maintenance.
Specifications
| Feature | Details |
|---|---|
| Model | LO-284C |
| Leg Sections | 4 |
| Tube Diameters | 28 / 25/ 22 / 19 mm |
| Max Height | 1540 mm |
| Min Height | 95 mm |
| Folded Length | 480 mm |
| Weight | 1.32 kg |
| Max Load | 12 kg |
| Temperature Tolerance | -20°C to 40°C |
In the Box
LO-3284C Tripod
Padded Carry Case
Short Center Column Adapter
Stainless Steel Spikes (x3)
Allen Keys
Multi-tool Kit
Warranty Card
QC Certificate & Instructions
Ideal For:
Landscape, wildlife, and long-lens photographers
Cinematographers and video professionals
Outdoor and travel shooters needing compact yet rock-solid gear
Macro and product photographers requiring low-angle versatility
Multi-device streamers and content creators
The Leofoto LO-284C MR.O Series Tripod is a game-changer in support gear. With its innovative built-in levelling ball, lightweight 10-layer carbon construction, and unmatched versatility, this tripod eliminates the need for bulky levelling heads or cumbersome adjustments. It’s more than a tripod—it’s a complete foundation for professional creativity.
| SKU | LEOLO-284C |
| Model # | LO-284C |
| Brand | Leofoto |
