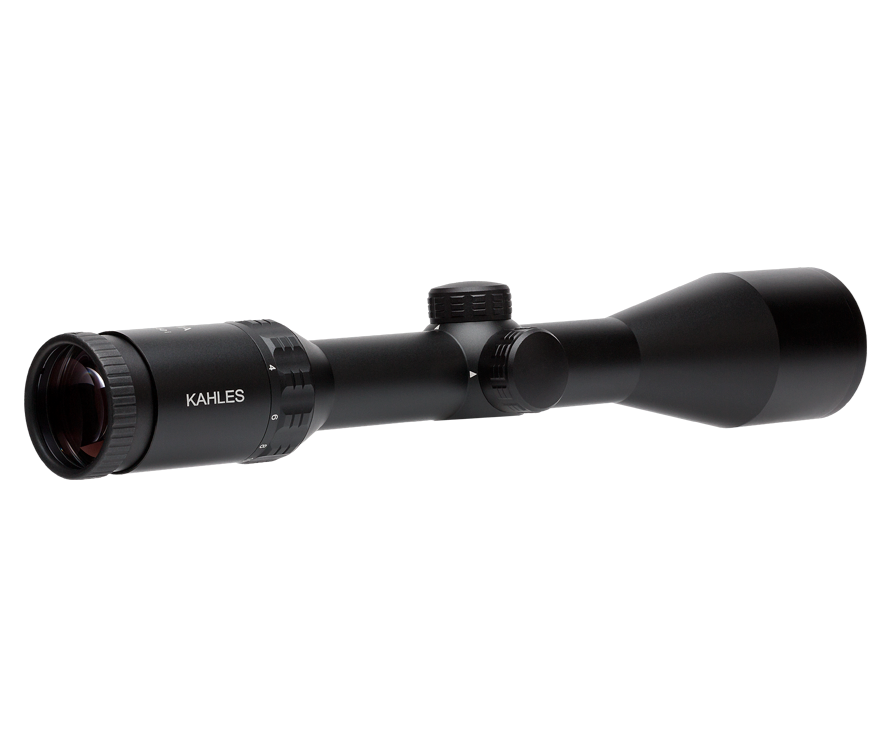

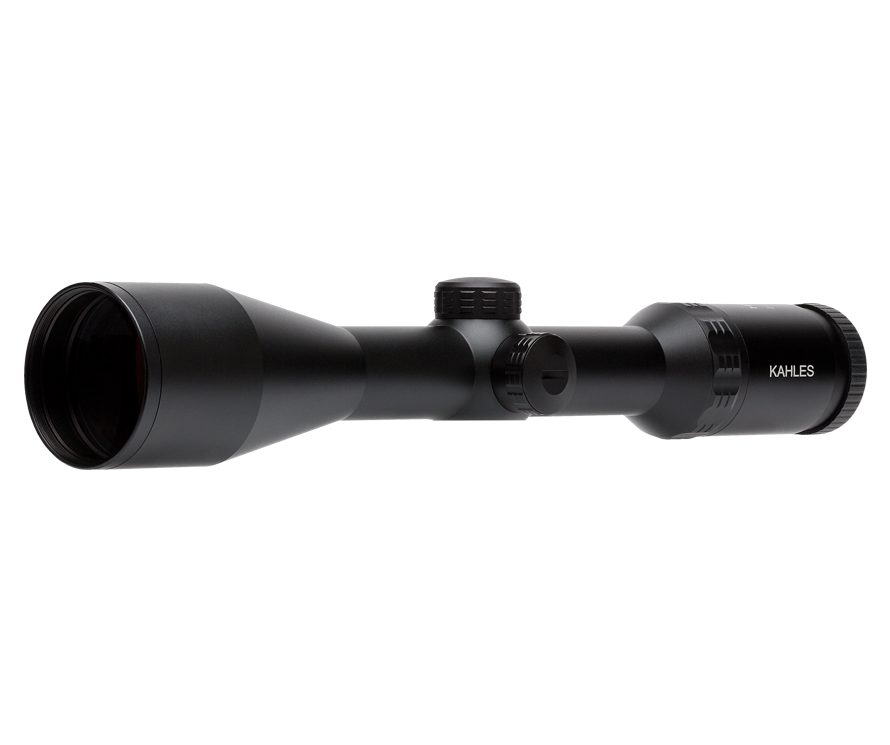

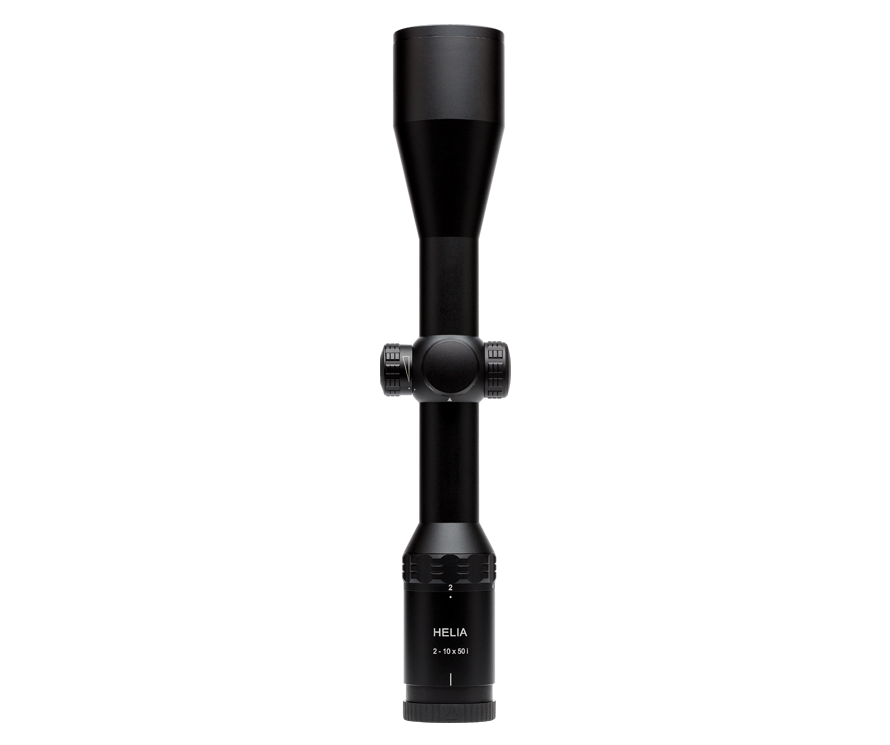

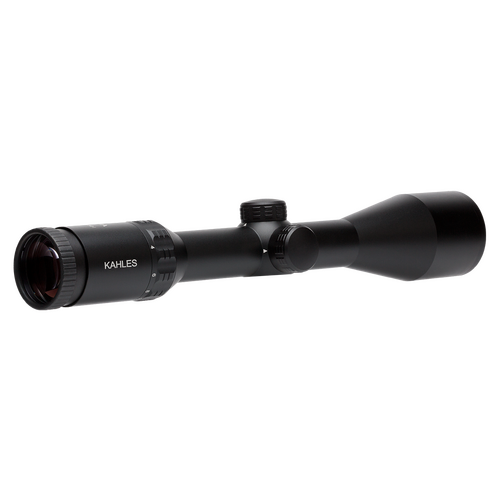

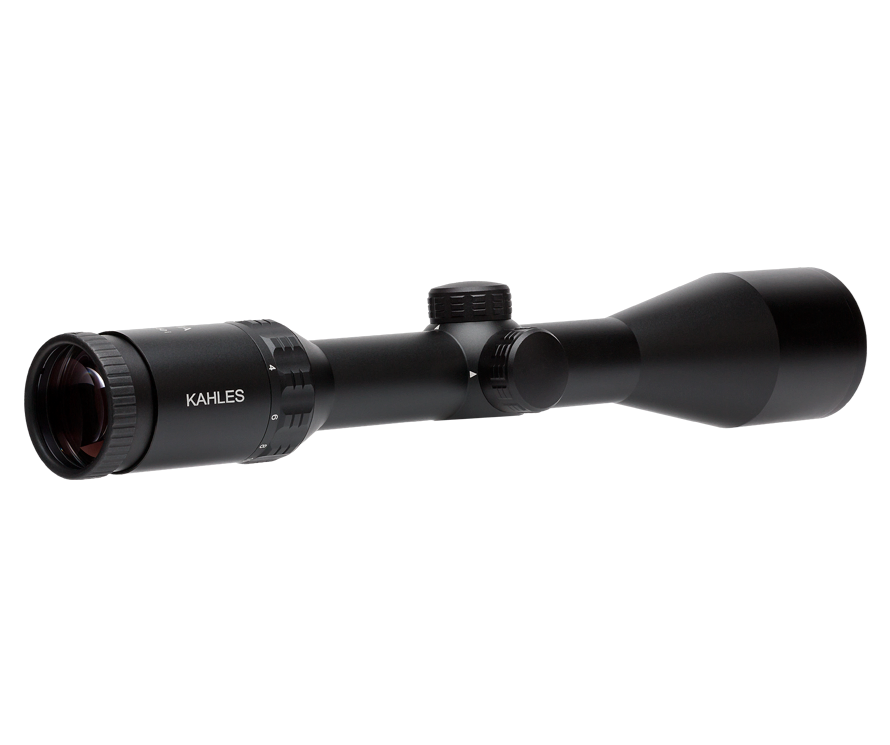

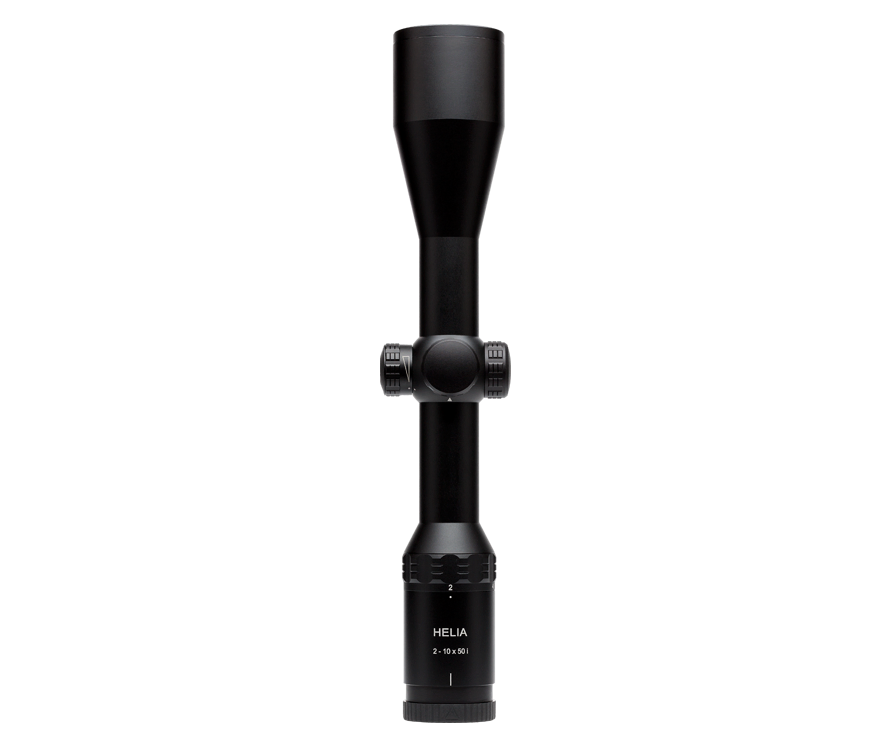

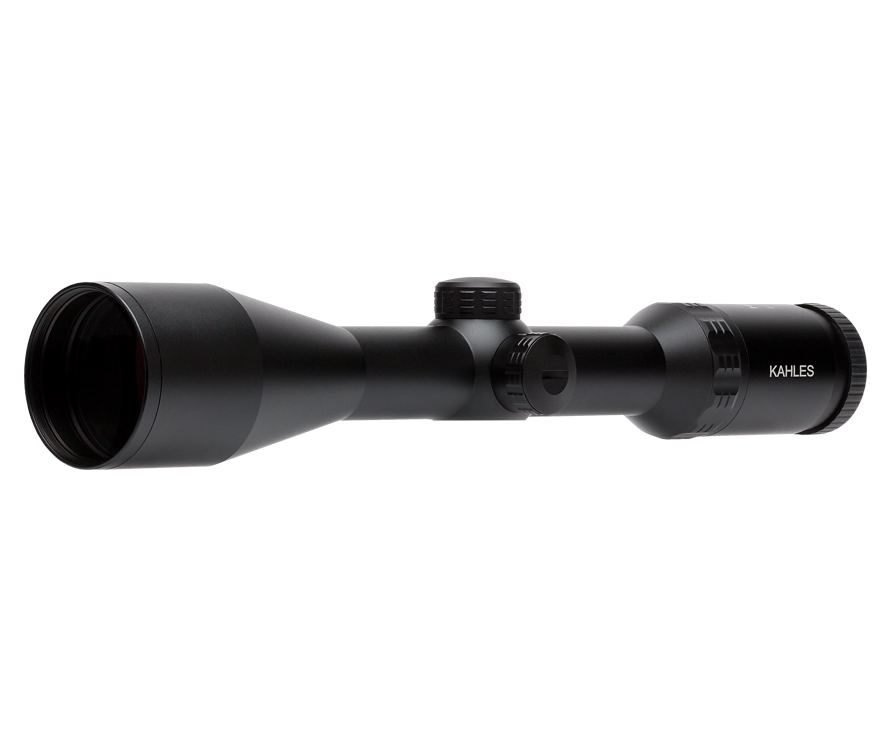

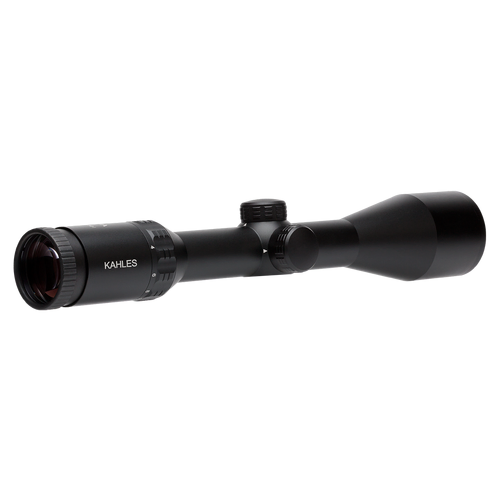

The HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.

  • Perfect all-rounder with large, high-contrast field of view and excellent performance during dawn and dusk
  • Ideal for night hunting in combination with night vision devices (clip-ons)
  • Powerful optics system with exceptional edge sharpness
  • Day/night illuminated reticle with intelligent automatic switch-off

2nd focal plane

2nd focal plane

When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification

Main tube 30 mm

Main tube 30 mm

The main tube has a diameter of 30 mm which is the standard for hunting scopes.

Automaticlight

Automaticlight

The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.

SKU KAH10624
Brand Kahles
Magnification 2-10x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 50mm
Parallax Adjustment Fixed
Parallax Setting 100m
Turret Style Capped
Eye Relief 95mm
Field of View 21.0 - 4.1 m/100 m
Illuminated Reticle Yes
Adjustment Graduation .1 MRAD
Max Elevation Adjustment 16 MRAD
Max Windage Adjustment 16 MRAD
Elevation Turret Style Capped
Windage Turret Style Capped

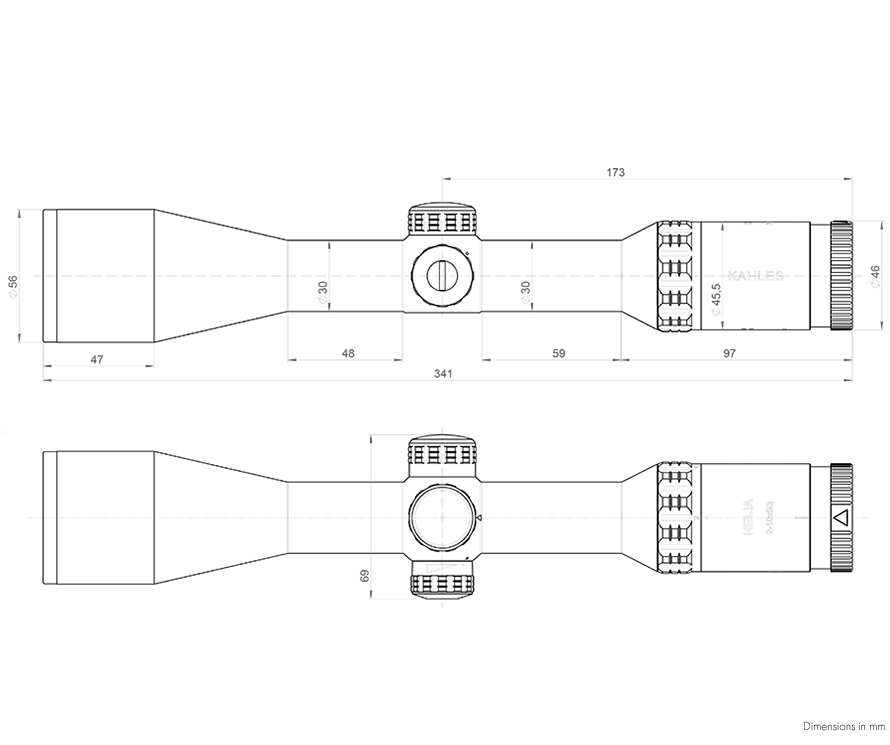

Length 341mm
Weight 585 grams
