Overview

An extensive range of scopes to suit all calibres and disciplines.

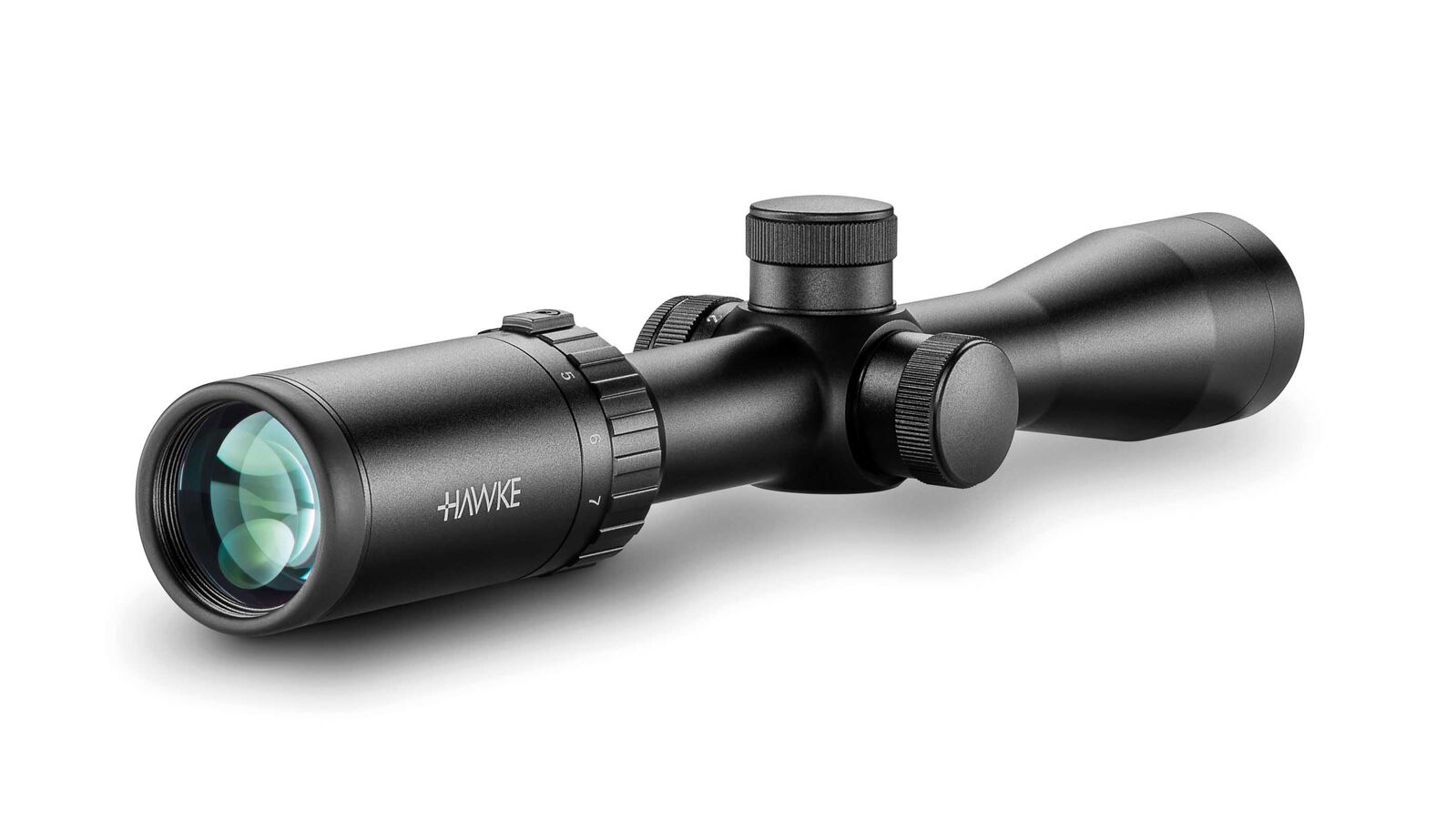

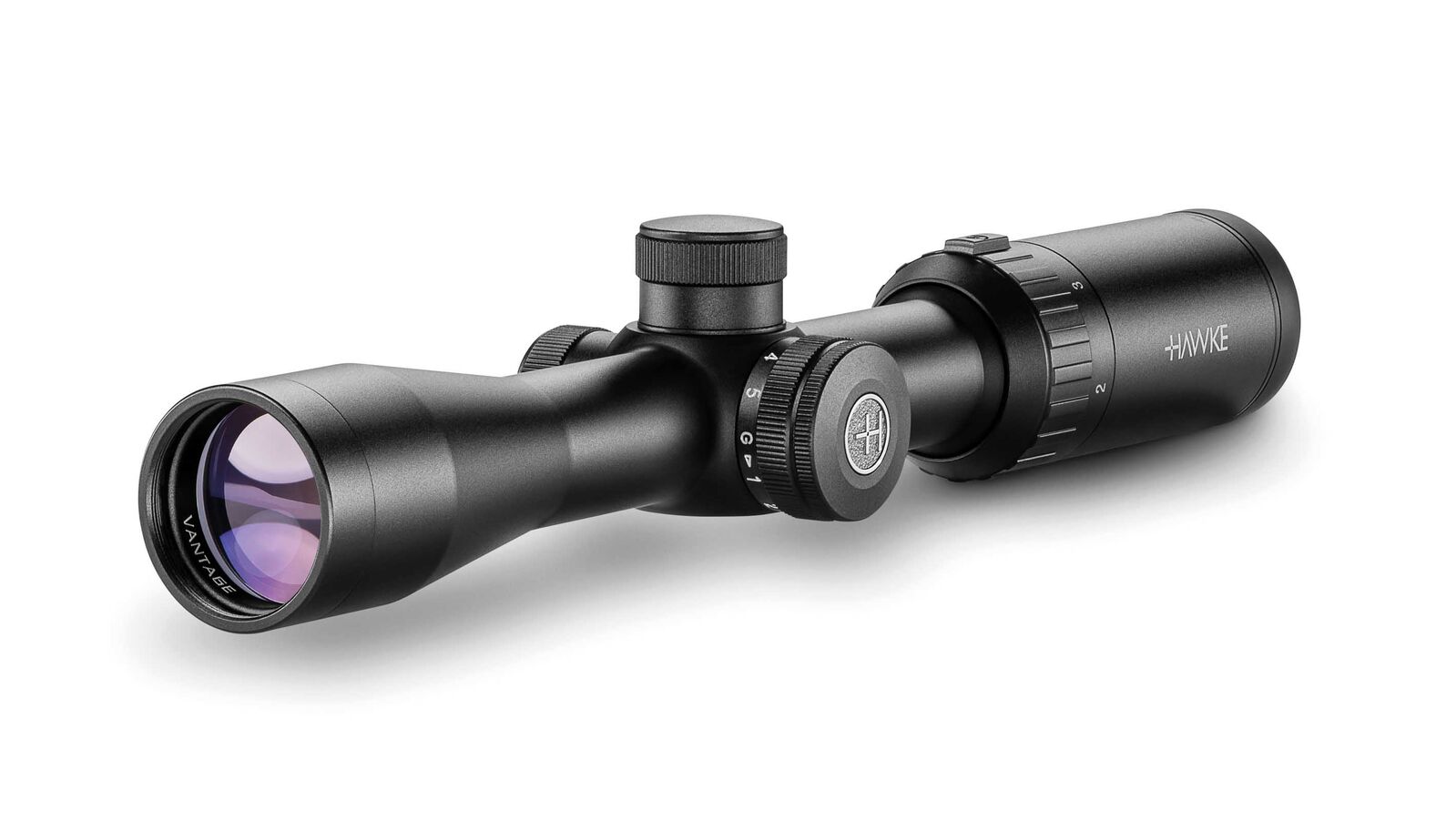

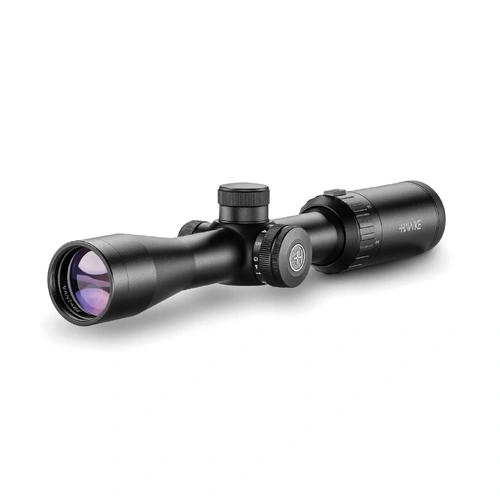

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

Mil Dot Illuminated Reticle

The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.

Hawke Mil Dot Reticle

In the Box

  • Instruction Manual

  • Lens Covers

  • Lens Cloth

  • CR2032 Battery

Specifications

BrandHawke Optics
Model #14209
Magnification RangeLow (-> 10x)
Exit Pupil16 - 4.6
Field of View (Degrees)8.9 - 2.7
Field of View (Linear)15.5 - 4.7m @ 100m
Weight (grams)395
Length (mm)285
Parallax Distance91m
Windage Travel140 MOA
Elevation Travel140 MOA
Windage Turret StyleCapped
Elevation Turret StyleCapped
Adjustment Graduation.25 MOA
Eye Relief90
Tube Size1"/25.4mm
Illuminated ReticleYes
Objective Size25-34mm
Magnification2-7x
Turret StyleCapped
AdjustmentMOA
Parallax AdjustmentFixed
Objective Lens Diameter32mm
ReticleMil Dot
Focal PlaneSFP (Second Focal Plane)
