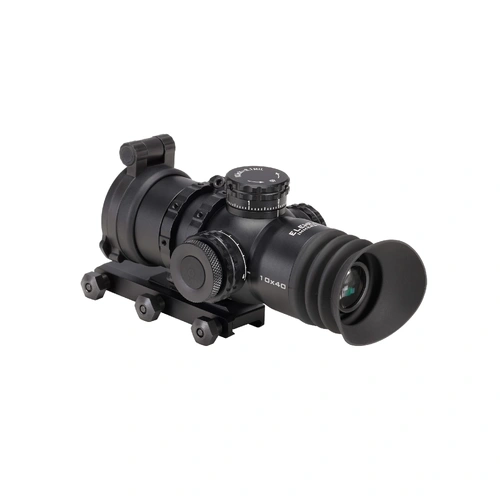

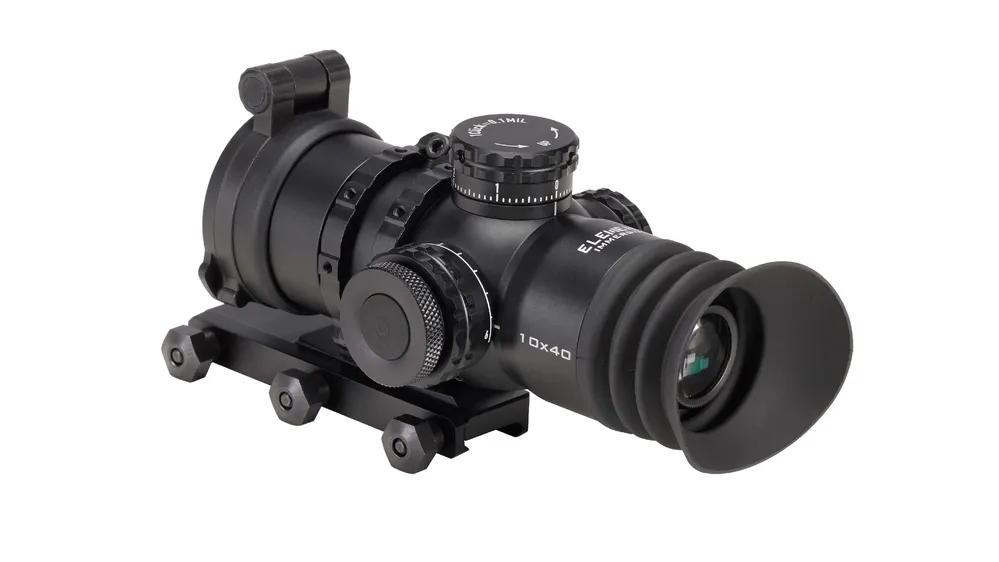

Element Immersive 10x40 MOA APR-1C Riflescope
Ultra-compact 10x40 prismatic scope with huge field of view, ED glass clarity and illuminated APR-1C MOA reticle – built for zero-recoil rifles that demand precision.
Product Overview
Element Optics’ Immersive Series 10x40 is built for one job: giving you a massive field of view and razor-sharp detail on zero-recoiling rifles. This ultra-compact prismatic scope uses ED glass and a short 18mm eye relief to pull the image in close, so instead of looking at a picture floating out in front of you, you feel like you’re sitting inside the scene. That means better peripheral awareness, faster target acquisition and more confidence behind the rifle, whether you’re working small targets or scanning a busy backdrop.
The 10x40 runs an illuminated APR-1C MOA reticle with push-button controls, side parallax from 6 yards to infinity, and exposed elevation with capped windage – all resettable – so you can dial or hold with precision. With 83 MOA / 28 MRAD of elevation and windage, waterproof and fogproof construction, and a tilt-adjustable unimount with three base lengths included, it’s compact, tough and ready to live on your zero-recoil rig. At just 135mm long and 485g with mount, plus magnetic flip caps and a rubber eyecup in the box, this is a purpose-built optic that trades bulk for pure performance and situational awareness.
Key Features
- Ultra-compact 10×40 prismatic design delivers a massive field of view, helping you see more of your surroundings for faster target acquisition.
- Short 0.7" (18mm) eye relief creates an immersive sight picture, improving peripheral awareness compared with traditional riflescopes.
- ED glass reduces chromatic aberration and enhances image sharpness, giving you clearer detail and more confident shot placement.

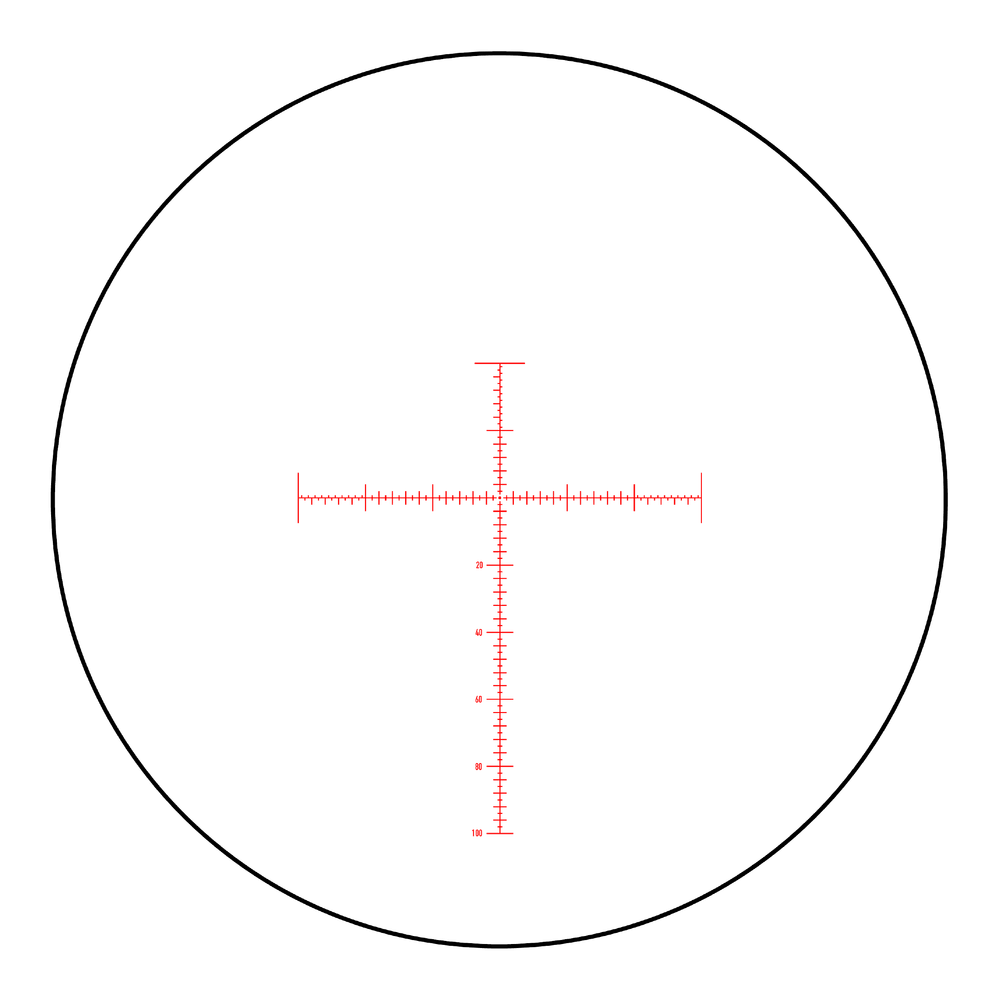

- Illuminated reticle with push-button control improves aiming precision in low-light conditions and against dark or complex backgrounds.
- Side parallax adjustment from 6 yards to infinity allows fine-tuning focus and accuracy at close range through to long-distance targets.

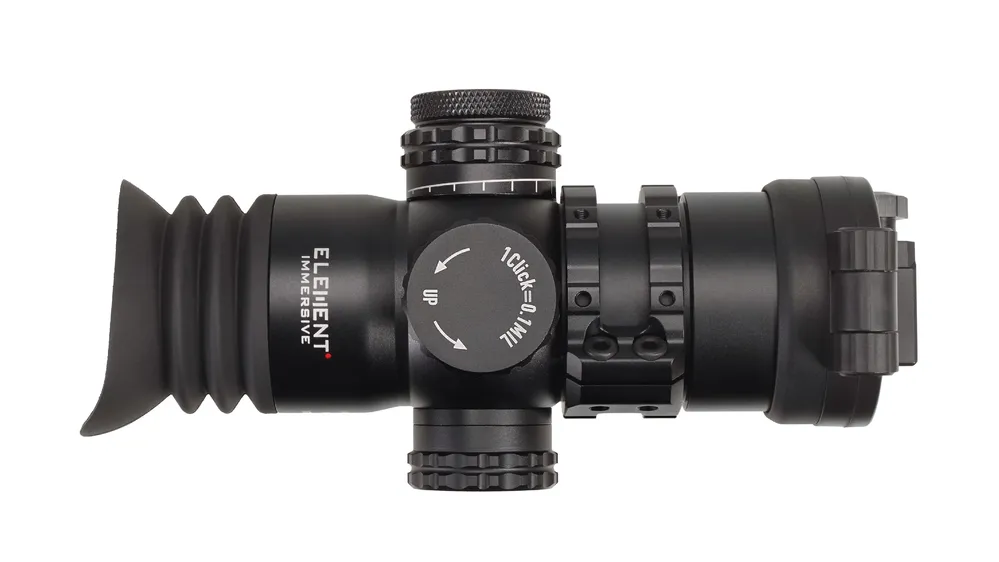

- Exposed elevation turret and capped, resettable windage turret provide precise, repeatable adjustments for consistent zero and dialling corrections.
- Wide elevation and windage adjustment range (83 MOA / 28 MRAD) gives ample travel for zeroing and shooting at extended distances.
- Compact 135mm overall length and 485g weight (with mount) keep your rifle setup light and well-balanced for easier handling in the field.
- Waterproof, fogproof, shockproof and nitrogen-purged construction ensures reliable performance in harsh weather and demanding shooting environments.

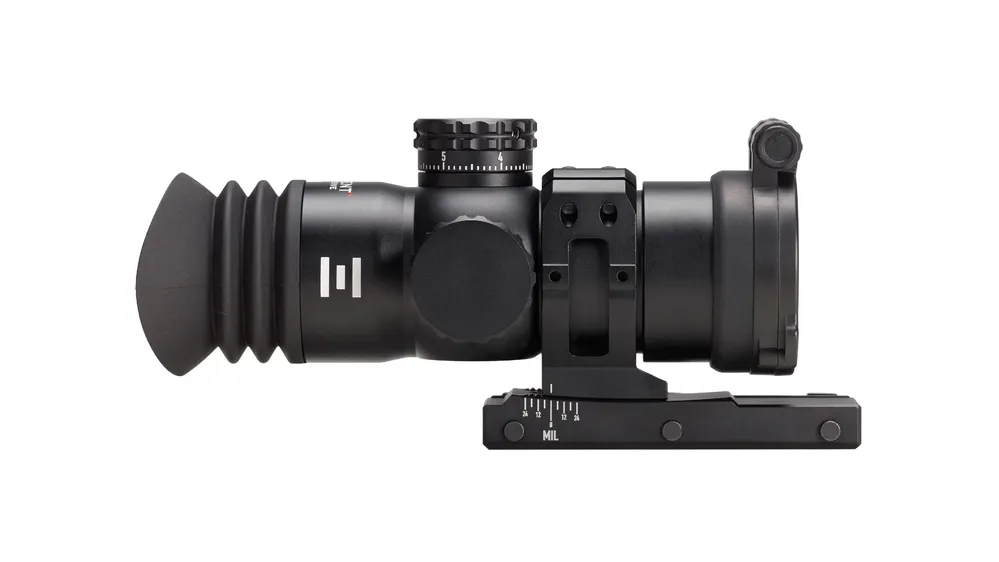

- Included tilt-adjustable unimount with three base lengths plus magnetic flip cap and rubber eyecup offers flexible mounting and comfortable, protected use.
Included in the Box:
- Element Optics Immersive Series 10x40 riflescope (MOA APR-1C reticle)
- Tilt-adjustable unimount with 3 base lengths

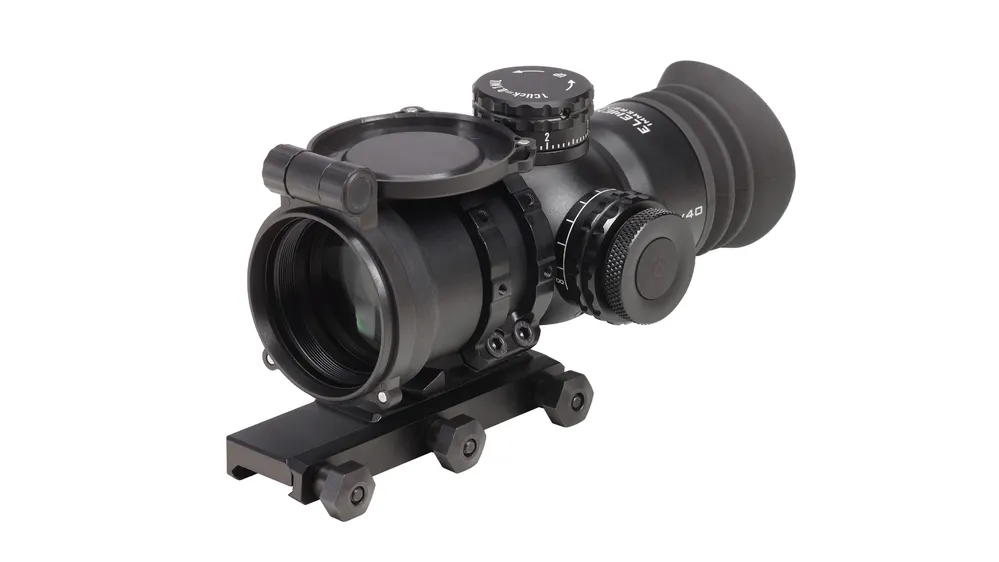

- Magnetic flip cap
- Rubber eyecup
| SKU | ELEIM50074 |
| Model # | EO-IM50074 |
| Brand | Element Optics |
| Magnification | 10x |
| Objective Lens Diameter | 40mm |
| Parallax Adjustment | Side Focus |
| Parallax Setting | 6m to infinity |
| Turret Style | Capped |
| Eye Relief | 18mm |
| Illuminated Reticle | Yes |
| Adjustment Graduation | .25 MOA | .1 MRAD |
| Max Elevation Adjustment | 83 MOA | 28 MRAD |
| Max Windage Adjustment | 83 MOA | 28 MRAD |
