Overview

Product Overview

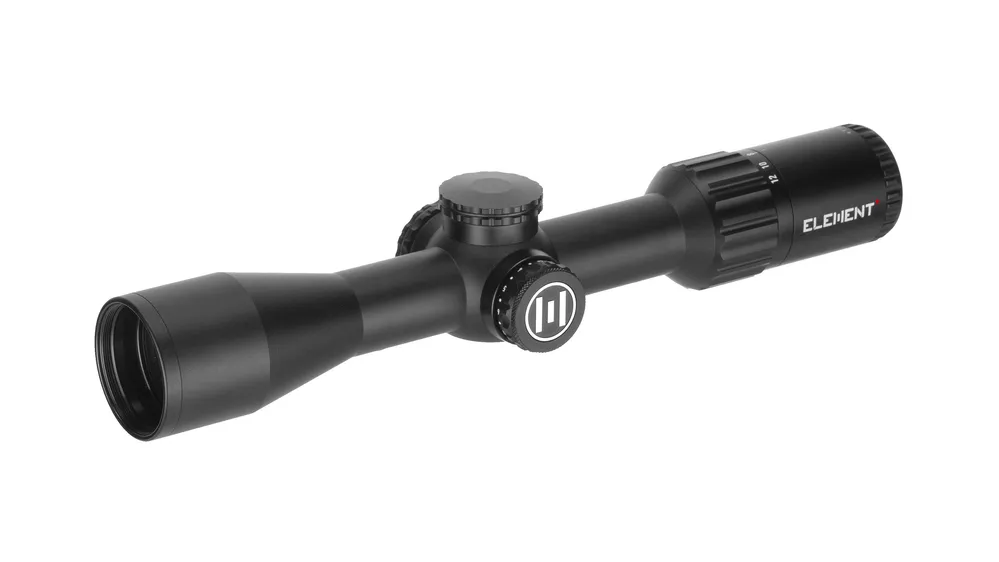

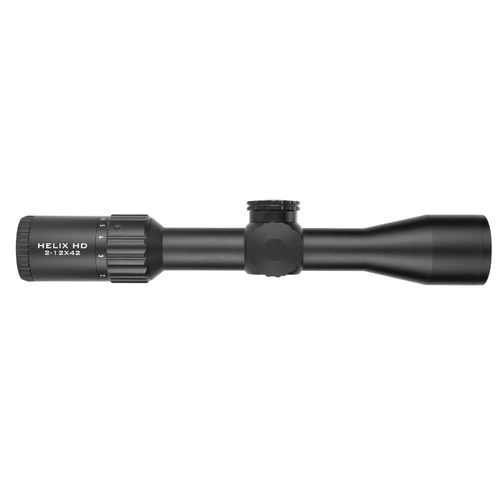

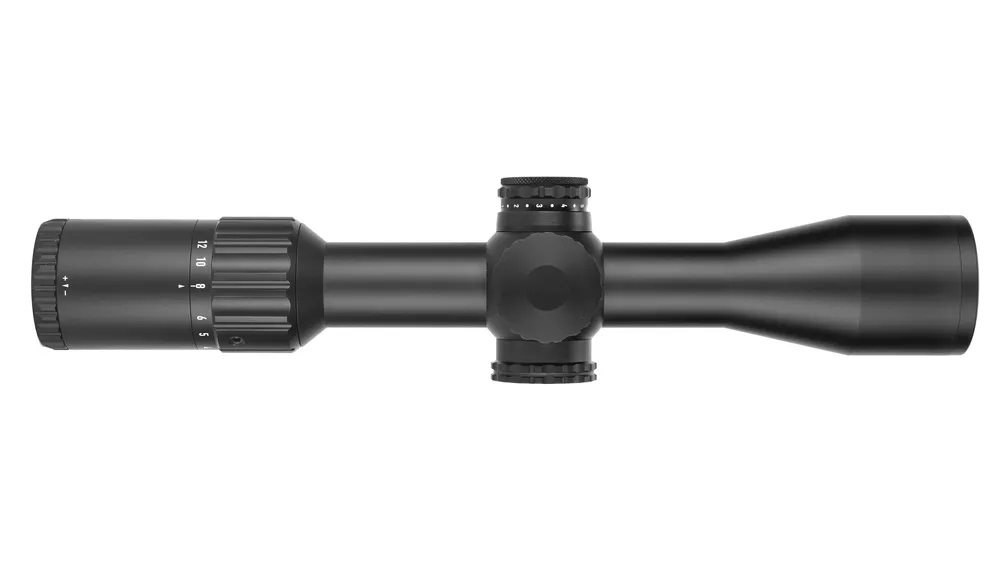

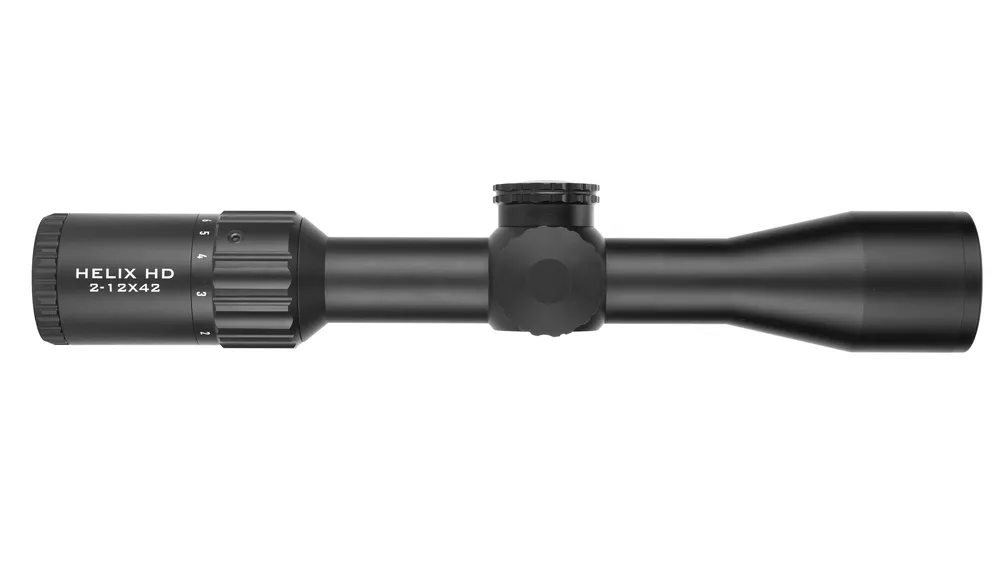

Element’s Helix HD Compact 2-12x42 is built for hunters who want a do‑it‑all scope that doesn’t weigh them down. The 2-12x HD optical system gives you a wide, bright view in the scrub at low power, then plenty of precision as you wind it up for longer shots. The RAPTR-1F SFP MOA reticle with fibre‑optic illumination stays clean and uncluttered, so you can pick up animals quickly in first and last light without fighting a busy sight picture.

A 30mm tube, aircraft‑grade aluminium body and capped, tool‑free resettable turrets mean this scope is ready for hard use on centrefires in real hunting conditions. It’s waterproof, fogproof, shockproof and nitrogen‑purged, with advanced fully multi‑coated HD glass to keep the image sharp when the weather turns. At just 318mm long and 615g, plus a removable throw lever for fast magnification changes, the Helix HD Compact carries easily all day but still gives you the confidence to take the shot when it counts.

Key Features

  • 2–12x magnification range with HD glass delivers a wide zoom window, giving hunters flexibility from close bush stalking to precise shots at intermediate distances.
  • 30mm main body tube and aircraft-grade aluminium construction provide a strong, stable platform that holds zero under recoil and rough field use.

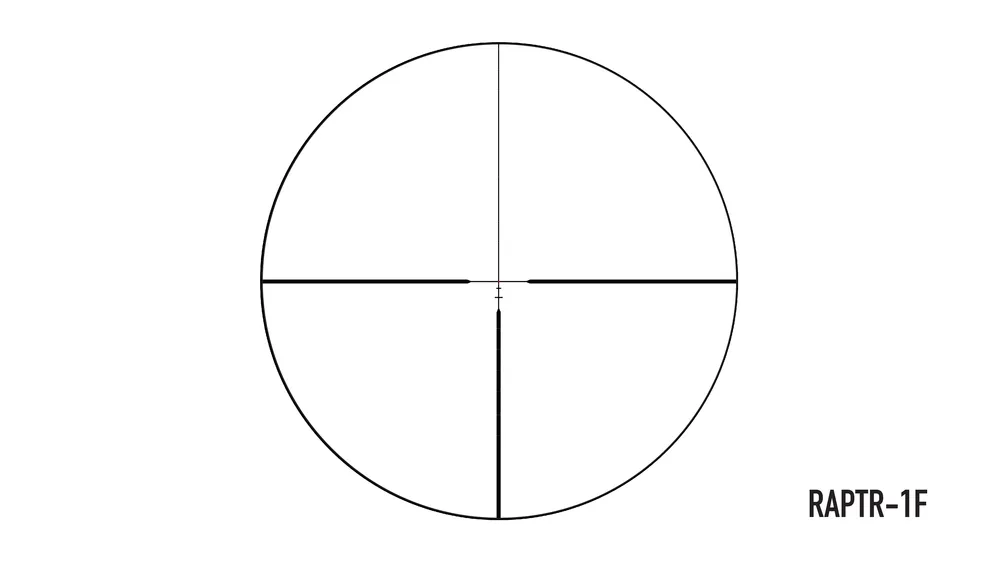

  • RAPTR-1F SFP reticle with fibre optic illumination offers a crisp, uncluttered aiming point, improving target acquisition in low light and varied backgrounds.
  • Advanced fully multi-coated lenses enhance light transmission and contrast, helping you pick out detail at dawn, dusk and in shaded terrain.
  • Ultra-compact, lightweight design reduces bulk on your rifle, improving balance and making the setup easier to carry on long hunts.

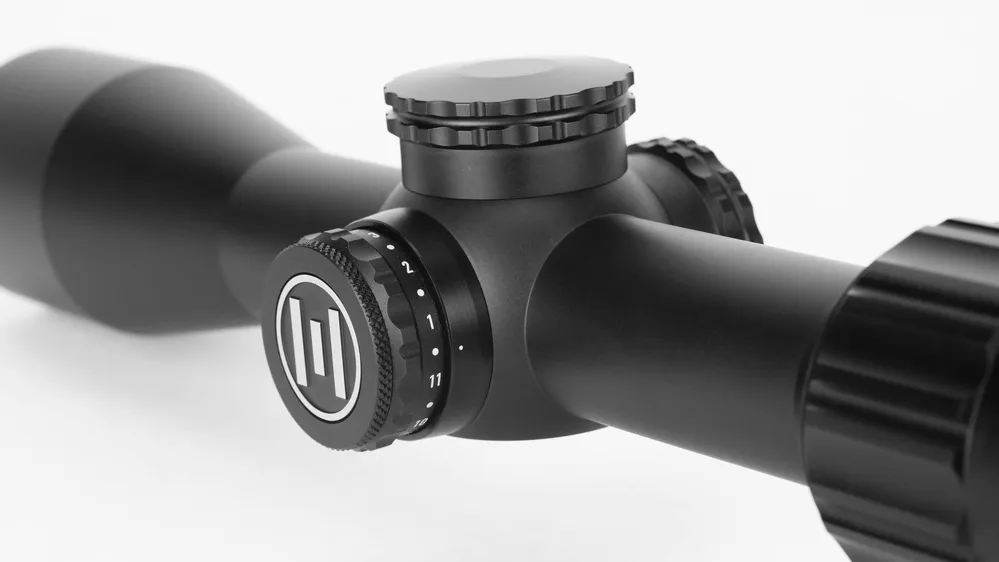

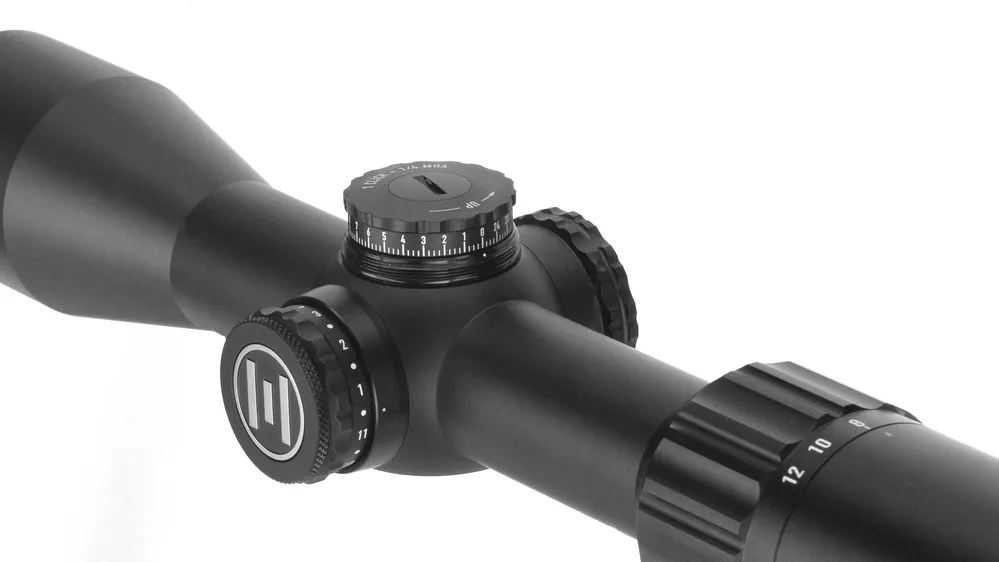

  • Capped, tool-free resettable turrets protect your adjustments from knocks while still allowing quick zeroing and easy return to your preferred settings.
  • Fixed 100 yd parallax and 1/4 MOA click adjustments (135 MOA elevation and windage range) enable precise, repeatable zeroing for typical hunting distances.

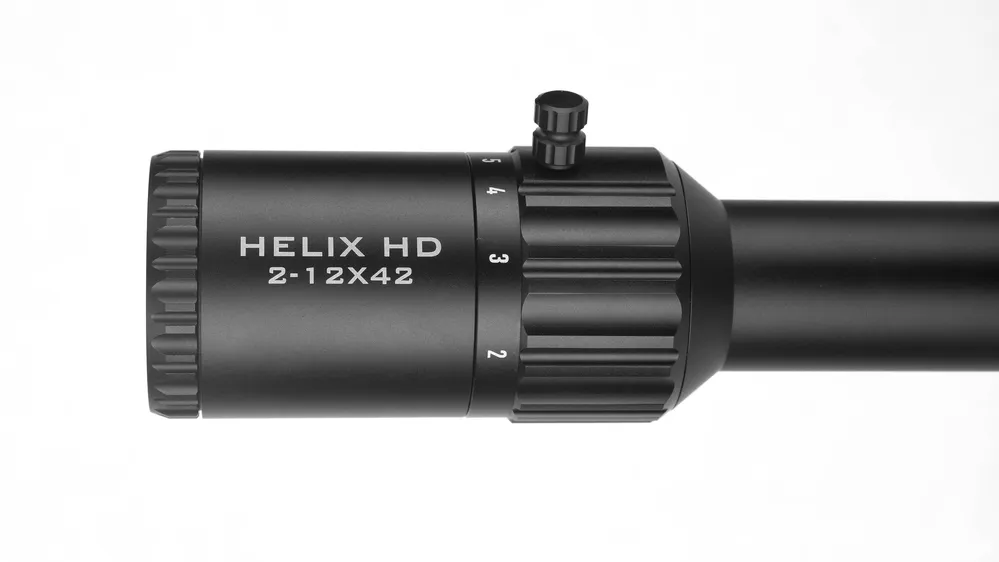

  • Removable magnification throw lever allows fast power changes with gloved or wet hands, so you can react quickly as shot opportunities appear.
  • Waterproof, fogproof, shockproof and nitrogen purged construction ensures reliable performance in rain, cold, and harsh field conditions.
  • Element Optics Platinum Warranty provides lifetime coverage, giving long-term confidence in your optic investment.

In the Box

  • Element Optics Helix HD Compact 2-12X42 SFP RAPTR-1F MOA riflescope
  • Sunshade
  • Lens cloth
  • Removable magnification throw lever
  • Clear lens caps

Specifications

BrandElement Optics
Model #EO-HLHD50057
Magnification RangeMedium (11x-18x)
Eye Relief97
Field of View (Degrees)12 - 2
Field of View (Linear)21 - 3.5m @ 100m
Weight (grams)615
Length (mm)318
Travel Per Rotation25 MOA
Parallax Distance91.4m
Windage Travel135 MOA
Elevation Travel135 MOA
Windage Turret StyleCapped
Elevation Turret StyleCapped
Adjustment Graduation.25 MOA
Tube Size30mm
Exit Pupil9.5 - 3.5
Illuminated ReticleYes
Objective Size40-49mm
Magnification2-12x
Turret StyleCapped
AdjustmentMOA
Parallax AdjustmentFixed
Objective Lens Diameter42mm
ReticleRAPTR-1F (MOA Illuminated)
Focal PlaneSFP (Second Focal Plane)
