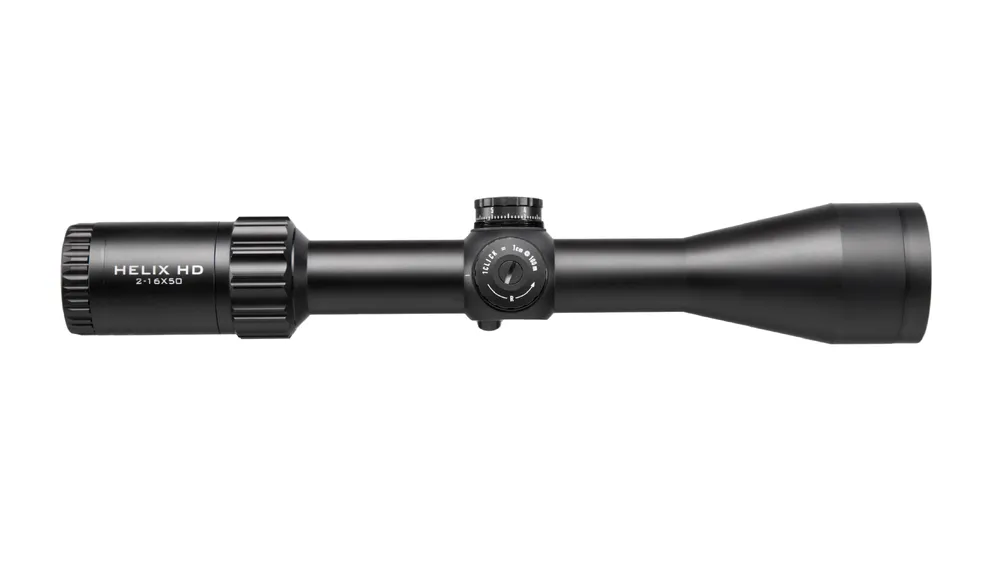

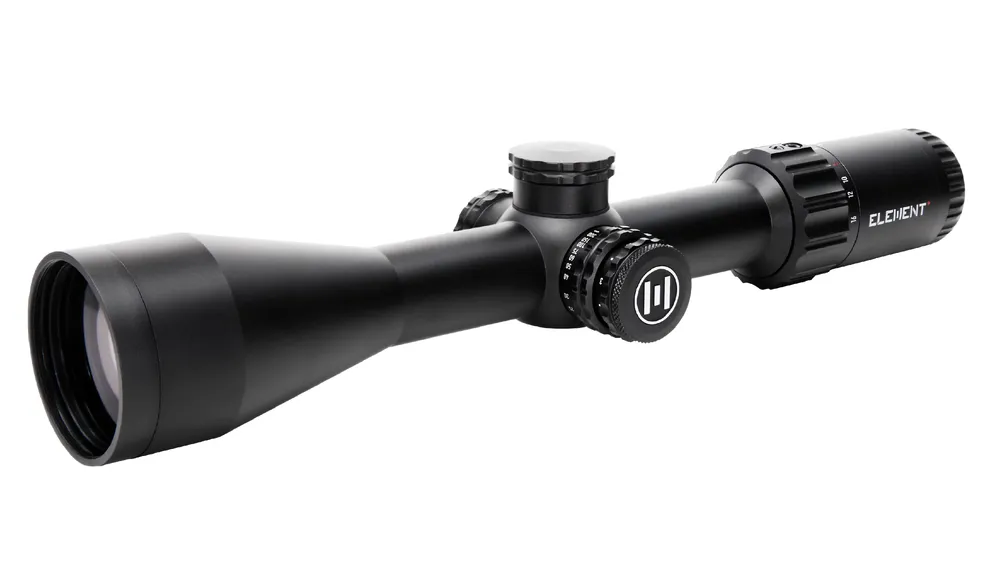

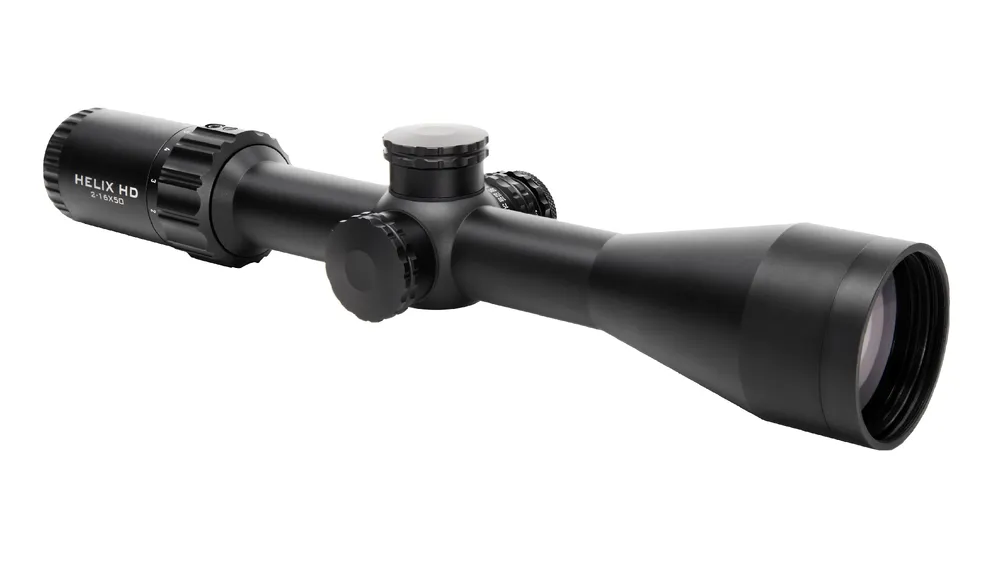

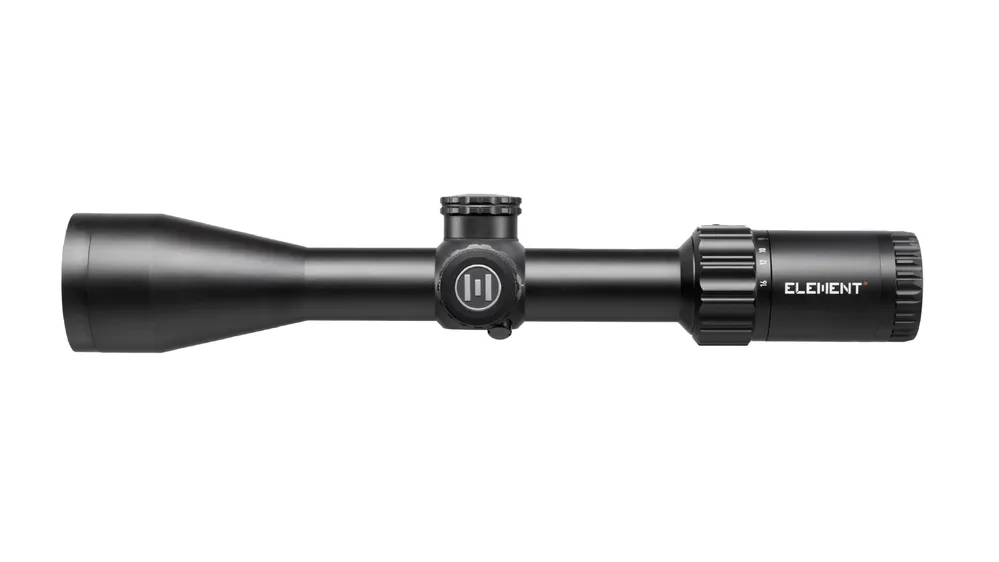

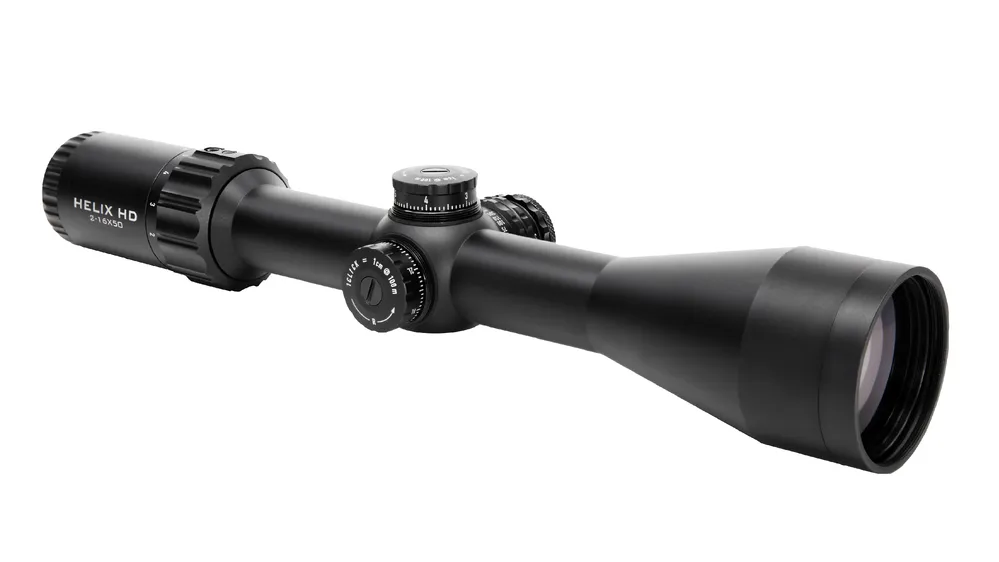

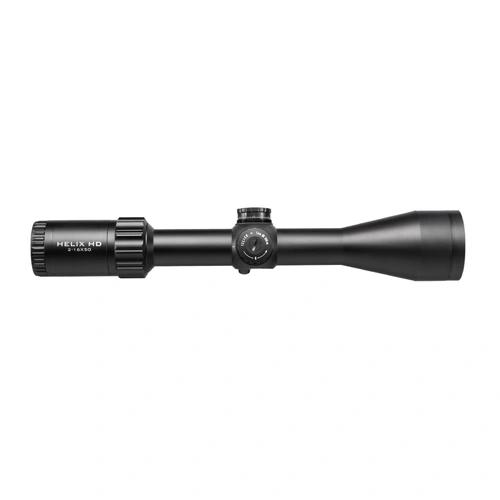

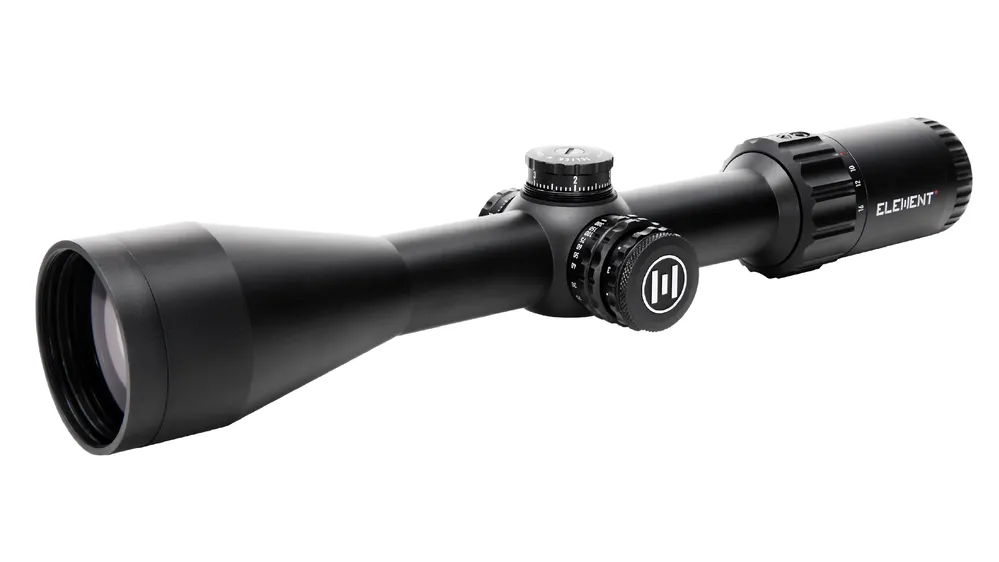

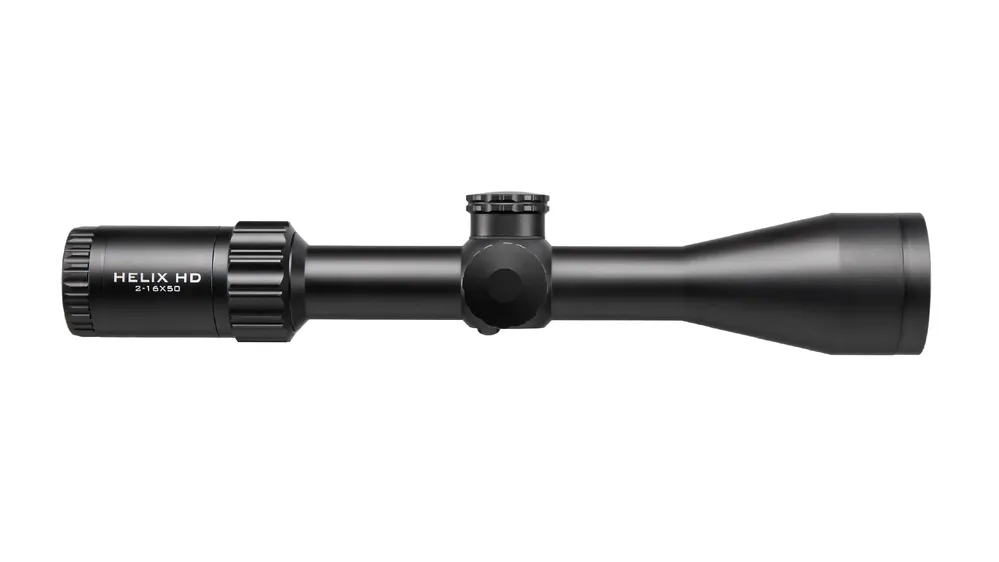

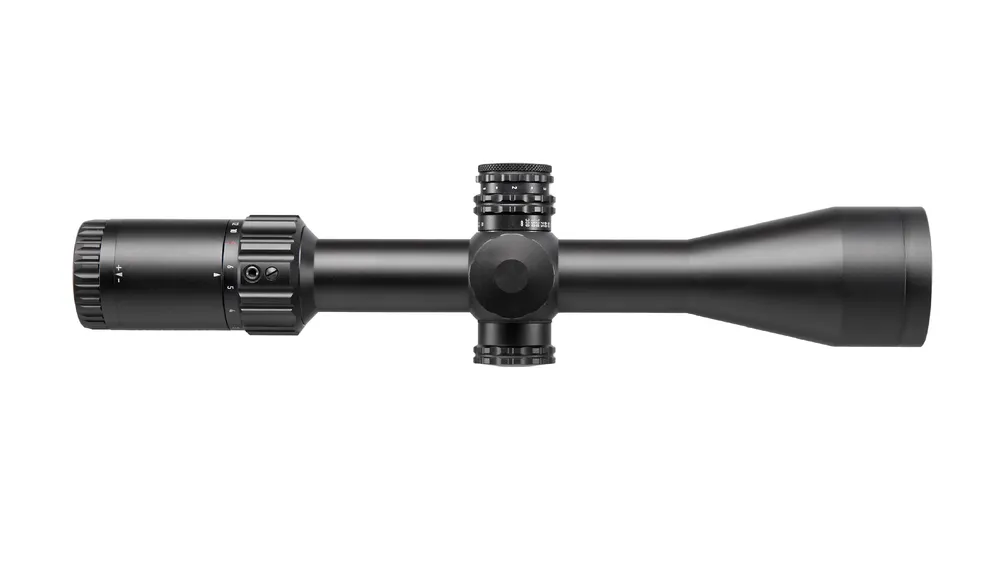

Element Helix HD 2-16x50 SFP RAPTR MRAD Rifle Scope
Request a price match
Seen it for less somewhere else? Tell us where and we'll take a look.
- Medium (11x-18x)
- 102
- 11.5 - 1.4
- 20.2 - 2.51m @ 100m
- 728
- 340
- 6 MRAD
- 10m to Infinity
- 13 MRAD
- 29 MRAD
- Capped
- Capped
- .1 MRAD
- 30mm
- 8.5 - 3.1
- Yes
- 50-55mm
- 2-16x
- Capped
- MRAD
- Side Focus
- 50mm
- RAPTR (MRAD Illuminated)
- SFP (Second Focal Plane)
Element Helix HD 2-16x50 gives you crisp glass, illuminated RAPTR MRAD reticle and capped turrets in a compact 30mm scope built to handle real hunting and long-range work.
Estimate shipping
Overview
Product Overview
Element’s Helix HD 2-16x50 RAPTR MRAD SFP is built for hunters and precision shooters who want serious performance without the drama. The 2-16x magnification range gives you true versatility – fast target acquisition in tight country at 2x, and confident shot placement on distant game at 16x. The HD/ED glass and fully multi-coated lenses deliver crisp, high-contrast images from first light to last, while the illuminated RAPTR MRAD reticle lets you read wind and elevation quickly without clutter. A generous 4" of eye relief and wide field of view make it easy to get on target and stay there, even off a ute bonnet or in awkward shooting positions.
Under the hood, this scope is all business. The 30mm aircraft-grade aluminium tube, nitrogen purging and waterproof, fogproof, shockproof construction are built to handle rough Aussie conditions – dust, rain, recoil and the odd knock in the paddock. Capped, resettable MRAD turrets give you precise 0.1 MRAD clicks with plenty of elevation travel for stretching things out, while staying low-profile and snag-free for hunting. Side parallax down to 10 metres suits everything from close-range rimfire work to long-range centrefire, and the removable throw lever lets you rip through the zoom range in an instant. With included sunshade, clear lens caps and Element’s Platinum Lifetime Warranty, the Helix HD 2-16x50 is a no-nonsense optic you can bolt on and trust, season after season.
Key Features
- 2–16x magnification range with 50mm objective lens lets you move seamlessly from close bush stalking to precise long-range shots while maintaining a bright, clear image.
- HD/ED glass with fully multi-coated lenses delivers crisp resolution and contrast, helping you pick out fine details and targets in low light and complex backgrounds.

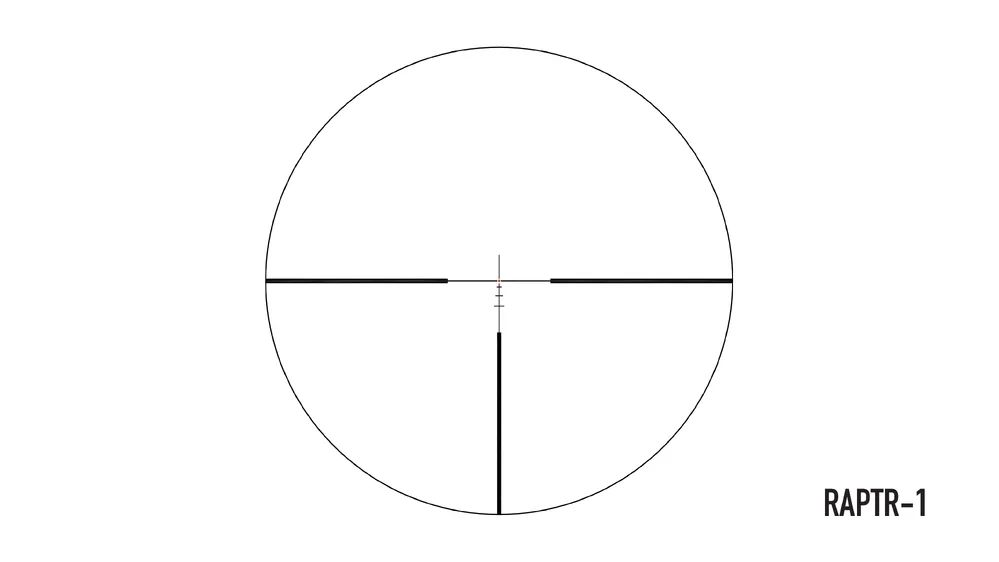

- Second focal plane RAPTR MRAD reticle keeps reticle size consistent across the zoom range, making holdovers and wind calls intuitive for hunting and target work.
- Side parallax adjustment from 10 m to infinity allows you to fine-tune focus and minimise parallax error, improving accuracy from close-range rimfire to extended-distance centrefire.
- Capped, resettable elevation and windage turrets protect your zero from accidental knocks while still allowing fast, precise 0.1 MRAD adjustments when you need them.
- 30mm aircraft-grade aluminium tube and nitrogen-purged, waterproof, fogproof, shockproof construction stand up to recoil and harsh weather in the field.
- Generous 4" (101.6 mm) eye relief and a compact, lightweight design enhance comfort and balance on the rifle, reducing fatigue during long hunts or range sessions.
- Removable magnification throw lever gives you rapid power changes with gloved hands, then detaches for a sleeker profile when you prefer a lower snag risk.
- Wide elevation and windage adjustment ranges (up to 29 MRAD elevation / 13 MRAD windage) provide ample travel for dialling dope on modern flat-shooting cartridges.
- Included sunshade, clear lens caps, lens cloth and ‘cheat sheet’ stickers help you protect your glass and keep your ballistic and turret data handy in the field.
In the Box
- Element Optics Helix HD 2-16x50 SFP Rifle Scope
- Sunshade
- Lens cloth
- ‘Cheat Sheet’ stickers
- Clear lens caps
Specifications
| Brand | Element Optics |
|---|---|
| Model # | EO-HLHD50052 |
| Magnification Range | Medium (11x-18x) |
| Eye Relief | 102 |
| Field of View (Degrees) | 11.5 - 1.4 |
| Field of View (Linear) | 20.2 - 2.51m @ 100m |
| Weight (grams) | 728 |
| Length (mm) | 340 |
| Travel Per Rotation | 6 MRAD |
| Parallax Distance | 10m to Infinity |
| Windage Travel | 13 MRAD |
| Elevation Travel | 29 MRAD |
| Windage Turret Style | Capped |
| Elevation Turret Style | Capped |
| Adjustment Graduation | .1 MRAD |
| Tube Size | 30mm |
| Exit Pupil | 8.5 - 3.1 |
| Illuminated Reticle | Yes |
| Objective Size | 50-55mm |
| Magnification | 2-16x |
| Turret Style | Capped |
| Adjustment | MRAD |
| Parallax Adjustment | Side Focus |
| Objective Lens Diameter | 50mm |
| Reticle | RAPTR (MRAD Illuminated) |
| Focal Plane | SFP (Second Focal Plane) |
