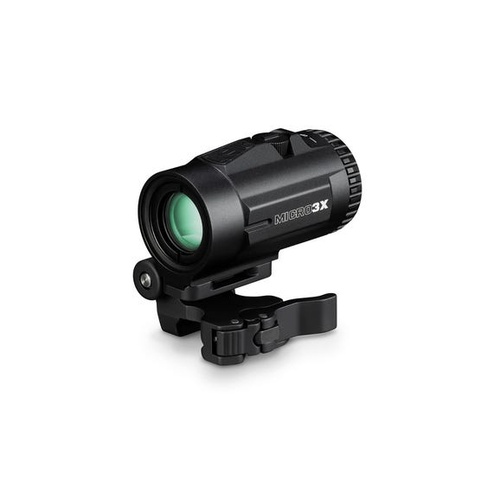

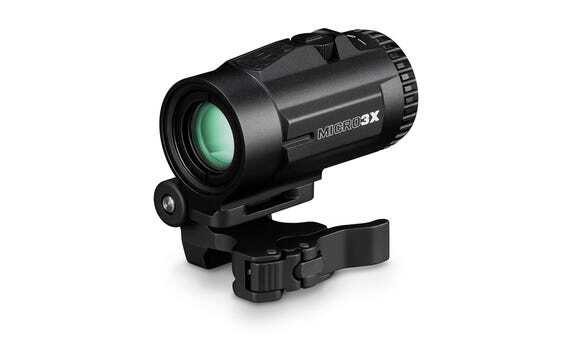

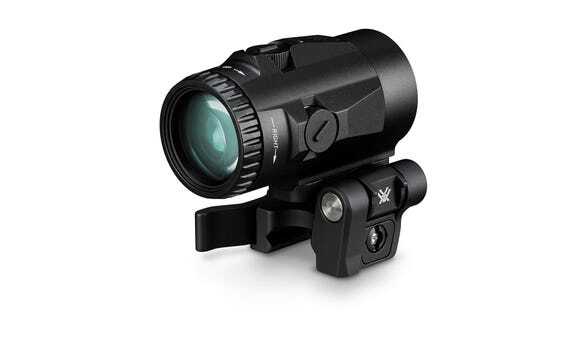

Vortex Micro3X Magnifier

809-811 South Road, Clarence Gardens SA 5039

Next level 3X magnification versatility when you need it for your red dot or holographic sight in an ultracompact, lightweight, and optically crisp package. Integrated quick-release allows fast attach/detach while camlock engages/disengages magnifier with direct pressure. Adjustable flip mount allows for right or left-handed use.

The Micro3x Magnifier will work with any vortex red dots. The Micro3x will not work with prism scopes.

Micro3x mounts at absolute co-witness, or Lower 1/3 co-witness

Included in the Box:

Rubber lens cover
Lens cloth
3mm Hex Tool
Lower 1/3 co-witness shim

OPTICAL

Fully Multi-Coated
Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION

Shockproof
Rugged construction withstands recoil and impact.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.

Flip-Up Mechanism
Quick flip up/down mechanism can be oriented to flip-up to the left or right.

Nitrogen Gas Purged
Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.

Mount Height Options

With the included flip mount and riser plate, there are two options for mounting the Micro3X Magnifier:

1. Absolute Co-Witness Height with Flip Mount

Positions the magnifier at 1.46 inches from the base surface to the center of the optic. This puts the dot height at a center (absolute) sight picture when co-witnessed with standard AR-15 iron sights. For this height, do not install the included riser plate.

2. Lower 1/3 Co-Witness Height with Flip Mount and Riser Plate

Positions the magnifier at 1.57 inches from the base surface to the center of the optic. This puts the dot height at a lower 1/3 sight picture when co-witnessed with standard AR-15 iron sights. For this height, install the included riser plate between the Micro3X Magnifier and the Flip Mount

SKU	VORV3XM
Model #	V3XM
Brand	Vortex
Magnification	3x
Field of View	38.2ft @ 100yds
Angular Field of View	7.28°
Length	74mm
Weight	271 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.

The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
