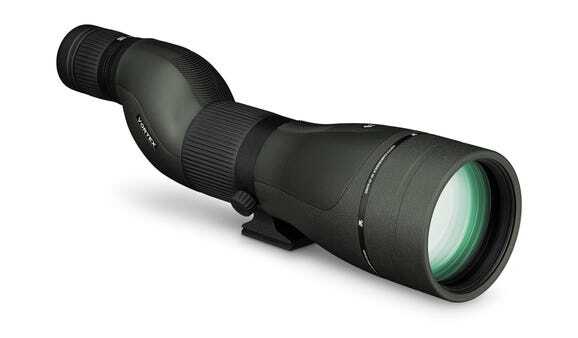

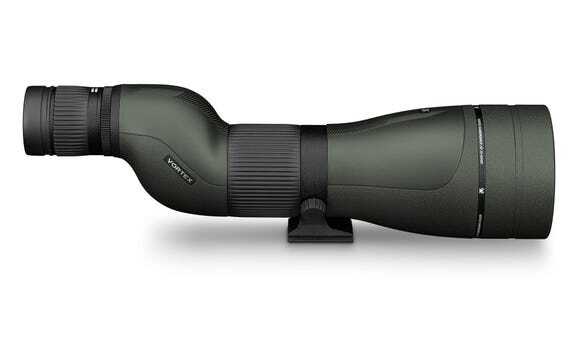

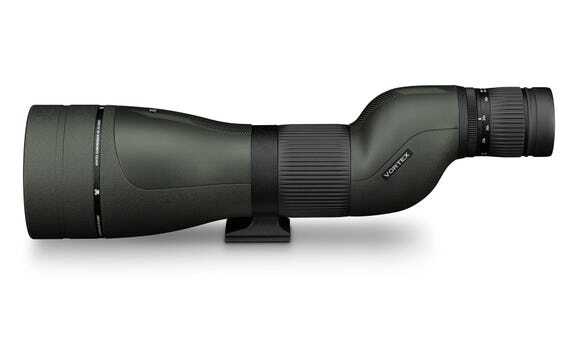

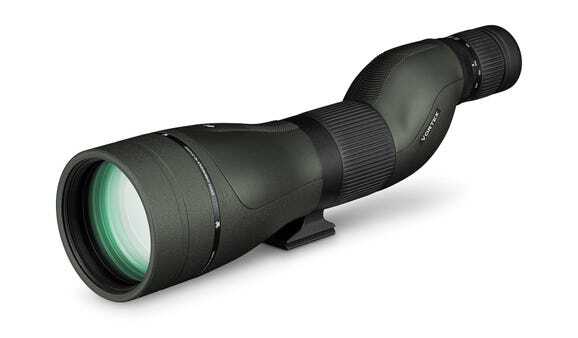

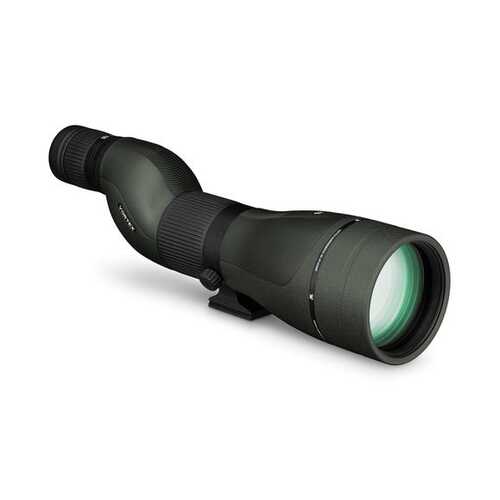

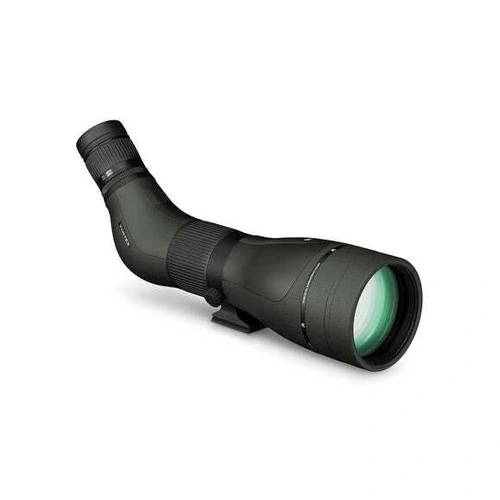

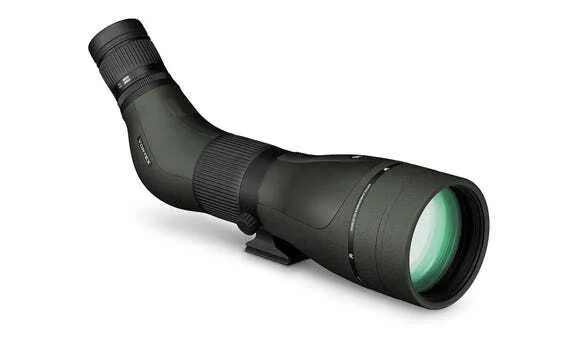

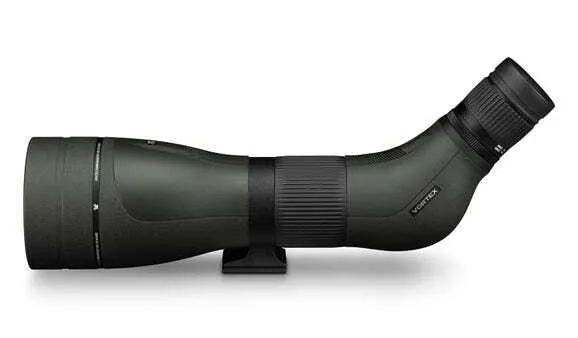

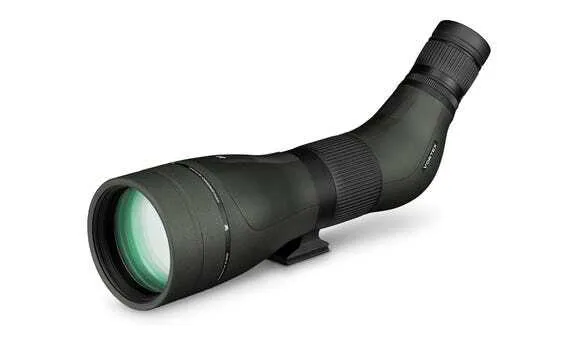

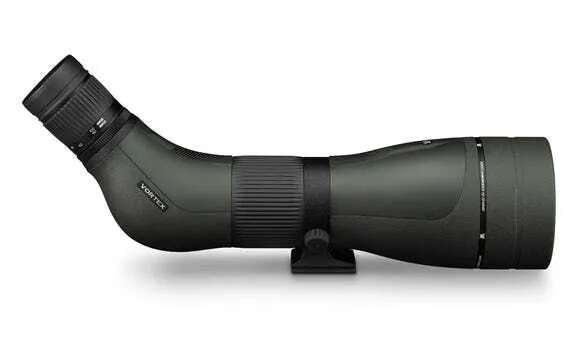

Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in low light - right when you need it most. We've also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

Included in the Box:

  • Neoprene cover
  • Tethered objective lens cap
  • Tethered ocular lens cap
  • Lens cloth

OPTICAL FEATURES

HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.

Fully Multi-Coated
Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.



CONSTRUCTION FEATURES

ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Shockproof
Rugged construction withstands recoil and impact.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Rubber Armour
Provides a secure, non-slip grip, and durable external protection.



CONVENIENCE FEATURES

Adjustable Eyecups
Twist up and down for comfortable viewing with or without eyeglasses.

Helical Focus
Allows for fast and fine adjustments.

Arca-Swiss Compatible
Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.

Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter required.

Rotating Tripod Ring
Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.

Built-in Sunshade
Reduces glare and shields the objective lens from raindrops and snow.

SKU VORDS-85
Model # DS-85
Brand Vortex
Magnification 20-60x
Objective Lens Diameter 85mm
Exit Pupil 4.2 - 1.4mm
Eye Relief 20.3 - 18.3mm
Field of View 108-60ft @ 1000yds
Angular Field of View 2.1-1.1°
Length 400mm
Weight 1738 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
