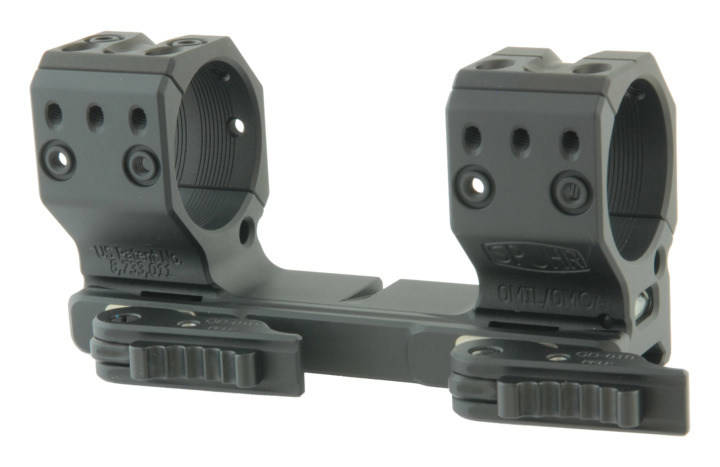

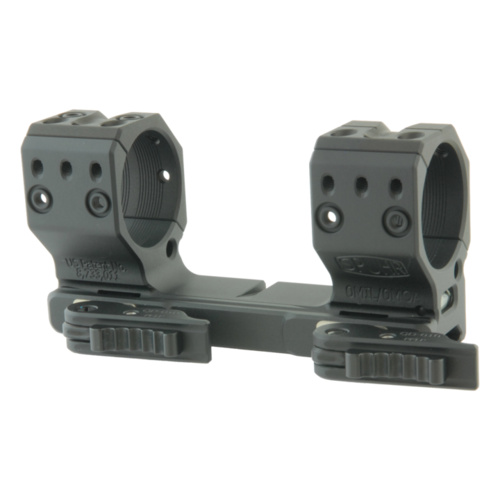

Spuhr ISMS QD 36mm Scope Mount
Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
The ISMS (Ideal Scope Mount System) is an extremely sturdy scope mount, with the possibility to attach multiple optical accessories directly to the mount. Built-in scope level and 45-degree split of the rings provides unobstructed view of your optics knobs. The durable design of the mounts prevents damage to the scope due to flexing during heavy recoil. The rings are grooved on the inside for better grip and the mount base is milled from a sinlge billet of aluminum.
ISMS – IDEAL SCOPE MOUNT SYSTEM
Extremely sturdy scopemount, with possibility to attach multiple optical accessories directly to the mount. Built-in level. 45 degree split of the rings gives better view of the knobs.
Prevents damage on scope due to flexing during heavy recoil or rough environment. The snipers rifle and the spotters carbine can have the same mount, enabling the use of same equipment and accessories. Rings are grooved inside to get a better grip of the scope and enabling gluing of the scope. The mount is milled out of one billet of material instead of being screwed together of small parts.
Patent pending solution for indexing the rotation of the scope, using an included tool/gauge to index the scope correctly to the mount and gun. Important since a incorrectly indexed scope unintentionally will also have a sideways adjusted point of impact and since it will be adjusted sideways when it is adjusted for elevation.
Traditionally lasers have been mounted on the forend of the rifle, a solution with drawbacks. For the same reasons you don’t want your barrel to touch the forend you don´t want the sights to be mounted on the forend. Our mounting system have minimum seven interfaces for accessories and the laser can easily be mounted on the mount, given the advantage of undisturbed laser and the weight more central on the gun instead of forward.
Mounts can be delivered in various tilts. The tilt is clearly engraved on the mount, in both MIL and MOA.
Accessible and readable dials
The rings are cut 45 degrees instead of horizontal as usual, providing several advantages. The screws holding the parts together are not in the way of the knobs, thus the shooter can quickly determine the settings of the knobs. It also gives the shooter a horizontal line that not directly are seen but is existing and helping the shooter not to rotate his gun unintentionally. The rings have index marks on the top and right side, making low knobs more easily readable
Possibility of using various accessories such as angle cosine indicator, back up sights, lasers, illuminators, Night vision mounts etc. With traditional mounts this can be achieved only if there is sufficient space on the middle tube for additional rings, which there rarely is. Ideal Scope Mount System have interface surfaces directly on the mount, making it possible to mount accessories either by Picatinny rails or as direct interfaces for certain accessories as angle cosine indicators and red dot sights. A selection of interfaces for popular accessories are available, and others can be made to specification.
The sight mount have a level included inside the mount.
|Type||Rings & Mounts|
