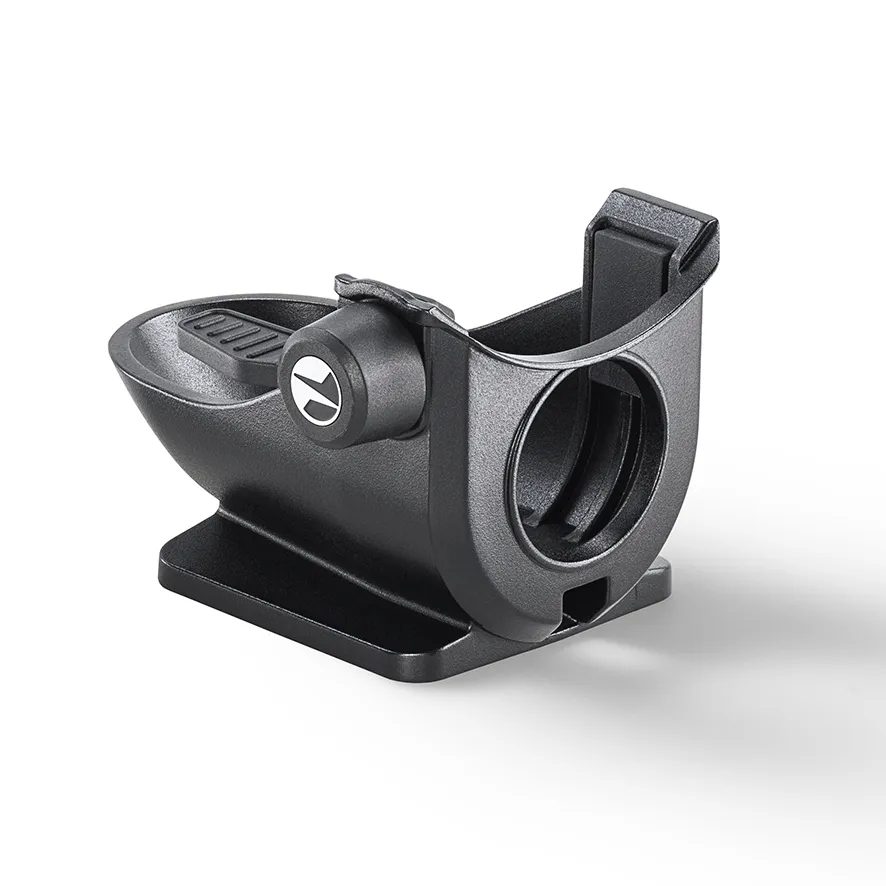

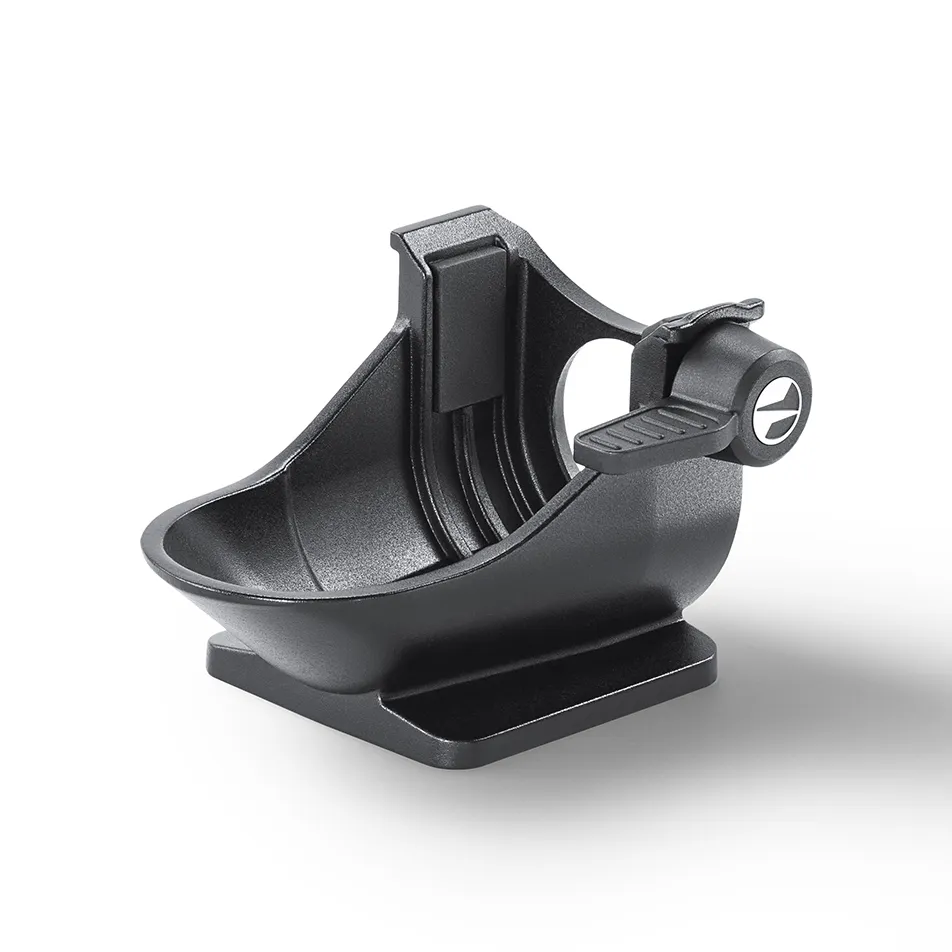

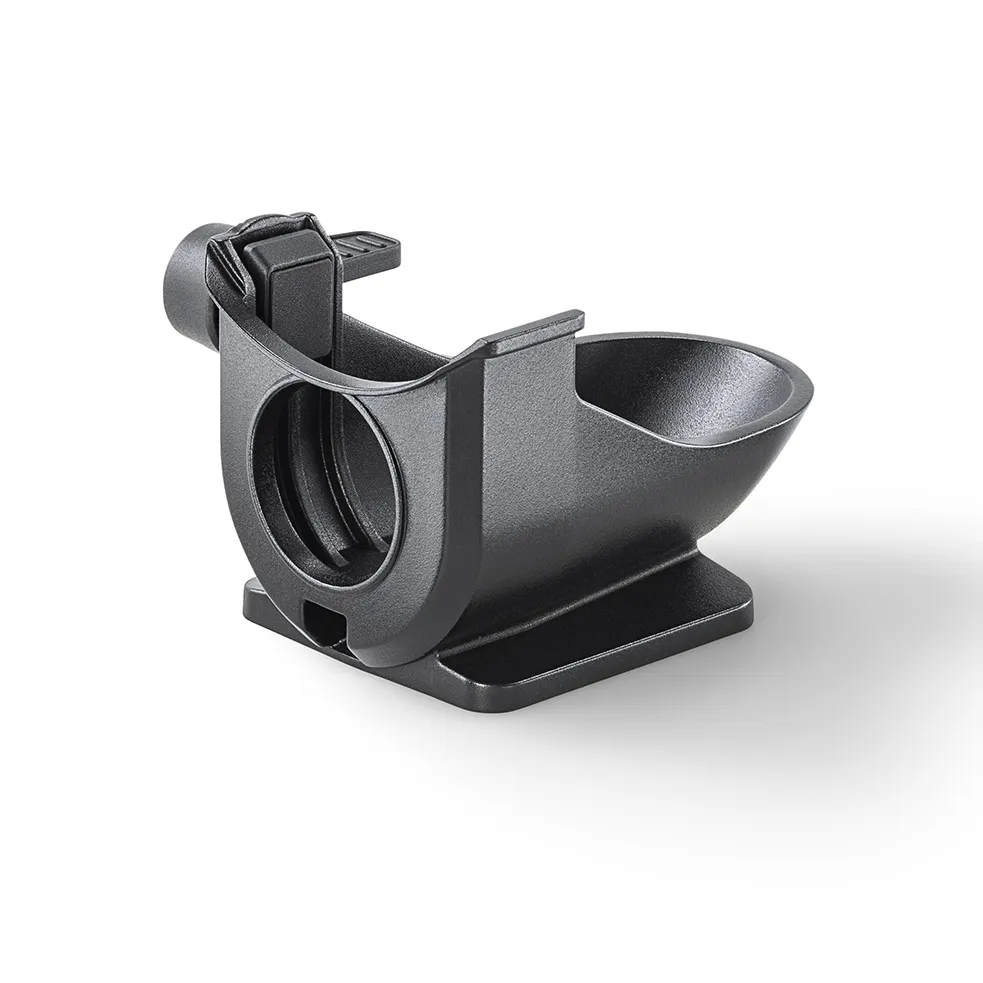

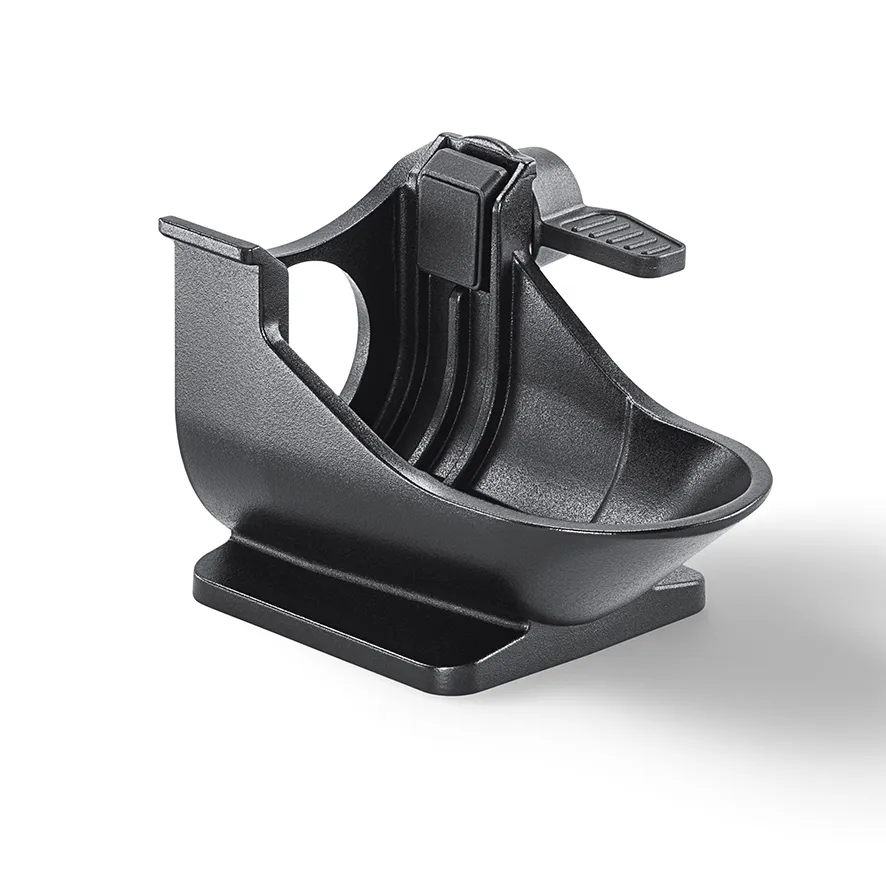

The Pulsar Telos LRF tripod adapter is designed to fit all Pulsar Telos LRF models and helps you attach your monocular to most tripods seamlessly. Plus, the tripod mounting plate allows you to adjust the device horizontally and vertically for increased convenience.



The Pulsar Telos LRF tripod adapter is compatible with all Pulsar Telos LRF models. It can be purchased separately. The adapter is designed for fixing your Pulsar Telos LRF monocular on the tripod and for leveling the device horizontally and vertically using the tripod mounting plate.

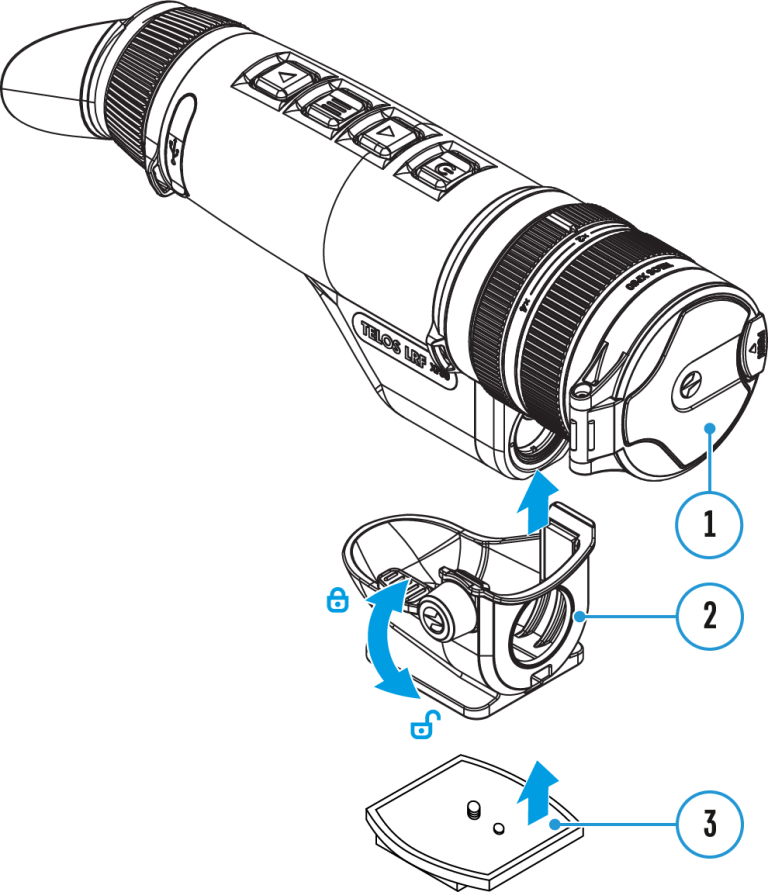

INSTRUCTIONS





  1. Screw the tripod adapter (2) onto the tripod mounting plate until it stops.
  2. Attach the mounting plate (3) to the tripod.
  3. Install the Telos LRF (1) device into the tripod adapter (2) so that the rangefinder lens aligns with the hole on the front of the tripod adapter (2).
  4. Turn the handle of the tripod adapter (2) to position .
  5. Level the Telos LRF (1) horizontally and vertically using the tripod mounting plate (3).
SKU PUL79012
Model # 79012
Brand Pulsar
