This mount fits:
Winchester 70 WSSM

Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing

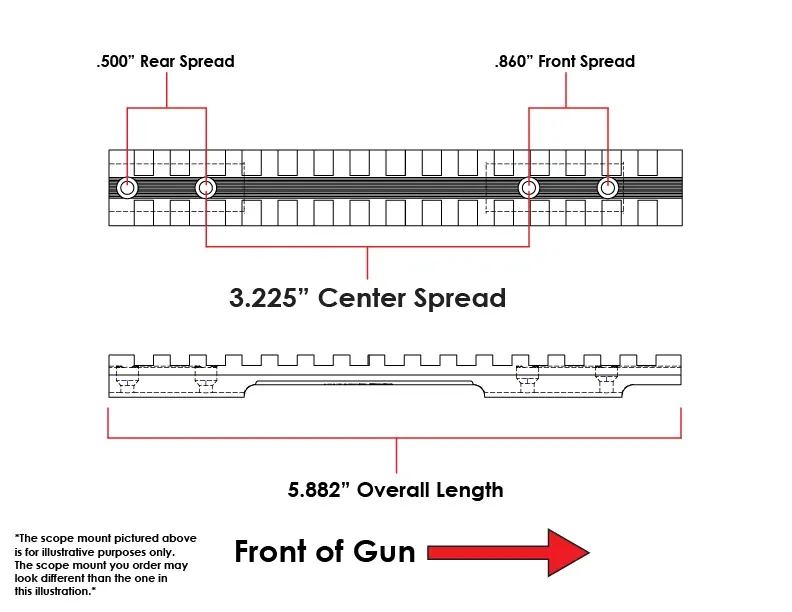

Center Spread: 3.225"
Overall Length: 5.882"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included



The middle spread is the distance between the two middle holes, center to center, on your receiver. The middle spreads on our Winchester model 70 picatinny rail mounts are as follows:

Winchester 70 Short Action: 3.259"
Winchester 70 Long Action: 3.805"
Winchester 70 WSM: 3.514"
Winchester 70 WSSM: 3.225"

This mount comes standard with a bevel on both sides making it ambidextrous.

SKU EGW42300
Model # 42300
Brand EGW
