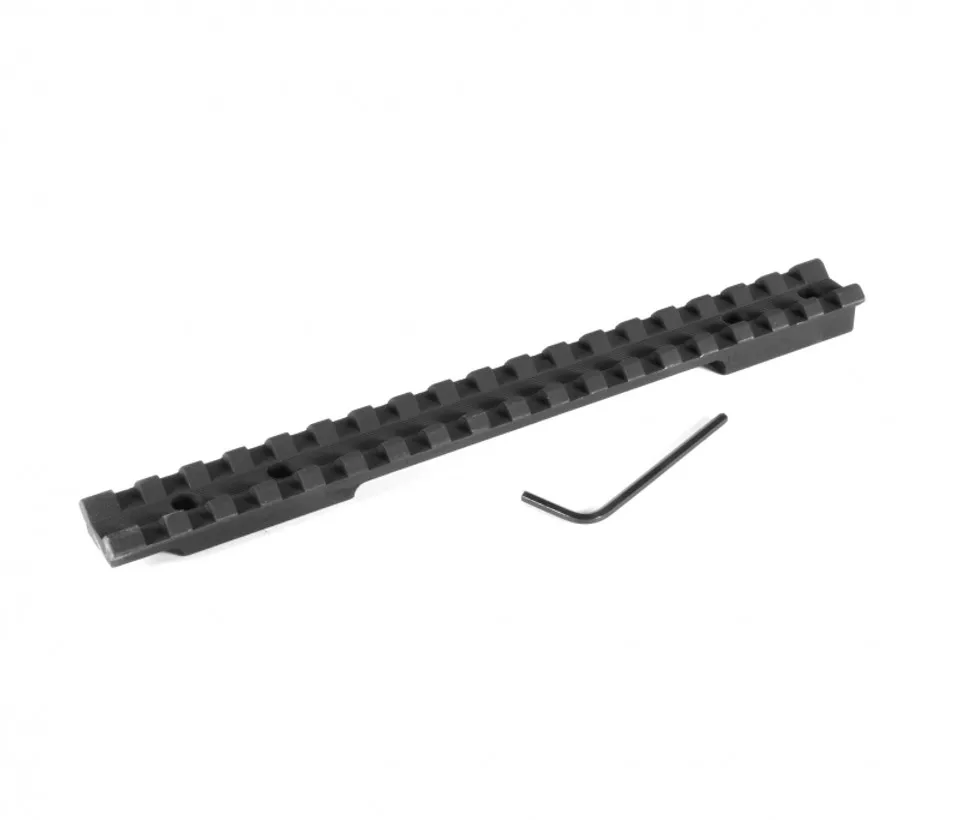

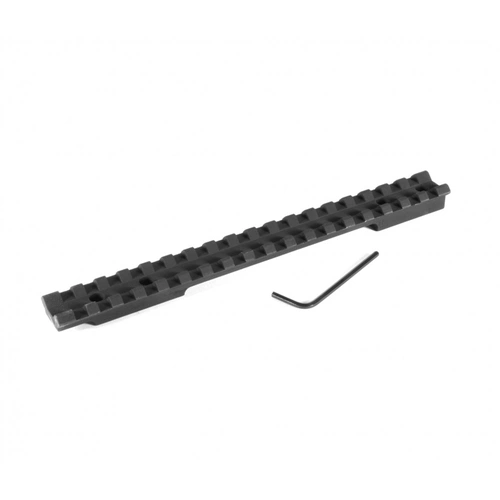

EGW Standard Picatinny rails have cross slots that run the full length of the rail, giving the shooter flexibility when mounting scope rings and other accessories. The cross slots have a valley down the center to save on weight, but are not optimal for mounting quick disconnect rings (throw lever), because most quick disconnect rings use a center recoil lug. The channel in the center reduces the overall mass of the mount, weighing in at 2-3oz on average. Also, in many cases, it will not obstruct usage of factory iron sights. EGW's one piece scope mounts are the obvious choice for hunters and tactical shooters alike.

Our standard scope mounts are perfect for a lightweight mounting option that ties the receiver together for more rigidity over two piece bases.  These mounts are perfect options for almost any calibers, even up to magnums. We recommend using square cross lugs with all picatinny style rings.

Mounting Hardware is Included

• Savage Model 110 Long Action Flat Rear Receiver - Pre-2003 Models
• Savage Model 111 Long Action Flat Rear Receiver - Pre-2003 Models
• Savage Model 112 Long Action Flat Rear Receiver - Pre-2003 Models
• Savage Model 114 Long Action Flat Rear Receiver - Pre-2003 Models
• Savage Model 116 Long Action Flat Rear Receiver - Pre-2003 Models

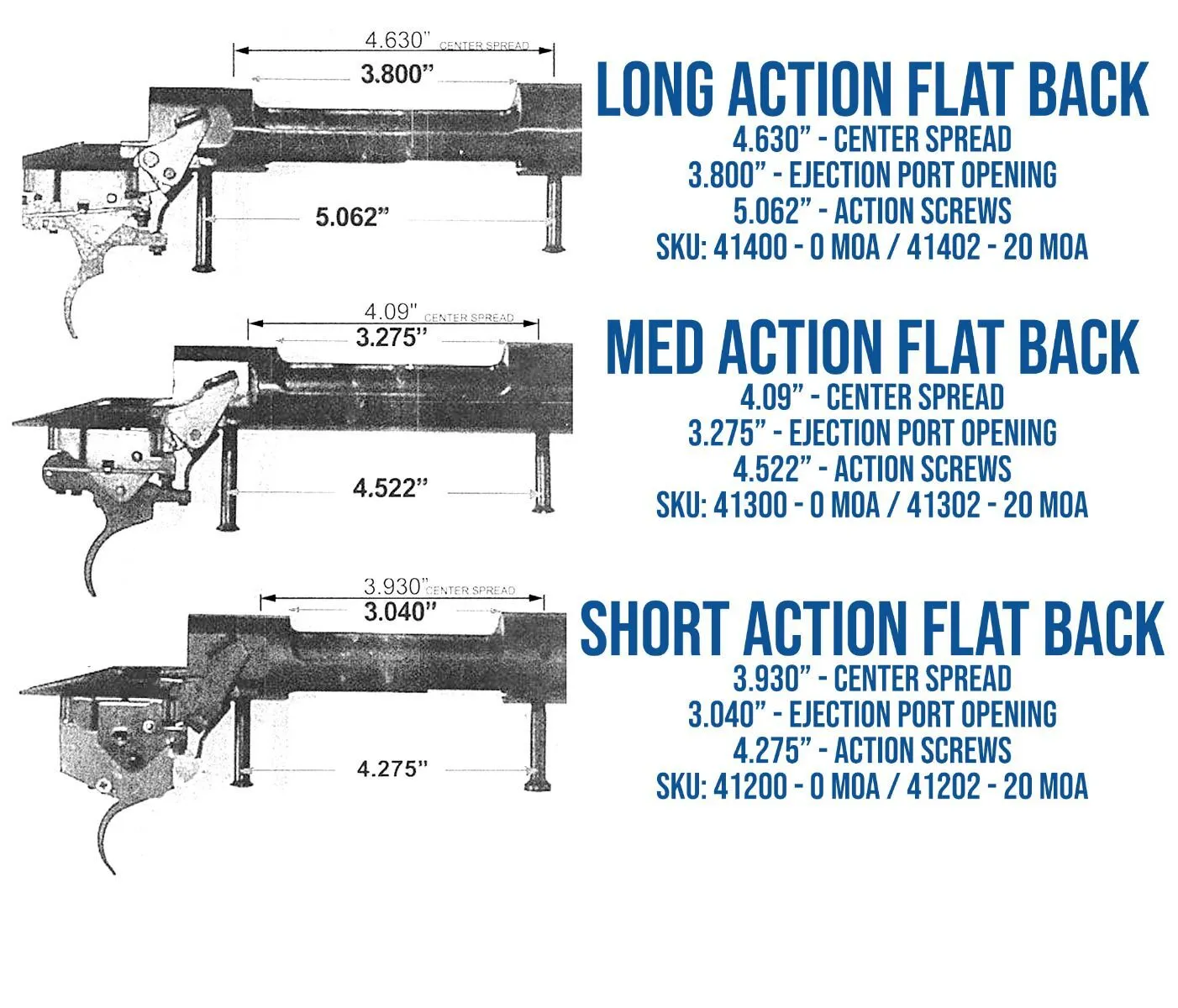

Please check your mounting screw diameter and hole spacing before placing your order to ensure you select the correct mount. Screw diameter and hole spacing information can be found in the images above and description below.

Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 4.63"
Overall Length: 7.458"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws (If the screws measure approximately 3.5 mm (0.138 inches), it indicates that the screw hole size is 6-48. If the screws measure approximately 4.17 mm (0.164 inches), it indicates that the screw hole size is 8-40.)
T-10 Bit Included
