This mount fits:

  • Weatherby Mk V (Mark 5) TRR
    Typicall in calibers:
    .224 WBY Mag
    .240 WBY Mag
    6.5 WBY RPM
    6mm Creedmoor
    .243 Win
    6.5 Creedmoor
    .270 Win
    .280 Ackley Improved

Specifications

Rail Type: One Piece Picatinny
Machined From:
Solid 7075 T6 Aircraft Grade Aluminum
Finish: Matte Black Hardcoat
Center Spread: 4.280"
Overall Length of Mount: 6.670"
Height: .35" (Top of Receiver to Top of Picatinny)
Weight: 2.5 oz
Quick Disconnect Ring Compatible: Yes
Ambidextrous: Yes
Compatible with Picatinny or Weaver scope rings.
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Wrench Included
Torque Specs: 20 in/lbs

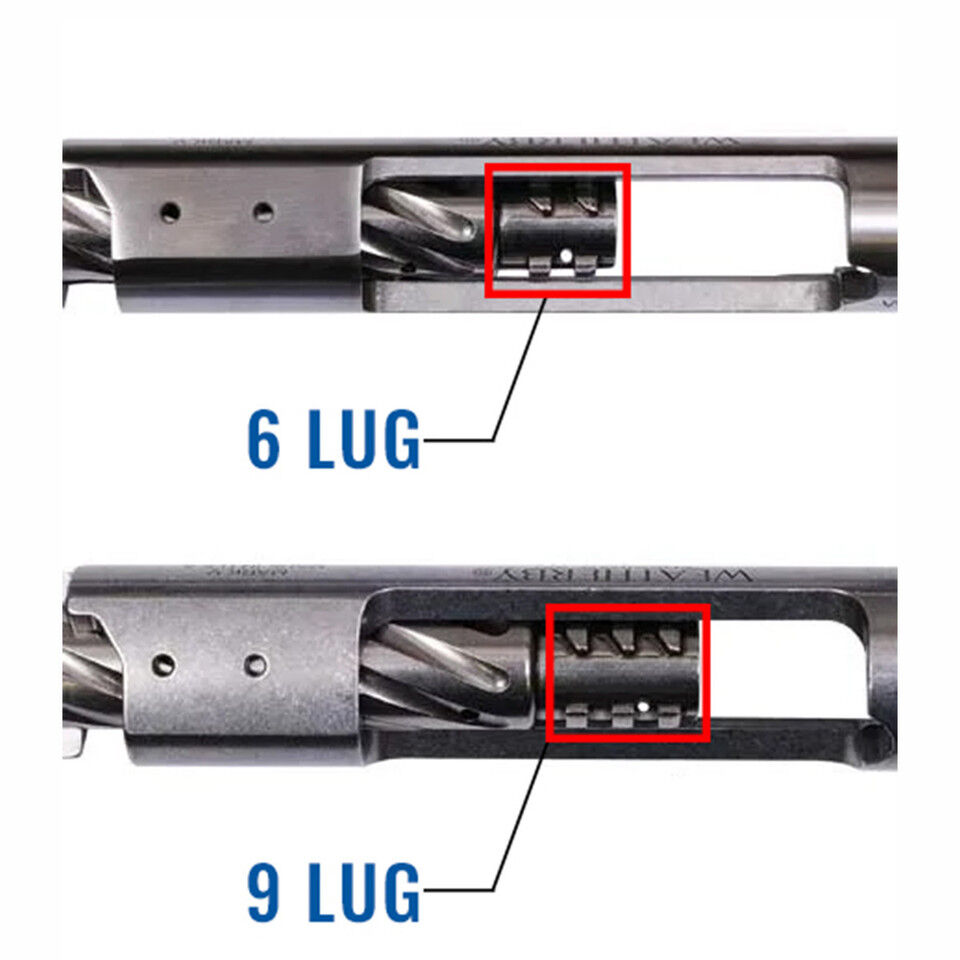

Our Weatherby Mark V TRR (Threat Response Rifle) mount is made specific to the gun and ONLY fits the 6 lug Weatherby MK V TRR.

This mount comes with a bevel on both sides of the ejection port, making it ambidextrous.

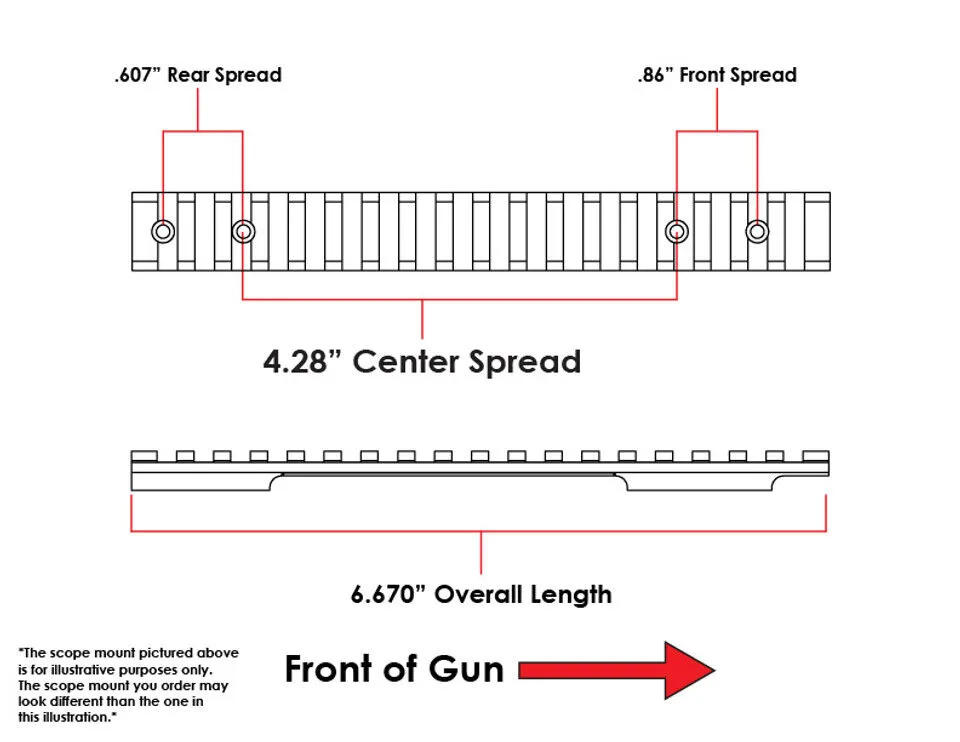

The middle spread is the distance between the two middle holes, center to center, on your receiver. The middle spread on our Weatherby Mark V TRR mount is 4.280". If this spread does not match, you may need our Standard Weatherby Mark V mount. The middle spread for our Standard Mark V mount is 4.485". Please see our separate listing for the Weatherby Mark V if you require the standard mount.

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

This mount is a Picatinny-style base and compatible with Picatinny or Weaver scope rings.



SKU EGW80710
Model # 80710
Brand EGW
