This mount will fit:
Smith & Wesson M&P Full Size
Smith & Wesson M&P 2.0 Full Size
Smith & Wesson M&P 22 Full Size
Smith & Wesson M&P Compact
Smith & Wesson M&P 2.0 Compact
Smith & Wesson SD9VE
Smith & Wesson SD40VE
Smith & Wesson M&P Shield

This mount does not fit:
Smith & Wesson M&P C.O.R.E Series (Already Optics Ready)
Smith & Wesson M&P Shield EZ .380
Smith & Wesson M&P Shield EZ 9mm
Smith & Wesson M&P .22 Compact
Smith & Wesson SW9VE
Smith & Wesson SW40VE

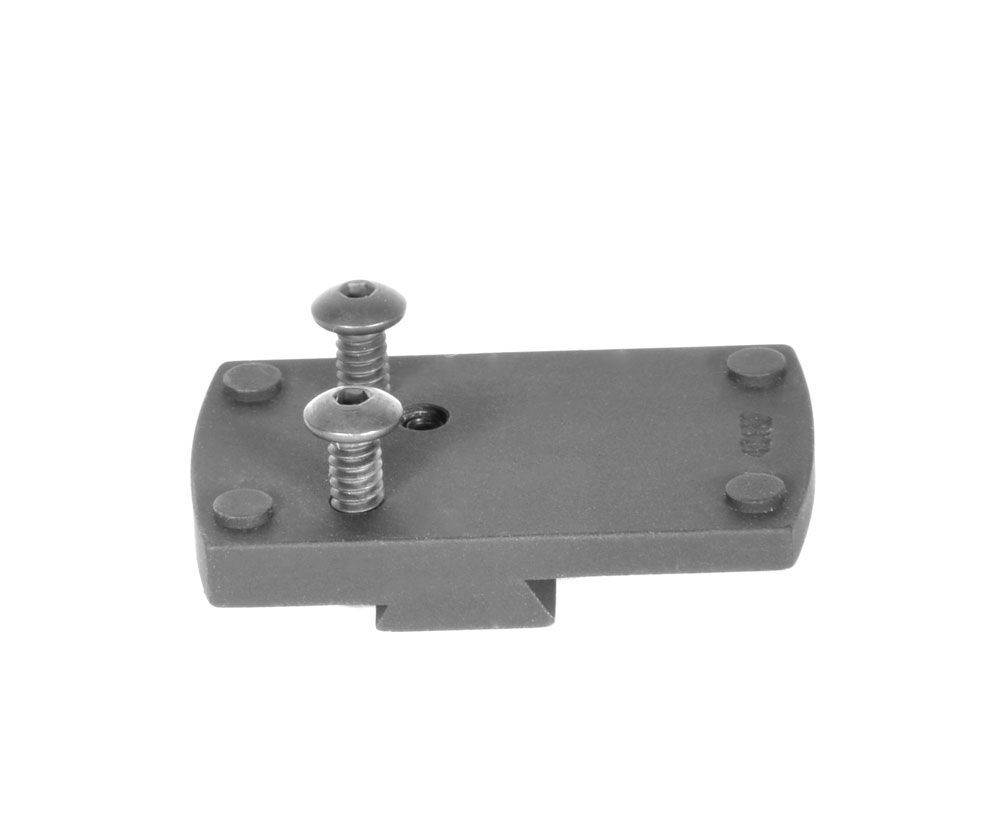

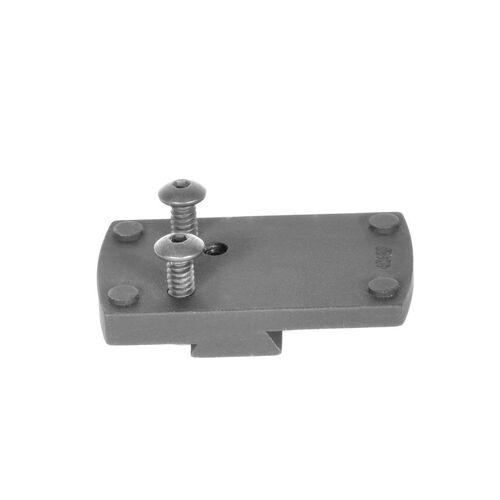

The hole for the set screw on this mount is drilled off-center intentionally. This is to allow the set screw to be tightened against the bottom of the dovetail cut in the slide. This creates an upward force on the dovetail of the mount. If the hole were cut in the center of the dovetail, the set screw would fall through the hole cut in the center of the slide which would render the set screw useless.

Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.



Red Dot Fitment:
Vortex Defender-CCW 3 MOA Red Dot Sight
Vortex Defender-CCW 6 MOA Red Dot Sight
Bushnell RXS-100 Requires 6-32 x 3/8" SHCS
Bushnell RXC-200 Requires 6-32 x 3/8" SHCS
Bushnell RXU-200 Requires 6-32 x 3/8" Flat Head Screws
Bushnell RXS-250 Requires 6-32 x 3/8" SHCS
Crimson Trace CTS-1500
Holosun 407K*
Holosun 507K*
Holosun EPS-GR*
Holosun EPS-RD*
Holosun EPS-Carry-GR*
Holosun EPS-Carry-RD*
Jpoint
Leupold Delta Point Pro
Optima
Redfield Accelerator
Shield RMS
Shield RMSc
Shield SMS
Sig Romeo Zero
(*with Modification, the rear two locater pins on the plate must be filed off in order to allow the 407K/507K/EPS Models to fit.)

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

SKU EGW49427
Model # 49427
Brand EGW
Red Dot Mount Footprint Leupold Deltapoint Pro
