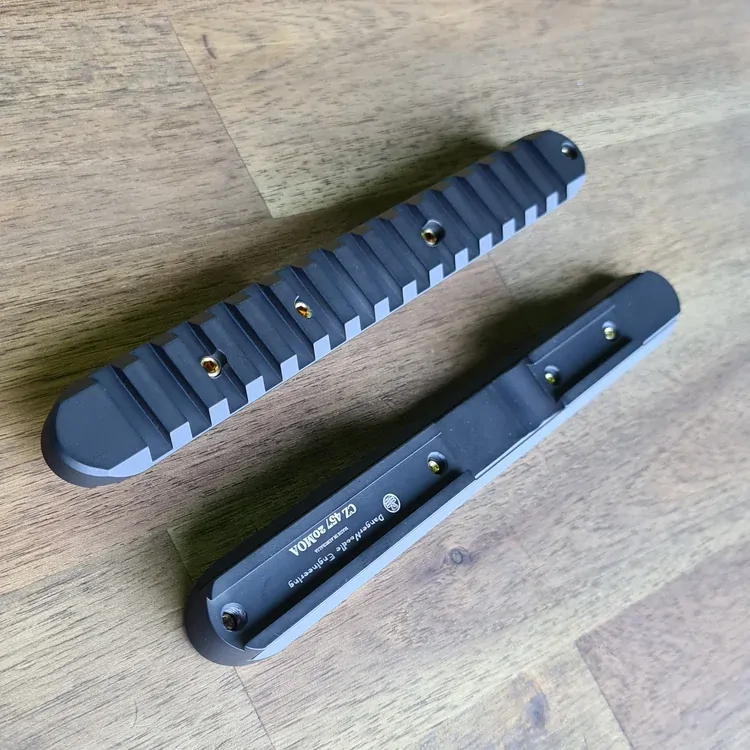

Precision optics mounting for the CZ 457.

Upgrade your CZ 457 with this one-piece Picatinny rail, available in 0, 20, 30, and 40 MOA configurations. Designed for a secure, precise fit, the rail locks in place with four locating detents machined into the receiver, ensuring rock-solid optic mounting.

Key features

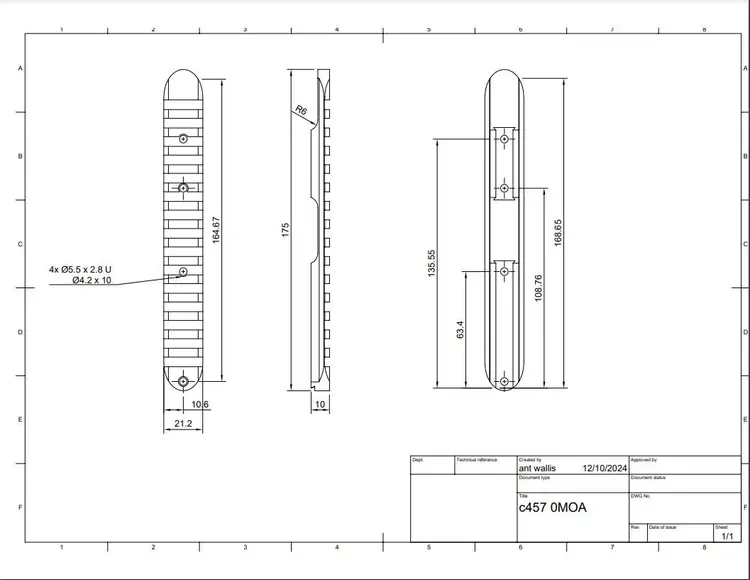

  • 172mm long for full-length optic mounting

  • Locks into place with four precision-machined locating detents

  • Available in 0, 20, 30, and 40 MOA for various shooting applications

Built to last

  • Machined from 6061 aluminium for strength and lightweight performance

  • Finished in anodised black

Includes

  • 4 x M5 brass tipped stainless locking grub screws (older stock brass grub screws)

Tools required for installation

  • M2.5mm Allen key

  • Soft-faced hammeror small hammer with a plastic punch/wooden dowel

  • Grease

  • Loctite 243 thread locker

Installation instructions

  1. Clean and lubricate the rifle’s dovetail.

  2. Remove the brass grub screws from the Picatinny rail.

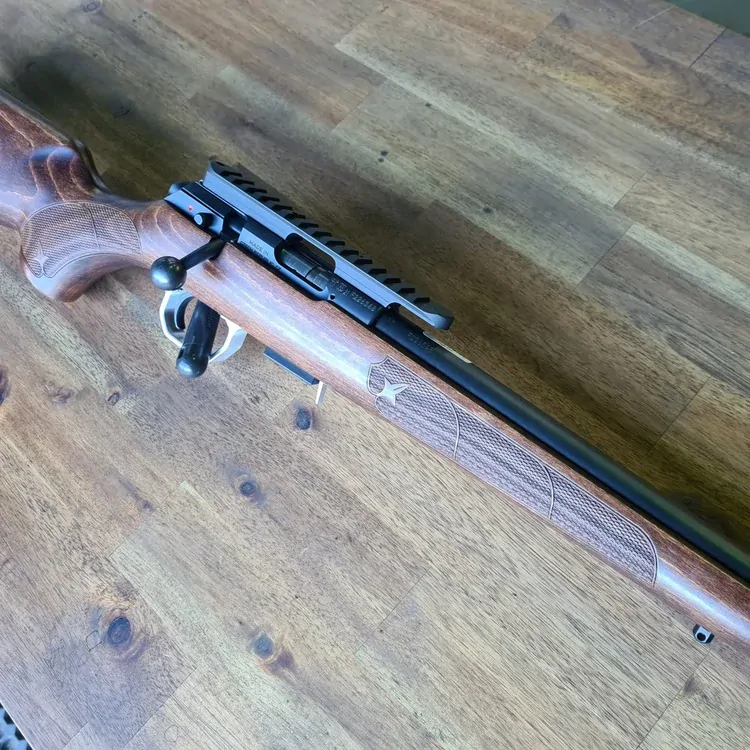

  3. Slide the rail onto the rifle from the rear of the action.

  4. If needed, gently tap the rail forward with a soft-faced mallet or plastic punch/wooden dowel to align the grub screws with the detents.

  5. Apply a small drop of Loctite 243 thread locker to the four grub screws.

  6. Insert and tighten the grub screws until snug—do not overtighten.

Proudly Australian made.



  • HD type are precision machined from 7075 T6 aircraft aluminium
  • Mil-spec Type lll hardcoat anodised surfaces
  • Available in either silver and black
  • All required mounting / fixing screws included
  • Allen key wrench included
  • Machined to fit mil-std-1913
  • Available in 0 to 20 MOA

Cant Amount:0-15 MOA

SKU DNECZ457PIC0
Model # CZ457PIC0
Brand Danger Noodle Engineering
