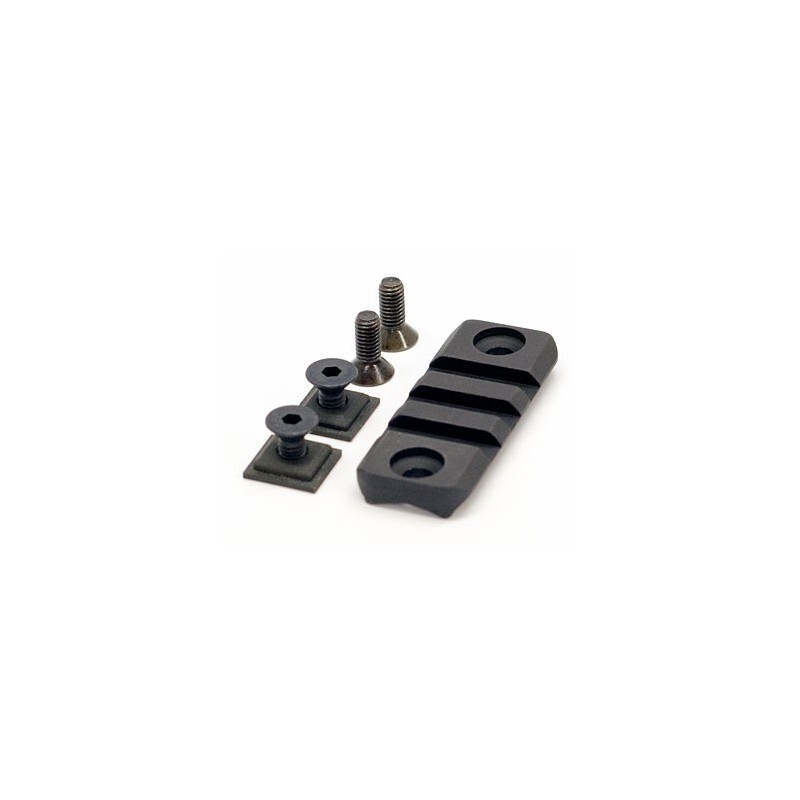

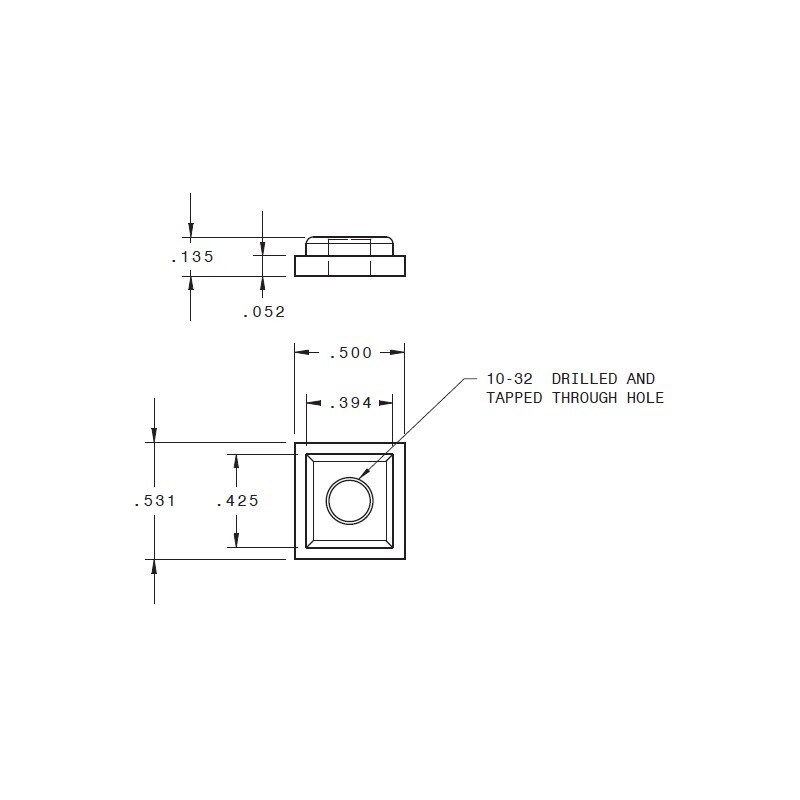

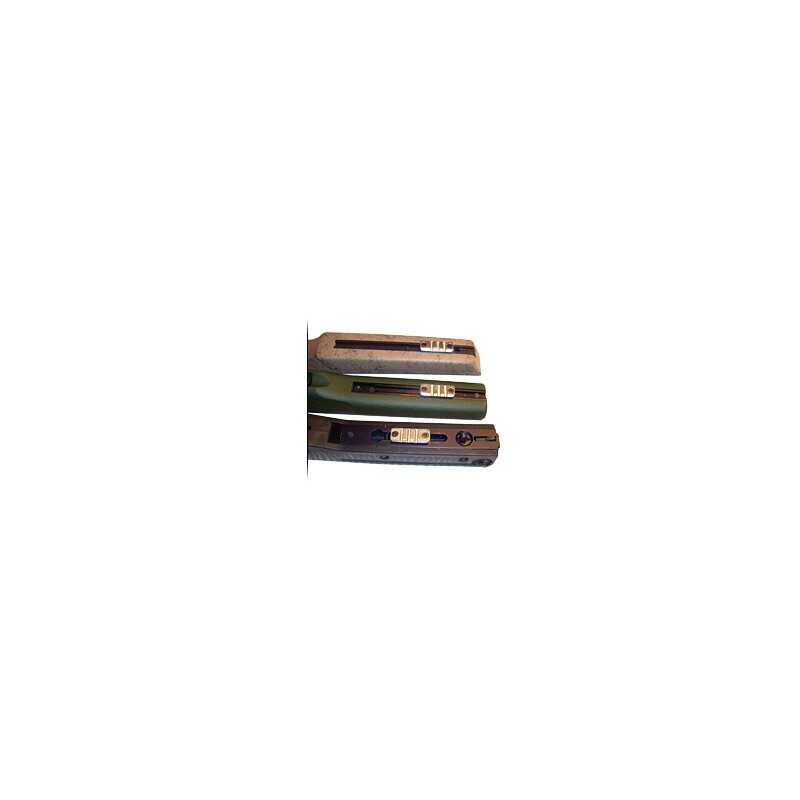

The BT28 AFAR Rail Kit will mount into accessory rails and provide a low profile 1913 Picitinny rail for attaching the Atlas Bipods or other accessories. This is a great option for shooters that have accessory rails and want to use their rail mounted Atlas on several rifles. The uniquely designed rectangle nuts (BT28-N) fit both Freeland and Anschutz style rails by rotating them 90¡. Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish with 4041 Alloy Steel fasteners. Available in black only.

NOTICE: B&T Industries L.L.C. strongly recommends a competent Gunsmith install the BT29 Sako TRG Rail Kit. We will not be responsible for any property damage resulting from the use or installation of their products. INSTRUCTIONS: Remove the Butt Plate Base and Butt Plate Fastening Rail exposing the lower .50 ID frame tube. Remove any obstructions from this tube. Insert the Bar Nut into the frame tube. Using the long Guide Screw, locate the Bar Nut hole furthest away from the Guide Screw under the stock's factory hole. Insert 10-32x3/4 screw through the hole in the widest portion of the Rail threading into the Bar Nut. Confirming the Rail is in-line with the stock, mark the location for the second hole. Remove the Rail and Bar Nut. Drill a 13/64 (.203) DIA. hole. Re-install the Bar Nut, Rail, Cushion and fasteners.

Model # BT28
Brand B&T Industries
Length 52mm
Weight 25 grams
