PARD NV007SP24 4K LRF (850nm) Digital Night Vision Clip-On Attachment
The 4K CMOS sensor, boasting higher resolution and an expanded array, sharpens image precision for optimal target recognition, pushing hunting to new frontiers with technological innovation.
4K Sensor
Unmatched Clarity
for Precision Targeting
The 4K CMOS sensor, boasting higher resolution and an expanded array, sharpens image precision for optimal target recognition, pushing hunting to new frontiers with technological innovation.

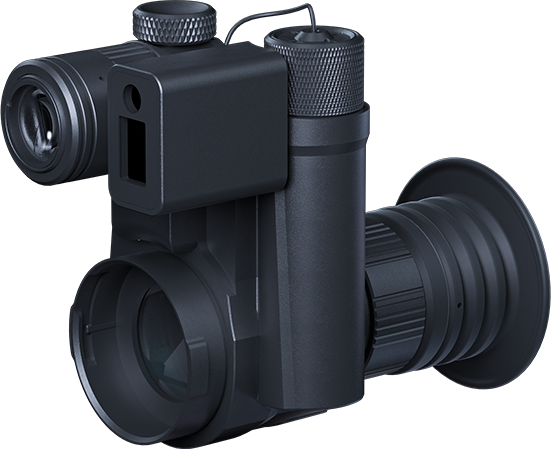

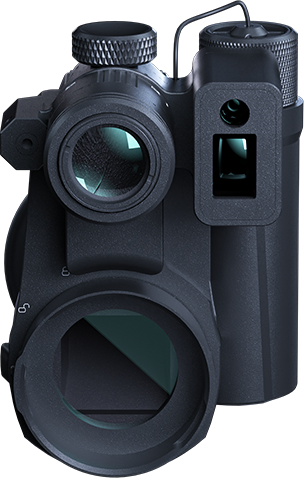

Detachable IR Module
for Custom Use
With its detachable IR module, users can easily adjust the setup to fit mission needs, improving versatility and minimizing weight when certain functions are not required.
.png)
1600×1200 Resolution
for Enhanced Clarity
The upgrade to a 1600×1200 display resolution provides more pixels for sharper, more detailed images, further enhancing the immersive experience.

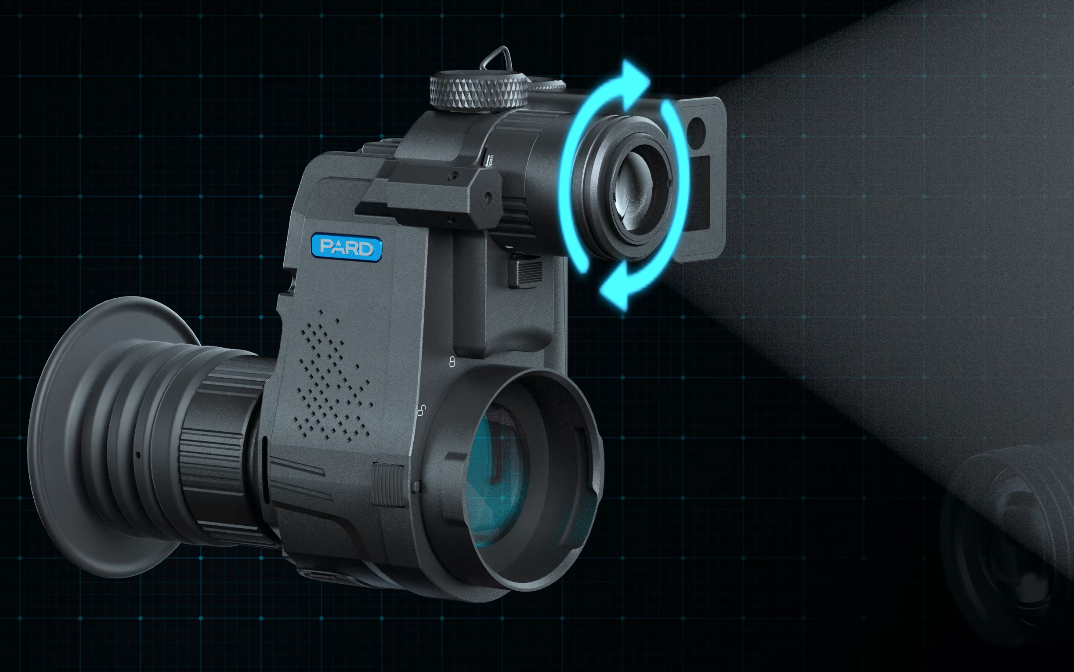

Adjustable Focus IR Light,
350m Range
The IR light reaches up to 350 meters, with an extendable head that enhances focus. Three brightness levels and adjustable direction offer versatile, precise lighting tailored to any user's needs.

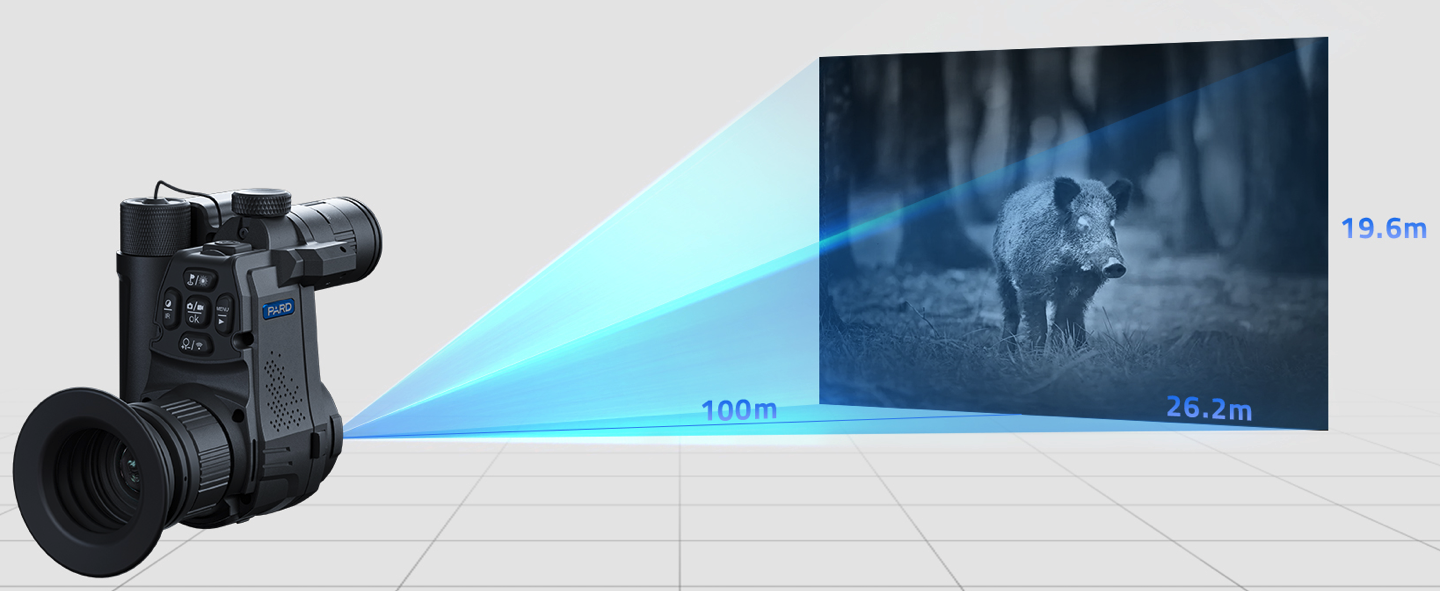

20mm Lens: Focus and Clarity
The 20mm lens offers a balanced field of view, effectively emphasizing the target, reducing background distractions, and improving the clarity of distant objects, ensuring more accurate recognition and capture.

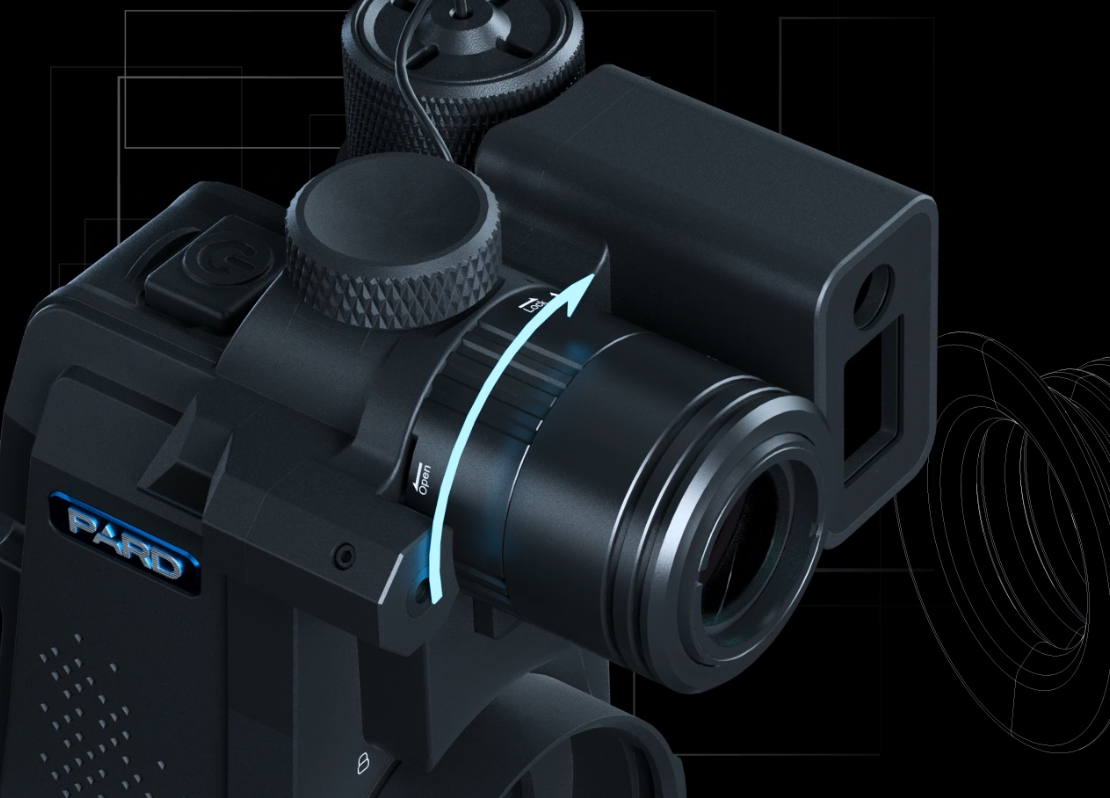

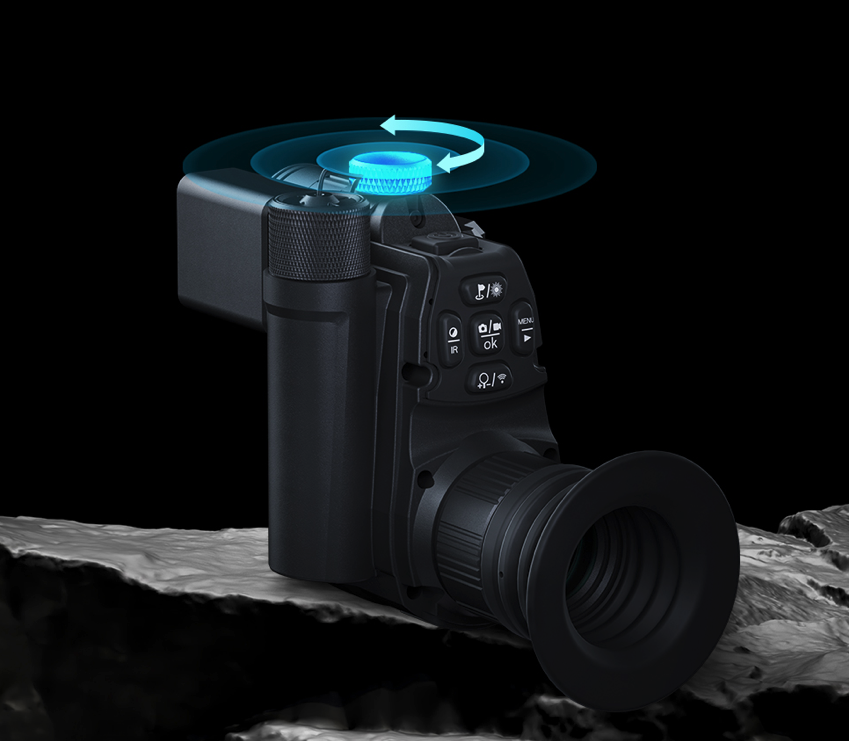

Comfortable, Precise Focus
with Top Design
The enlarged focus ring enables precise adjustments, with its textured surface increasing friction for a more comfortable grip. Positioned at the top, the design is ideal for both left- and right-handed users, minimizing accidental touches and ensuring steady performance.

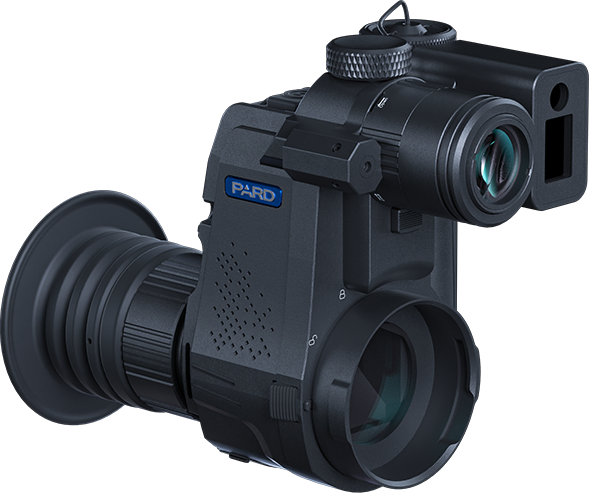

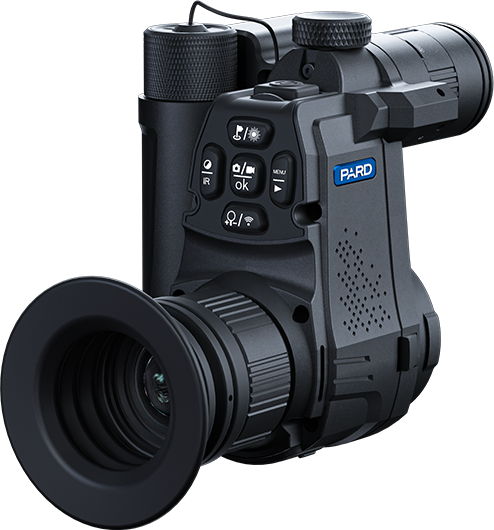

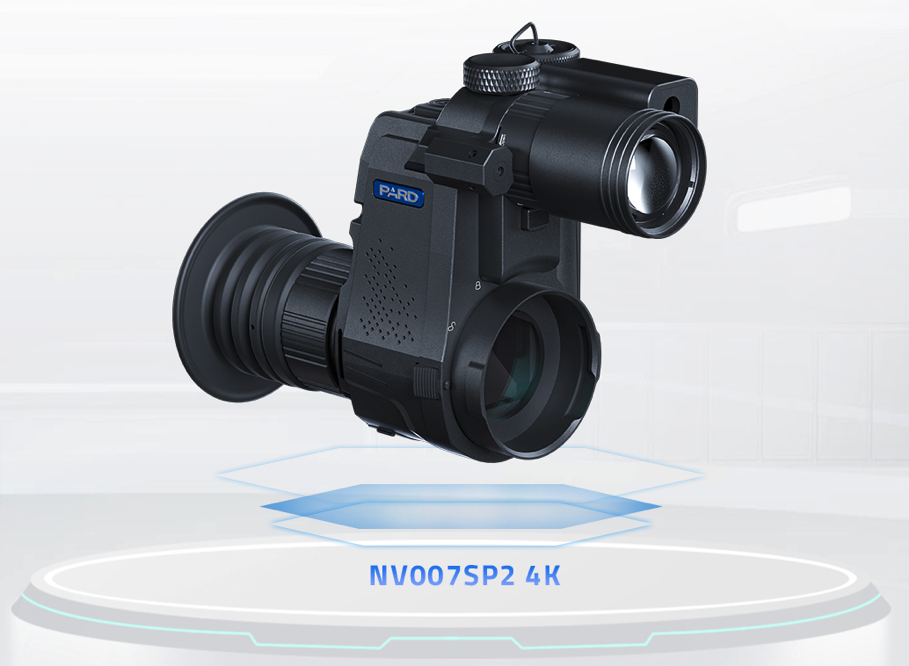

PARD 007: Compact & Efficient
Building on the iconic compact design of the PARD 007 series, this lightweight and portable model enhances both flexibility and efficiency during hunting.

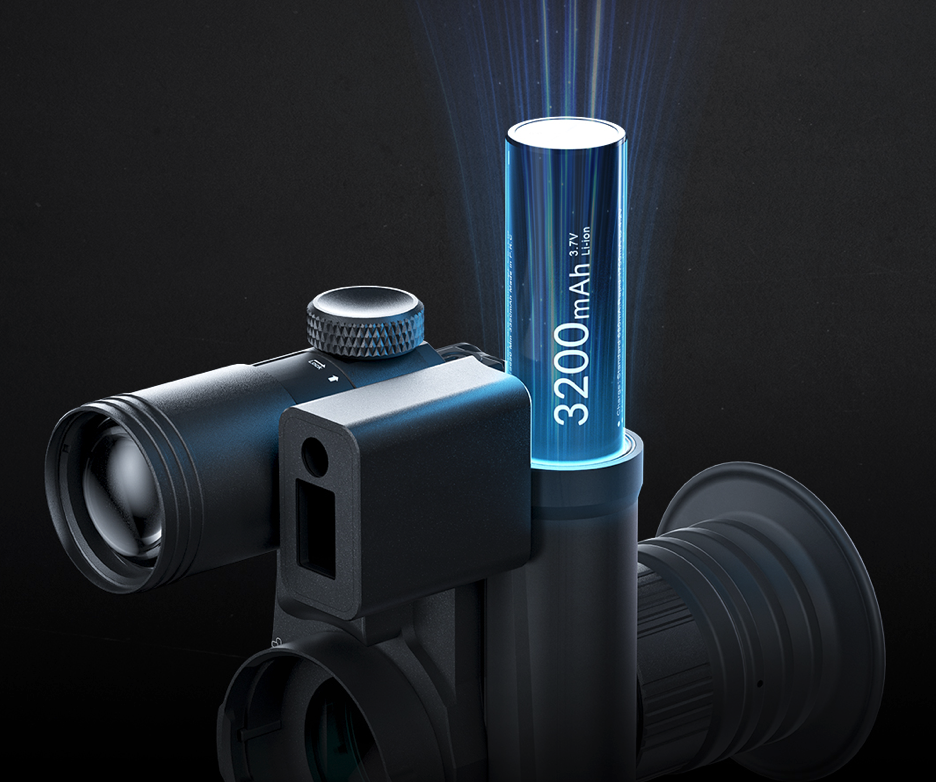

Removable & Rechargeable
18650 Battery
Equipped with a removable 18650 battery that can be recharged 500 times, allowing quick batteries replacement during the hunting journey.
Key Features;
- 2560*1440 (2k) optical sensor
- 22.5mm objective lens, 4.0x base magnification
- 850nm / 940 nm
- Optional IR illuminator (5 watt)
- Mounts to rear of your day scope with adapter (45mm included, suits any scope eye piece smaller than 45mm)
- 48mm Adapter available but must be purchased seperately
- 1x 18650 removeable battery (+8hrs operating time)
- Micro SD storage for media recording,
- WiFi connectivity
| Self-activated recording | Yes | |
| Auto recording | Yes | |
| Loop recording | Yes | |
| Time stamp | Yes | |
| Record audio | Yes | |
PARD NV Product Specifications;
|
MODEL |
NV007V |
NV007S |
NV007SP |
NV008S (LRF) |
|
Optical Sensor |
1920 x 1080 |
1920 x 1080 |
2560*1440 |
1920 x 1080 |
|
Objective lens |
16mm |
16mm |
22.5mm |
50mm (70mm) |
|
Magnification, x |
4x - 14x | 4x - 14x | 4x - 14x |
4.5x - 9x (6.5x - 13x) |
|
Field of view (HxV), degrees / m @ 100mtrs |
- | - | - | - |
|
Detection range, m |
300 (IR range) |
300 (IR range) | 350 (IR range) |
350 (IR range) |
|
Sensor |
||||
|
Type |
- |
- | CMOS |
- |
|
Resolution, pixels |
1920 x 1080 | 1920 x 1080 | 2560*1440 |
1920 x 1080 |
|
Frame rate, Hz |
- | - | 30 | - |
|
Optics |
|
|
|
|
|
Objective lens |
16mm | 16mm | 22.5mm | 50mm (70mm) |
|
Magnification, x |
4x - 14x | 4x - 14x | 4x - 14x |
4.5x - 9x (6.5x - 13x) |
|
Field of view (HxV), degrees / m @ 100mtrs |
- | - | N/A | - |
|
IR Illuminator |
||||
|
IR Wave length |
850nm or 940nm | 850nm or 940nm | 850nm or 940nm | 850nnm |
|
IR Power, w |
5 | 5 | 5 | 5 |
|
IR Detecting distance, m |
300 | 300 | 350 | 350 |
|
Display |
|
|
||
|
Resolution, pixels |
1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED |
|
Colour Palettes |
Day / Night mode | Day / Night mode | Day / Night mode | Day / Night mode |
|
Range Performance |
|
|
||
|
Detection range (person), m |
300 (IR range) |
300 (IR range) | 350 (IR range) |
350 (IR range) |
|
Laser Rangefinder |
|
(LRF optional) |
||
|
Safety class for laser equipment according to IEC 60825-1:2014 |
- |
- |
- |
- |
|
Wavelength, nm |
- |
- |
- |
- |
|
Max. measuring range, m |
- |
- |
1100 |
1200 |
|
Measurement accuracy, m |
- |
- |
1 |
1 |
|
Min. Measuring Range, m |
- |
- |
3.5 |
3.5 |
|
Reticle |
|
|
|
|
|
Picture in Picture |
- |
- |
N/A |
2x upto 18x (upto 26x) |
|
Number of preloaded reticles |
- |
- |
N/A |
|
|
Number of Zero Profiles available |
- |
- |
N/A |
|
|
Wireless Connection |
WiFi |
WiFi |
WiFi |
WiFi |
|
Recording |
Photo & Video |
Photo & Video |
Photo & Video |
Photo & Video |
|
Environmental Characteristics |
|
|
||
|
Degree of protection, IP code (IEC60529) |
IP67 | IP67 | IP67 | IP67 |
|
Power Supply |
|
|||
|
Output voltage, V |
3.7 | 3.7 | 3.7 | 3.7 |
|
Battery type |
18650 Li-ion | 18650 Li-ion | 18650 Li-ion | 18650 Li-ion |
|
Operating time on battery pack (at t=22°C), h * |
>6 | >8 | >8 | >6 |
|
External power supply, V |
- | - | - | - |
|
Connections and Compatibilities |
|
|
||
|
Max. recoil power on firearm |
6000 joules | 6000 joules | 6000 joules | 6000 joules |
|
Mounting brackets on firearm |
45/48mm scope adapter | 45/48mm scope adapter | 45/48mm scope adapter | picatinny rail mount |
|
Weight & Size |
|
|
||
|
Dimensions, mm |
106 x 97 x 47 | 102 x 75 x 118 | 102 x 75 x 118 | 182 x 71 x 57 |
|
Weight, kg |
0.25 |
0.27 | 0.27 |
0.44 (0.45) |
|
Warranty |
2 years |
2 years | 2 years |
2 years |
|
Trade Data |
|
|
||
|
SKU (Model #) |
NV007V | NV007S | NV007SP | NV008S (LRF) |
| Model | NV007SP/NV007SP-LRF | |
| Classification | Night Vision(clip-on) | |
| Sensor | ||
| Resolution(px) | 2560*1440 | |
| Sensitivity(Lux) | 0.001 | |
| Frame rate(fps) | 30 | |
| Optics | ||
| Objective lens(mm) | 22.5 | |
| Optical magnification(x) | 4 | |
| Digital zoom(x) | 1-3.5 | |
| Continuous digital zoom(x) | 4-14 | |
| Field of view (H×V) | Horizontal | 22° |
| Vertical | 12° | |
| Diagonal | 25° | |
| Eye relief(mm) | 25 | |
| Diopter adjustment | ±5D | |
| Focus range | 3cm-∞ | |
| Adaptor diameter(mm) | 45/48 | |
| IR Illuminator | ||
| IR type | VCSEL | |
| IR power(w) | 5 | |
| IR illuminating level | 3 Levels | |
| IR distance | 350m/383yds | |
| IR wavelength(nm) | 850/940 | |
| Display | ||
| Type | OLED | |
| Resolution(px) | 1024*768 | |
| Color mode | Color/Black&white | |
| Photo / Video | ||
| Photo resolution(px) | 2592*1944 | |
| Photo format | JPG | |
| Video resolution(px) | 1920*1080 | |
| Video format | MP4 | |
| Storage | TF card(128GB MAX) | |
| Main Function | ||
| LRF detection range | 1097m/1200yards | |
| Range unit selection | meter/yard | |
| Red dot | Optional | |
| Self-activated recording | Yes | |
| Auto recording | Yes | |
| Loop recording | Yes | |
| Time stamp | Yes | |
| Record audio | Yes | |
| Beep sound | Yes | |
| Exposure | Yes | |
| Interfaces | ||
| USB Type-C | Yes | |
| HDMI output | Yes | |
| Connections | ||
| WiFi | Yes | |
| Supported Apps | PardVision | |
| Power Supply | ||
| Battery type | 18650 Li-ion Battery | |
| Output voltage(V) | 3.7 | |
| Operating time(h,max) | 8 | |
| External power supply(V) | USB Type-C | |
| Environmental Characteristic | ||
| Degree of protection | IP67 | |
| Operating temp | -25℃ ~40℃/-13℉~104℉ | |
| Recoil power(J) | 6000 | |
| Material | ||
| Housing | AL6061 & Plastic | |
| Objective lens | Glass | |
| Measurement | ||
| Product dimension(L x W x H, mm) | 105*120*71/105*134*71 | |
| N.W/pcs(with/without battery, g) | 335/290 | 355/310 | |
| SKU | PARNV007SP24-20-LRF |
| Model # | NV007SP24-20-LRF |
| Brand | Pard |
| Eye relief | 35mm |
| Angular Field of View | 14.9 x 11.2° |
| NV Resolution | 3840×2160 |
| Display Type | OLED |
| Display Size | 1600x1200 |
| Battery | 18650 |
| Length | 149mm |
| Weight | 397 grams |
