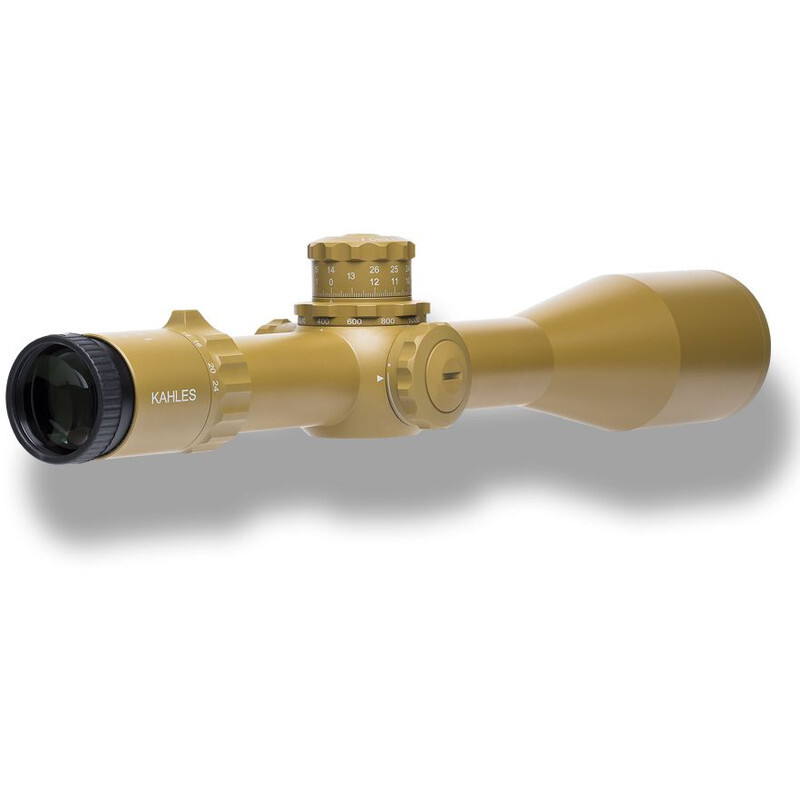

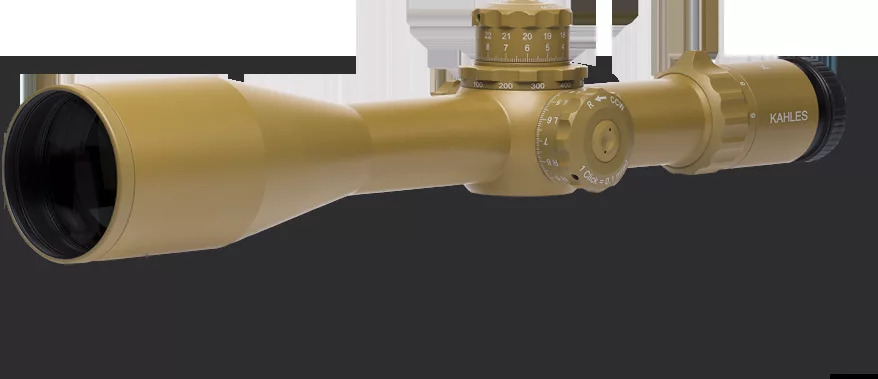

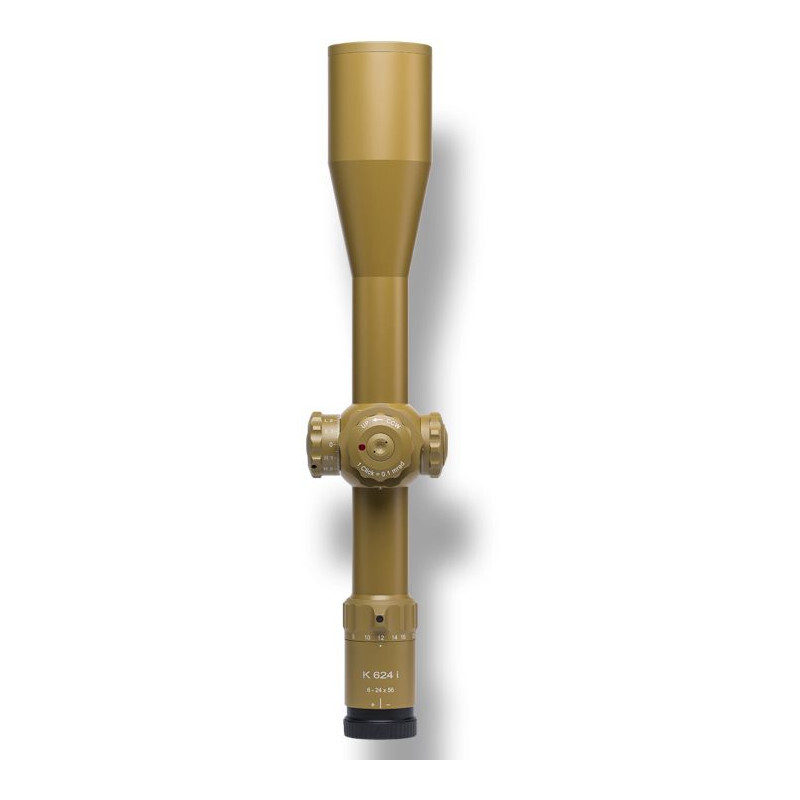

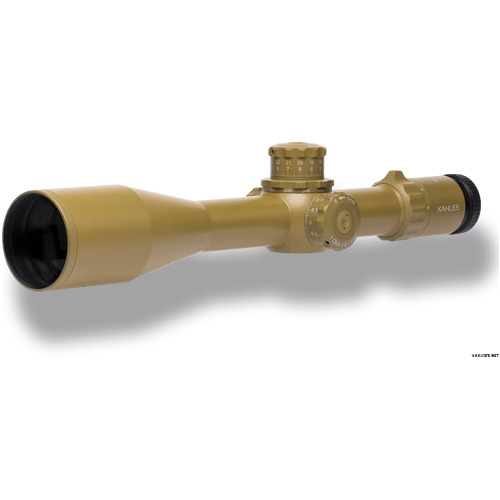

Kahles K624i 6-24x56 RAL 8000 CCW MSR

34mm | FFP

Choose your Scope Rings

Qualifies for Free Freight

Professional choice for long distances

Have a Question

The K624i sets standards in handling and ergonomics thanks to the unique arrangement of its operating elements. It offers outstanding optical performance, mechanical perfection and a unique range of well proven reticles for professionals and competition shooters.

Wide field of view, exceptionally comfortable eyebox and high contrast image
Precise, clearly defined click mechanism and reliable repeat accuracy
Optional left or right side windage
Parallax wheel integrated into the elevation turret (patented) (50 m to ∞)
Precise illuminated reticles in 1 st focal plane

1st focal plane

When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. The bar spacing and the coverage range remain the same.

Main tube 34 mm

The main tube has a diameter of 34 mm which is the standard for tactical scopes.

Adjustment direction CW or CCW

Depending on the model, elevation and windage are working clockwise (= cw) or counter-clockwise (= ccw).

Windage left or right

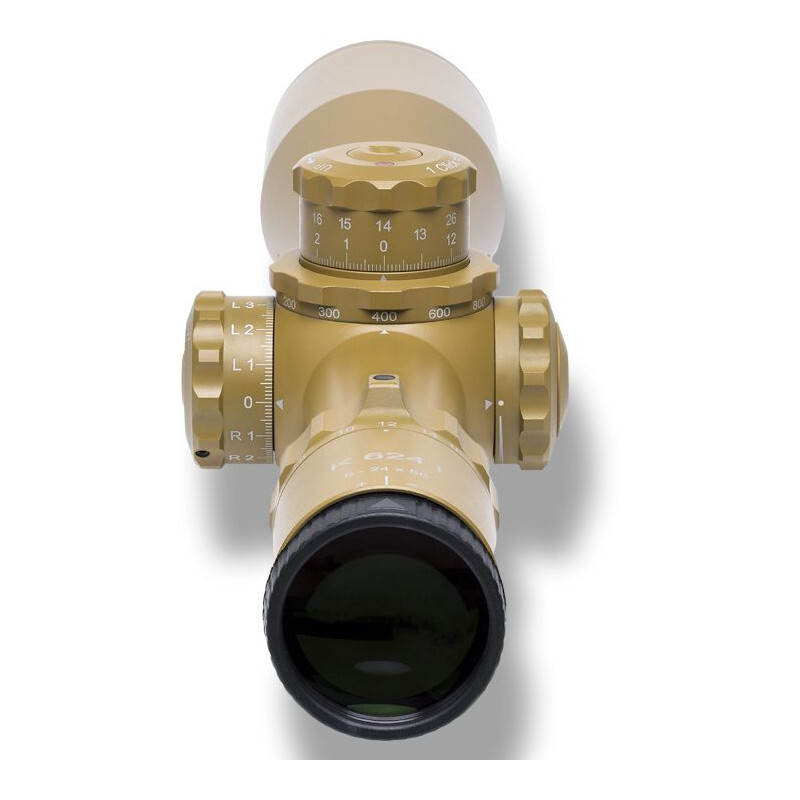

Superior handling and ergonomics thanks to the unique arrangement of operating elements

Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position, all relevant information is always in the visual field. All riflescopes of the K-series have the parallax wheel integrated into the elevation turret.

The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable.

Ergonomically the windage is perfectly placed on the left side for right-handed shooters and on the right side for left-hand shooters.

Zero Stop

The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator and can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions) and to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.

MIL

Clicks in MRAD. 0.1 MRAD correspond to a shift of the point of impact of 1 cm/100 m.

SKU	KAH10629
Brand	Kahles
Product Line	K624i
Magnification	6-24x
Objective Lens Diameter	56mm
Tube Size	34mm
Focal Plane	FFP

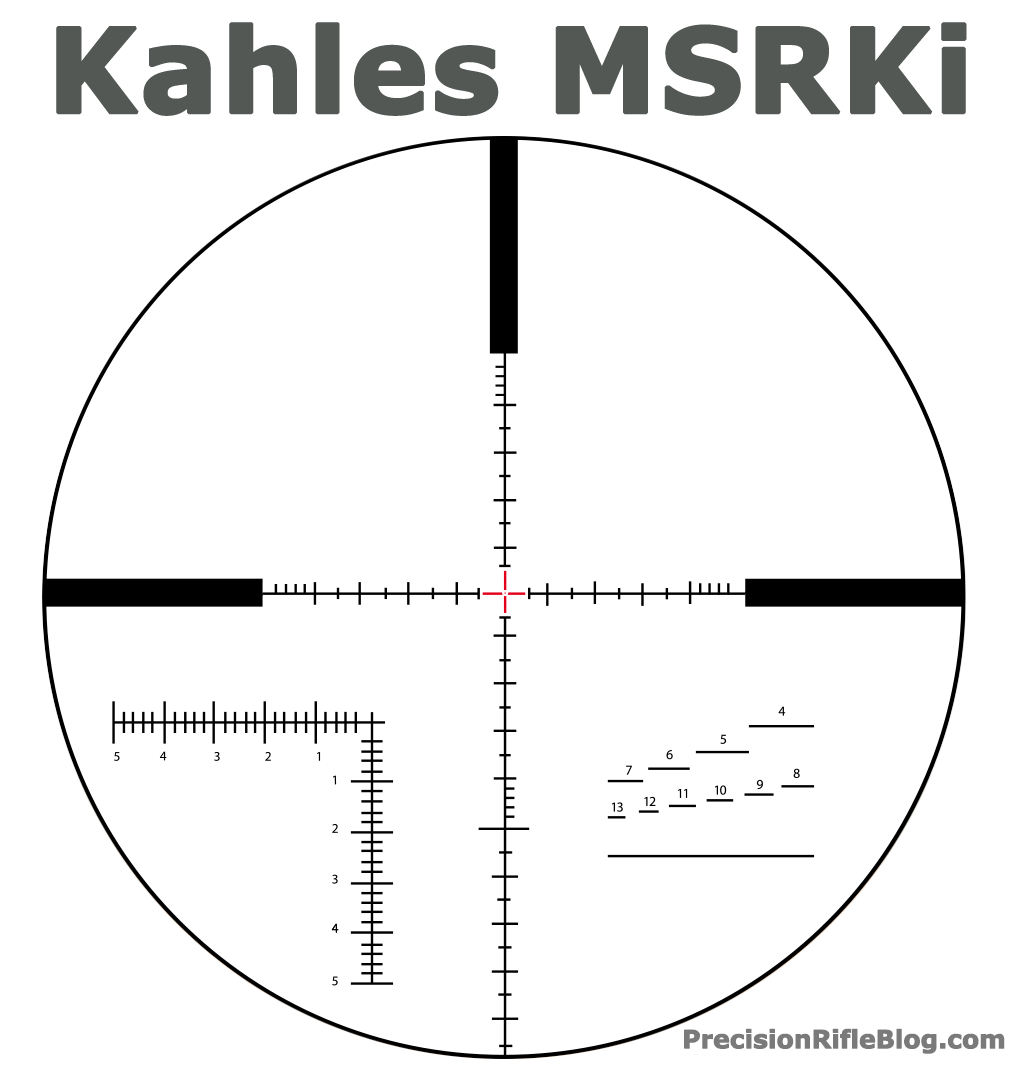

Reticle	MSR
Eye Relief	90mm
Exit Pupil	9.4 - 2.3 mm
Field of View	6.8 - 1.7 m/100 m
Adjustement Graduation	.1 MRAD
Max Elevation Adjustment	25MRAD/86MOA
Max Windage Adjustment	11 MRAD
Parallax Setting	50m to infinity
Length	405 mmmm
Weight	950grams
Type	Optics
Sub Type	Scopes
